AE85-FSPES (1983)
Toyota Sprinter Trueno
Production
May 1983
-
Apr 1987
Engine
3AU
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8305- )4FC

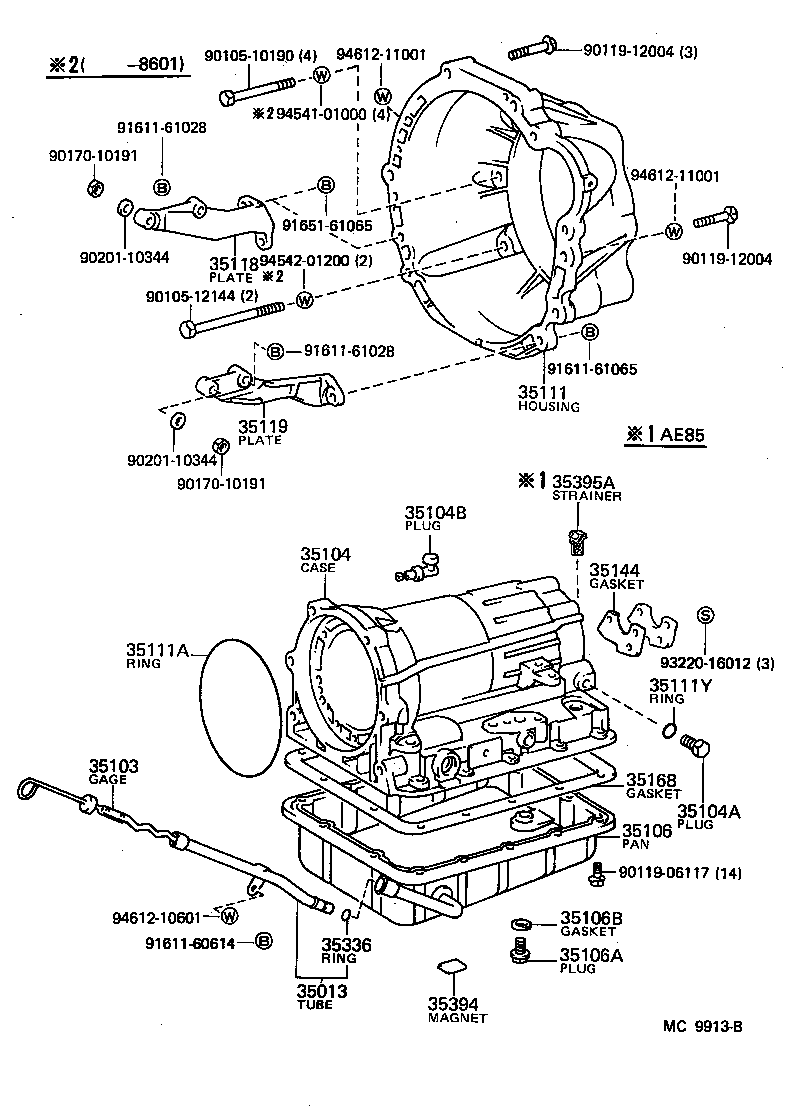

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35013 - TUBE SUB-ASSY, TRANSMISSION OIL FILLER | ||||
| 35013-12170 |
AE85..4FC |
1 | ||
| 35103 - GAGE SUB-ASSY, TRANSMISSION OIL LEVEL | ||||
| 35103-12051 |
AE8#..4FC |
1 | ||
| 35103-12050 |
AE85..4FC |
1 | ||
| 35104 - CASE SUB-ASSY, AUTOMATIC TRANSMISSION | ||||
| 35104-12051 |
AE85..4FC |
1 | ||
| 35104-12050 |
AE85..4FC |
1 | ||
| 35104-12052 |
AE85..4FC |
1 | ||
| 35104A - PLUG, AUTOMATIC TRANSMISSION CASE | ||||
| 90341-08001 |
AE8#..4FC |
2 | ||
| 35104B - PLUG, BREATHER, NO.1 (ATM) | ||||
| 90930-03069 |
AE8#..4FC |
1 | ||
| 90930-03108 |
AE8#..4FC |
1 | ||
| 35106 - PAN SUB-ASSY, AUTOMATIC TRANSMISSION OIL | ||||
| 35106-12030 |
AE8#..4FC |
1 | ||
| 35106A - PLUG SUB-ASSY, DRAIN (ATM) | ||||
| 90341-10003 |
AE85..4FC |
1 | ||
| 90341-10006 |
AE8#..4FC |
1 | ||
| 35106B - GASKET, DRAIN PLUG (ATM) | ||||
| 35178-30010 |
AE8#..4FC |
1 | ||
| 35111 - HOUSING, AUTOMATIC TRANSMISSION | ||||
| 35111-12110 |
AE85..4FC |
1 | ||
| 35111-12111 |
AE8#..4FC |
1 | ||
| 35111A - RING, O (FOR AUTOMATIC TRANSMISSION HOUSING) | ||||
| 90301-99006 |
AE8#..4FC |
1 | ||
| 35111Y - RING, O (FOR AUTOMATIC TRANSMISSION CASE) | ||||
| 90301-06196 |
AE8#..4FC |
2 | ||
| 35118 - PLATE, STIFENER, RH (ATM) | ||||
| 33118-12090 |
AE85..4FC |
1 | ||
| 33118-12110 |
AE8#..4FC |
1 | ||
| 35119 - PLATE, STIFENER, LH (ATM) | ||||
| 33119-12100 |
AE8#..4FC |
1 | ||
| 35144 - GASKET, TRANSMISSION CASE REAR COVER | ||||
| 35144-22010 |
AE8#..4FC |
1 | ||
| 35168 - GASKET, AUTOMATIC TRANSMISSION OIL PAN | ||||
| 35168-22011 |
AE8#..4FC |
1 | ||
| 35336 - RING, O (FOR TRANSMISSION OIL FILLER TUBE) | ||||
| 90301-09173 |
AE8#..4FC |
1 | ||
| 35394 - MAGNET, OIL CLEANER (FOR TRANSMISSION) | ||||
| 35394-30011 |
AE8#..4FC |
2 | ||
| 35395A - STRAINER, GOVERNOR OIL | ||||
| 35395-40010 |
AE85..4FC |
1 | ||
| Common parts | ||||
| 90105-10190 | ||||
| 90105-12144 | ||||
| 90119-06117 | ||||
| 90119-12004 | ||||
| 90170-10191 | ||||
| 90201-10344 | ||||
| 91611-60614 | ||||
| 91611-61028 | ||||
| 91611-61065 | ||||
| 91651-61065 | ||||
| 93220-16012 | ||||
| 94541-01000 | ||||
| 94542-01200 | ||||
| 94612-10601 | ||||
| 94612-11001 | ||||
