Toyota Sprinter trueno AE85 SHIFT LEVER & RETAINER

Manufacturers Home
Toyota
JP
SPRINTER TRUENO
AE85-FSPES (1983)
3312 - SHIFT LEVER & RETAINER

AE85-FSPES (1983)

Toyota Sprinter Trueno

Production May 1983 - Apr 1987

Engine 3AU

Transmission 4FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

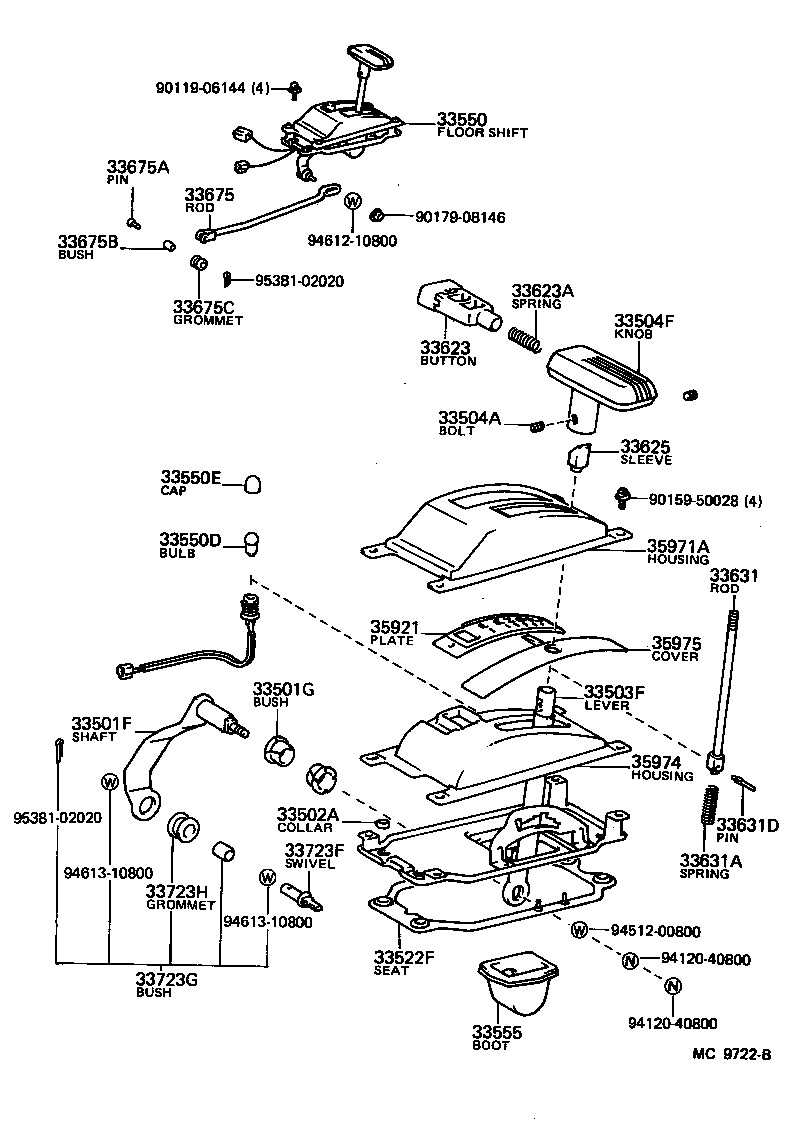

(8305-8505)4FC

Click highlighted areas on diagram

Part #	Description	Period	Qty
33501F - SHAFT SUB-ASSY, CONTROL (FOR FLOOR SHIFT)
33501-12150	AE8#..4FC	05/1983 - 04/1987	1
33501G - BUSH (FOR FLOOR SHIFT CONTROL SHAFT)
90385-16045	AE8#..4FC	05/1983 - 08/1985	2
90385-16008	AE8#..4FC	08/1985 - 04/1987	2
33502A - COLLAR (FOR FLOOR SHIFT SETTING)
90387-06005	AE85..4FC	05/1983 - 04/1987	4
33503F - LEVER SUB-ASSY, SHIFT(FOR FLOOR SHIFT)
33503-12290	AE8#..4FC	05/1985 - 04/1987	1
33503-12160	AE85..4FC	05/1983 - 05/1985	1
33504A - BOLT OR PIN (FOR SHIFT LEVER KNOB SETTING)
90159-40109	AE8#..4FC	05/1985 - 04/1987	2
90113-05034	AE85..4FC	05/1983 - 05/1985	2
33504F - KNOB SUB-ASSY, SHIFT LEVER
33542-3204001	AE8#..4FC BLACK,BLACK,TRIM2#	05/1985 - 04/1987	1
33542-2403001	AE85..4FC BLACK,BLACK,TRIM2#	05/1983 - 05/1985	1
33522F - SEAT, SHIFT LEVER PLATE (FOR FLOOR SHIFT)
33522-12060	AE8#..4FC	05/1983 - 04/1987	1
33550 - FLOOR SHIFT ASSY, TRANSMISSION
33550-12280	AE85..4FC	05/1983 - 05/1985	1
33550-12380	AE8#..4FC	05/1985 - 04/1987	1
33550D - BULB, POSITION INDICATOR LAMP
99132-11017	AE8#..4FC 12V 1.7W,12V 1.7W	05/1983 - 04/1987	1
33550E - CAP, POSITION INDICATOR LAMP
90339-09001	AE8#..4FC	05/1983 - 04/1987	1
33555 - BOOT, SHIFT LEVER
33555-12080	AE8#..4FC	05/1983 - 04/1987	1
33623 - BUTTON, SHIFT LEVER KNOB
33623-22060	AE85..4FC	05/1983 - 05/1985	1
33623-1602001	AE8#..4FC BLACK,BLACK,TRIM2#	05/1985 - 04/1987	1
33623A - SPRING, COMPRESSION (FOR SHIFT LEVER KNOB BUTTON)
90501-07009	AE8#..4FC	05/1983 - 04/1987	1
33625 - SLEEVE, SHIFT LEVER KNOB
33625-32010	AE8#..4FC	05/1985 - 04/1987	1
33625-22020	AE85..4FC	05/1983 - 05/1985	1
33631 - ROD, DETENT
33631-12080	AE8#..4FC	05/1985 - 04/1987	1
33631-12051	AE85..4FC	05/1983 - 05/1985	1
33631A - SPRING, COMPRESSION (FOR DETENT ROD)
90501-07005	AE8#..4FC	05/1983 - 04/1987	1
33631D - PIN, GROOVED (FOR DETENT ROD)
90256-04001	AE8#..4FC	05/1983 - 04/1987	1
33675 - ROD, TRANSMISSION CONTROL (FOR FLOOR SHIFT)
33702-12040	AE8#..4FC	05/1983 - 04/1987	1
33675A - PIN, W/HOLE (FOR TRANSMISSION CONTROL ROD)
90240-08043	AE8#..4FC	05/1983 - 04/1987	1
33675B - BUSH (FOR TRANSMISSION CONTROL ROD)
90387-08022	AE8#..4FC	05/1983 - 04/1987	1
33675C - GROMMET (FOR TRANSMISSION CONTROL ROD)
90480-17013	AE8#..4FC	05/1983 - 04/1987	1
33723F - SWIVEL, CONNECTING ROD (FOR FLOOR SHIFT)
33723-22010	AE8#..4FC	05/1983 - 04/1987	1
33723G - BUSH (FOR FLOOR SHIFT CONTROL SHAFT)
90389-08005	AE8#..4FC	05/1985 - 04/1987	1
90999-99017	AE85..4FC	05/1983 - 05/1985	1
33723H - GROMMET (FOR FLOOR SHIFT CONTROL SHAFT)
90480-17177	AE8#..4FC	05/1983 - 04/1987	1
35921 - PLATE, CONTROL POSITION INDICATOR
35921-12220	AE85..4FC	05/1983 - 05/1985	1
35921-12240	AE8#..4FC	05/1985 - 04/1987	1
35971A - HOUSING, POSITION INDICATOR, UPPER
35971-1207001	AE8#..4FC BLACK	05/1985 - 04/1987	1
35971-1207001	AE85..4FC BLACK,BLACK,TRIM2#	05/1983 - 05/1985	1
35974 - HOUSING, POSITION INDICATOR, LOWER
35974-12060	AE85..4FC	05/1983 - 05/1985	1
35974-12060	AE8#..4FC	05/1985 - 04/1987	1
35975 - COVER, SLIDE (FOR POSITION INDICATOR)
35975-12120	AE8#..4FC	05/1985 - 04/1987	1
35975-12090	AE85..4FC	05/1983 - 05/1985	1
Common parts
90119-06144
90159-50028
90179-08146
94120-40800
94512-00800
94612-10800
94613-10800
95381-02020

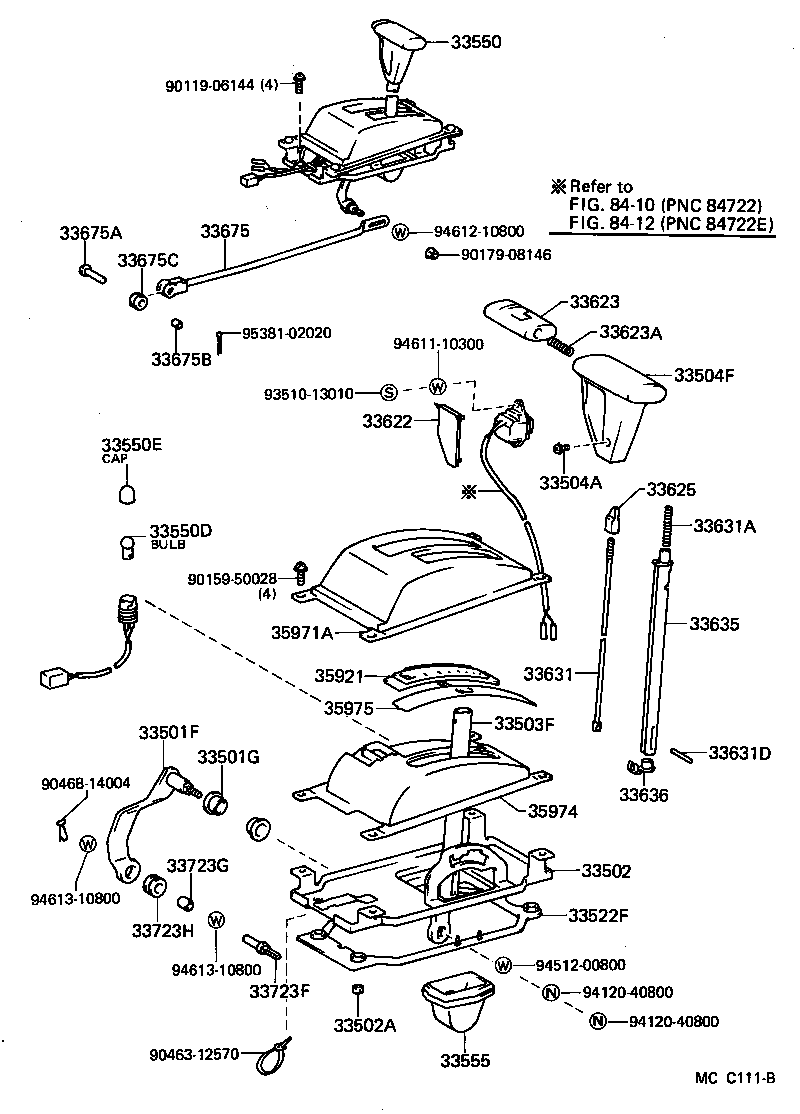

(8505- )4FC

Click highlighted areas on diagram

Part #	Description	Period	Qty
33501F - SHAFT SUB-ASSY, CONTROL (FOR FLOOR SHIFT)
33501-12150	AE8#..4FC	05/1983 - 04/1987	1
33501G - BUSH (FOR FLOOR SHIFT CONTROL SHAFT)
90385-16045	AE8#..4FC	05/1983 - 08/1985	2
90385-16008	AE8#..4FC	08/1985 - 04/1987	2
33502 - PLATE SUB-ASSY, SHIFT LEVER
33502-12230	AE8#..4FC	05/1985 - 04/1987	1
33502A - COLLAR (FOR FLOOR SHIFT SETTING)
90387-06005	AE85..4FC	05/1983 - 04/1987	4
33503F - LEVER SUB-ASSY, SHIFT(FOR FLOOR SHIFT)
33503-12290	AE8#..4FC	05/1985 - 04/1987	1
33503-12160	AE85..4FC	05/1983 - 05/1985	1
33504A - BOLT OR PIN (FOR SHIFT LEVER KNOB SETTING)
90159-40109	AE8#..4FC	05/1985 - 04/1987	2
90113-05034	AE85..4FC	05/1983 - 05/1985	2
33504F - KNOB SUB-ASSY, SHIFT LEVER
33542-3204001	AE8#..4FC BLACK,BLACK,TRIM2#	05/1985 - 04/1987	1
33542-2403001	AE85..4FC BLACK,BLACK,TRIM2#	05/1983 - 05/1985	1
33522F - SEAT, SHIFT LEVER PLATE (FOR FLOOR SHIFT)
33522-12060	AE8#..4FC	05/1983 - 04/1987	1
33550 - FLOOR SHIFT ASSY, TRANSMISSION
33550-12280	AE85..4FC	05/1983 - 05/1985	1
33550-12380	AE8#..4FC	05/1985 - 04/1987	1
33550D - BULB, POSITION INDICATOR LAMP
99132-11017	AE8#..4FC 12V 1.7W,12V 1.7W	05/1983 - 04/1987	1
33550E - CAP, POSITION INDICATOR LAMP
90339-09001	AE8#..4FC	05/1983 - 04/1987	1
33555 - BOOT, SHIFT LEVER
33555-12080	AE8#..4FC	05/1983 - 04/1987	1
33622 - COVER, SHIFT LEVER KNOB, NO.1
33622-1601001	AE8#..4FC BLACK,BLACK,TRIM2#	05/1985 - 04/1987	1
33623 - BUTTON, SHIFT LEVER KNOB
33623-22060	AE85..4FC	05/1983 - 05/1985	1
33623-1602001	AE8#..4FC BLACK,BLACK,TRIM2#	05/1985 - 04/1987	1
33623A - SPRING, COMPRESSION (FOR SHIFT LEVER KNOB BUTTON)
90501-07009	AE8#..4FC	05/1983 - 04/1987	1
33625 - SLEEVE, SHIFT LEVER KNOB
33625-32010	AE8#..4FC	05/1985 - 04/1987	1
33625-22020	AE85..4FC	05/1983 - 05/1985	1
33631 - ROD, DETENT
33631-12080	AE8#..4FC	05/1985 - 04/1987	1
33631-12051	AE85..4FC	05/1983 - 05/1985	1
33631A - SPRING, COMPRESSION (FOR DETENT ROD)
90501-07005	AE8#..4FC	05/1983 - 04/1987	1
33631D - PIN, GROOVED (FOR DETENT ROD)
90256-04001	AE8#..4FC	05/1983 - 04/1987	1
33635 - GUIDE, WIRE (FOR SHIFT LEVER)
33635-12030	AE8#..4FC	05/1985 - 04/1987	1
33636 - GUIDE, WIRE, NO.2 (FOR SHIFT LEVER)
33636-16010	AE8#..4FC	05/1985 - 04/1987	1
33675 - ROD, TRANSMISSION CONTROL (FOR FLOOR SHIFT)
33702-12040	AE8#..4FC	05/1983 - 04/1987	1
33675A - PIN, W/HOLE (FOR TRANSMISSION CONTROL ROD)
90240-08043	AE8#..4FC	05/1983 - 04/1987	1
33675B - BUSH (FOR TRANSMISSION CONTROL ROD)
90387-08022	AE8#..4FC	05/1983 - 04/1987	1
33675C - GROMMET (FOR TRANSMISSION CONTROL ROD)
90480-17013	AE8#..4FC	05/1983 - 04/1987	1
33723F - SWIVEL, CONNECTING ROD (FOR FLOOR SHIFT)
33723-22010	AE8#..4FC	05/1983 - 04/1987	1
33723G - BUSH (FOR FLOOR SHIFT CONTROL SHAFT)
90389-08005	AE8#..4FC	05/1985 - 04/1987	1
90999-99017	AE85..4FC	05/1983 - 05/1985	1
33723H - GROMMET (FOR FLOOR SHIFT CONTROL SHAFT)
90480-17177	AE8#..4FC	05/1983 - 04/1987	1
35921 - PLATE, CONTROL POSITION INDICATOR
35921-12220	AE85..4FC	05/1983 - 05/1985	1
35921-12240	AE8#..4FC	05/1985 - 04/1987	1
35971A - HOUSING, POSITION INDICATOR, UPPER
35971-1207001	AE8#..4FC BLACK	05/1985 - 04/1987	1
35971-1207001	AE85..4FC BLACK,BLACK,TRIM2#	05/1983 - 05/1985	1
35974 - HOUSING, POSITION INDICATOR, LOWER
35974-12060	AE85..4FC	05/1983 - 05/1985	1
35974-12060	AE8#..4FC	05/1985 - 04/1987	1
35975 - COVER, SLIDE (FOR POSITION INDICATOR)
35975-12120	AE8#..4FC	05/1985 - 04/1987	1
35975-12090	AE85..4FC	05/1983 - 05/1985	1
Common parts
90119-06144
90159-50028
90179-08146
90463-12570
90468-14004
93510-13010
94120-40800
94512-00800
94611-10300
94612-10800
94613-10800
95381-02020
