AE85-FSPES (1983)

Toyota Sprinter Trueno

Production May 1983 - Apr 1987
Engine 3AU
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8305- )3AU

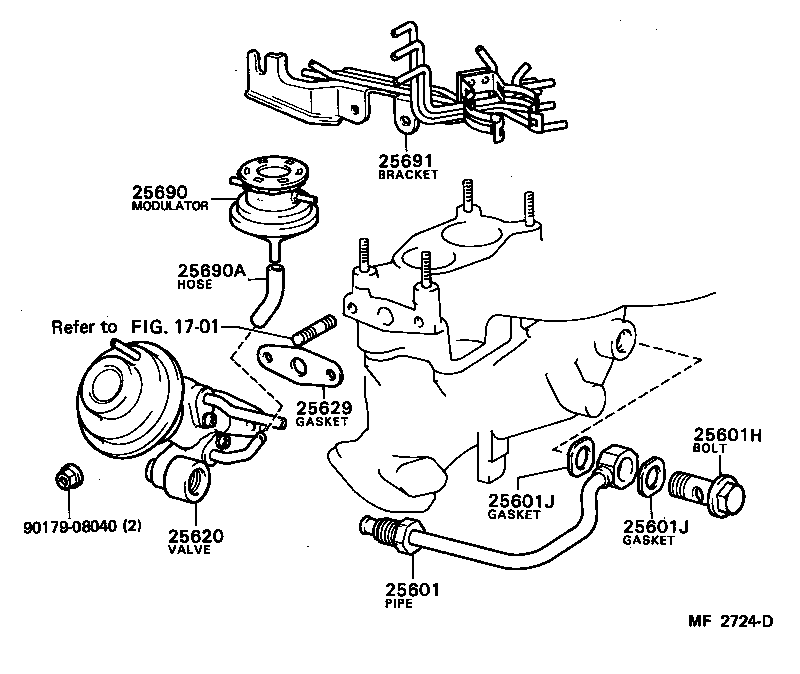

Click highlighted areas on diagram

diagram 1701 25601 25601H 25601J 25601J 25620 25629 25690 25690A 25691 9017908040
Part # Description Qty Price
25601 - PIPE SUB-ASSY, EGR, NO.1
25601-15020

3AU..AE85

 1
25601H - BOLT, UNION(FOR EGR PIPE,NO.1)
90401-20003

3AU..AE85

 1
25601J - GASKET(FOR EGR PIPE, NO.1)
90430-20005

3AU..AE85

 2
25601J - GASKET(FOR EGR PIPE, NO.1)
90430-20005

3AU..AE85

 2
25620 - VALVE ASSY, EGR
25620-15290

3AU..AE85

 1
25620-15190

3AU..AE85

 1
25629 - GASKET, EGR VALVE ADAPTER
25629-15011

3AU..AE85

 1
25690 - MODULATOR ASSY, EGR VACUUM
25870-15190

3AU..AE85

 1
25870-15100

3AU..AE85

 1
25690A - HOSE(FOR EGR VACUUM MODULATOR)
25695-15020

3AU..AE85

 1
90445-11041

3AU..AE85

 1
25691 - BRACKET, EGR VACUUM MODULATOR
25691-15180

3AU..AE85

 1
25691-15071

3AU..AE85

 1
Common parts
90179-08040
Linked diagrams
1701
