AE85-FSPES (1983)
Toyota Sprinter Trueno
Production
May 1983
-
Apr 1987
Engine
3AU
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)

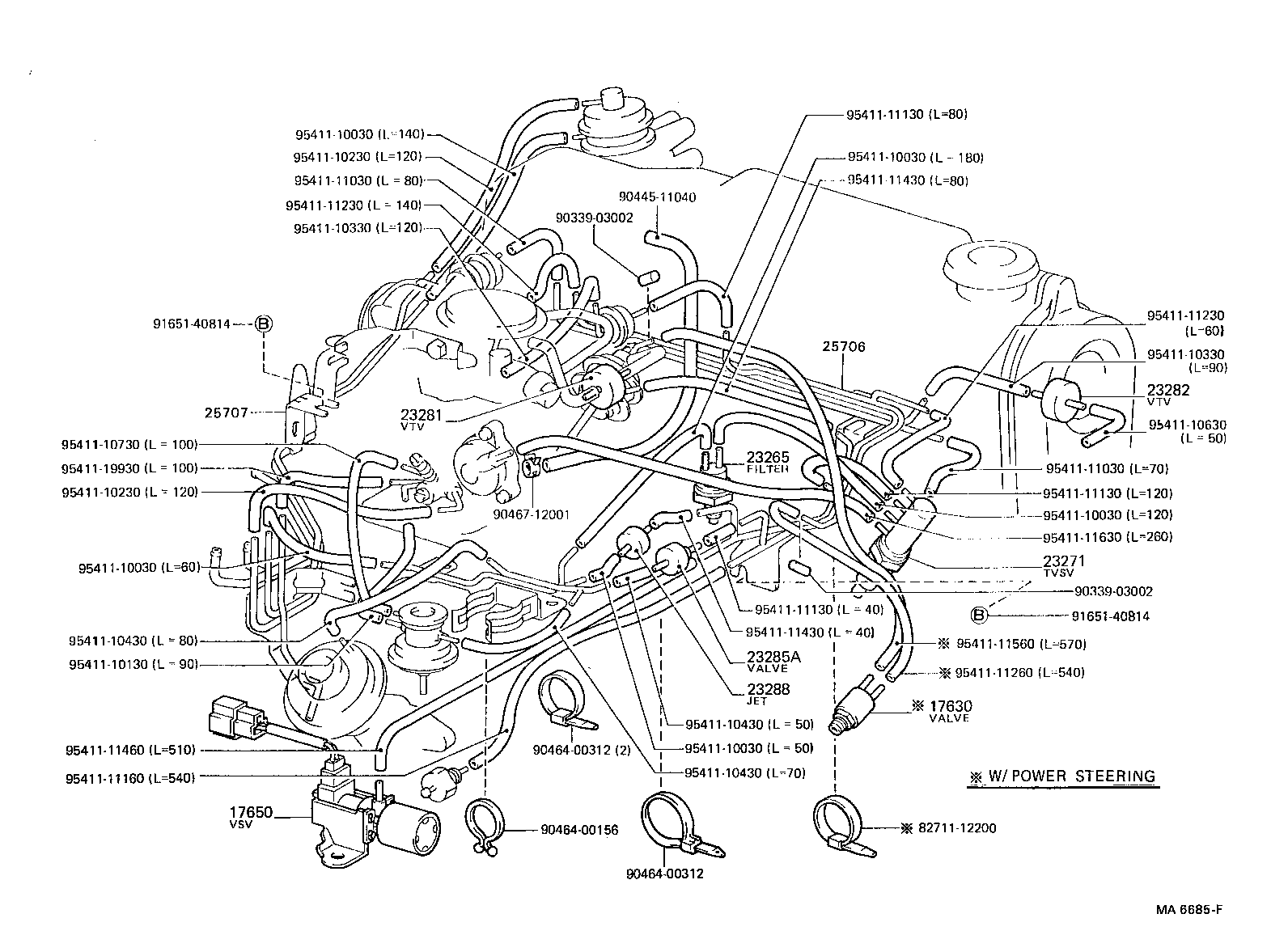

ILLUST NO. 1 OF 2(8305-8505)3AU
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17630 - VALVE ASSY, AIR CONTROL | ||||
| 17630-15021 |
3AU..AE85 W/PS |
1 | ||
| 17630-15020 |
3AU..AE85 W/PS |
1 | ||
| 17650 - VALVE ASSY, VACUUM SWITCHING | ||||
| 89570-12220 |
3AU..AE85 |
1 | ||
| 89570-12340 |
3AU..AE85 NO.1 |
1 | ||
| 23265 - FILTER, GAS, NO.1 | ||||
| 90917-11023 |
3AU..AE85 |
1 | ||
| 23271 - VALVE, THERMOSTATIC VACUUM SWITCHING, NO.1 | ||||
| 90925-02078 |
3AU..AE85 |
1 | ||
| 90925-02076 |
3AU..AE85 |
1 | ||
| 23281 - VALVE, VACUUM TRANSMITTING, NO.1 | ||||
| 90925-01091 |
3AU..AE85 |
1 | ||
| 23282 - VALVE, VACUUM TRANSMITTING, NO.2 | ||||
| 90925-01095 |
3AU..AE85 |
1 | ||
| 23285A - VALVE, CHECK, NO.1 | ||||
| 90917-10049 |
3AU..AE85 |
2 | ||
| 23288 - JET, NO.1 | ||||
| 90925-04012 |
3AU..AE85 |
1 | ||
| 90925-04013 |
3AU..AE85 |
1 | ||
| 90925-01095 |
3AU..AE85 |
1 | ||
| 25706 - PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.1 | ||||
| 25706-15190 |
3AU..AE85 |
1 | ||
| 25706-15160 |
3AU..AE85 |
1 | ||
| 25706-15161 |
3AU..AE85 |
1 | ||
| 25707 - PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.2 | ||||
| 25707-15120 |
3AU..AE85 |
1 | ||
| Common parts | ||||
| 82711-12200 | ||||
| 90339-03002 | ||||
| 90445-11040 | ||||
| 90464-00156 | ||||
| 90464-00312 | ||||
| 90467-12001 | ||||
| 91651-40814 | ||||
| 95411-10030 | ||||
| 95411-10130 | ||||
| 95411-10230 | ||||
| 95411-10330 | ||||
| 95411-10430 | ||||
| 95411-10630 | ||||
| 95411-10730 | ||||
| 95411-11030 | ||||
| 95411-11130 | ||||
| 95411-11160 | ||||
| 95411-11230 | ||||
| 95411-11260 | ||||
| 95411-11430 | ||||
| 95411-11460 | ||||
| 95411-11560 | ||||
| 95411-11630 | ||||
| 95411-19930 | ||||

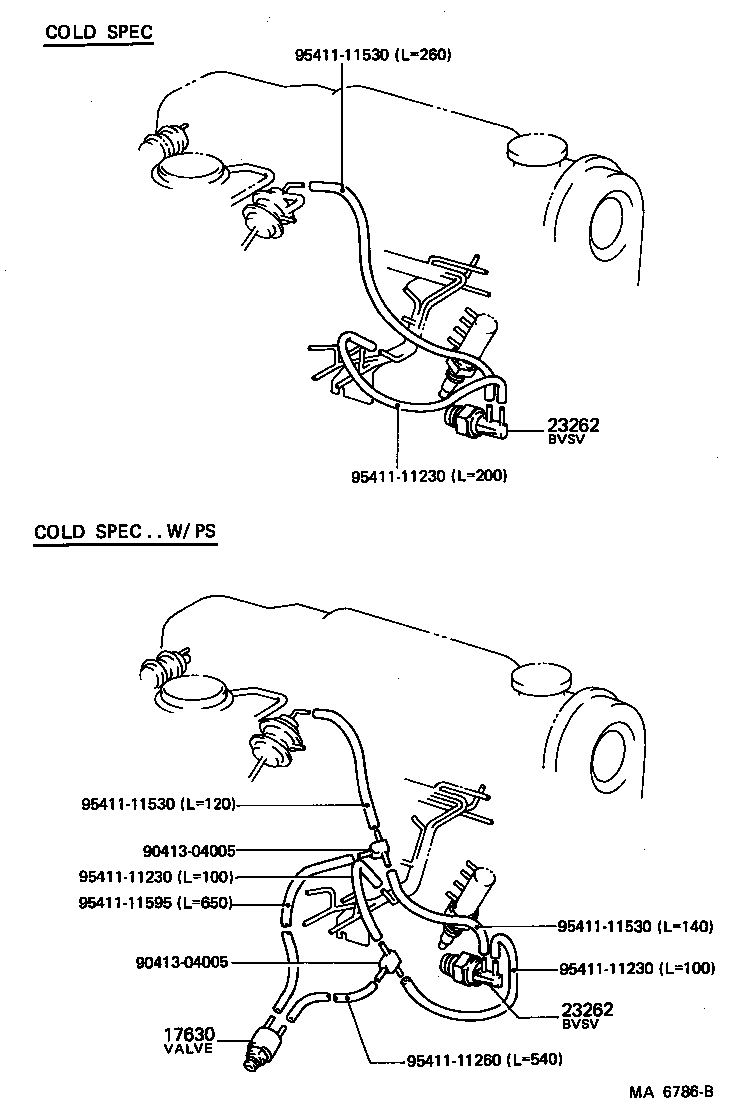

ILLUST NO. 2 OF 2(8305-8505)3AU
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17630 - VALVE ASSY, AIR CONTROL | ||||
| 17630-15021 |
3AU..AE85 W/PS |
1 | ||
| 17630-15020 |
3AU..AE85 W/PS |
1 | ||
| 23262 - VALVE, BIMETAL VACUUM SWITCHING, NO.1 | ||||
| 90925-05013 |
3AU..AE85 COLD SPEC |
1 | ||
| 23262 - VALVE, BIMETAL VACUUM SWITCHING, NO.1 | ||||
| 90925-05013 |
3AU..AE85 COLD SPEC |
1 | ||
| Common parts | ||||
| 90413-04005 | ||||
| 95411-11230 | ||||
| 95411-11260 | ||||
| 95411-11530 | ||||
| 95411-11595 | ||||

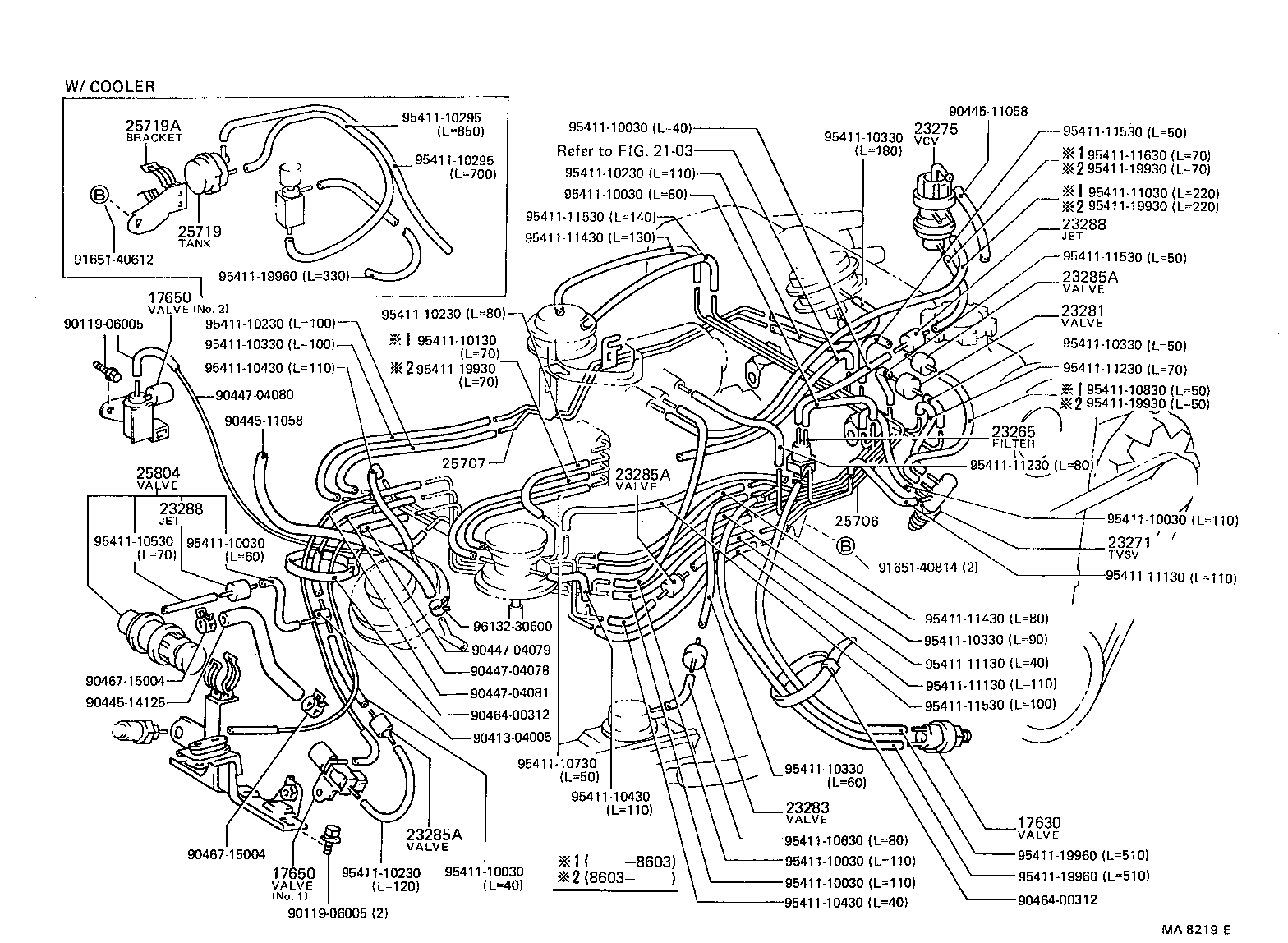

(8505- )3AU
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17630 - VALVE ASSY, AIR CONTROL | ||||
| 17630-15021 |
3AU..AE85 W/PS |
1 | ||
| 17630-15020 |
3AU..AE85 W/PS |
1 | ||
| 17650 - VALVE ASSY, VACUUM SWITCHING | ||||
| 89570-12220 |
3AU..AE85 |
1 | ||
| 89570-12340 |
3AU..AE85 NO.1 |
1 | ||
| 17650 - VALVE ASSY, VACUUM SWITCHING | ||||
| 89570-12220 |
3AU..AE85 |
1 | ||
| 89570-12340 |
3AU..AE85 NO.1 |
1 | ||
| 23265 - FILTER, GAS, NO.1 | ||||
| 90917-11023 |
3AU..AE85 |
1 | ||
| 23271 - VALVE, THERMOSTATIC VACUUM SWITCHING, NO.1 | ||||
| 90925-02078 |
3AU..AE85 |
1 | ||
| 90925-02076 |
3AU..AE85 |
1 | ||
| 23275 - VALVE, VACUUM CONTROL, NO.1 | ||||
| 90925-03159 |
3AU..AE85 |
1 | ||
| 23281 - VALVE, VACUUM TRANSMITTING, NO.1 | ||||
| 90925-01091 |
3AU..AE85 |
1 | ||
| 23283 - VALVE, VACUUM TRANSMITTING, NO.3 | ||||
| 90925-01095 |
3AU..AE85 |
1 | ||
| 23285A - VALVE, CHECK, NO.1 | ||||
| 90917-10049 |
3AU..AE85 |
2 | ||
| 23285A - VALVE, CHECK, NO.1 | ||||
| 90917-10049 |
3AU..AE85 |
2 | ||
| 23285A - VALVE, CHECK, NO.1 | ||||
| 90917-10049 |
3AU..AE85 |
2 | ||
| 23288 - JET, NO.1 | ||||
| 90925-04012 |
3AU..AE85 |
1 | ||
| 90925-04013 |
3AU..AE85 |
1 | ||
| 90925-01095 |
3AU..AE85 |
1 | ||
| 23288 - JET, NO.1 | ||||
| 90925-04012 |
3AU..AE85 |
1 | ||
| 90925-04013 |
3AU..AE85 |
1 | ||
| 90925-01095 |
3AU..AE85 |
1 | ||
| 25706 - PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.1 | ||||
| 25706-15190 |
3AU..AE85 |
1 | ||
| 25706-15160 |
3AU..AE85 |
1 | ||
| 25706-15161 |
3AU..AE85 |
1 | ||
| 25707 - PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.2 | ||||
| 25707-15120 |
3AU..AE85 |
1 | ||
| 25719 - TANK, VACUUM SURGE | ||||
| 25719-15010 |
3AU..AE85 W/COOLER |
1 | ||
| 25719A - BRACKET, VACUUM TANK CLAMP | ||||
| 44756-12010 |
3AU..AE85 W/COOLER |
1 | ||
| 25804 - VALVE SET, VACUUM CONTROL | ||||
| 25804-12010 |
3AU..AE85 |
1 | ||
| Common parts | ||||
| 90119-06005 | ||||
| 90413-04005 | ||||
| 90445-11058 | ||||
| 90445-14125 | ||||
| 90447-04078 | ||||
| 90447-04079 | ||||
| 90447-04080 | ||||
| 90447-04081 | ||||
| 90464-00312 | ||||
| 90467-15004 | ||||
| 91651-40612 | ||||
| 91651-40814 | ||||
| 95411-10030 | ||||
| 95411-10130 | ||||
| 95411-10230 | ||||
| 95411-10295 | ||||
| 95411-10330 | ||||
| 95411-10430 | ||||
| 95411-10530 | ||||
| 95411-10630 | ||||
| 95411-10730 | ||||
| 95411-10830 | ||||
| 95411-11030 | ||||
| 95411-11130 | ||||
| 95411-11230 | ||||
| 95411-11430 | ||||
| 95411-11530 | ||||
| 95411-11630 | ||||
| 95411-19930 | ||||
| 95411-19960 | ||||
| 96132-30600 | ||||
| Linked diagrams | ||||
| 2103 | ||||
(8305- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 95411-10030 | ||||
| 95411-10160 | ||||
| 95411-19995 | ||||
