AE85-FSMES (1983)

Toyota Sprinter Trueno

Production May 1983 - Apr 1987
Engine 3AU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8305-8505)

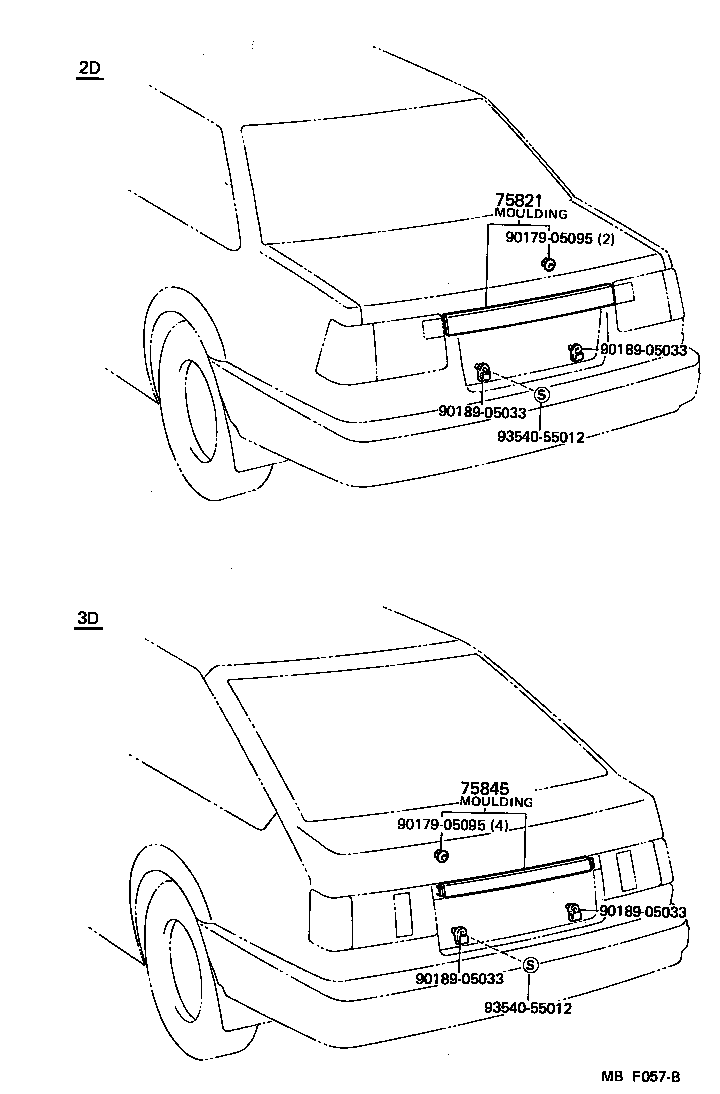

Click highlighted areas on diagram

diagram 75821 75845 9017905095 9017905095 9018905033 9018905033 9018905033 9018905033 9354055012 9354055012
Part # Description Qty Price
75845 - MOULDING, BODY LOWER BACK PANEL, CENTER
75803-12050

AE8#..2D

 1
Common parts
90179-05095
90189-05033
93540-55012

(8505- )

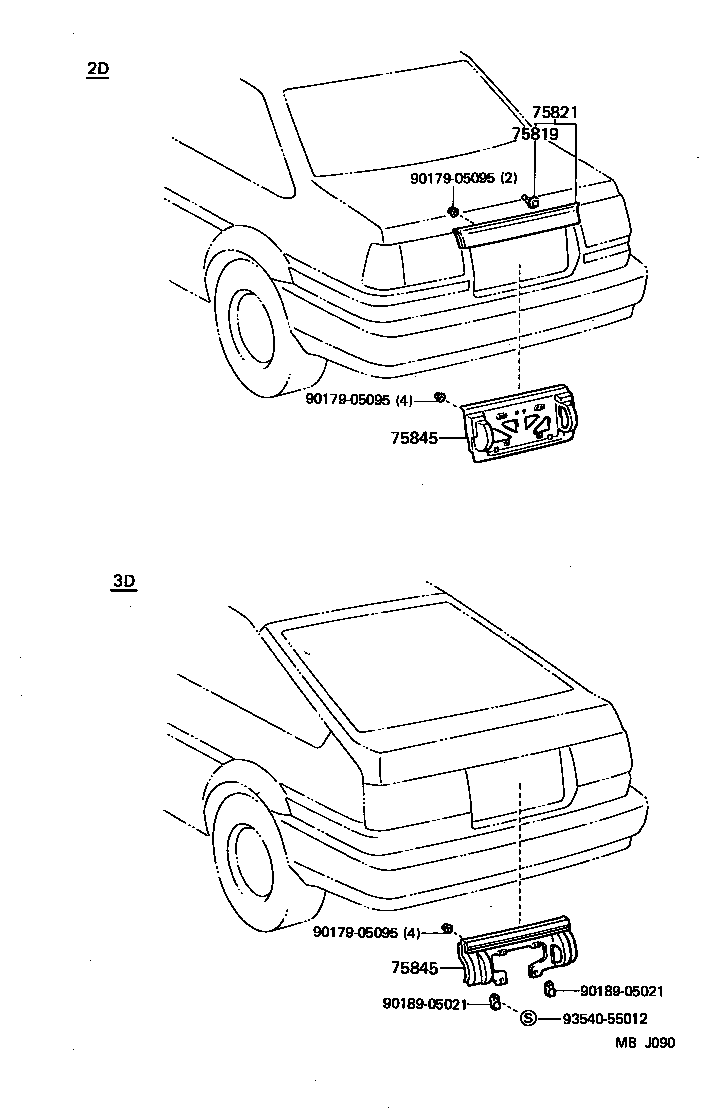

Click highlighted areas on diagram

diagram 75819 75821 75845 75845 9017905095 9017905095 9017905095 9018905021 9018905021 9354055012
Part # Description Qty Price
75845 - MOULDING, BODY LOWER BACK PANEL, CENTER
75803-12050

AE8#..2D

 1
75845 - MOULDING, BODY LOWER BACK PANEL, CENTER
75803-12050

AE8#..2D

 1
Common parts
90179-05095
90189-05021
93540-55012
