AL25G-MWHES (1983)

Toyota Sprinter Carib

Production Oct 1983 - Jan 1988
Engine 3AU
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8310- )3FC

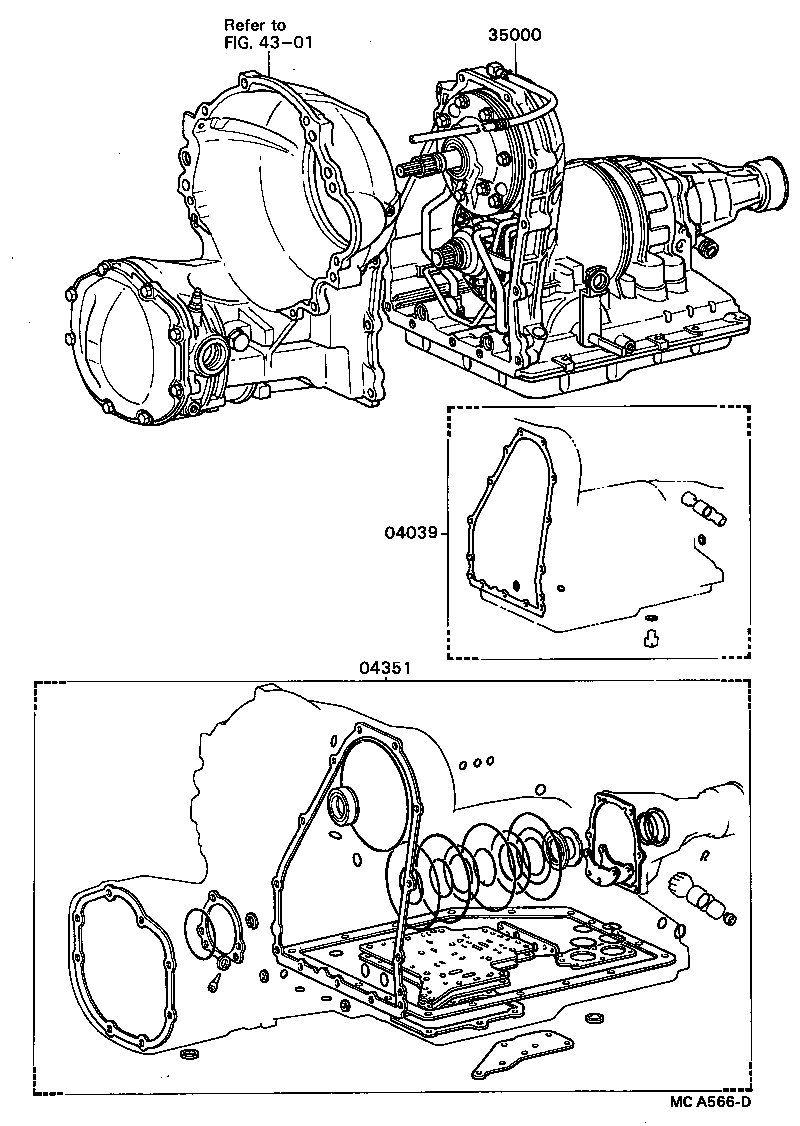

Click highlighted areas on diagram

diagram 04039 04351 35000 4301
Part # Description Qty Price
04039 - GASKET KIT, OVERHOLE(ATM)
04039-16010

AL25..3FC

 1
04351 - GASKET KIT, AUTOMATIC TRANSMISSION OVERHAUL
04351-16040

AL25..3FC

 1
04351-16020

AL25..3FC

 1
35000 - TRANSMISSION ASSY, AUTOMATIC
35000-16030

AL25..3FC

 1
35000-16031

AL25..3FC

 1
Linked diagrams
4301
