AL25G-MWFNS (1982)
Toyota Sprinter Carib
(8208- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

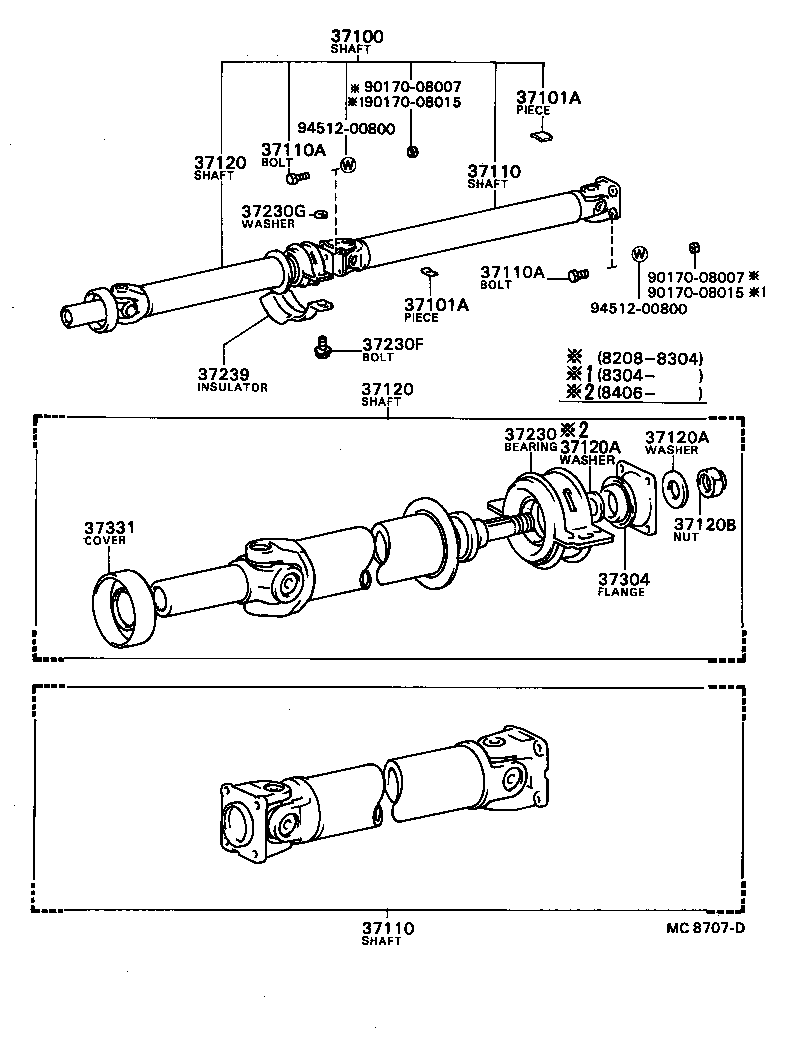

| 37100 - SHAFT ASSY, PROPELLER W/CENTER BEARING | ||||
| 37100-16010 |
AL25..6F |
1 | ||
| 37101A - PIECE, BALANCE, NO.1 (FOR PROPELLER SHAFT) | ||||
| 90937-01148 |
AL25 4G,厚さ=2.0,4G |
1 | ||
| 90937-01150 |
AL25 8G,長さ=16.6,8G |
1 | ||
| 90937-01149 |
AL25 6G,長さ=12.4,6G |
1 | ||
| 90937-01132 |
AL25 10G,長さ=20.7,10G |
1 | ||
| 90937-01136 |
AL25 20G,長さ=41.4,20G |
1 | ||
| 90937-01152 |
AL25 14G,長さ=29.0,14G |
1 | ||
| 90937-01156 |
AL25 24G,長さ=49.7,24G |
1 | ||
| 90937-01314 |
AL25 9G,長さ=18.5,9G |
1 | ||
| 90937-01147 |
AL25 2G,厚さ=2.0,2G |
1 | ||
| 90937-01153 |
AL25 16G,長さ=33.2,16G |
1 | ||
| 90937-01311 |
AL25 3G,3G |
1 | ||
| 90937-01151 |
AL25 12G,長さ=24.9,12G |
1 | ||
| 90937-01154 |
AL25 18G,長さ=37.3,18G |
1 | ||
| 90937-01312 |
AL25 5G,5G |
1 | ||
| 90937-01313 |
AL25 7G,長さ=14.4,7G |
1 | ||
| 90937-01157 |
AL25 26G,長さ=53.9,26G |
1 | ||
| 90937-01158 |
AL25 28G,長さ=58.1,28G |
1 | ||
| 90937-01155 |
AL25 22G,長さ=45.6,22G |
1 | ||
| 90937-01140 |
AL25 30G,長さ=62.2,30G |
1 | ||
| 37101A - PIECE, BALANCE, NO.1 (FOR PROPELLER SHAFT) | ||||
| 90937-01148 |
AL25 4G,厚さ=2.0,4G |
1 | ||
| 90937-01150 |
AL25 8G,長さ=16.6,8G |
1 | ||
| 90937-01149 |
AL25 6G,長さ=12.4,6G |
1 | ||
| 90937-01132 |
AL25 10G,長さ=20.7,10G |
1 | ||
| 90937-01136 |
AL25 20G,長さ=41.4,20G |
1 | ||
| 90937-01152 |
AL25 14G,長さ=29.0,14G |
1 | ||
| 90937-01156 |
AL25 24G,長さ=49.7,24G |
1 | ||
| 90937-01314 |
AL25 9G,長さ=18.5,9G |
1 | ||
| 90937-01147 |
AL25 2G,厚さ=2.0,2G |
1 | ||
| 90937-01153 |
AL25 16G,長さ=33.2,16G |
1 | ||
| 90937-01311 |
AL25 3G,3G |
1 | ||
| 90937-01151 |
AL25 12G,長さ=24.9,12G |
1 | ||
| 90937-01154 |
AL25 18G,長さ=37.3,18G |
1 | ||
| 90937-01312 |
AL25 5G,5G |
1 | ||
| 90937-01313 |
AL25 7G,長さ=14.4,7G |
1 | ||
| 90937-01157 |
AL25 26G,長さ=53.9,26G |
1 | ||
| 90937-01158 |
AL25 28G,長さ=58.1,28G |
1 | ||
| 90937-01155 |
AL25 22G,長さ=45.6,22G |
1 | ||
| 90937-01140 |
AL25 30G,長さ=62.2,30G |
1 | ||
| 37110 - SHAFT ASSY, PROPELLER | ||||
| 37110-16010 |
AL25 |
1 | ||
| 37110 - SHAFT ASSY, PROPELLER | ||||
| 37110-16010 |
AL25 |
1 | ||
| 37110A - BOLT (FOR PROPELLER SHAFT) | ||||
| 90101-08082 |
AL25 *8−1.25PX25−12 |
8 | ||
| 90101-08062 |
AL25 |
8 | ||
| 37110A - BOLT (FOR PROPELLER SHAFT) | ||||
| 90101-08082 |
AL25 *8−1.25PX25−12 |
8 | ||
| 90101-08062 |
AL25 |
8 | ||
| 37120 - SHAFT ASSY, PROPELLER INTERMEDIATE | ||||
| 37120-16010 |
AL25..6F |
1 | ||
| 37120 - SHAFT ASSY, PROPELLER INTERMEDIATE | ||||
| 37120-16010 |
AL25..6F |
1 | ||
| 37120A - WASHER, PLATE (FOR PROPELLER INTERMEDIATE SHAFT SET) | ||||
| 90201-18182 |
AL25 外径=33.5,厚さ=4.0,OD=33.5,T=4 |
1 | ||
| 90201-26005 |
AL25 外径=36.6,厚さ=0.8,OD=36.6,T=0.8 |
1 | ||
| 37120A - WASHER, PLATE (FOR PROPELLER INTERMEDIATE SHAFT SET) | ||||
| 90201-18182 |
AL25 外径=33.5,厚さ=4.0,OD=33.5,T=4 |
1 | ||
| 90201-26005 |
AL25 外径=36.6,厚さ=0.8,OD=36.6,T=0.8 |
1 | ||
| 37120B - NUT (FOR PROPELLER INTERMEDIATE SHAFT SETTING) | ||||
| 90179-18060 |
AL25 |
1 | ||
| 90179-18009 |
AL25 |
1 | ||
| 37230 - BEARING ASSY, CENTER SUPPORT, NO.1 | ||||
| 37230-24020 |
AL25 |
1 | ||
| 37230F - BOLT, NO.1 (FOR CENTER SUPPORT BEARING) | ||||
| 90119-10046 |
AL25 |
2 | ||
| 37230G - WASHER, NO.2 (FOR CENTER SUPPORT BEARING) | ||||
| 90201-10010 |
AL25 厚さ=12.0,T=12.0 |
2 | ||
| 90201-10008 |
AL25 厚さ=4.5,T=4.5 |
2 | ||
| 90201-10017 |
AL25 厚さ=9.0,T=9.0 |
2 | ||
| 90201-10033 |
AL25 厚さ=6.5,T=6.5 |
2 | ||
| 37239 - INSULATOR, CENTER SUPPORT BEARING HEAT | ||||
| 37239-14050 |
AL25 |
1 | ||
| 37304 - FLANGE SUB-ASSY, UNIVERSAL JOINT | ||||
| 37304-22012 |
AL25 |
1 | ||
| 37304-22013 |
AL25 |
1 | ||
| 37331 - COVER, SLIDING SHAFT DUST | ||||
| 37331-12010 |
AL25 |
1 | ||
| Common parts | ||||
| 90170-08007 | ||||
| 90170-08015 | ||||
| 94512-00800 | ||||
