AL25G-MWFES (1982)
Toyota Sprinter Carib
Production
Aug 1982
-
Aug 1984
Engine
3AU
Transmission
6F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8208-8605)

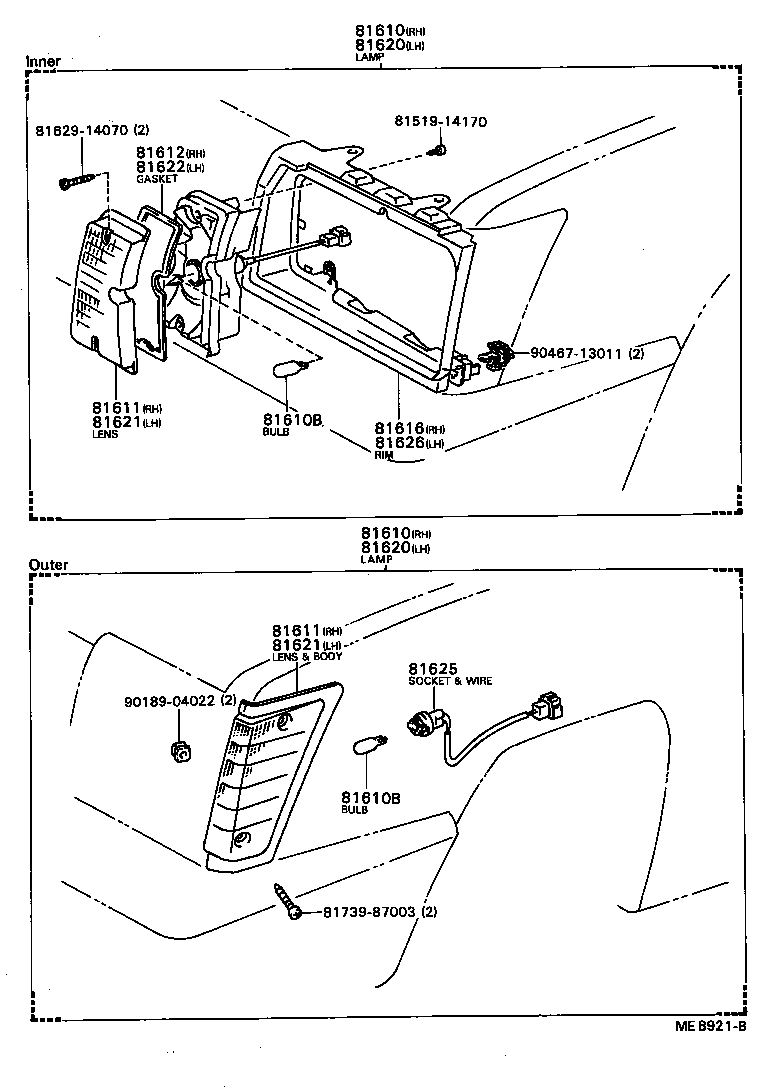

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81610 - LAMP ASSY, PARKING & CLEARANCE, RH | ||||
| 81610-19405 |
AL25 OUTER |
1 | ||
| 81610-16100 |
AL25 INNER |
1 | ||
| 81610 - LAMP ASSY, PARKING & CLEARANCE, RH | ||||
| 81610-19405 |
AL25 OUTER |
1 | ||
| 81610-16100 |
AL25 INNER |
1 | ||
| 81610B - BULB(FOR PARKING & CLEARANCE LAMP) | ||||
| 99132-12050 |
AL25 12V 5W,12V 5W |
4 | ||
| 81610B - BULB(FOR PARKING & CLEARANCE LAMP) | ||||
| 99132-12050 |
AL25 12V 5W,12V 5W |
4 | ||
| 81611 - LENS, PARKING & CLEARANCE LAMP, RH | ||||
| 81611-16100 |
AL25 INNER |
1 | ||
| 81611-16080 |
AL25 OUTER |
1 | ||
| 81611 - LENS, PARKING & CLEARANCE LAMP, RH | ||||
| 81611-16100 |
AL25 INNER |
1 | ||
| 81611-16080 |
AL25 OUTER |
1 | ||
| 81612 - GASKET, PARKING AND CLEARANCE LAMP LENS, RH | ||||
| 81612-16100 |
AL25 INNER |
1 | ||
| 81616 - RIM, PARKING AND CLEARANCE LAMP, RH | ||||
| 81616-16100 |
AL25 INNER |
1 | ||
| 81620 - LAMP ASSY, PARKING & CLEARANCE, LH | ||||
| 81620-16100 |
AL25 INNER |
1 | ||
| 81620-19405 |
AL25 OUTER |
1 | ||
| 81620 - LAMP ASSY, PARKING & CLEARANCE, LH | ||||
| 81620-16100 |
AL25 INNER |
1 | ||
| 81620-19405 |
AL25 OUTER |
1 | ||
| 81621 - LENS, PARKING & CLEARANCE LAMP, LH | ||||
| 81621-16080 |
AL25 OUTER |
1 | ||
| 81621-16100 |
AL25 INNER |
1 | ||
| 81621 - LENS, PARKING & CLEARANCE LAMP, LH | ||||
| 81621-16080 |
AL25 OUTER |
1 | ||
| 81621-16100 |
AL25 INNER |
1 | ||
| 81622 - GASKET, PARKING AND CLEARANCE LAMP LENS, LH | ||||
| 81612-16100 |
AL25 INNER |
1 | ||
| 81625 - SOCKET AND WIRE, PARKING AND CLEARANCE LAMP | ||||
| 81615-16040 |
AL25 OUTER |
1 | ||
| 81626 - RIM, PARKING AND CLEARANCE LAMP, LH | ||||
| 81626-16100 |
AL25 INNER |
1 | ||
| Common parts | ||||
| 81519-14170 | ||||
| 81629-14070 | ||||
| 81739-87003 | ||||
| 90189-04022 | ||||
| 90467-13011 | ||||
