AL25G-MWFES (1982)
Toyota Sprinter Carib
Production
Aug 1982
-
Aug 1984
Engine
3AU
Transmission
6F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8208- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

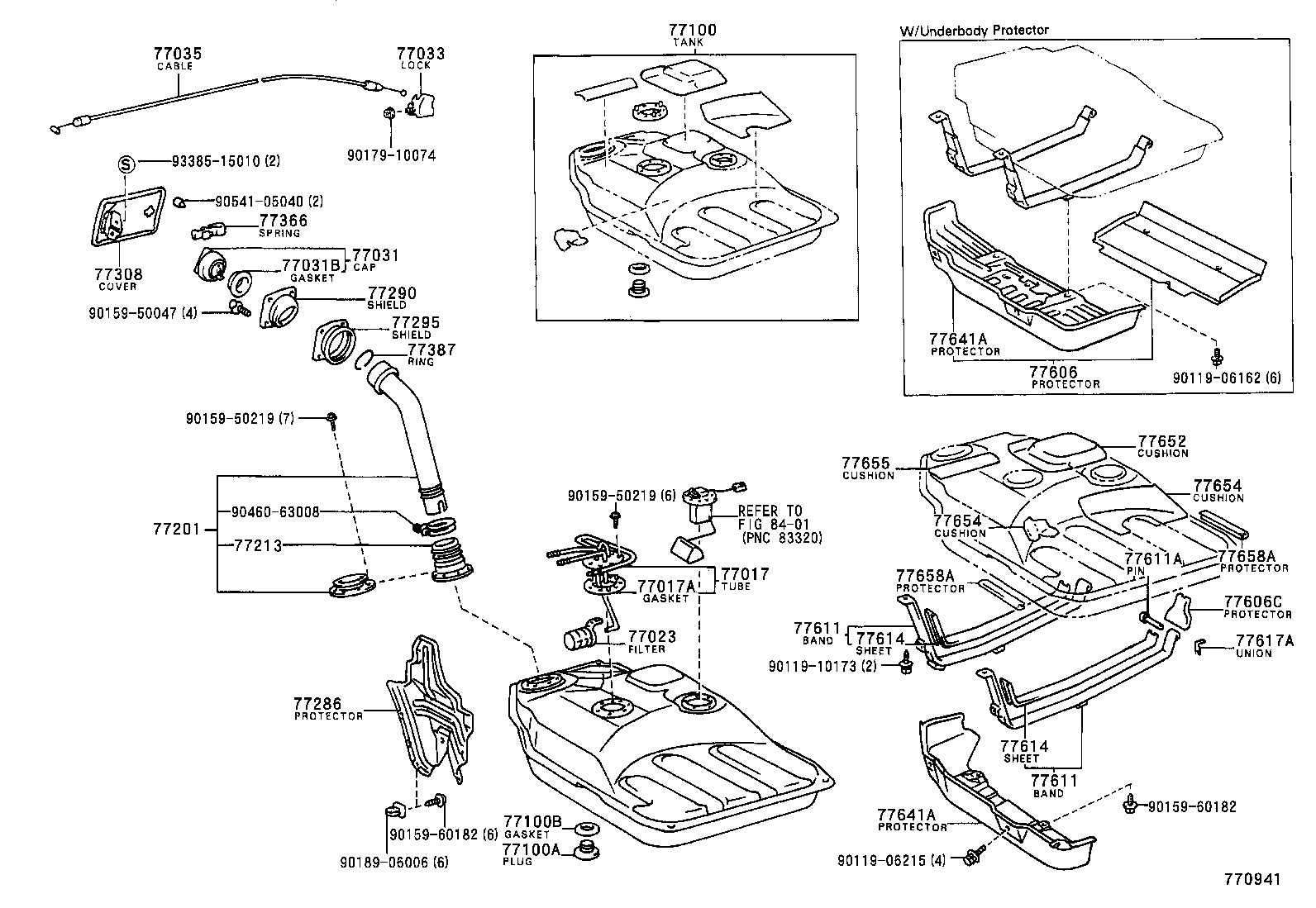

| 77017 - TUBE SUB-ASSY, FUEL AND EVAPORATION VENT | ||||
| 77017-12210 |
AL25 |
1 | ||
| 77017-16050 |
AL25 |
1 | ||
| 77017A - GASKET, FUEL TANK VENT | ||||
| 77178-10010 |
AL25 |
1 | ||
| 77023 - FILTER SUB-ASSY, FUEL SUCTION TUBE | ||||
| 77023-12050 |
AL25 |
1 | ||
| 77031 - CAP ASSY, FUEL TANK | ||||
| 77310-12100 |
AL25 |
1 | ||
| 77031B - GASKET (FOR FUEL TANK CAP) | ||||
| 77316-12050 |
AL25 |
1 | ||
| 77033 - LOCK SUB-ASSY, FUEL TANK CAP | ||||
| 77037-24010 |
AL25 |
1 | ||
| 77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL | ||||
| 77035-16040 |
AL25 |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-19205 |
AL25 |
1 | ||
| 77100A - PLUG(FOR FUEL TANK) | ||||
| 90341-24036 |
AL25 |
1 | ||
| 77100B - GASKET(FOR FUEL TANK) | ||||
| 90430-24047 |
AL25 |
1 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77201-16060 |
AL25 |
1 | ||
| 77213 - HOSE, FUEL TANK SUB INLET | ||||
| 77213-14090 |
AL25 |
1 | ||
| 77286 - PROTECTOR, FUEL TANK INLET PIPE | ||||
| 77277-16040 |
AL25 |
1 | ||
| 77290 - SHIELD ASSY, FUEL TANK FILLER PIPE | ||||
| 77290-16010 |
AL25 |
1 | ||
| 77295 - SHIELD, FUEL FILLER PIPE | ||||
| 77293-16020 |
AL25 |
1 | ||
| 77308 - COVER SUB-ASSY, FUEL INLET BOX | ||||
| 77350-16070 |
AL25 |
1 | ||
| 77366 - SPRING, FUEL FILLER OPENING LID HINGE | ||||
| 77360-24010 |
AL25 |
1 | ||
| 77387 - RING, FUEL INLET BOX | ||||
| 77391-16030 |
AL25 |
1 | ||
| 77606 - PROTECTOR SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77606-16010 |
AL25 W/UNDER BODY PROTECTOR |
1 | ||
| 77606C - PROTECTOR, FUEL TANK, NO.2 | ||||
| 77642-12010 |
AL25 |
2 | ||
| 77611 - BAND, FUEL TANK | ||||
| 77601-16040 |
AL25 RH,W/UNDER BODY PROTECTOR |
1 | ||
| 77602-16040 |
AL25 LH,W/UNDER BODY PROTECTOR |
1 | ||
| 77602-12030 |
AL25 LH |
1 | ||
| 77601-16050 |
AL25 RH |
1 | ||
| 77611 - BAND, FUEL TANK | ||||
| 77601-16040 |
AL25 RH,W/UNDER BODY PROTECTOR |
1 | ||
| 77602-16040 |
AL25 LH,W/UNDER BODY PROTECTOR |
1 | ||
| 77602-12030 |
AL25 LH |
1 | ||
| 77601-16050 |
AL25 RH |
1 | ||
| 77611A - PIN (FOR FUEL TANK BAND) | ||||
| 90240-08020 |
AL25 |
2 | ||
| 77617A - UNION, AUXILIARY FUEL BAND | ||||
| 77617-12010 |
AL25 |
2 | ||
| 77641A - PROTECTOR, FUEL TANK, NO.1 | ||||
| 77641-16030 |
AL25 |
1 | ||
| 77641-12100 |
AL25 W/UNDER BODY PROTECTOR |
1 | ||
| 77641A - PROTECTOR, FUEL TANK, NO.1 | ||||
| 77641-16030 |
AL25 |
1 | ||
| 77641-12100 |
AL25 W/UNDER BODY PROTECTOR |
1 | ||
| 77652 - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-16050 |
AL25 150X150 |
1 | ||
| 77654 - CUSHION, FUEL TANK, NO.2 | ||||
| 77655-12021 |
AL25 210X210 |
1 | ||
| 77652-12041 |
AL25 220X155 |
1 | ||
| 77654 - CUSHION, FUEL TANK, NO.2 | ||||
| 77655-12021 |
AL25 210X210 |
1 | ||
| 77652-12041 |
AL25 220X155 |
1 | ||
| 77655 - CUSHION, FUEL TANK, NO.3 | ||||
| 77653-12031 |
AL25 200X90 |
1 | ||
| 77658A - PROTECTOR, FUEL TANK EDGE, NO.1 | ||||
| 77658-12010 |
AL25 |
2 | ||
| 77658A - PROTECTOR, FUEL TANK EDGE, NO.1 | ||||
| 77658-12010 |
AL25 |
2 | ||
| Common parts | ||||
| 90119-06162 | ||||
| 90119-06215 | ||||
| 90119-10173 | ||||
| 90159-50047 | ||||
| 90159-50219 | ||||
| 90159-60182 | ||||
| 90179-10074 | ||||
| 90189-06006 | ||||
| 90460-63008 | ||||
| 90541-05040 | ||||
| 93385-15010 | ||||
| Linked diagrams | ||||
| 8401 | ||||
(8208- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

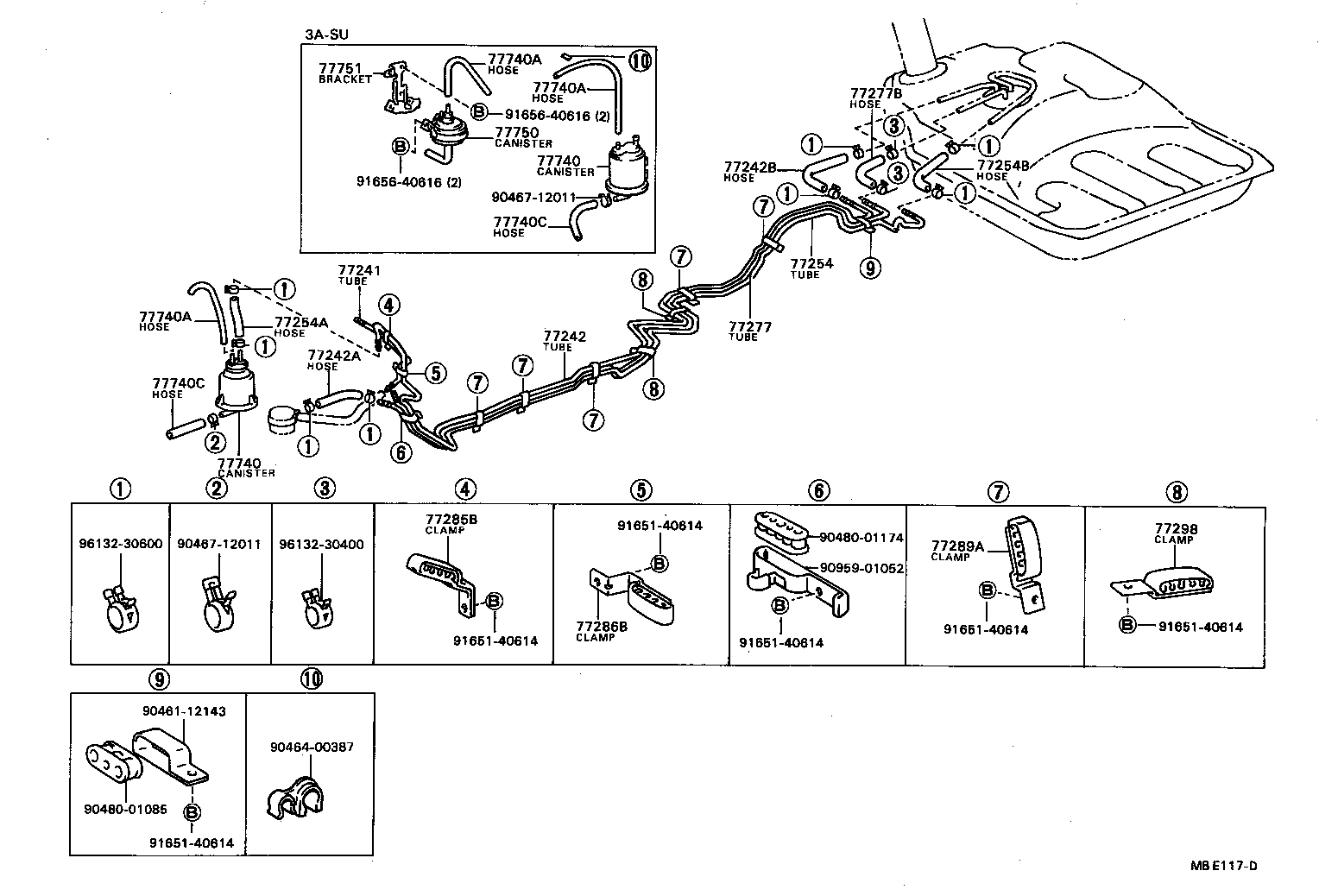

| 77241 - TUBE, FUEL MAIN, NO.1 | ||||
| 77252-16040 |
AL25 |
1 | ||
| 77242 - TUBE, FUEL MAIN, NO.2 | ||||
| 77251-16060 |
AL25 |
1 | ||
| 77242A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.2) | ||||
| 95332-06020 |
AL25 *H,L=200 |
1 | ||
| 77242B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.2) | ||||
| 95332-06020 |
AL25 *H,L=200 |
1 | ||
| 77254 - TUBE, FUEL EMISSION, NO.1 | ||||
| 77261-16050 |
AL25 |
1 | ||
| 77254A - HOSE, FUEL, NO.1 (FOR EMISSION TUBE, NO.1) | ||||
| 95332-06020 |
AL25 *H,L=140 |
1 | ||
| 77254B - HOSE, FUEL, NO.2 (FOR EMISSION TUBE, NO.1) | ||||
| 95332-06020 |
AL25 *H,L=200 |
1 | ||
| 77277 - TUBE, FUEL RETURN, NO.1 | ||||
| 77255-16050 |
AL25 |
1 | ||
| 77277B - HOSE, FUEL, NO.2(FOR RETURN TUBE, NO.1) | ||||
| 95332-04020 |
AL25 *H,L=180 |
1 | ||
| 77285B - CLAMP, FUEL TUBE W/GROMMET, NO.1 | ||||
| 77285-16030 |
AL25 |
1 | ||
| 77286B - CLAMP, FUEL TUBE W/GROMMET, NO.2 | ||||
| 77286-16030 |
AL25 |
1 | ||
| 77289A - CLAMP, FUEL TUBE W/GROMMET, NO.3 | ||||
| 77289-16010 |
AL25 |
5 | ||
| 77298 - CLAMP, FUEL TUBE W/GROMMET, NO.4 | ||||
| 77298-16020 |
AL25 |
2 | ||
| 77740 - CANISTER ASSY, CHARCOAL | ||||
| 77704-60050 |
AL25 |
1 | ||
| 77740 - CANISTER ASSY, CHARCOAL | ||||
| 77704-60050 |
AL25 |
1 | ||
| 77740A - HOSE, FUEL, NO.1(FOR CHARCOAL CANISTER) | ||||
| 95411-19930 |
AL25 *H,L=240,ﾏｰｸ=#* |
1 | ||
| 77740A - HOSE, FUEL, NO.1(FOR CHARCOAL CANISTER) | ||||
| 95411-19930 |
AL25 *H,L=240,ﾏｰｸ=#* |
1 | ||
| 77740A - HOSE, FUEL, NO.1(FOR CHARCOAL CANISTER) | ||||
| 95411-19930 |
AL25 *H,L=240,ﾏｰｸ=#* |
1 | ||
| 77740C - HOSE, FUEL, NO.3(FOR CHARCOAL CANISTER) | ||||
| 90445-12122 |
AL25 L=220 |
1 | ||
| 77740C - HOSE, FUEL, NO.3(FOR CHARCOAL CANISTER) | ||||
| 90445-12122 |
AL25 L=220 |
1 | ||
| Common parts | ||||
| 90461-12143 | ||||
| 90464-00387 | ||||
| 90467-12011 | ||||
| 90480-01085 | ||||
| 90480-01174 | ||||
| 90959-01052 | ||||
| 91651-40614 | ||||
| 91656-40616 | ||||
| 96132-30400 | ||||
| 96132-30600 | ||||
