AL25G-MWFES (1982)

Toyota Sprinter Carib

Production Aug 1982 - Aug 1984
Engine 3AU
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8208- )

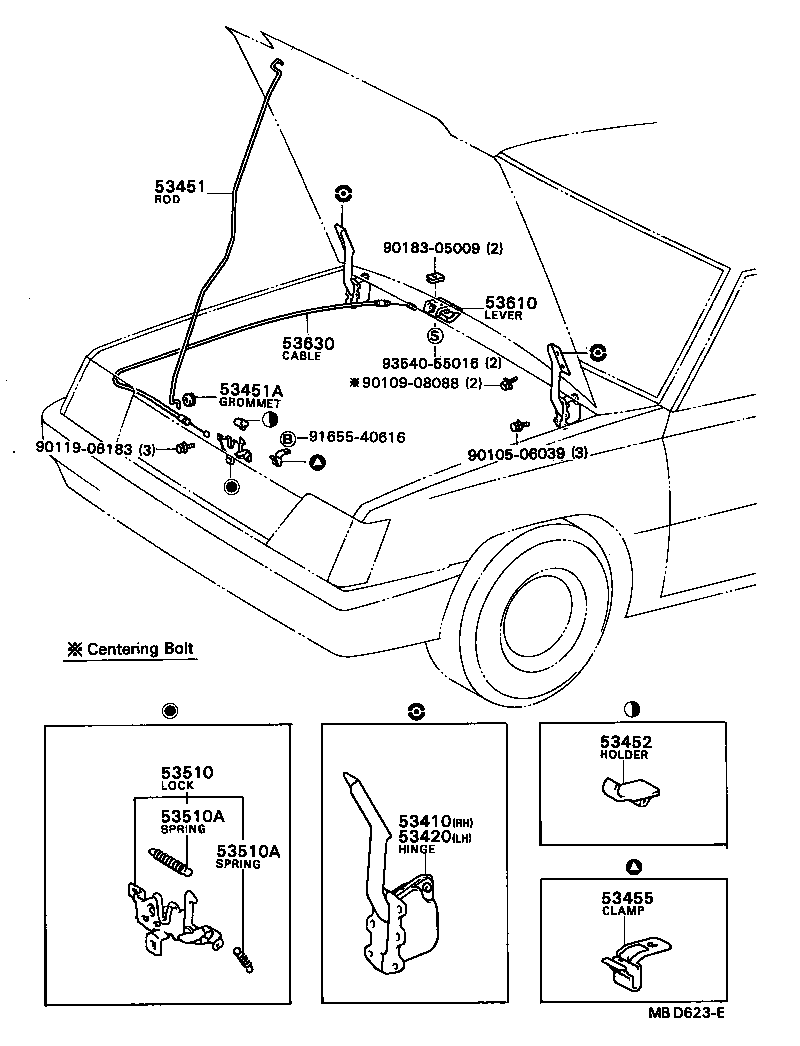

Click highlighted areas on diagram

diagram 53410 53420 53451 53451A 53452 53455 53510 53510A 53510A 53610 53630 9010506039 9010908088 9011906183 9018305009 9165540616 9354055016
Part # Description Qty Price
53410 - HINGE ASSY, HOOD, RH
53410-16020

AL25

 1
53420 - HINGE ASSY, HOOD, LH
53410-16020

AL25

 1
53451 - ROD, HOOD SUPPORT
53451-16020

AL25

 1
53451A - GROMMET(FOR HOOD SUPPORT ROD)
90480-15002

AL25

 1
53452 - HOLDER, HOOD STAY
53452-16010

AL25

 1
53455 - CLAMP, HOOD SUPPORT ROD
53455-16010

AL25

 1
53510 - LOCK ASSY, HOOD
53510-16050

AL25

 1
53510A - SPRING, TENSION(FOR HOOD LOCK)
90506-20008

AL25

線径=2.0,ｺｲﾙ巻数=17,L=60.0

 1
90506-09008

AL25

線径=0.9,ｺｲﾙ巻数=21.25,L=34.4

 2
53510A - SPRING, TENSION(FOR HOOD LOCK)
90506-20008

AL25

線径=2.0,ｺｲﾙ巻数=17,L=60.0

 1
90506-09008

AL25

線径=0.9,ｺｲﾙ巻数=21.25,L=34.4

 2
53610 - LEVER ASSY, HOOD LOCK RELEASE
53601-1401013

AL25

GRAY,GRAY,TRIM1#

 1
53601-1401016

AL25

BROWN,BROWN,TRIM4#

 1
53630 - CABLE ASSY, HOOD LOCK CONTROL
53630-16090

AL25

 1
Common parts
90105-06039
90109-08088
90119-06183
90183-05009
91655-40616
93540-55016
