AL25G-MWFES (1982)
Toyota Sprinter Carib
Production
Aug 1982
-
Aug 1984
Engine
3AU
Transmission
6F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8208- )

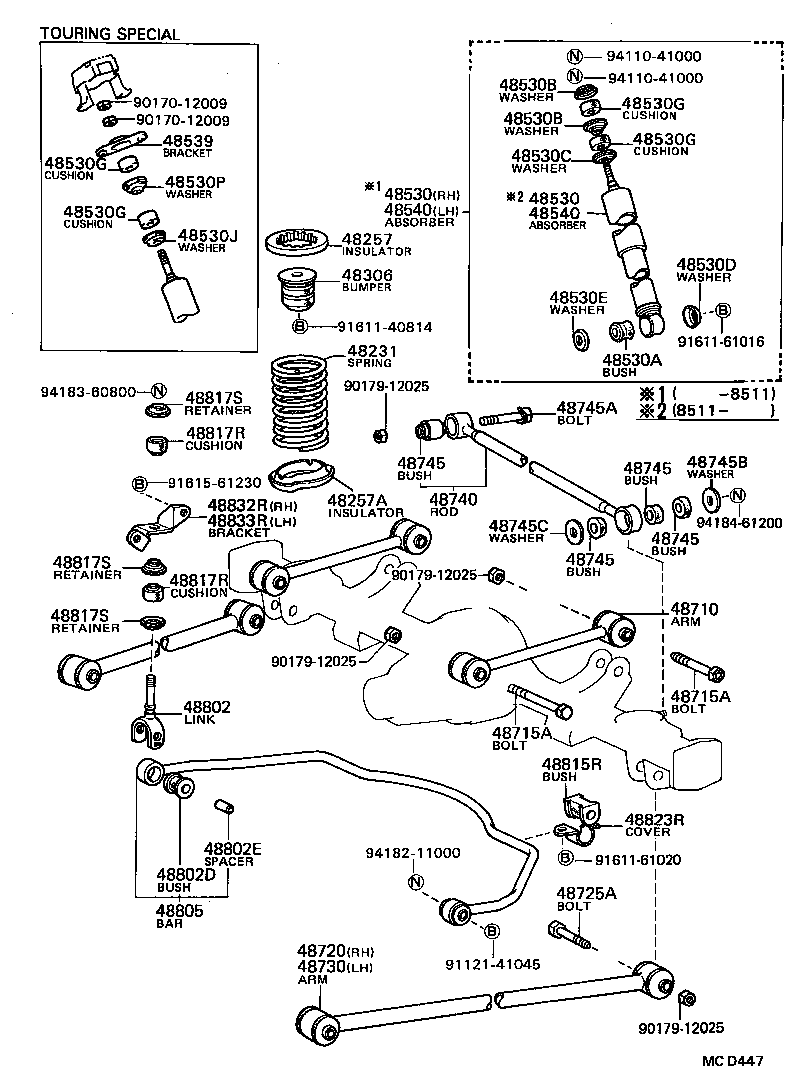

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48231 - SPRING, COIL, REAR | ||||
| 48231-16110 |
AL25 |
2 | ||
| 48257 - INSULATOR, REAR COIL SPRING | ||||
| 48257-12020 |
AL25 |
2 | ||
| 48257A - INSULATOR, REAR COIL SPRING, LOWER | ||||
| 48258-12010 |
AL25 |
2 | ||
| 48306 - BUMPER SUB-ASSY, REAR SPRING | ||||
| 48306-16030 |
AL25 |
2 | ||
| 48530 - ABSORBER ASSY, SHOCK, REAR RH | ||||
| 48531-80010 |
AL25 |
1 | ||
| 48530 - ABSORBER ASSY, SHOCK, REAR RH | ||||
| 48531-80010 |
AL25 |
1 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90385-16001 |
AL25 |
2 | ||
| 48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1 | ||||
| 90948-02002 |
AL25 |
4 | ||
| 48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1 | ||||
| 90948-02002 |
AL25 |
4 | ||
| 48530C - WASHER, REAR SHOCK ABSORBER CUSHION, NO.2 | ||||
| 90948-02007 |
AL25 |
2 | ||
| 48530D - WASHER, REAR SHOCK ABSORBER CUSHION, NO.3 | ||||
| 90948-02047 |
AL25 RH |
1 | ||
| 90948-03012 |
AL25 LH |
1 | ||
| 48530E - WASHER, REAR SHOCK ABSORBER CUSHION, NO.4 | ||||
| 90948-03004 |
AL25 |
2 | ||
| 48530G - CUSHION, REAR SHOCK ABSORBER, NO.1 | ||||
| 90948-01003 |
AL25 UPR |
2 | ||
| 90948-01018 |
AL25 LWR |
2 | ||
| 48530G - CUSHION, REAR SHOCK ABSORBER, NO.1 | ||||
| 90948-01003 |
AL25 UPR |
2 | ||
| 90948-01018 |
AL25 LWR |
2 | ||
| 48530G - CUSHION, REAR SHOCK ABSORBER, NO.1 | ||||
| 90948-01003 |
AL25 UPR |
2 | ||
| 90948-01018 |
AL25 LWR |
2 | ||
| 48530G - CUSHION, REAR SHOCK ABSORBER, NO.1 | ||||
| 90948-01003 |
AL25 UPR |
2 | ||
| 90948-01018 |
AL25 LWR |
2 | ||
| 48540 - ABSORBER ASSY, SHOCK, REAR LH | ||||
| 48531-80010 |
AL25 |
1 | ||
| 48540 - ABSORBER ASSY, SHOCK, REAR LH | ||||
| 48531-80010 |
AL25 |
1 | ||
| 48710 - ARM ASSY, UPPER CONTROL | ||||
| 48710-12020 |
AL25 |
2 | ||
| 48715A - BOLT, HEXAGON(FOR UPPER CONTROL ARM) | ||||
| 90105-12072 |
AL25 L=149 |
2 | ||
| 90105-12071 |
AL25 L=77 |
2 | ||
| 48715A - BOLT, HEXAGON(FOR UPPER CONTROL ARM) | ||||
| 90105-12072 |
AL25 L=149 |
2 | ||
| 90105-12071 |
AL25 L=77 |
2 | ||
| 48720 - ARM ASSY, LOWER CONTROL, RH | ||||
| 48720-16040 |
AL25 |
1 | ||
| 48725A - BOLT(FOR LOWER CONTROL ARM) | ||||
| 90105-12071 |
AL25 L=77 |
4 | ||
| 48730 - ARM ASSY, LOWER CONTROL, LH | ||||
| 48720-16040 |
AL25 |
1 | ||
| 48740 - ROD ASSY, REAR LATERAL CONTROL | ||||
| 48740-12021 |
AL25 |
1 | ||
| 48745 - BUSH, LATERAL CONTROL ROD | ||||
| 90385-20001 |
AL25 ROD X HOUSING,L=15 |
2 | ||
| 48706-14010 |
AL25 ROD X BODY |
1 | ||
| 90386-20001 |
AL25 ROD X HOUSING,L=12 |
1 | ||
| 48745 - BUSH, LATERAL CONTROL ROD | ||||
| 90385-20001 |
AL25 ROD X HOUSING,L=15 |
2 | ||
| 48706-14010 |
AL25 ROD X BODY |
1 | ||
| 90386-20001 |
AL25 ROD X HOUSING,L=12 |
1 | ||
| 48745 - BUSH, LATERAL CONTROL ROD | ||||
| 90385-20001 |
AL25 ROD X HOUSING,L=15 |
2 | ||
| 48706-14010 |
AL25 ROD X BODY |
1 | ||
| 90386-20001 |
AL25 ROD X HOUSING,L=12 |
1 | ||
| 48745 - BUSH, LATERAL CONTROL ROD | ||||
| 90385-20001 |
AL25 ROD X HOUSING,L=15 |
2 | ||
| 48706-14010 |
AL25 ROD X BODY |
1 | ||
| 90386-20001 |
AL25 ROD X HOUSING,L=12 |
1 | ||
| 48745A - BOLT, HEXAGON(FOR LATERAL CONTROL ROD) | ||||
| 90105-12070 |
AL25 |
1 | ||
| 48745B - WASHER, LATERAL CONTROL ROD CUSHION | ||||
| 90201-12010 |
AL25 |
1 | ||
| 48745C - WASHER, LATERAL CONTROL ROD CUSHION | ||||
| 94612-12000 |
AL25 |
1 | ||
| 48802 - LINK SUB-ASSY, STABILIZER | ||||
| 48802-14040 |
AL25 |
2 | ||
| 48802D - BUSH, STABILIZER LINK | ||||
| 90385-11021 |
AL25 |
2 | ||
| 48802E - SPACER(FOR REAR STABILIZER BAR) | ||||
| 90560-10275 |
AL25 |
2 | ||
| 48805 - BAR SUB-ASSY, REAR STABILIZER | ||||
| 48805-16030 |
AL25 |
1 | ||
| 48815R - BUSH, STABILIZER(FOR REAR) | ||||
| 48815-20020 |
AL25 |
2 | ||
| 48817R - CUSHION, STABILIZER(FOR REAR) | ||||
| 48817-12010 |
AL25 |
4 | ||
| 48817R - CUSHION, STABILIZER(FOR REAR) | ||||
| 48817-12010 |
AL25 |
4 | ||
| 48817S - RETAINER, CUSHION, NO.1(FOR STABILIZER REAR BAR) | ||||
| 90948-02025 |
AL25 T=1.0 |
2 | ||
| 90948-02024 |
AL25 T=1.2 |
4 | ||
| 48817S - RETAINER, CUSHION, NO.1(FOR STABILIZER REAR BAR) | ||||
| 90948-02025 |
AL25 T=1.0 |
2 | ||
| 90948-02024 |
AL25 T=1.2 |
4 | ||
| 48817S - RETAINER, CUSHION, NO.1(FOR STABILIZER REAR BAR) | ||||
| 90948-02025 |
AL25 T=1.0 |
2 | ||
| 90948-02024 |
AL25 T=1.2 |
4 | ||
| 48823R - COVER, STABILIZER LINK(FOR REAR) | ||||
| 48832-22020 |
AL25 |
2 | ||
| 48832R - BRACKET, REAR STABILIZER BAR, NO.1 RH | ||||
| 48832-12011 |
AL25 |
1 | ||
| 48833R - BRACKET, REAR STABILIZER BAR, NO.1 LH | ||||
| 48833-12011 |
AL25 |
1 | ||
| Common parts | ||||
| 90170-12009 | ||||
| 90179-12025 | ||||
| 91121-41045 | ||||
| 91611-40814 | ||||
| 91611-61016 | ||||
| 91611-61020 | ||||
| 91615-61230 | ||||
| 94110-41000 | ||||
| 94182-11000 | ||||
| 94183-60800 | ||||
| 94184-61200 | ||||
