AL25G-MWFES (1982)
Toyota Sprinter Carib
Production
Aug 1982
-
Aug 1984
Engine
3AU
Transmission
6F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8208- )

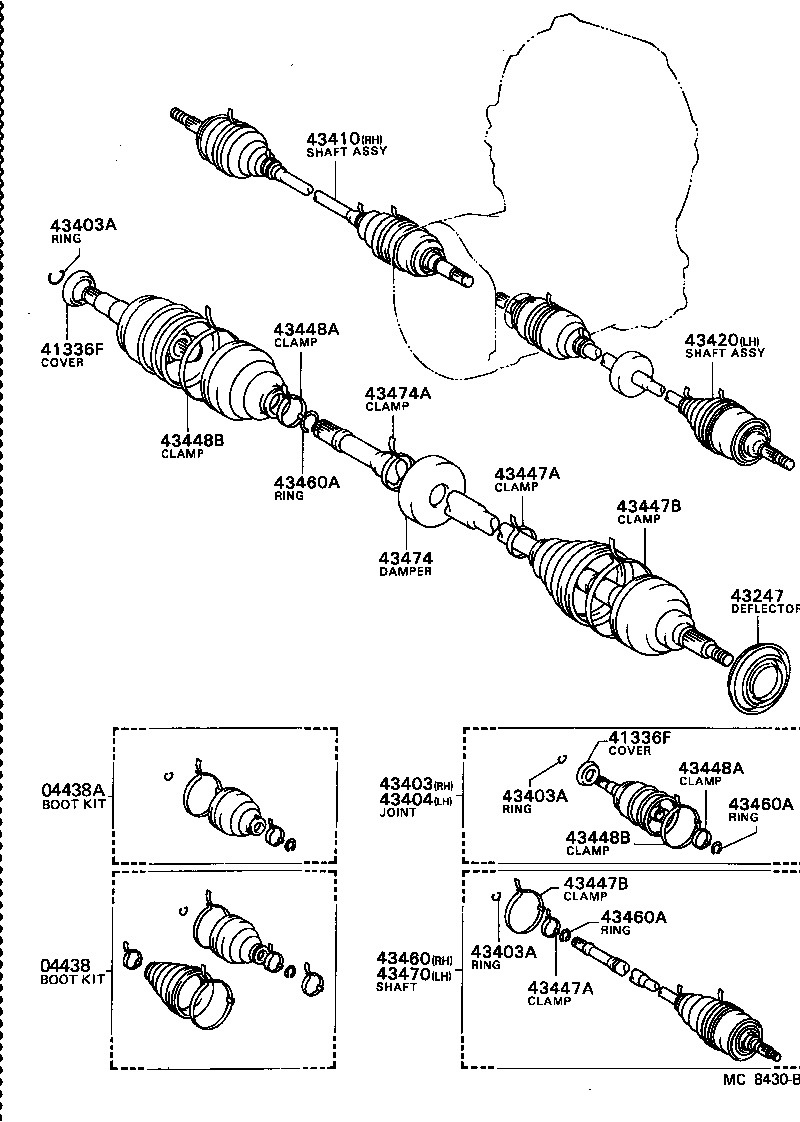

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04438 - BOOT KIT, FRONT DRIVE SHAFT | ||||
| 04438-16022 |
AL25 |
2 | ||
| 04438A - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT | ||||
| 04438-16011 |
AL25 |
2 | ||
| 41336F - COVER, DUST(FOR FRONT AXLE INBOARD JOINT SET) | ||||
| 41336-16010 |
AL25 |
2 | ||
| 41336F - COVER, DUST(FOR FRONT AXLE INBOARD JOINT SET) | ||||
| 41336-16010 |
AL25 |
2 | ||
| 43247 - DEFLECTOR, FRONT WHEEL BEARING DUST, NO.2 | ||||
| 43247-16020 |
AL25 |
2 | ||
| 43403 - JOINT SET, FRONT AXLE INBOARD, RH | ||||
| 43403-19015 |
AL25 |
1 | ||
| 43403A - RING, SHAFT SNAP (FOR FR AXLE INBOARD JOINT SET SETTING | ||||
| 90521-23001 |
AL25 |
2 | ||
| 43403A - RING, SHAFT SNAP (FOR FR AXLE INBOARD JOINT SET SETTING | ||||
| 90521-23001 |
AL25 |
2 | ||
| 43403A - RING, SHAFT SNAP (FOR FR AXLE INBOARD JOINT SET SETTING | ||||
| 90521-23001 |
AL25 |
2 | ||
| 43404 - JOINT SET, FRONT AXLE INBOARD, LH | ||||
| 43403-19015 |
AL25 |
1 | ||
| 43410 - SHAFT ASSY, FRONT DRIVE, RH | ||||
| 43410-16040 |
AL25 |
1 | ||
| 43420 - SHAFT ASSY, FRONT DRIVE, LH | ||||
| 43420-16040 |
AL25 |
1 | ||
| 43447A - CLAMP, NO.1 (FOR FRONT AXLE OUTBOARD JOINT BOOT SETTING | ||||
| 90463-04020 |
AL25 |
2 | ||
| 43447A - CLAMP, NO.1 (FOR FRONT AXLE OUTBOARD JOINT BOOT SETTING | ||||
| 90463-04020 |
AL25 |
2 | ||
| 43447B - CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT SETTING | ||||
| 90463-04022 |
AL25 |
2 | ||
| 43447B - CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT SETTING | ||||
| 90463-04022 |
AL25 |
2 | ||
| 43448A - CLAMP, NO.1 (FOR FRONT AXLE INBOARD JOINT BOOT SETTING) | ||||
| 90463-04020 |
AL25 |
2 | ||
| 43448A - CLAMP, NO.1 (FOR FRONT AXLE INBOARD JOINT BOOT SETTING) | ||||
| 90463-04020 |
AL25 |
2 | ||
| 43448B - CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT SETTING) | ||||
| 90463-04021 |
AL25 |
2 | ||
| 43448B - CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT SETTING) | ||||
| 90463-04021 |
AL25 |
2 | ||
| 43460 - SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH | ||||
| 43460-19025 |
AL25 |
1 | ||
| 43460A - RING, SNAP (FOR FRONT DRIVE OUTBOARD JOINT SHAFT) | ||||
| 90520-22001 |
AL25 |
2 | ||
| 43460A - RING, SNAP (FOR FRONT DRIVE OUTBOARD JOINT SHAFT) | ||||
| 90520-22001 |
AL25 |
2 | ||
| 43460A - RING, SNAP (FOR FRONT DRIVE OUTBOARD JOINT SHAFT) | ||||
| 90520-22001 |
AL25 |
2 | ||
| 43470 - SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, LH | ||||
| 43470-19025 |
AL25 |
1 | ||
| 43474 - DAMPER, DRIVE SHAFT | ||||
| 43474-16010 |
AL25 |
1 | ||
| 43474A - CLAMP (FOR DRIVE SHAFT DAMPER SETTING) | ||||
| 90463-04020 |
AL25 |
1 | ||
