AL25G-MWFEB (1984)

Toyota Sprinter Carib

Production Aug 1984 - Jan 1988
Engine 3ASU
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8408- )3ASU

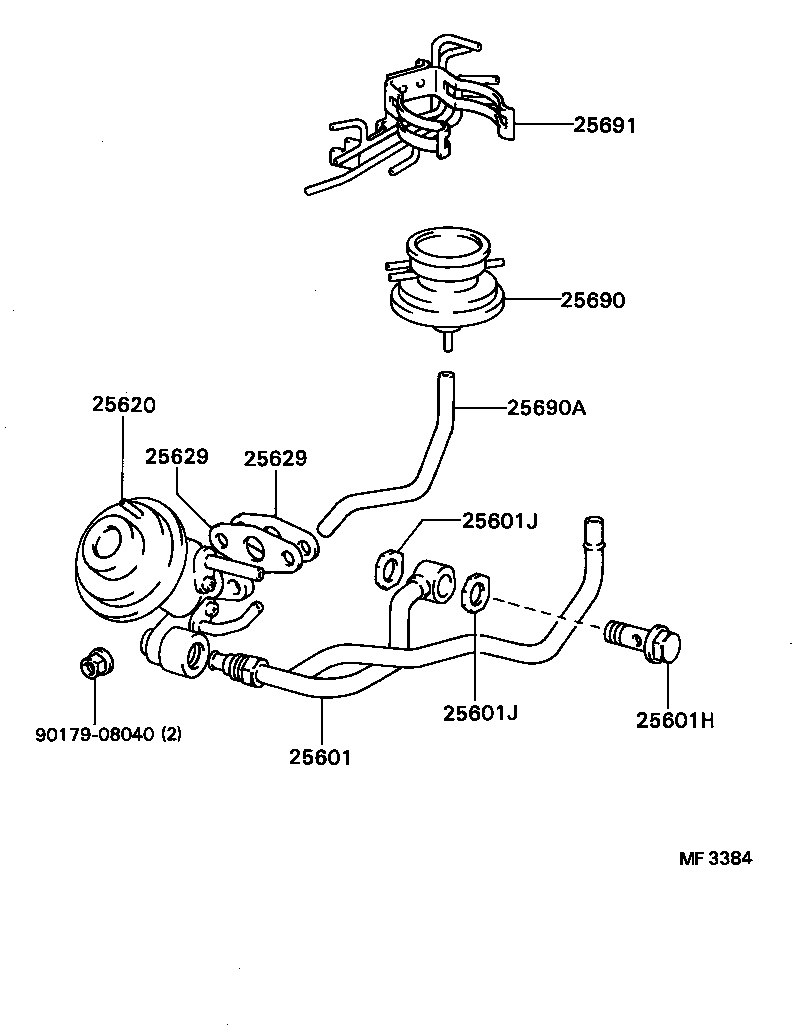

Click highlighted areas on diagram

diagram 25601 25601H 25601J 25601J 25620 25629 25629 25690 25690A 25691 9017908040
Part # Description Qty Price
25601 - PIPE SUB-ASSY, EGR, NO.1
25601-15040

3ASU..AL25

 1
25601H - BOLT, UNION(FOR EGR PIPE,NO.1)
90401-20003

3A#..AL25

 1
25601J - GASKET(FOR EGR PIPE, NO.1)
90430-20005

3A#..AL25

 2
25601J - GASKET(FOR EGR PIPE, NO.1)
90430-20005

3A#..AL25

 2
25620 - VALVE ASSY, EGR
25620-15170

3ASU..AL25

 1
25629 - GASKET, EGR VALVE ADAPTER
25629-15011

3A#..AL25

 2
25629 - GASKET, EGR VALVE ADAPTER
25629-15011

3A#..AL25

 2
25690 - MODULATOR ASSY, EGR VACUUM
25870-15170

3ASU..AL25

 1
25690A - HOSE(FOR EGR VACUUM MODULATOR)
25695-15010

3ASU..AL25

 1
25691 - BRACKET, EGR VACUUM MODULATOR
25691-15170

3ASU..AL25

 1
Common parts
90179-08040
