AL25G-MWFEB (1984)
Toyota Sprinter Carib
Production
Aug 1984
-
Jan 1988
Engine
3ASU
Transmission
6F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8408- )

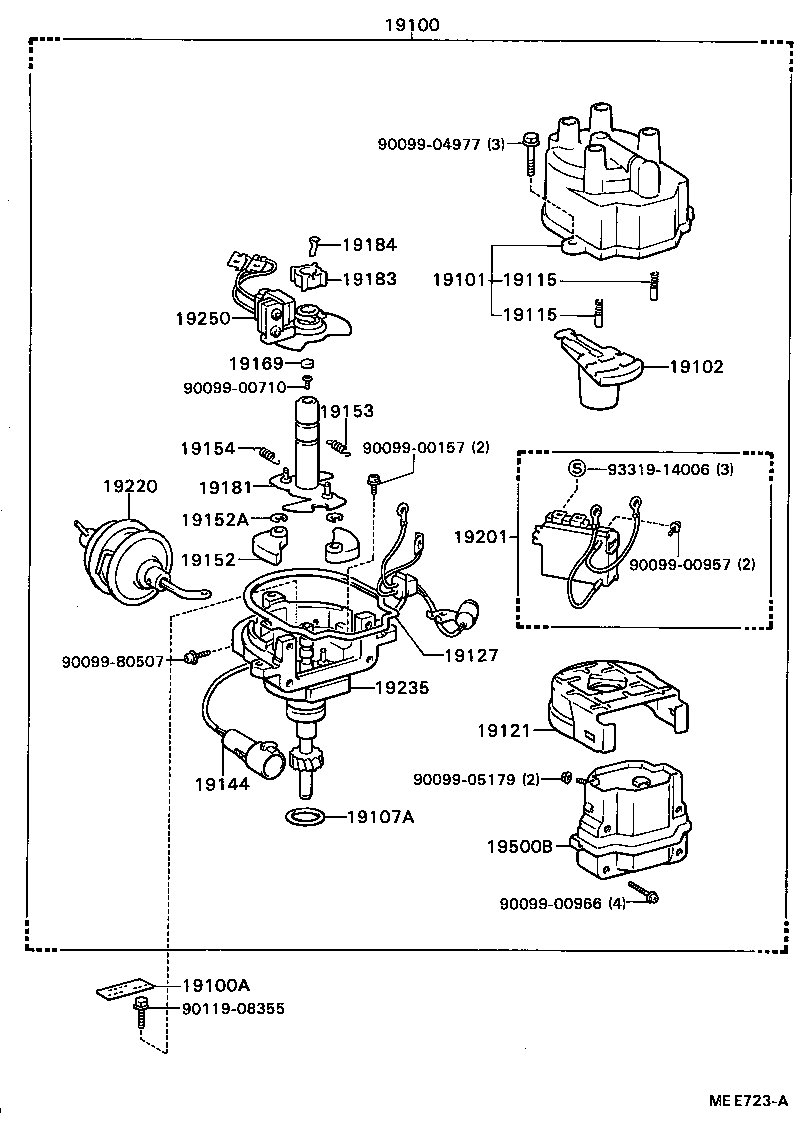

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 19100 - DISTRIBUTOR ASSY | ||||
| 19020-15070 |
3ASU..AL25 |
1 | ||
| 19100A - TAPE, SEALING | ||||
| 90919-24004 |
3A#..AL25 |
1 | ||
| 19101 - CAP SUB-ASSY, DISTRIBUTOR | ||||
| 19101-11010 |
3A#..AL25 |
1 | ||
| 19102 - ROTOR SUB-ASSY, DISTRIBUTOR | ||||
| 19102-11010 |
3A#..AL25 |
1 | ||
| 19107A - RING, O, DISTRIBUTOR HOUSING | ||||
| 96711-35030 |
3A#..AL25 |
1 | ||
| 19121 - COVER, DUST PROOF | ||||
| 19121-11080 |
3A#..AL25 |
1 | ||
| 19121-11010 |
3A#..AL25 |
1 | ||
| 19127 - PACKING, DUST PROOF | ||||
| 19127-11010 |
3A#..AL25 |
1 | ||
| 19144 - LEAD, DISTRIBUTOR BREAKER | ||||
| 19144-15080 |
3A#..AL25 |
1 | ||
| 19153 - SPRING, GOVERNOR, A | ||||
| 19153-15070 |
3ASU..AL25 |
1 | ||
| 19154 - SPRING, GOVERNOR, B | ||||
| 19154-15070 |
3ASU..AL25 |
1 | ||
| 19181 - ROTOR, DISTRIBUTOR, SIGNAL | ||||
| 19181-15070 |
3ASU..AL25 |
1 | ||
| 19183 - ROTOR, SIGNAL | ||||
| 19183-15010 |
3A#..AL25 |
1 | ||
| 19184 - SPRING, ROTOR SET | ||||
| 19184-63010 |
3A#..AL25 |
1 | ||
| 19201 - IGNITER | ||||
| 89620-10120 |
3A#..AL25 |
1 | ||
| 19220 - ADVANCER ASSY, VACUUM, DISTRIBUTOR | ||||
| 19220-15230 |
3ASU..AL25 |
1 | ||
| 19235 - HOUSING, DISTRIBUTOR | ||||
| 19235-14040 |
3A#..AL25 |
1 | ||
| 19500B - COIL ASSY, IGNITION | ||||
| 90919-02164 |
3A#..AL25 |
1 | ||
| Common parts | ||||
| 90099-00157 | ||||
| 90099-00710 | ||||
| 90099-00957 | ||||
| 90099-00966 | ||||
| 90099-04977 | ||||
| 90099-05179 | ||||
| 90099-80507 | ||||
| 90119-08355 | ||||
| 93319-14006 | ||||
