AE95G-CWPNH (1990)
Toyota Sprinter Carib
Production
Sep 1990
-
Aug 1995
Engine
4AFHE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)

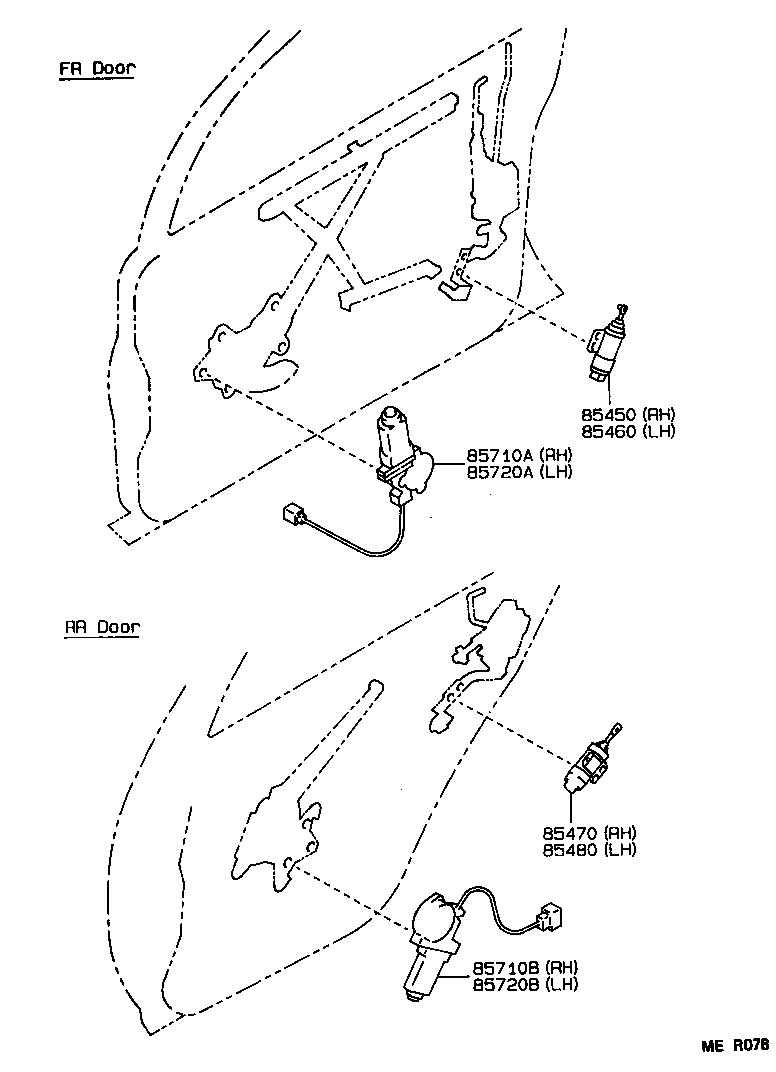

ILLUST NO. 1 OF 2(9009- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85450 - SOLENOID ASSY, DOOR CONTROL, FRONT RH | ||||
| 85450-12160 |
AE95 |
1 | ||
| 85450-12160 |
AE95..AV2,RVS |
1 | ||
| 85460 - SOLENOID ASSY, DOOR CONTROL, FRONT LH | ||||
| 85450-12170 |
AE95 |
1 | ||
| 85450-12170 |
AE95..AV2,RVS |
1 | ||
| 85470 - SOLENOID ASSY, DOOR CONTROL, REAR RH | ||||
| 85450-12320 |
AE95..AV2,RVS |
1 | ||
| 85450-12320 |
AE95 |
1 | ||
| 85480 - SOLENOID ASSY, DOOR CONTROL, REAR LH | ||||
| 85450-12310 |
AE95 |
1 | ||
| 85450-12310 |
AE95..AV2,RVS |
1 | ||
| 85710A - MOTOR ASSY, POWER WINDOW REGULATOR, FRONT RH | ||||
| 85710-12060 |
AE95..AV2,RVS |
1 | ||
| 85710-12060 |
AE95 |
1 | ||
| 85710B - MOTOR ASSY, POWER WINDOW REGULATOR, REAR RH | ||||
| 85710-12080 |
AE95 |
1 | ||
| 85710-12080 |
AE95..AV2,RVS |
1 | ||
| 85720A - MOTOR ASSY, POWER WINDOW REGULATOR, FRONT LH | ||||
| 85720-12060 |
AE95 |
1 | ||
| 85720-12060 |
AE95..AV2,RVS |
1 | ||
| 85720B - MOTOR ASSY, POWER WINDOW REGULATOR, REAR LH | ||||
| 85720-12070 |
AE95 |
1 | ||
| 85720-12070 |
AE95..AV2,RVS |
1 | ||

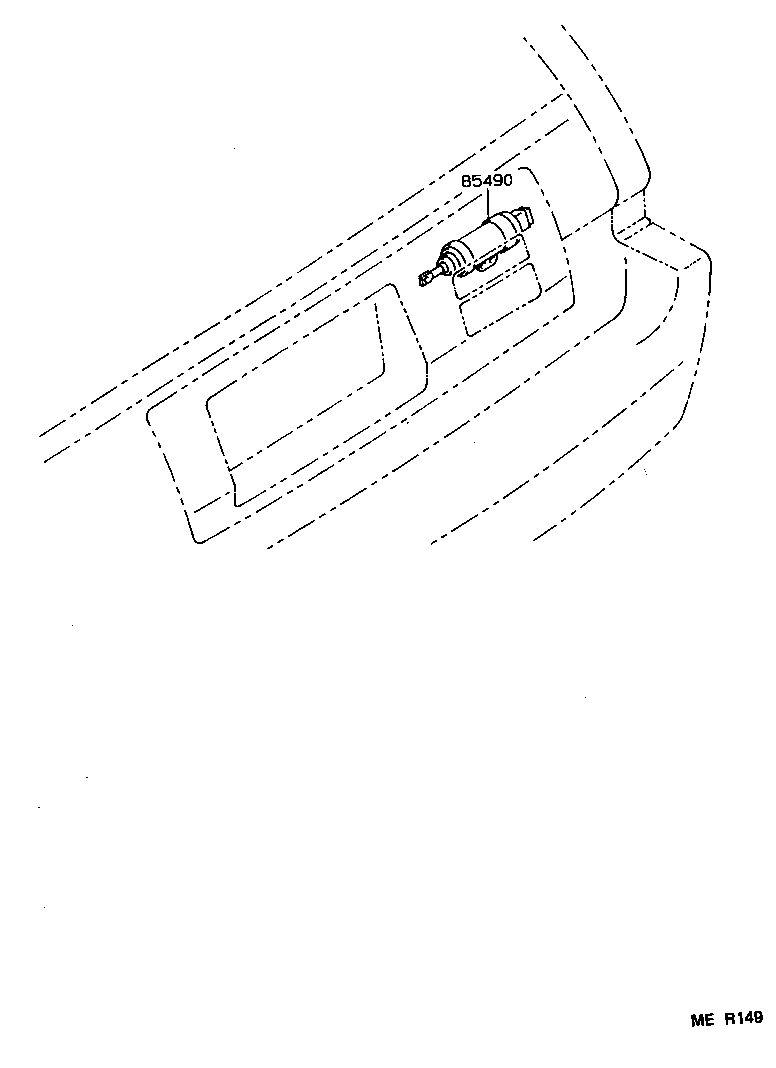

ILLUST NO. 2 OF 2(9009- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85490 - SOLENOID ASSY, DOOR CONTROL BACK | ||||
| 85450-12280 |
AE95 |
1 | ||
| 85450-12280 |
AE95..AV2,RVS |
1 | ||
