AE95G-CWPNH (1990)
Toyota Sprinter Carib
Production
Sep 1990
-
Aug 1995
Engine
4AFHE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9009- )4FC

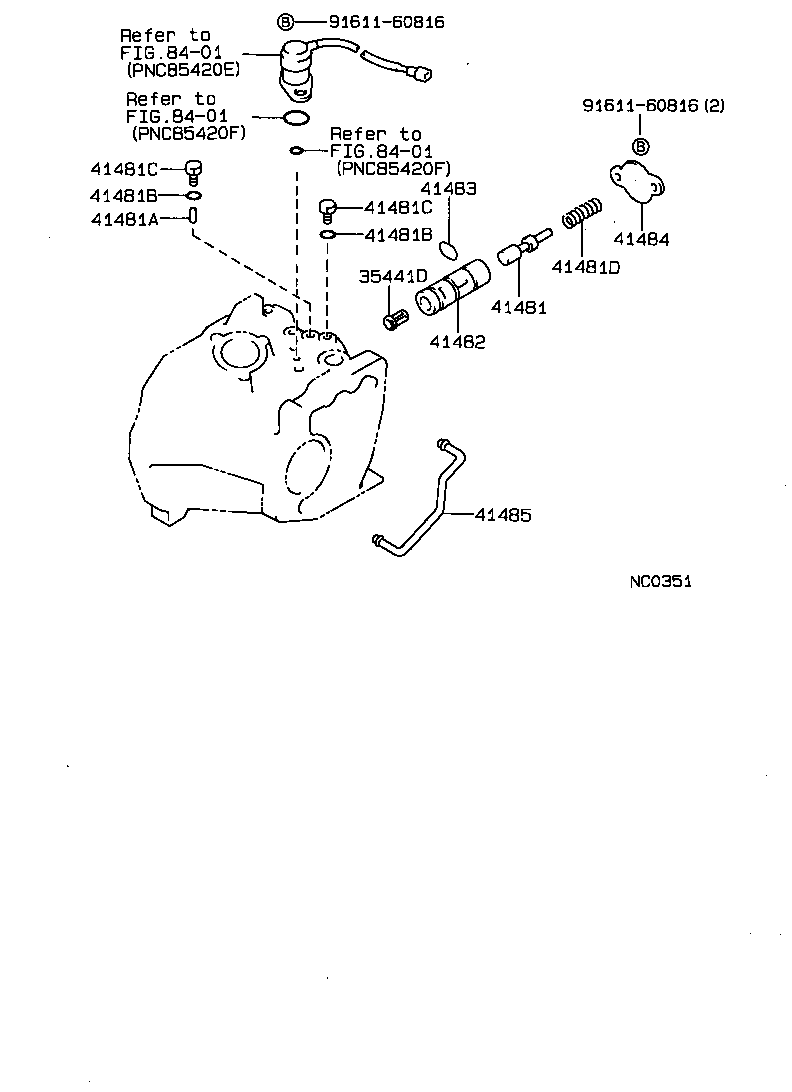

Click highlighted areas on diagram
A241H
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35441D - STRAINER, CENTER DIFFERENTIAL LOCK CLUTCH CONTROL OIL | ||||
| 35441-12010 |
AE95..4FC |
1 | ||
| 41481 - VALVE, DIFFERENTIAL LOCK CLUTCH CONTROL | ||||
| 41481-12010 |
AE95..4FC |
1 | ||
| 41481A - PIN, STRAIGHT (FOR DIFFERENTIAL CONTROL VALVE) | ||||
| 90250-04065 |
AE95..4FC |
1 | ||
| 41481B - RING, O (FOR DIFFERENTIAL LOCK CLUTCH CONTROL VALVE) | ||||
| 90301-06196 |
AE95..4FC |
2 | ||
| 41481B - RING, O (FOR DIFFERENTIAL LOCK CLUTCH CONTROL VALVE) | ||||
| 90301-06196 |
AE95..4FC |
2 | ||
| 41481C - PLUG (FOR DIFFERENTIAL LOCK CLUTCH CONTROL VALVE) | ||||
| 90341-08001 |
AE95..4FC |
2 | ||
| 41481C - PLUG (FOR DIFFERENTIAL LOCK CLUTCH CONTROL VALVE) | ||||
| 90341-08001 |
AE95..4FC |
2 | ||
| 41481D - SPRING, COMPRESSION (FOR DIFFENTIAL VALVE) | ||||
| 90501-08099 |
AE95..4FC |
1 | ||
| 41482 - SLEEVE, DIFFERENTIAL LOCK CLUTCH CONTROL VALVE | ||||
| 41482-12010 |
AE95..4FC |
1 | ||
| 41483 - RETAINER, DIFFERENTIAL LOCK CLUTCH CONTROL VALVE SPRING | ||||
| 41483-12010 |
AE95..4FC |
1 | ||
| 41484 - COVER, DIFFERENTIAL LOCK CLUTCH CONTROL VALVE SLEEVE | ||||
| 41484-12010 |
AE95..4FC |
1 | ||
| 41485 - TUBE, DIFFERENTIAL LOCK CLUTCH PRESSURE APPLY | ||||
| 41485-12010 |
AE95..4FC |
1 | ||
| Common parts | ||||
| 91611-60816 | ||||
| Linked diagrams | ||||
| 8401 | ||||
