AE95G-CWPGH (1990)
Toyota Sprinter Carib

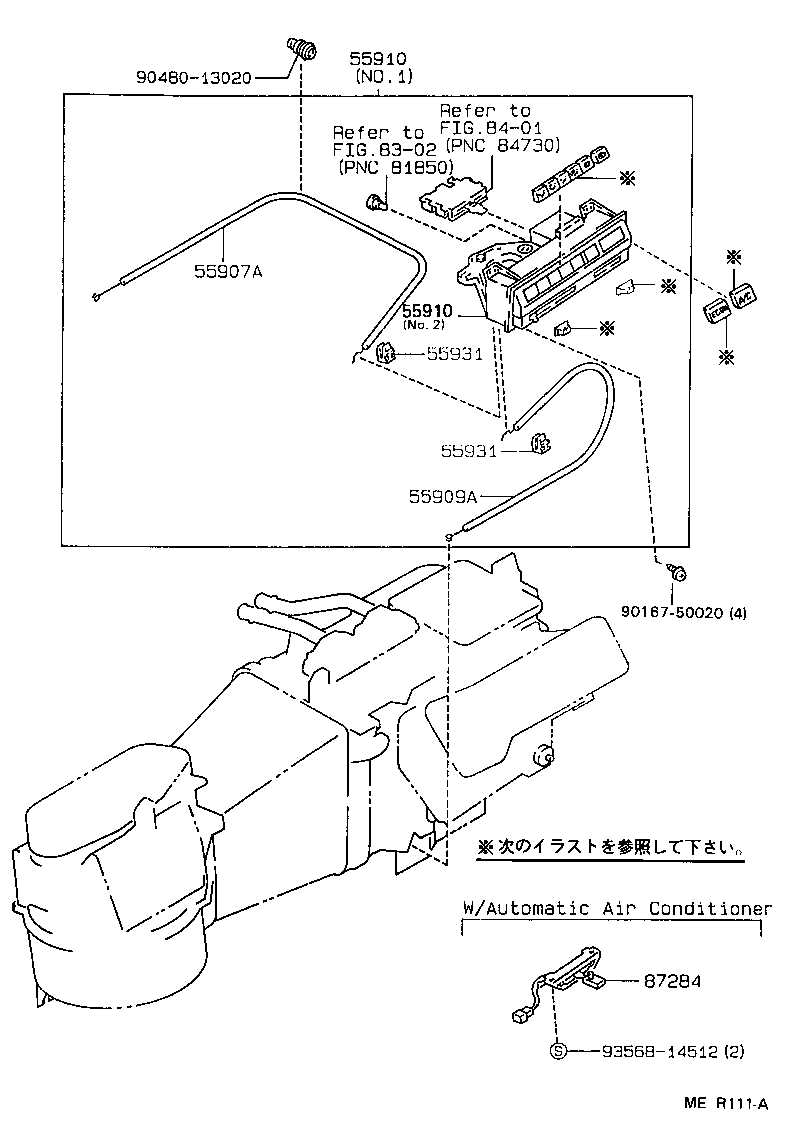

ILLUST NO. 1 OF 4(9009- )AV2
PUSH CONTROL TYPE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55907A - CABLE SUB-ASSY, WATER VALVE CONTROL | ||||
| 55907-12270 |
AE95..AV2 |
1 | ||
| 55909A - CABLE SUB-ASSY, AIRMIX DAMPER CONTROL | ||||
| 55909-12180 |
AE95..AV2 |
1 | ||
| 55910 - CONTROL ASSY, HEATER OR BOOST VENTILATOR | ||||
| 55910-12530 |
AE95..AV2 NO.2 |
1 | ||
| 55900-12490 |
AE95..AV2 NO.1 |
1 | ||
| 55910 - CONTROL ASSY, HEATER OR BOOST VENTILATOR | ||||
| 55910-12530 |
AE95..AV2 NO.2 |
1 | ||
| 55900-12490 |
AE95..AV2 NO.1 |
1 | ||
| 55931 - CLAMP, HEATER CONTROL WIRE | ||||
| 55933-10010 |
AE95..AV2 |
2 | ||
| 55931 - CLAMP, HEATER CONTROL WIRE | ||||
| 55933-10010 |
AE95..AV2 |
2 | ||
| 87284 - RESISTOR SUB-ASSY, VARIABLE | ||||
| 88032-12080 |
AE95..AV2 |
1 | ||
| Common parts | ||||
| 90167-50020 | ||||
| 90480-13020 | ||||
| 93568-14512 | ||||
| Linked diagrams | ||||
| 8302 | ||||
| 8401 | ||||

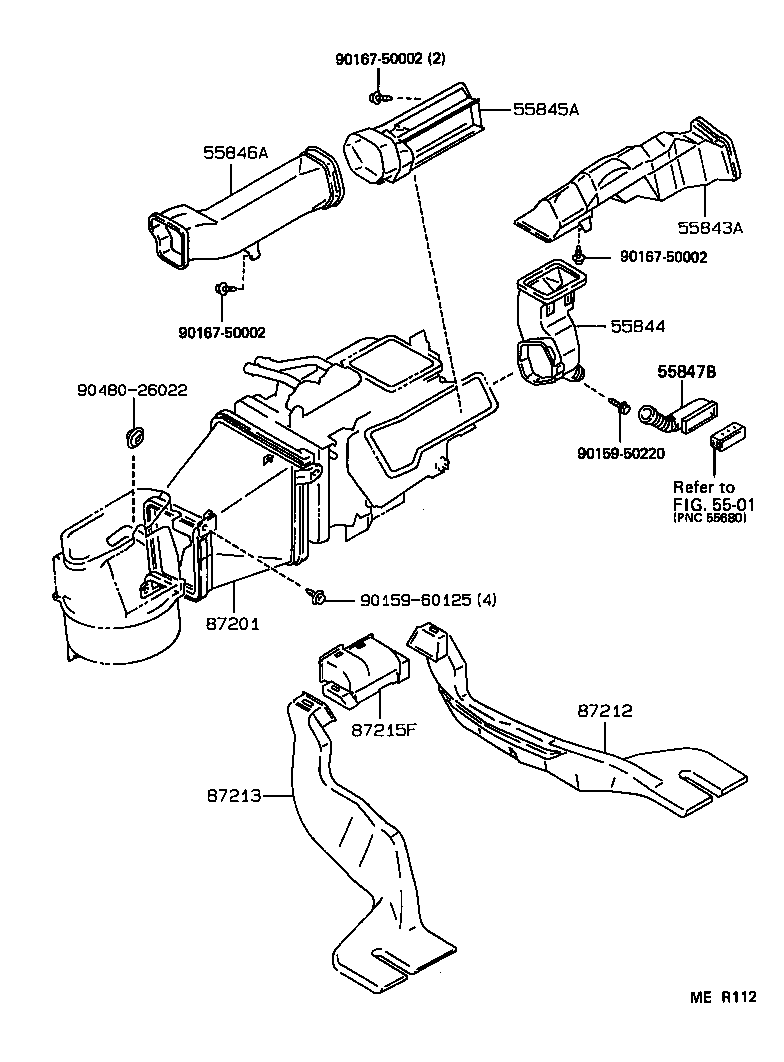

ILLUST NO. 3 OF 4(9009- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55843A - DUCT, HEATER TO REGISTER, NO.1 | ||||
| 55843-12170 |
AE95 |
1 | ||
| 55844 - DUCT, HEATER TO REGISTER, NO.2 | ||||
| 55844-12230 |
AE95 ｱﾘ(ｴｱｺﾝ) |
1 | ||
| 55844-12210 |
AE95 |
1 | ||
| 55845A - DUCT, HEATER TO REGISTER, NO.3 | ||||
| 55845-12110 |
AE95 |
1 | ||
| 55846A - DUCT, HEATER TO REGISTER, NO.4 | ||||
| 55846-12090 |
AE95 |
1 | ||
| 55847B - DUCT, HEATER TO REGISTER, NO.5 | ||||
| 55847-12071 |
AE95 |
1 | ||
| 87201 - DUCT SUB-ASSY, AIR, NO.1 | ||||
| 87201-12120 |
AE95 ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 87201-12110 |
AE95 |
1 | ||
| 87212 - DUCT, AIR, REAR NO.1 | ||||
| 87212-12070 |
AE95 ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 87213 - DUCT, AIR, REAR NO.2 | ||||
| 87213-12040 |
AE95 ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 87215F - DUCT, AIR, REAR NO.3 | ||||
| 87215-12010 |
AE95 ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| Common parts | ||||
| 90159-50220 | ||||
| 90159-60125 | ||||
| 90167-50002 | ||||
| 90480-26022 | ||||
| Linked diagrams | ||||
| 5501 | ||||

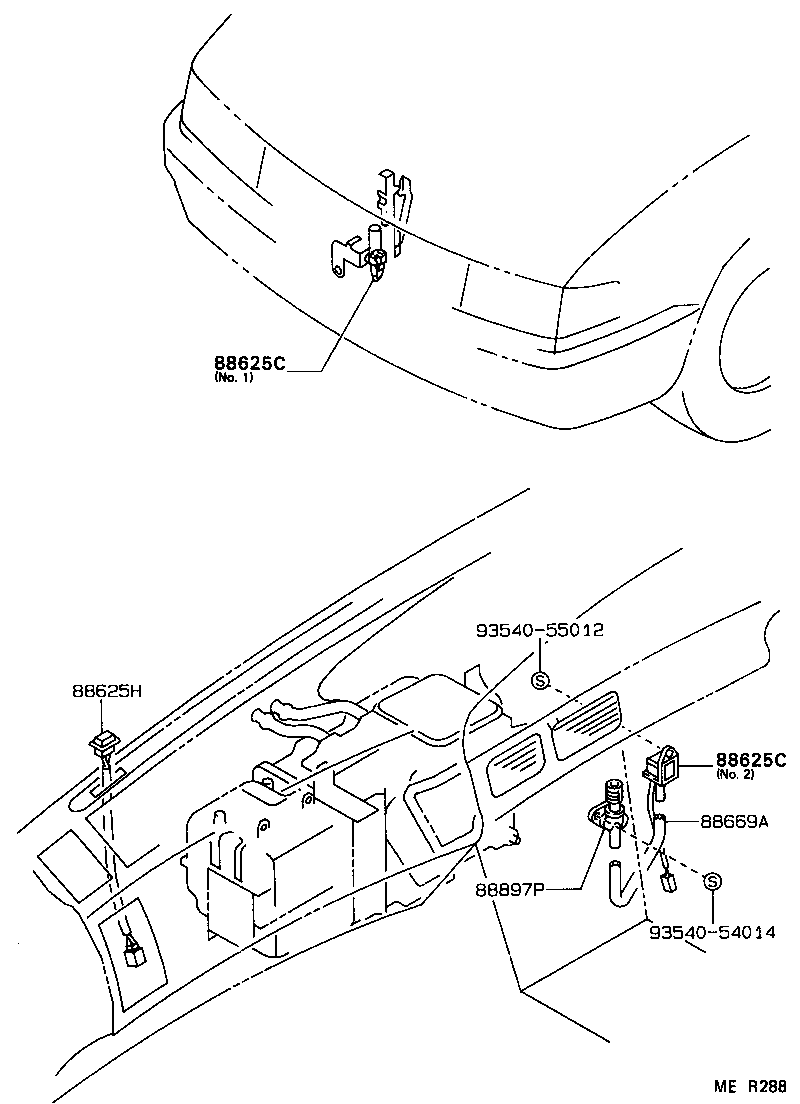

ILLUST NO. 4 OF 4(9009- )
AUTOMATIC AIR CONDITIONER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88625C - THERMISTOR, COOLER | ||||
| 88625-12220 |
AE95 NO.2 |
1 | ||
| 88625-12210 |
AE95 NO.1 |
1 | ||
| 88625C - THERMISTOR, COOLER | ||||
| 88625-12220 |
AE95 NO.2 |
1 | ||
| 88625-12210 |
AE95 NO.1 |
1 | ||
| 88625H - THERMISTOR, COOLER (SOLAR SENSOR) | ||||
| 88625-20140 |
AE95 |
1 | ||
| 88669A - HOSE (FOR COOLER THERMISTOR) | ||||
| 88669-12020 |
AE95 |
1 | ||
| 88897P - ASPIRATOR | ||||
| 88897-14010 |
AE95 |
1 | ||
| Common parts | ||||
| 93540-54014 | ||||
| 93540-55012 | ||||

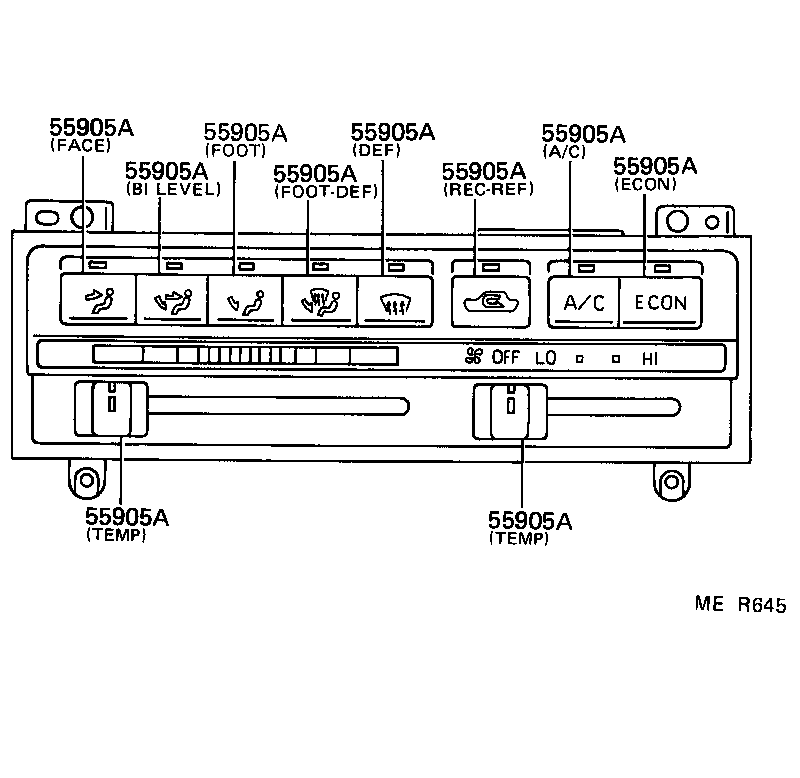

ILLUST NO. 2 OF 4(9009- )AV2
PUSH CONTROL TYPE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-12300 |
AE95..AV2 FACE |
1 | ||
| 55905-12110 |
AE95..AV2 ｱﾘ(ｴｱｺﾝ),A/C |
1 | ||
| 55905-12330 |
AE95..AV2 FOOT-DEF |
1 | ||
| 55905-12320 |
AE95..AV2 FOOT |
1 | ||
| 55905-12310 |
AE95..AV2 BI-LEVEL |
1 | ||
| 55905-12360 |
AE95..AV2 TEMP |
2 | ||
| 55905-12340 |
AE95..AV2 DEF |
1 | ||
| 55905-12350 |
AE95..AV2 REC-REF |
1 | ||
| 55905-12120 |
AE95..AV2 ｱﾘ(ｴｱｺﾝ),ECON |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-12300 |
AE95..AV2 FACE |
1 | ||
| 55905-12110 |
AE95..AV2 ｱﾘ(ｴｱｺﾝ),A/C |
1 | ||
| 55905-12330 |
AE95..AV2 FOOT-DEF |
1 | ||
| 55905-12320 |
AE95..AV2 FOOT |
1 | ||
| 55905-12310 |
AE95..AV2 BI-LEVEL |
1 | ||
| 55905-12360 |
AE95..AV2 TEMP |
2 | ||
| 55905-12340 |
AE95..AV2 DEF |
1 | ||
| 55905-12350 |
AE95..AV2 REC-REF |
1 | ||
| 55905-12120 |
AE95..AV2 ｱﾘ(ｴｱｺﾝ),ECON |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-12300 |
AE95..AV2 FACE |
1 | ||
| 55905-12110 |
AE95..AV2 ｱﾘ(ｴｱｺﾝ),A/C |
1 | ||
| 55905-12330 |
AE95..AV2 FOOT-DEF |
1 | ||
| 55905-12320 |
AE95..AV2 FOOT |
1 | ||
| 55905-12310 |
AE95..AV2 BI-LEVEL |
1 | ||
| 55905-12360 |
AE95..AV2 TEMP |
2 | ||
| 55905-12340 |
AE95..AV2 DEF |
1 | ||
| 55905-12350 |
AE95..AV2 REC-REF |
1 | ||
| 55905-12120 |
AE95..AV2 ｱﾘ(ｴｱｺﾝ),ECON |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-12300 |
AE95..AV2 FACE |
1 | ||
| 55905-12110 |
AE95..AV2 ｱﾘ(ｴｱｺﾝ),A/C |
1 | ||
| 55905-12330 |
AE95..AV2 FOOT-DEF |
1 | ||
| 55905-12320 |
AE95..AV2 FOOT |
1 | ||
| 55905-12310 |
AE95..AV2 BI-LEVEL |
1 | ||
| 55905-12360 |
AE95..AV2 TEMP |
2 | ||
| 55905-12340 |
AE95..AV2 DEF |
1 | ||
| 55905-12350 |
AE95..AV2 REC-REF |
1 | ||
| 55905-12120 |
AE95..AV2 ｱﾘ(ｴｱｺﾝ),ECON |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-12300 |
AE95..AV2 FACE |
1 | ||
| 55905-12110 |
AE95..AV2 ｱﾘ(ｴｱｺﾝ),A/C |
1 | ||
| 55905-12330 |
AE95..AV2 FOOT-DEF |
1 | ||
| 55905-12320 |
AE95..AV2 FOOT |
1 | ||
| 55905-12310 |
AE95..AV2 BI-LEVEL |
1 | ||
| 55905-12360 |
AE95..AV2 TEMP |
2 | ||
| 55905-12340 |
AE95..AV2 DEF |
1 | ||
| 55905-12350 |
AE95..AV2 REC-REF |
1 | ||
| 55905-12120 |
AE95..AV2 ｱﾘ(ｴｱｺﾝ),ECON |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-12300 |
AE95..AV2 FACE |
1 | ||
| 55905-12110 |
AE95..AV2 ｱﾘ(ｴｱｺﾝ),A/C |
1 | ||
| 55905-12330 |
AE95..AV2 FOOT-DEF |
1 | ||
| 55905-12320 |
AE95..AV2 FOOT |
1 | ||
| 55905-12310 |
AE95..AV2 BI-LEVEL |
1 | ||
| 55905-12360 |
AE95..AV2 TEMP |
2 | ||
| 55905-12340 |
AE95..AV2 DEF |
1 | ||
| 55905-12350 |
AE95..AV2 REC-REF |
1 | ||
| 55905-12120 |
AE95..AV2 ｱﾘ(ｴｱｺﾝ),ECON |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-12300 |
AE95..AV2 FACE |
1 | ||
| 55905-12110 |
AE95..AV2 ｱﾘ(ｴｱｺﾝ),A/C |
1 | ||
| 55905-12330 |
AE95..AV2 FOOT-DEF |
1 | ||
| 55905-12320 |
AE95..AV2 FOOT |
1 | ||
| 55905-12310 |
AE95..AV2 BI-LEVEL |
1 | ||
| 55905-12360 |
AE95..AV2 TEMP |
2 | ||
| 55905-12340 |
AE95..AV2 DEF |
1 | ||
| 55905-12350 |
AE95..AV2 REC-REF |
1 | ||
| 55905-12120 |
AE95..AV2 ｱﾘ(ｴｱｺﾝ),ECON |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-12300 |
AE95..AV2 FACE |
1 | ||
| 55905-12110 |
AE95..AV2 ｱﾘ(ｴｱｺﾝ),A/C |
1 | ||
| 55905-12330 |
AE95..AV2 FOOT-DEF |
1 | ||
| 55905-12320 |
AE95..AV2 FOOT |
1 | ||
| 55905-12310 |
AE95..AV2 BI-LEVEL |
1 | ||
| 55905-12360 |
AE95..AV2 TEMP |
2 | ||
| 55905-12340 |
AE95..AV2 DEF |
1 | ||
| 55905-12350 |
AE95..AV2 REC-REF |
1 | ||
| 55905-12120 |
AE95..AV2 ｱﾘ(ｴｱｺﾝ),ECON |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-12300 |
AE95..AV2 FACE |
1 | ||
| 55905-12110 |
AE95..AV2 ｱﾘ(ｴｱｺﾝ),A/C |
1 | ||
| 55905-12330 |
AE95..AV2 FOOT-DEF |
1 | ||
| 55905-12320 |
AE95..AV2 FOOT |
1 | ||
| 55905-12310 |
AE95..AV2 BI-LEVEL |
1 | ||
| 55905-12360 |
AE95..AV2 TEMP |
2 | ||
| 55905-12340 |
AE95..AV2 DEF |
1 | ||
| 55905-12350 |
AE95..AV2 REC-REF |
1 | ||
| 55905-12120 |
AE95..AV2 ｱﾘ(ｴｱｺﾝ),ECON |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-12300 |
AE95..AV2 FACE |
1 | ||
| 55905-12110 |
AE95..AV2 ｱﾘ(ｴｱｺﾝ),A/C |
1 | ||
| 55905-12330 |
AE95..AV2 FOOT-DEF |
1 | ||
| 55905-12320 |
AE95..AV2 FOOT |
1 | ||
| 55905-12310 |
AE95..AV2 BI-LEVEL |
1 | ||
| 55905-12360 |
AE95..AV2 TEMP |
2 | ||
| 55905-12340 |
AE95..AV2 DEF |
1 | ||
| 55905-12350 |
AE95..AV2 REC-REF |
1 | ||
| 55905-12120 |
AE95..AV2 ｱﾘ(ｴｱｺﾝ),ECON |
1 | ||
