Toyota Sprinter carib AE95 SEAT BELT & CHILD RESTRAINT SEAT

Manufacturers Home
Toyota
JP
SPRINTER CARIB
AE95G-CWPGH (1990)
7104 - SEAT BELT & CHILD RESTRAINT SEAT

AE95G-CWPGH (1990)

Toyota Sprinter Carib

Production Sep 1990 - Aug 1995

Engine 4AFHE

Transmission 4FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

(9009- )

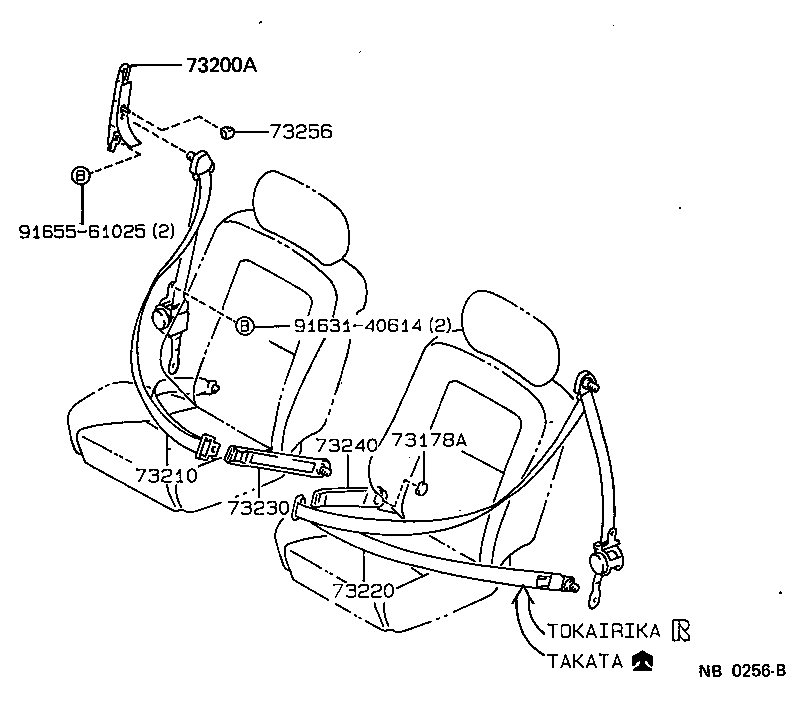

Click highlighted areas on diagram

Part #	Description	Period	Qty
73178A - CAP, SEAT BELT ANCHOR COVER
73178-16010J0	AE95 DARK BLUE,TRIM8#	09/1990 - 08/1993	2
73178-16010B1	AE95 DARK SMOKE GRAY,TRIM1#	09/1990 - 08/1995	2
73200A - ADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR
73200-1201203	AE95 SHADOW GRAY,TRIM1#	09/1990 - 08/1995	2
73200-1201204	AE95 DARK BLUE,TRIM8#	09/1990 - 08/1993	2
73210 - BELT ASSY, FRONT SEAT OUTER, RH
73210-1262303	AE95 SHADOW GRAY,TRIM1#	09/1990 - 09/1991	1
73210-12861B0	AE95 SHADOW GRAY,TRIM1#	06/1994 - 08/1995	1
73210-1262304	AE95 DARK BLUE,TRIM8#	09/1990 - 09/1991	1
73210-1286004	AE95 DARK BLUE,TRIM8#	09/1991 - 08/1993	1
73210-1286003	AE95 SHADOW GRAY,TRIM1#	09/1991 - 06/1994	1
73220 - BELT ASSY, FRONT SEAT OUTER, LH
73220-1253304	AE95 DARK BLUE,TRIM8#	09/1990 - 09/1991	1
73220-1275004	AE95 DARK BLUE,TRIM8#	09/1991 - 08/1993	1
73220-1253303	AE95 SHADOW GRAY,TRIM1#	09/1990 - 09/1991	1
73220-1275003	AE95 SHADOW GRAY,TRIM1#	09/1991 - 06/1994	1
73220-12751B0	AE95 SHADOW GRAY,TRIM1#	06/1994 - 08/1995	1
73230 - BELT ASSY, FRONT SEAT INNER, RH
73230-1251003	AE95 SHADOW GRAY,TRIM1#	09/1991 - 08/1995	1
73230-1237103	AE95 SHADOW GRAY,TRIM1#	09/1990 - 09/1991	1
73230-1251004	AE95 DARK BLUE,TRIM8#	09/1991 - 08/1993	1
73230-1237104	AE95 DARK BLUE,TRIM8#	09/1990 - 09/1991	1
73240 - BELT ASSY, FRONT SEAT INNER, LH
73230-1237103	AE95 SHADOW GRAY,TRIM1#	09/1990 - 09/1991	1
73240-1221004	AE95 DARK BLUE,TRIM8#	09/1991 - 08/1993	1
73230-1237104	AE95 DARK BLUE,TRIM8#	09/1990 - 09/1991	1
73240-1221003	AE95 SHADOW GRAY,TRIM1#	09/1991 - 08/1995	1
73256 - KNOB, SHOULDER BELT ANCHOR ADJUST
73256-1201004	AE95 DARK BLUE,TRIM8#	09/1990 - 08/1993	2
73256-1201003	AE95 SHADOW GRAY,TRIM1#	09/1990 - 08/1995	2
Common parts
91631-40614
91655-61025

(9009- )

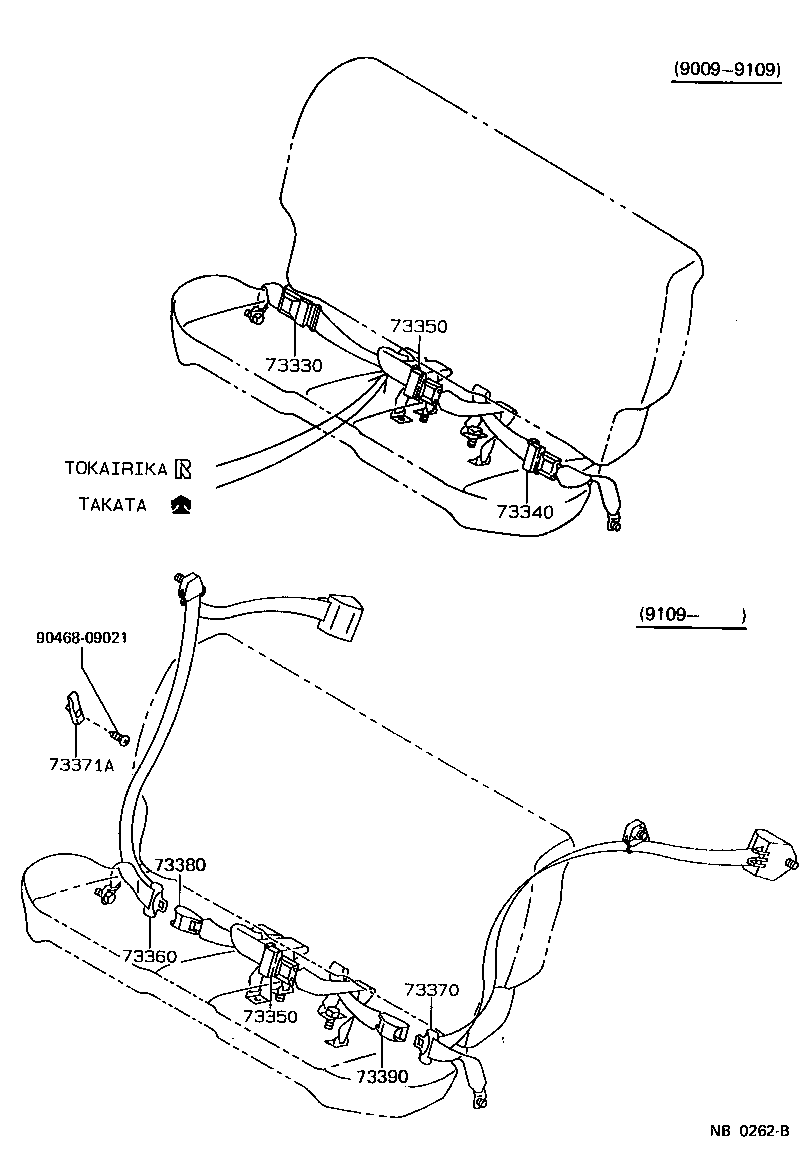

Click highlighted areas on diagram

Part #	Description	Period	Qty
73330 - BELT ASSY, REAR SEAT LAP TYPE, RH
73330-1235004	AE95 DARK BLUE,TRIM8#	09/1990 - 09/1991	1
73330-1235003	AE95 SHADOW GRAY,TRIM1#	09/1990 - 09/1991	1
73340 - BELT ASSY, REAR SEAT LAP TYPE, LH
73330-1235003	AE95 SHADOW GRAY,TRIM1#	09/1990 - 09/1991	1
73330-1235004	AE95 DARK BLUE,TRIM8#	09/1990 - 09/1991	1
73350 - BELT ASSY, REAR SEAT LAP TYPE, CENTER
73350-1218003	AE95 SHADOW GRAY,TRIM1#	09/1990 - 09/1991	1
73350-1221003	AE95 SHADOW GRAY,TRIM1#	09/1991 - 08/1995	1
73350-1221004	AE95 DARK BLUE,TRIM8#	09/1991 - 08/1993	1
73350-1218004	AE95 DARK BLUE,TRIM8#	09/1990 - 09/1991	1
73350 - BELT ASSY, REAR SEAT LAP TYPE, CENTER
73350-1218003	AE95 SHADOW GRAY,TRIM1#	09/1990 - 09/1991	1
73350-1221003	AE95 SHADOW GRAY,TRIM1#	09/1991 - 08/1995	1
73350-1221004	AE95 DARK BLUE,TRIM8#	09/1991 - 08/1993	1
73350-1218004	AE95 DARK BLUE,TRIM8#	09/1990 - 09/1991	1
73360 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER RH
73360-1255004	AE95 DARK BLUE,TRIM8#	09/1991 - 08/1993	1
73360-1255003	AE95 SHADOW GRAY,TRIM1#	09/1991 - 08/1995	1
73370 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER LH
73370-1233004	AE95 DARK BLUE,TRIM8#	09/1991 - 08/1993	1
73370-1233003	AE95 SHADOW GRAY,TRIM1#	09/1991 - 08/1995	1
73371A - HANGER REAR SEAT SHOULDER BELT
73371-1203003	AE95 GRAY,TRIM1#	09/1991 - 08/1995	2
73371-1203014	AE95 DARK BLUE,TRIM8#	09/1991 - 08/1993	2
73380 - BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, RH
73380-1235003	AE95 SHADOW GRAY,TRIM1#	09/1991 - 08/1995	1
73380-1235004	AE95 DARK BLUE,TRIM8#	09/1991 - 08/1993	1
73390 - BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, LH
73380-1235003	AE95 SHADOW GRAY,TRIM1#	09/1991 - 08/1995	1
73380-1235004	AE95 DARK BLUE,TRIM8#	09/1991 - 08/1993	1
Common parts
90468-09021

AE95G-CWPGH (1990)

(9009- )

(9009- )
