AE95G-CWPGH (1990)
Toyota Sprinter Carib
(9009- )4FC
A241H

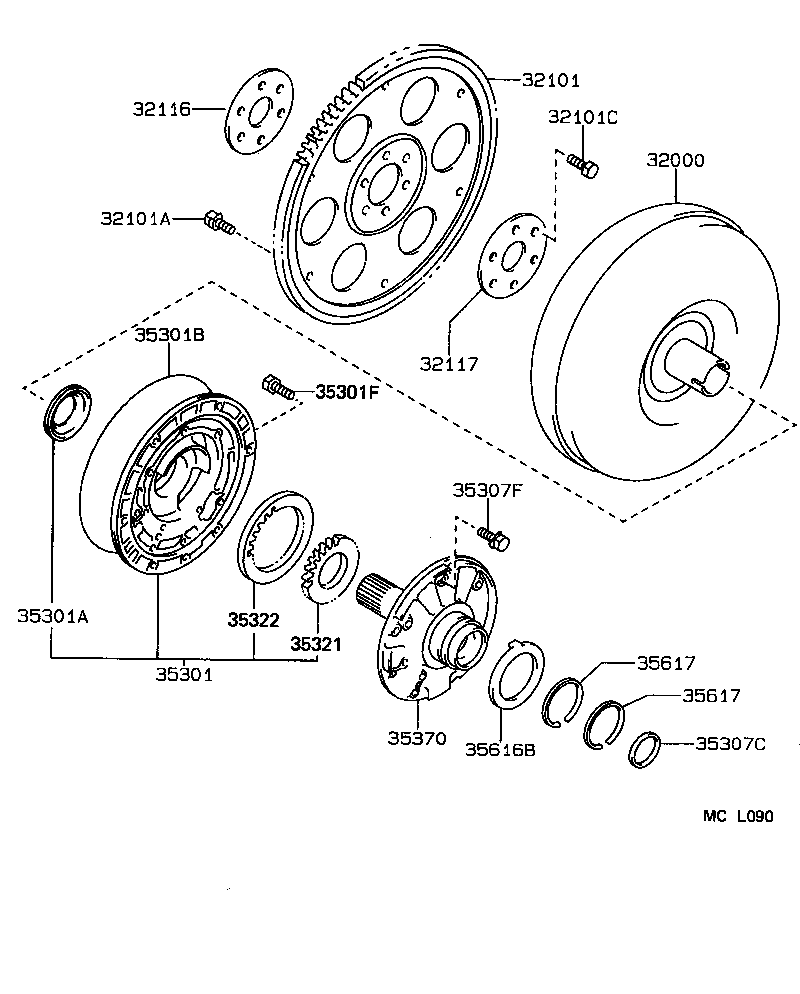

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 32000 - CONVERTER ASSY, TORQUE | ||||
| 32000-16060 |
AE95..4FC |
1 | ||
| 32101 - GEAR SUB-ASSY, DRIVE PLATE & RING | ||||
| 32101-12060 |
AE95..4FC |
1 | ||
| 32101A - BOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING) | ||||
| 90109-08113 |
AE95..4FC *8−1.25PX12−8.4,OLIVE GREEN |
1 | ||
| 90119-08498 |
AE95..4FC *8−1.25PX12−8 |
5 | ||
| 90119-08498 |
AE95..4FC *8−1.25PX12−8,ﾌﾞﾗｯｸ |
5 | ||
| 90109-08113 |
AE95..4FC *8−1.25PX12−8.4 |
1 | ||
| 32101C - BOLT, HEXAGON(FOR DRIVE PLATE SETTING) | ||||
| 90105-10048 |
AE95..4FC *10−1.25PX18−13 |
6 | ||
| 32116 - SPACER, DRIVE PLATE, FRONT | ||||
| 32116-12010 |
AE95..4FC |
1 | ||
| 32117 - SPACER, DRIVE PLATE, REAR | ||||
| 32117-12010 |
AE95..4FC |
1 | ||
| 35301 - BODY SUB-ASSY, FRONT OIL PUMP | ||||
| 35035-12010 |
AE95..4FC |
1 | ||
| 35301A - SEAL, OIL (FOR FRONT OIL PUMP) | ||||
| 90311-38020 |
AE95..4FC |
1 | ||
| 35301B - RING, O (FOR FRONT OIL PUMP BODY) | ||||
| 90301-99024 |
AE95..4FC |
1 | ||
| 35301F - BOLT (FOR FRONT OIL PUMP SETTING) | ||||
| 90105-08198 |
AE95..4FC *8−1.25PX28−28 |
6 | ||
| 35307C - RACE, THRUST BEARING (FOR STATOR SHAFT) | ||||
| 35789-32020 |
AE95..4FC 厚さ=0.8 |
1 | ||
| 35789-32030 |
AE95..4FC 厚さ=1.4 |
1 | ||
| 35307F - BOLT (FOR STATOR SHAFT) | ||||
| 90119-06180 |
AE95..4FC |
11 | ||
| 35321 - GEAR, FRONT OIL PUMP DRIVE | ||||
| 35321-12060 |
AE95..4FC 厚さ=10.731−10.740 |
1 | ||
| 35321-12030 |
AE95..4FC 厚さ=10.700−10.709 |
1 | ||
| 35321-12050 |
AE95..4FC 厚さ=10.721−10.730 |
1 | ||
| 35321-12020 |
AE95..4FC 厚さ=10.690−10.699 |
1 | ||
| 35321-12040 |
AE95..4FC 厚さ=10.710−10.720 |
1 | ||
| 35322 - GEAR, FRONT OIL PUMP DRIVEN | ||||
| 35322-12030 |
AE95..4FC 厚さ=10.710−10.720 |
1 | ||
| 35322-12010 |
AE95..4FC 厚さ=10.690−10.699 |
1 | ||
| 35322-35010 |
AE95..4FC 厚さ=10.690−10.740 |
1 | ||
| 35322-12020 |
AE95..4FC 厚さ=10.700−10.709 |
1 | ||
| 35322-12050 |
AE95..4FC 厚さ=10.731−10.740 |
1 | ||
| 35322-12040 |
AE95..4FC 厚さ=10.721−10.730 |
1 | ||
| 35370 - SHAFT ASSY, STATOR | ||||
| 35370-12040 |
AE95..4FC |
1 | ||
| 35616B - WASHER, CLUTCH DRUM THRUST (FOR STATOR SHAFT) | ||||
| 35616-32010 |
AE95..4FC |
1 | ||
| 35617 - RING, CLUTCH DRUM OIL SEAL | ||||
| 35617-32011 |
AE95..4FC |
2 | ||
| 35617 - RING, CLUTCH DRUM OIL SEAL | ||||
| 35617-32011 |
AE95..4FC |
2 | ||
