AE95G-CWPDH (1990)
Toyota Sprinter Carib
Production
Sep 1990
-
Aug 1995
Engine
4AFHE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9009- )

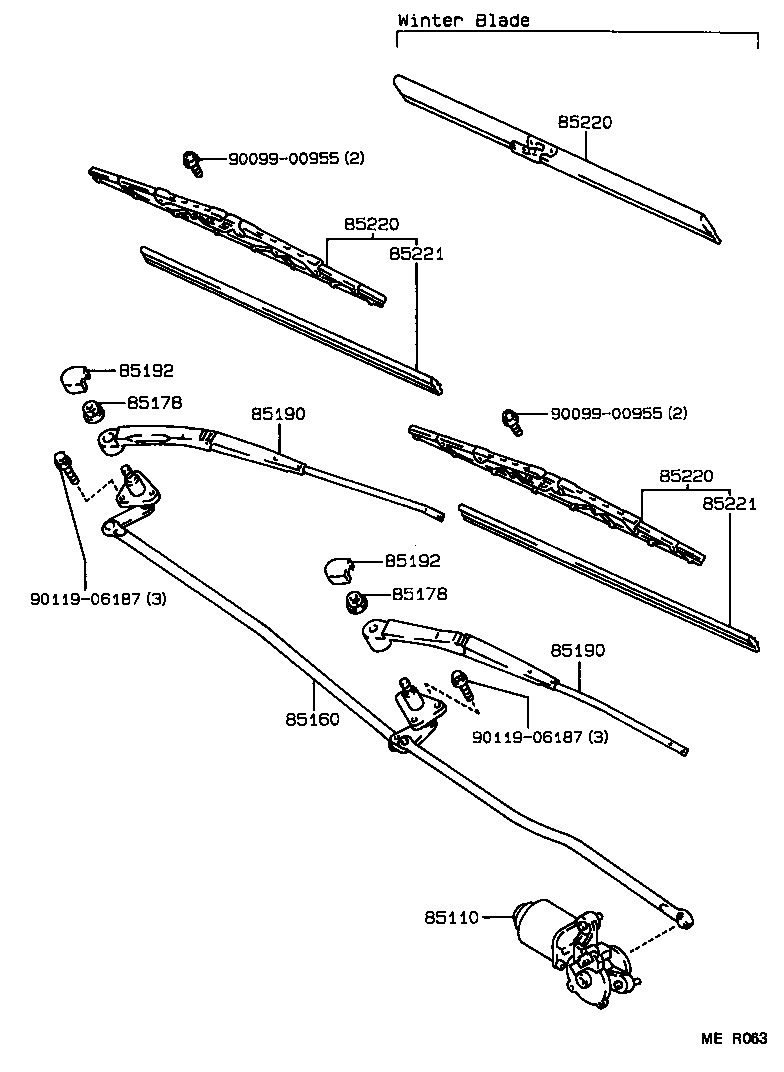

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85110 - MOTOR ASSY, WINDSHIELD WIPER | ||||
| 85110-12682 |
AE95 ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 85110-12622 |
AE95 |
1 | ||
| 85160 - LINK ASSY, WINDSHIELD WIPER | ||||
| 85160-12510 |
AE95 |
1 | ||
| 85178 - NUT (FOR FRONT WIPER ARM SETTING) | ||||
| 90179-08113 |
AE95 |
2 | ||
| 85178 - NUT (FOR FRONT WIPER ARM SETTING) | ||||
| 90179-08113 |
AE95 |
2 | ||
| 85190 - ARM ASSY, WINDSHIELD WIPER | ||||
| 85210-12242 |
AE95 左側 |
1 | ||
| 85190-12803 |
AE95 右側 |
1 | ||
| 85190-12802 |
AE95 右側 |
1 | ||
| 85210-12243 |
AE95 左側 |
1 | ||
| 85190 - ARM ASSY, WINDSHIELD WIPER | ||||
| 85210-12242 |
AE95 左側 |
1 | ||
| 85190-12803 |
AE95 右側 |
1 | ||
| 85190-12802 |
AE95 右側 |
1 | ||
| 85210-12243 |
AE95 左側 |
1 | ||
| 85192 - COVER, WINDSHIELD WIPER ARM | ||||
| 85192-12800 |
AE95 |
2 | ||
| 85292-12020 |
AE95 PLANT NO.B11 |
2 | ||
| 85192-12800 |
AE95 PLANT NO.A3#,M12,K21 |
2 | ||
| 85192 - COVER, WINDSHIELD WIPER ARM | ||||
| 85192-12800 |
AE95 |
2 | ||
| 85292-12020 |
AE95 PLANT NO.B11 |
2 | ||
| 85192-12800 |
AE95 PLANT NO.A3#,M12,K21 |
2 | ||
| 85220 - BLADE ASSY, WINDSHIELD WIPER | ||||
| 85291-16010 |
AE95 ｳｲﾝﾀ ﾌﾞﾚ-ﾄﾞ,左側 |
1 | ||
| 85222-12700 |
AE95 左側 |
1 | ||
| 85291-32030 |
AE95 ｳｲﾝﾀ ﾌﾞﾚ-ﾄﾞ,右側 |
1 | ||
| 85212-12290 |
AE95 右側 |
1 | ||
| 85220 - BLADE ASSY, WINDSHIELD WIPER | ||||
| 85291-16010 |
AE95 ｳｲﾝﾀ ﾌﾞﾚ-ﾄﾞ,左側 |
1 | ||
| 85222-12700 |
AE95 左側 |
1 | ||
| 85291-32030 |
AE95 ｳｲﾝﾀ ﾌﾞﾚ-ﾄﾞ,右側 |
1 | ||
| 85212-12290 |
AE95 右側 |
1 | ||
| 85220 - BLADE ASSY, WINDSHIELD WIPER | ||||
| 85291-16010 |
AE95 ｳｲﾝﾀ ﾌﾞﾚ-ﾄﾞ,左側 |
1 | ||
| 85222-12700 |
AE95 左側 |
1 | ||
| 85291-32030 |
AE95 ｳｲﾝﾀ ﾌﾞﾚ-ﾄﾞ,右側 |
1 | ||
| 85212-12290 |
AE95 右側 |
1 | ||
| 85221 - BLADE, WINDSHIELD WIPER | ||||
| 85213-17040 |
AE95 右側 |
1 | ||
| 85223-22700 |
AE95 左側 |
1 | ||
| 85213-12280 |
AE95 右側 |
1 | ||
| 85223-12690 |
AE95 左側 |
1 | ||
| 85221 - BLADE, WINDSHIELD WIPER | ||||
| 85213-17040 |
AE95 右側 |
1 | ||
| 85223-22700 |
AE95 左側 |
1 | ||
| 85213-12280 |
AE95 右側 |
1 | ||
| 85223-12690 |
AE95 左側 |
1 | ||
| Common parts | ||||
| 90099-00955 | ||||
| 90119-06187 | ||||
