AE95G-CWPDH (1990)
Toyota Sprinter Carib

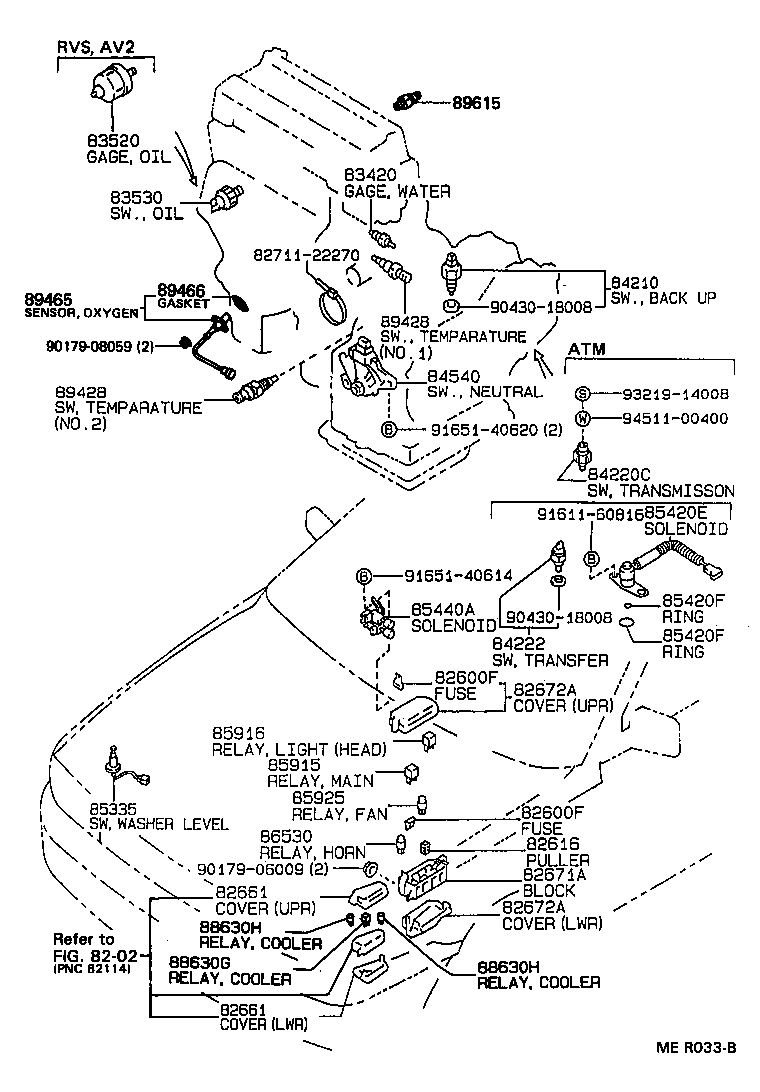

ILLUST NO. 1 OF 4(9009- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09002 |
AE95 10A |
3 | ||
| 90982-09003 |
AE95 15A |
3 | ||
| 90982-07011 |
AE95 30A,緑 |
1 | ||
| 90982-09004 |
AE95 20A,黄 |
1 | ||
| 90982-09005 |
AE95 7.5A |
3 | ||
| 90982-09003 |
AE95 15A |
4 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09002 |
AE95 10A |
3 | ||
| 90982-09003 |
AE95 15A |
3 | ||
| 90982-07011 |
AE95 30A,緑 |
1 | ||
| 90982-09004 |
AE95 20A,黄 |
1 | ||
| 90982-09005 |
AE95 7.5A |
3 | ||
| 90982-09003 |
AE95 15A |
4 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-12010 |
AE95 |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82661-12140 |
AE95 上側 |
1 | ||
| 82661-12160 |
AE95 下側 |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82661-12140 |
AE95 上側 |
1 | ||
| 82661-12160 |
AE95 下側 |
1 | ||
| 82671A - BLOCK, JUNCTION | ||||
| 82671-12080 |
AE95 |
1 | ||
| 82672A - COVER, JUNCTION BLOCK | ||||
| 82672-12070 |
AE95 下側 |
1 | ||
| 82672-12150 |
AE95 上側 |
1 | ||
| 82672A - COVER, JUNCTION BLOCK | ||||
| 82672-12070 |
AE95 下側 |
1 | ||
| 82672-12150 |
AE95 上側 |
1 | ||
| 83420 - GAGE ASSY, WATER TEMPERATURE SENDER | ||||
| 83420-16020 |
AE95 |
1 | ||
| 83420-16020 |
AE95..4FC;AE95..5F..(AV2,RVS) |
1 | ||
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-30051 |
AE95..AV1 |
1 | ||
| 83530-30051 |
AE95..4FC..AV1 |
1 | ||
| 84220C - SWITCH ASSY, TRANSMISSION POSITION INDICATOR | ||||
| 84220-30050 |
AE95..4FC |
1 | ||
| 84540 - SWITCH ASSY, NEUTRAL START | ||||
| 84540-16030 |
AE95..4FC |
1 | ||
| 85335 - SWITCH ASSY, WASHER LEVEL WARNING | ||||
| 85335-12750 |
AE95 |
1 | ||
| 85420E - SOLENOID ASSY, TRANSMISSION | ||||
| 85420-12080 |
AE95..4FC |
1 | ||
| 85420F - RING, O(FOR TRANSMISSION SOLENOID) | ||||
| 90301-23001 |
AE95..4FC ID=23 |
1 | ||
| 90301-11001 |
AE95..4FC ID=10 |
1 | ||
| 85420F - RING, O(FOR TRANSMISSION SOLENOID) | ||||
| 90301-23001 |
AE95..4FC ID=23 |
1 | ||
| 90301-11001 |
AE95..4FC ID=10 |
1 | ||
| 85915 - RELAY, MAIN | ||||
| 90987-04002 |
AE95 |
1 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 90987-02006 |
AE95 HEAD |
1 | ||
| 90987-02004 |
AE95 NIPPONDENSO,TAIL |
1 | ||
| 90987-02002 |
AE95 MARUKO,TAIL |
1 | ||
| 85925 - RELAY, RADIATOR FAN | ||||
| 90987-03001 |
AE95 |
1 | ||
| 86530 - RELAY ASSY, HORN | ||||
| 90987-02004 |
AE95 NIPPONDENSO |
1 | ||
| 90987-02002 |
AE95 MARUKO |
1 | ||
| 88630G - RELAY ASSY, COOLER | ||||
| 88630-32010 |
AE95 |
1 | ||
| 88630H - RELAY ASSY, COOLER | ||||
| 90987-02004 |
AE95 |
2 | ||
| 88630H - RELAY ASSY, COOLER | ||||
| 90987-02004 |
AE95 |
2 | ||
| 89428 - SWITCH, TEMPERATURE DETECT, NO.2 | ||||
| 89428-12100 |
AE95..4FC NO.2 |
1 | ||
| 89428-15011 |
AE95 NO.1 |
1 | ||
| 89428 - SWITCH, TEMPERATURE DETECT, NO.2 | ||||
| 89428-12100 |
AE95..4FC NO.2 |
1 | ||
| 89428-15011 |
AE95 NO.1 |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-19445 |
AE95 |
1 | ||
| 89466 - GASKET, OXYGEN SENSOR | ||||
| 89466-20020 |
AE95 |
1 | ||
| 89615 - SENSOR, KNOCK CONTROL | ||||
| 89615-22040 |
AE95 MARK=81 |
1 | ||
| 89615-12020 |
AE95 MARK=71 |
1 | ||
| Common parts | ||||
| 82711-22270 | ||||
| 90179-06009 | ||||
| 90179-08059 | ||||
| 90430-18008 | ||||
| 91611-60816 | ||||
| 91651-40614 | ||||
| 91651-40620 | ||||
| 93219-14008 | ||||
| 94511-00400 | ||||
| Linked diagrams | ||||
| 8202 | ||||

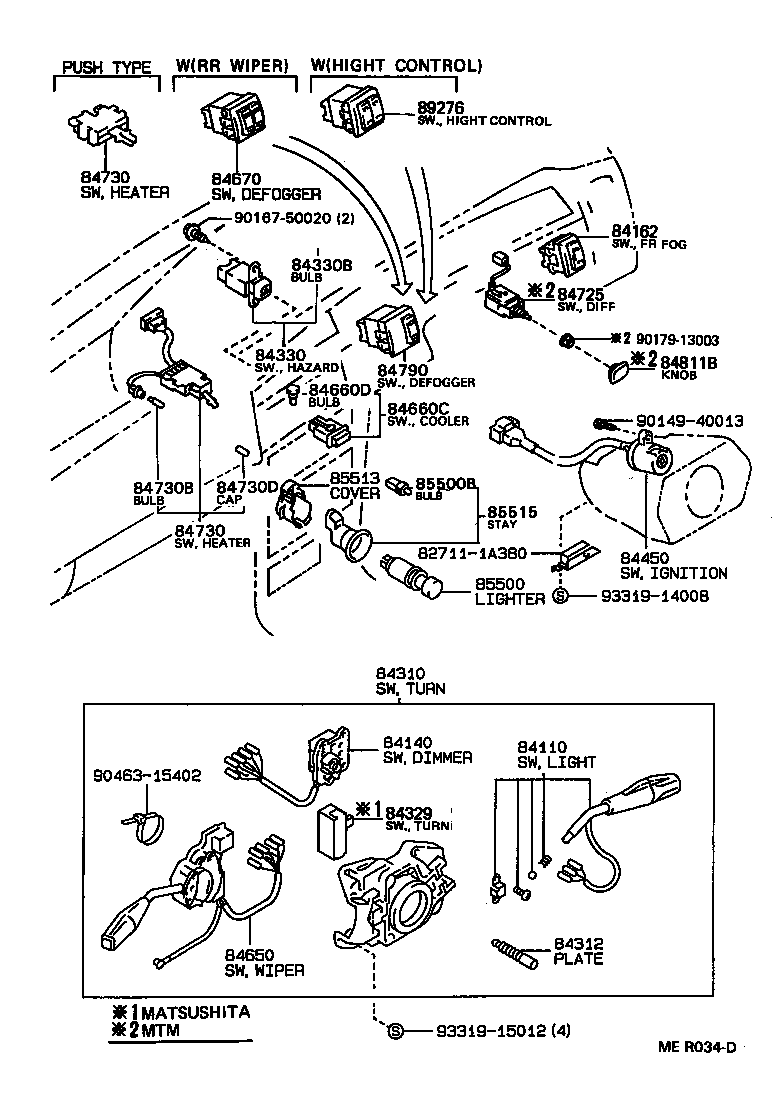

ILLUST NO. 2 OF 4(9009- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84110 - SWITCH ASSY, LIGHT CONTROL, NO.1 | ||||
| 84112-80007 |
AE95 MATSUSHITA |
1 | ||
| 84112-80005 |
AE95 東海理化 |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-12320 |
AE95 MATSUSHITA |
1 | ||
| 84140-12220 |
AE95 東海理化 |
1 | ||
| 84140-12210 |
AE95 MATSUSHITA |
1 | ||
| 84162 - SWITCH, FRONT FOG LAMP | ||||
| 84162-1210004 |
AE95 DARK BLUE,TRIM8# |
1 | ||
| 84162-1210003 |
AE95 SHADOW GRAY,TRIM1# |
1 | ||
| 84310 - SWITCH ASSY, TURN SIGNAL | ||||
| 84310-12800 |
AE95..AV1 |
1 | ||
| 84312 - PLATE, HORN CONTACT | ||||
| 84312-12040 |
AE95 東海理化 |
1 | ||
| 84312-12050 |
AE95 MATSUSHITA |
1 | ||
| 84329 - SWITCH, TURN SIGNAL | ||||
| 84329-12010 |
AE95 |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-12290 |
AE95 |
1 | ||
| 84330B - BULB, HAZARD WARNING SIGNAL SWITCH | ||||
| 84999-10320 |
AE95 14V 0.84W |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-12150 |
AE95 |
1 | ||
| 84450-12170 |
AE95..4FC |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-12440 |
AE95..AV1 東海理化 |
1 | ||
| 84652-12430 |
AE95..AV1 MATSUSHITA |
1 | ||
| 84660C - SWITCH, COOLER | ||||
| 84660-12120 |
AE95..AV1,RVS |
1 | ||
| 84660D - BULB(FOR COOLER SWITCH) | ||||
| 88607-20060 |
AE95..AV1,RVS 14V 0.08A |
1 | ||
| 84670 - SWITCH ASSY, REAR WIPER & DEFOGGER | ||||
| 84670-1202003 |
AE95..AV1,RVS SHADOW GRAY,TRIM1# |
1 | ||
| 84670-1202004 |
AE95..AV1,RVS DARK BLUE,TRIM8# |
1 | ||
| 84725 - SWITCH, CENTER DIFFERENTIAL LOCK | ||||
| 84725-13020 |
AE95..4FC |
1 | ||
| 84730 - SWITCH ASSY, HEATER BLOWER | ||||
| 84732-12250 |
AE95..AV1,RVS ｱﾘ(ｵ-ﾄ ｴｱｺﾝ) |
1 | ||
| 84732-12230 |
AE95..AV1,RVS |
1 | ||
| 84730 - SWITCH ASSY, HEATER BLOWER | ||||
| 84732-12250 |
AE95..AV1,RVS ｱﾘ(ｵ-ﾄ ｴｱｺﾝ) |
1 | ||
| 84732-12230 |
AE95..AV1,RVS |
1 | ||
| 84730B - BULB, HEATER BLOWER SWITCH | ||||
| 90981-11014 |
AE95..AV1,RVS 14V 1.4W |
1 | ||
| 84730D - CAP, HEATER BLOWER SWITCH BULB | ||||
| 84998-10100 |
AE95..AV1,RVS |
1 | ||
| 84790 - SWITCH ASSY, REAR WINDOW DEFOGGER | ||||
| 84790-1228004 |
AE95..AV1 DARK BLUE,TRIM8# |
1 | ||
| 84790-1228003 |
AE95..AV1 SHADOW GRAY,TRIM1# |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-10120 |
AE95 |
1 | ||
| 85500-12250 |
AE95 |
1 | ||
| 85500B - BULB, CIGARETTE LIGHTER | ||||
| 84999-10230 |
AE95 14V 1.4W |
1 | ||
| 85513 - COVER, CIGARETTE LIGHTER | ||||
| 85513-12020 |
AE95 |
1 | ||
| 85515 - STAY, CIGARETTE LIGHTER BEZEL | ||||
| 85515-12010 |
AE95 |
1 | ||
| Common parts | ||||
| 82711-1A380 | ||||
| 90149-40013 | ||||
| 90167-50020 | ||||
| 90179-13003 | ||||
| 90463-15402 | ||||
| 93319-14008 | ||||
| 93319-15012 | ||||

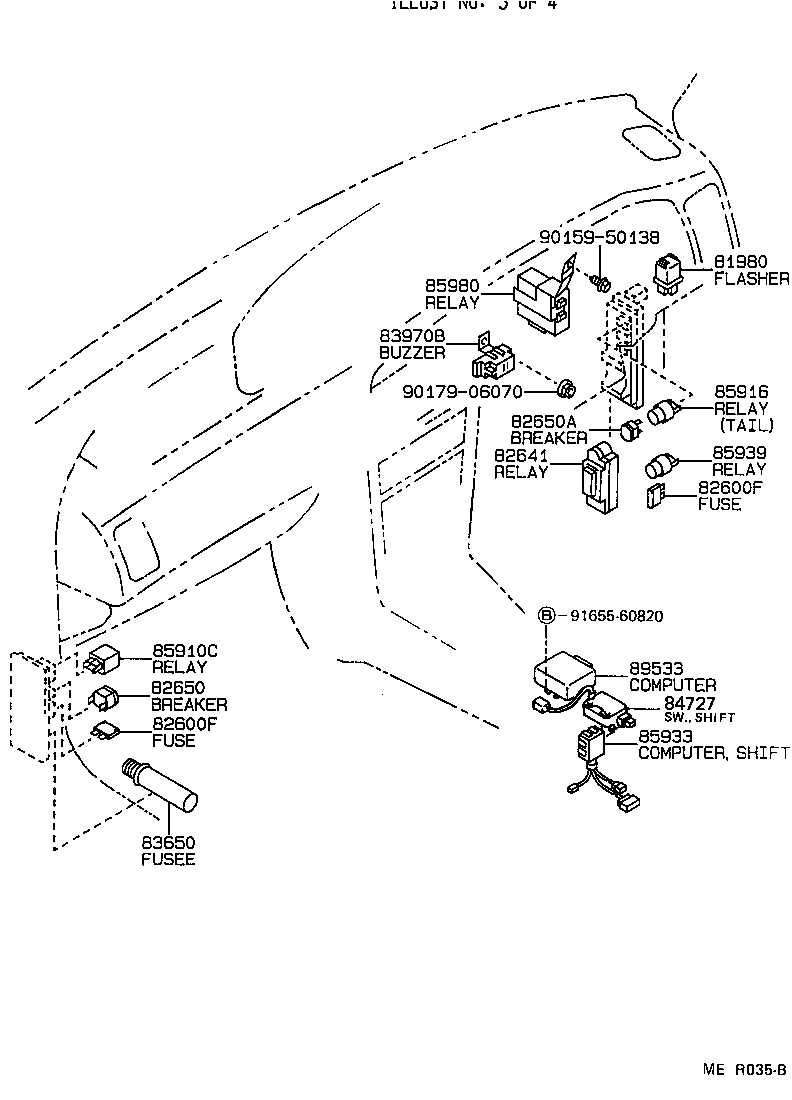

ILLUST NO. 3 OF 4(9009- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-12070 |
AE95 |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09002 |
AE95 10A |
3 | ||
| 90982-09003 |
AE95 15A |
3 | ||
| 90982-07011 |
AE95 30A,緑 |
1 | ||
| 90982-09004 |
AE95 20A,黄 |
1 | ||
| 90982-09005 |
AE95 7.5A |
3 | ||
| 90982-09003 |
AE95 15A |
4 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09002 |
AE95 10A |
3 | ||
| 90982-09003 |
AE95 15A |
3 | ||
| 90982-07011 |
AE95 30A,緑 |
1 | ||
| 90982-09004 |
AE95 20A,黄 |
1 | ||
| 90982-09005 |
AE95 7.5A |
3 | ||
| 90982-09003 |
AE95 15A |
4 | ||
| 82641 - RELAY, INTEGRATION NO.1 | ||||
| 82641-12080 |
AE95..AV1,RVS |
1 | ||
| 82650 - BREAKER ASSY, WIRING CIRCUIT, NO.1 | ||||
| 82650-20011 |
AE95 30A |
1 | ||
| 82650A - BREAKER ASSY, WIRING CIRCUIT, NO.2 | ||||
| 82650-20011 |
AE95 30A |
1 | ||
| 83650 - FUSEE | ||||
| 90986-01005 |
AE95 |
1 | ||
| 83970B - BUZZER ASSY, REVERSE WARNING | ||||
| 83970-12010 |
AE95..4FC |
1 | ||
| 84727 - SWITCH, SHIFT LOCK CONTROL | ||||
| 84727-12010 |
AE95..4FC |
1 | ||
| 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) | ||||
| 90987-04002 |
AE95 |
1 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 90987-02006 |
AE95 HEAD |
1 | ||
| 90987-02004 |
AE95 NIPPONDENSO,TAIL |
1 | ||
| 90987-02002 |
AE95 MARUKO,TAIL |
1 | ||
| 85933 - COMPUTER, SHIFT LOCK CONTROL | ||||
| 85933-12010 |
AE95..4FC |
1 | ||
| 85980 - RELAY ASSY, DOOR CONTROL | ||||
| 85980-12070 |
AE95 |
1 | ||
| 89533 - COMPUTER, 4 WHEEL DRIVE CONTROL | ||||
| 89533-13010 |
AE95..4FC |
1 | ||
| Common parts | ||||
| 90159-50138 | ||||
| 90179-06070 | ||||
| 91655-60820 | ||||

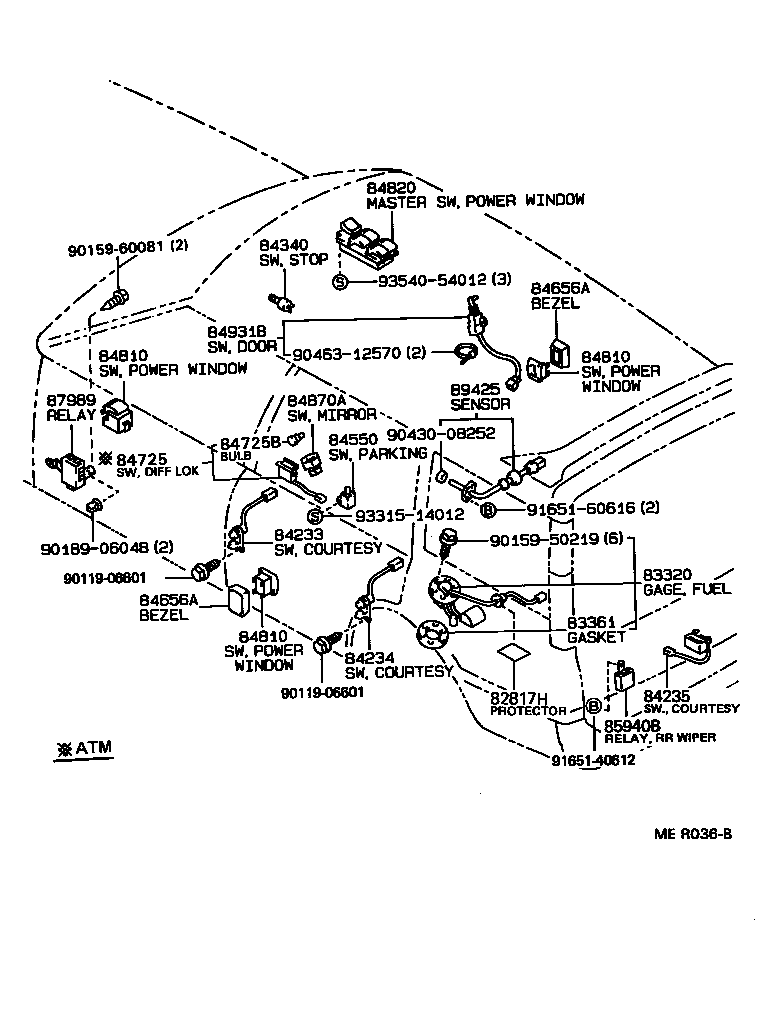

ILLUST NO. 4 OF 4(9009- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82817H - PROTECTOR, WIRING HARNESS | ||||
| 82817-12840 |
AE95..4FC;AE95..5F..(AV2,RVS) |
1 | ||
| 82817-12840 |
AE95 |
1 | ||
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-80090 |
AE95..AV1 |
1 | ||
| 83361 - GASKET, FUEL SENDER GAGE | ||||
| 83361-32020 |
AE95 |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-12060 |
AE95 |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-12060 |
AE95 |
2 | ||
| 84235 - SWITCH ASSY, COURTESY LAMP(FOR BACK DOOR) | ||||
| 84230-16020 |
AE95 |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-32050 |
AE95 |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-16060 |
AE95 |
1 | ||
| 84656A - BEZEL, SWITCH | ||||
| 84656-12010J0 |
AE95..AV1,RVS DARK BLUE,TRIM8# |
2 | ||
| 84656-12010B1 |
AE95..AV1,RVS SHADOW GRAY,TRIM1# |
2 | ||
| 84656A - BEZEL, SWITCH | ||||
| 84656-12010J0 |
AE95..AV1,RVS DARK BLUE,TRIM8# |
2 | ||
| 84656-12010B1 |
AE95..AV1,RVS SHADOW GRAY,TRIM1# |
2 | ||
| 84725 - SWITCH, CENTER DIFFERENTIAL LOCK | ||||
| 84725-13020 |
AE95..4FC |
1 | ||
| 84725B - BLUB, DIFFERENTIAL LOCK SWITCH | ||||
| 84999-10170 |
AE95..4FC 12V 1.12W |
1 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-12060J0 |
AE95..AV1,RVS DARK BLUE,TRIM8#,ﾘﾔ |
2 | ||
| 84810-32070 |
AE95 ﾌﾛﾝﾄ |
1 | ||
| 84810-12060B1 |
AE95..AV1,RVS SHADOW GRAY,TRIM1#,ﾘﾔ |
2 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-12060J0 |
AE95..AV1,RVS DARK BLUE,TRIM8#,ﾘﾔ |
2 | ||
| 84810-32070 |
AE95 ﾌﾛﾝﾄ |
1 | ||
| 84810-12060B1 |
AE95..AV1,RVS SHADOW GRAY,TRIM1#,ﾘﾔ |
2 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-12060J0 |
AE95..AV1,RVS DARK BLUE,TRIM8#,ﾘﾔ |
2 | ||
| 84810-32070 |
AE95 ﾌﾛﾝﾄ |
1 | ||
| 84810-12060B1 |
AE95..AV1,RVS SHADOW GRAY,TRIM1#,ﾘﾔ |
2 | ||
| 84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84820-12220 |
AE95 |
1 | ||
| 84820-12221 |
AE95 |
1 | ||
| 84931B - SWITCH, DOOR CONTROL | ||||
| 84931-19025 |
AE95 |
1 | ||
| 84931-19015 |
AE95 |
1 | ||
| 89425 - SENSOR, EXHAUST GAS TEMPERATURE | ||||
| 89425-19445 |
AE95 |
1 | ||
| Common parts | ||||
| 90119-06601 | ||||
| 90159-50219 | ||||
| 90159-60081 | ||||
| 90189-06048 | ||||
| 90430-08252 | ||||
| 90463-12570 | ||||
| 91651-40612 | ||||
| 91651-60616 | ||||
| 93315-14012 | ||||
| 93540-54012 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
