AE95G-CWPDH (1990)
Toyota Sprinter Carib
Production
Sep 1990
-
Aug 1995
Engine
4AFHE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)

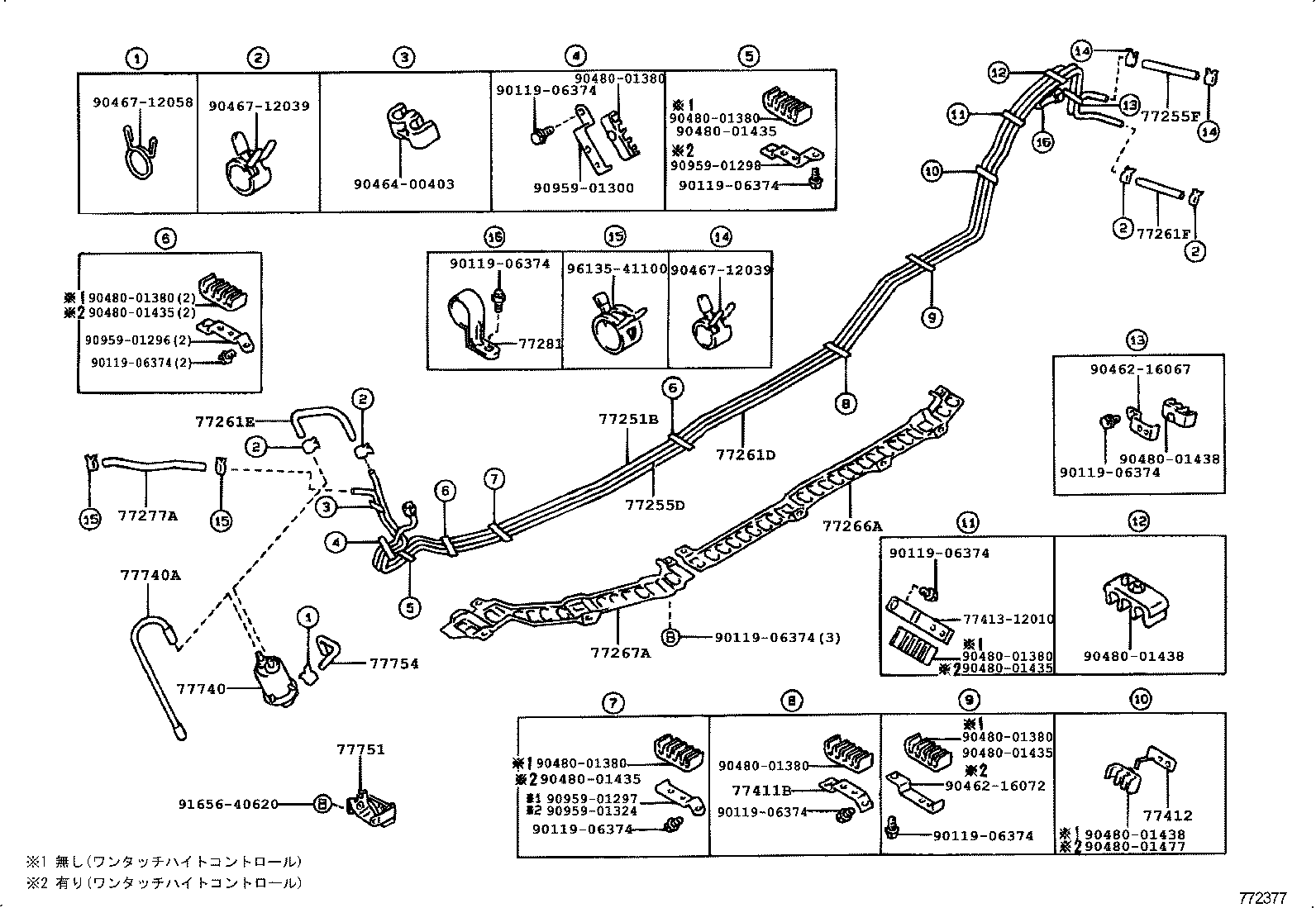

ILLUST NO. 3 OF 3(9009- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77251B - TUBE, FUEL MAIN | ||||
| 77251-12450 |
AE95 |
1 | ||
| 77255D - TUBE, FUEL RETURN | ||||
| 77255-12400 |
AE95 |
1 | ||
| 77255F - HOSE, FUEL, NO.2 (FOR FUEL RETURN TUBE) | ||||
| 77279-12090 |
AE95 長さ=260 |
1 | ||
| 95333-06030 |
AE95 *H,L=300 |
1 | ||
| 77261D - TUBE, FUEL TANK TO CANISTER | ||||
| 77261-12270 |
AE95 |
1 | ||
| 77261E - HOSE, FUEL, NO.1 (FOR FUEL TANK TO CANISTER TUBE) | ||||
| 77259-12120 |
AE95 |
1 | ||
| 77261F - HOSE, FUEL, NO.2 (FOR FUEL TANK TO CANISTER TUBE) | ||||
| 77249-12060 |
AE95 |
1 | ||
| 77266A - PROTECTOR, FUEL TUBE, NO.1 | ||||
| 77266-12050 |
AE95 |
1 | ||
| 77267A - PROTECTOR, FUEL TUBE, NO.2 | ||||
| 77267-12060 |
AE95 |
1 | ||
| 77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1) | ||||
| 90447-12091 |
AE95 長さ=410 |
1 | ||
| 77281 - BRACKET, FUEL MAIN TUBE, NO.1 | ||||
| 77281-12020 |
AE95 |
1 | ||
| 77411B - SUPPORT, FUEL TUBE GROMMET, NO.1 | ||||
| 77411-12010 |
AE95 |
1 | ||
| 77412 - SUPPORT, FUEL TUBE GROMMET, NO.2 | ||||
| 77412-12010 |
AE95 |
1 | ||
| 77740 - CANISTER ASSY, CHARCOAL | ||||
| 77704-12450 |
AE95 |
1 | ||
| 77740A - HOSE, FUEL, NO.1(FOR CHARCOAL CANISTER) | ||||
| 95413-49939 |
AE95 長さ=390 |
1 | ||
| 77751 - BRACKET, CHARCOAL CANISTER BASE | ||||
| 77750-12010 |
AE95 |
1 | ||
| 77754 - HOSE, CHARCOAL CANISTER OUTLET, NO.1 | ||||
| 77754-12150 |
AE95 |
1 | ||
| Common parts | ||||
| 77413-12010 | ||||
| 90119-06374 | ||||
| 90462-16067 | ||||
| 90462-16072 | ||||
| 90464-00403 | ||||
| 90467-12039 | ||||
| 90467-12058 | ||||
| 90480-01380 | ||||
| 90480-01435 | ||||
| 90480-01438 | ||||
| 90480-01477 | ||||
| 90959-01296 | ||||
| 90959-01297 | ||||
| 90959-01298 | ||||
| 90959-01300 | ||||
| 90959-01324 | ||||
| 91656-40620 | ||||
| 96135-41100 | ||||

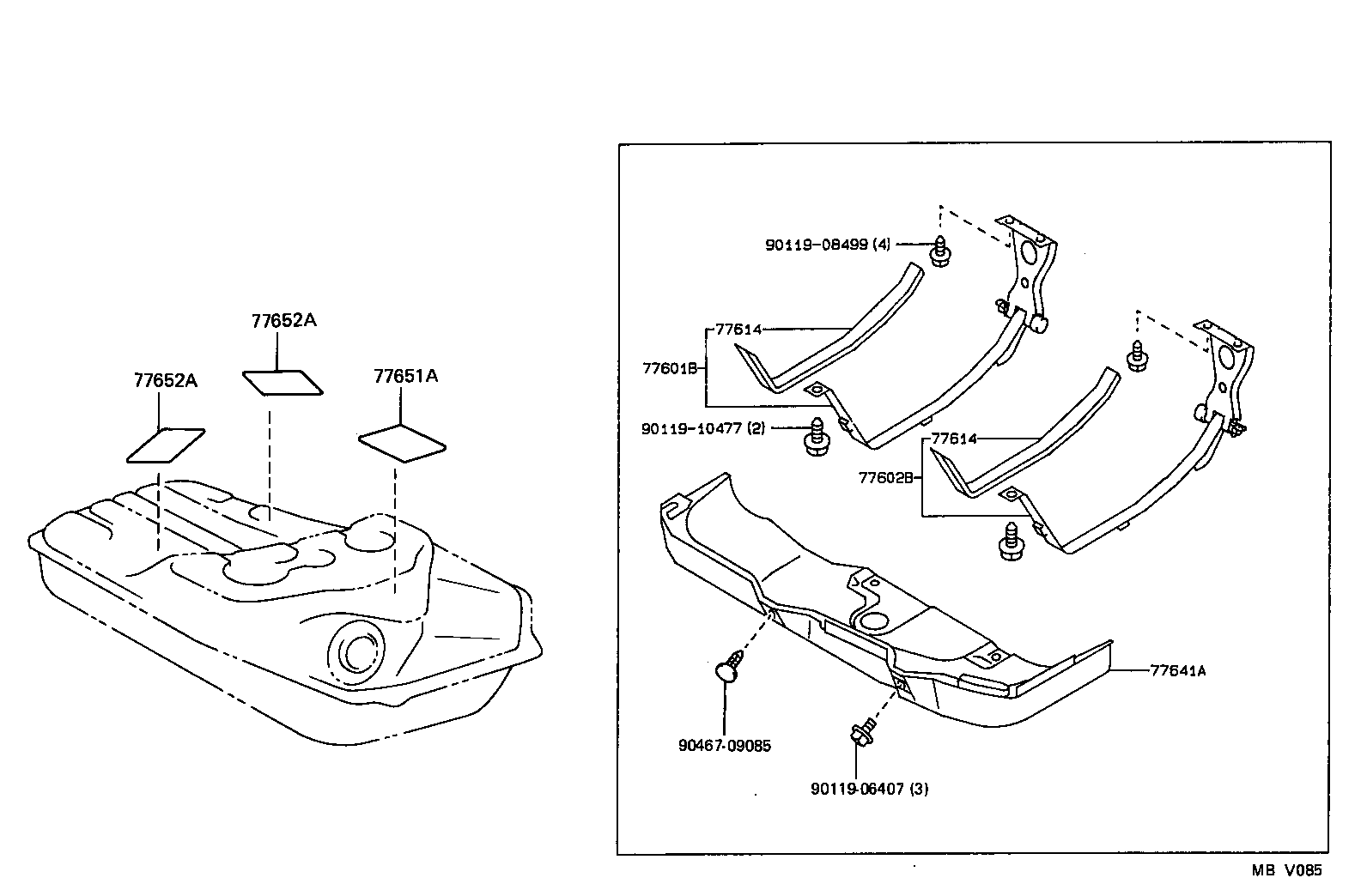

ILLUST NO. 2 OF 3(9009- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77601B - BAND SUB-ASSY, FUEL TANK, NO.1 RH | ||||
| 77601-12161 |
AE95 |
1 | ||
| 77602B - BAND SUB-ASSY, FUEL TANK, NO.1 LH | ||||
| 77602-12110 |
AE95 |
1 | ||
| 77614 - SEAT, FUEL TANK BAND | ||||
| 77682-12010 |
AE95 左側 |
1 | ||
| 77681-12020 |
AE95 右側 |
1 | ||
| 77614 - SEAT, FUEL TANK BAND | ||||
| 77682-12010 |
AE95 左側 |
1 | ||
| 77681-12020 |
AE95 右側 |
1 | ||
| 77641A - PROTECTOR, FUEL TANK, NO.1 | ||||
| 77641-12150 |
AE95 |
1 | ||
| 77651A - CUSHION, FUEL TANK, NO.1 | ||||
| 77652-12070 |
AE95 |
1 | ||
| 77652A - CUSHION, FUEL TANK, NO.2 | ||||
| 77652-12090 |
AE95 |
2 | ||
| 77652A - CUSHION, FUEL TANK, NO.2 | ||||
| 77652-12090 |
AE95 |
2 | ||
| Common parts | ||||
| 90119-06407 | ||||
| 90119-08499 | ||||
| 90119-10477 | ||||
| 90467-09085 | ||||

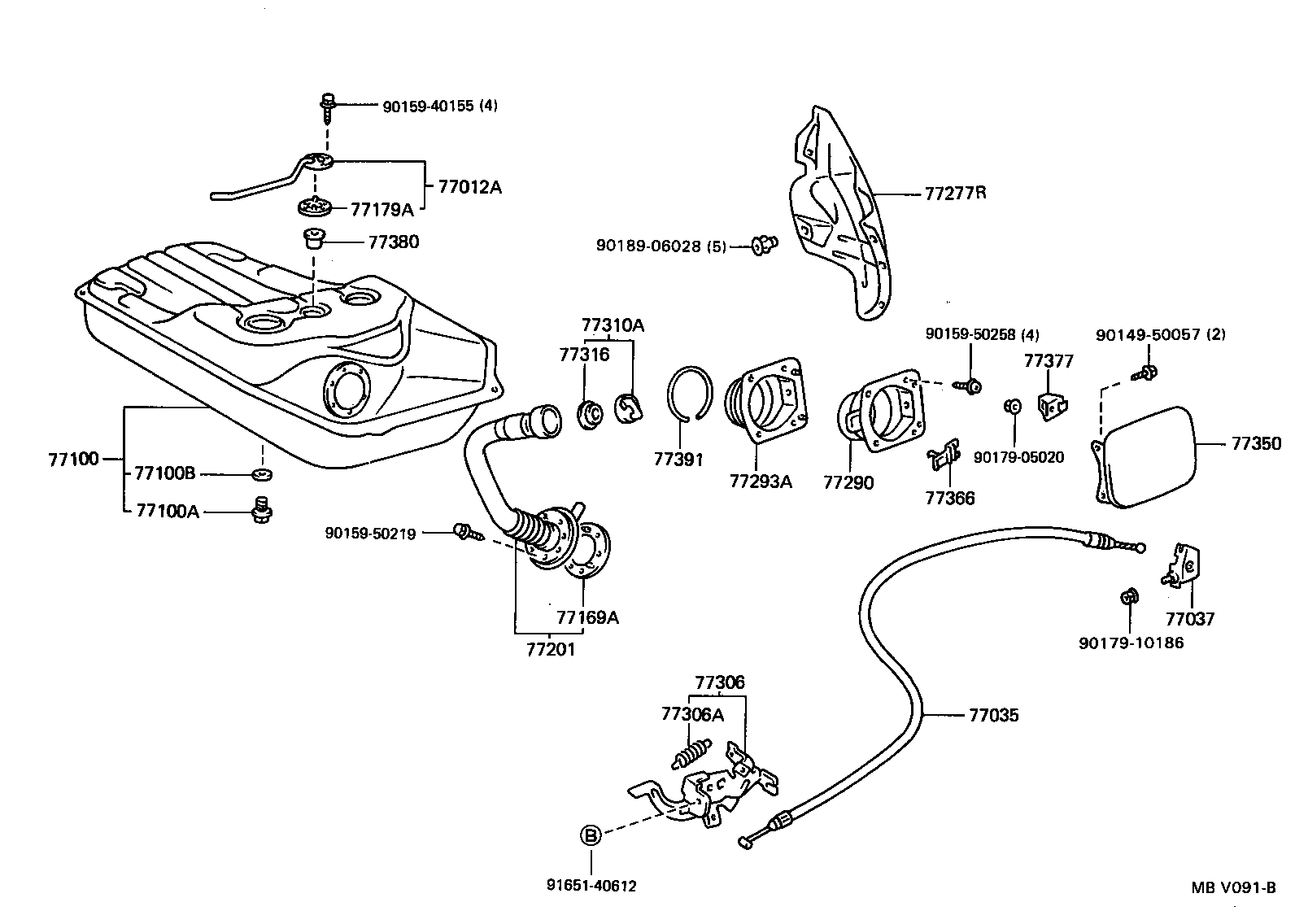

ILLUST NO. 1 OF 3(9009- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77012A - TUBE SUB-ASSY, FUEL TANK BREATHER, NO.1 | ||||
| 77012-12060 |
AE95 |
1 | ||
| 77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL | ||||
| 77035-12230 |
AE95 |
1 | ||
| 77037 - LOCK SUB-ASSY, FUEL FILLER OPENING LID | ||||
| 77037-12050 |
AE95 |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-19565 |
AE95 |
1 | ||
| 77100A - PLUG(FOR FUEL TANK) | ||||
| 90341-20004 |
AE95 |
1 | ||
| 77100B - GASKET(FOR FUEL TANK) | ||||
| 90430-20007 |
AE95 |
1 | ||
| 77169A - GASKET, FUEL SUCTION TUBE SET | ||||
| 77169-12020 |
AE95 |
1 | ||
| 77179A - GASKET, FUEL TANK BREATHER TUBE | ||||
| 77179-16010 |
AE95 |
1 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77201-12380 |
AE95 |
1 | ||
| 77201-12490 |
AE95 |
1 | ||
| 77277R - PROTECTOR, FUEL TANK FILLER PIPE | ||||
| 77277-12110 |
AE95 |
1 | ||
| 77290 - SHIELD ASSY, FUEL TANK FILLER PIPE | ||||
| 77291-12070 |
AE95 |
1 | ||
| 77293A - SHIELD, FUEL TANK FILLER PIPE, NO.3 | ||||
| 77293-12041 |
AE95 |
1 | ||
| 77293-12040 |
AE95 |
1 | ||
| 77306 - LEVER SUB-ASSY, FUEL LID LOCK OPEN | ||||
| 77306-13020 |
AE95 |
1 | ||
| 77306A - SPRING, FUEL LID OPEN LEVER | ||||
| 90506-09004 |
AE95 |
1 | ||
| 77310A - CAP ASSY, FUEL TANK | ||||
| 77310-16011 |
AE95 |
1 | ||
| 77310-12100 |
AE95 |
1 | ||
| 77316 - GASKET, FUEL TANK CAP | ||||
| 77316-12050 |
AE95 |
1 | ||
| 77316-16010 |
AE95 |
1 | ||
| 77350 - LID ASSY, FUEL FILLER OPENING | ||||
| 77350-12240 |
AE95 |
1 | ||
| 77366 - SPRING, FUEL FILLER OPENING LID HINGE | ||||
| 77360-12010 |
AE95 |
1 | ||
| 77377 - RETAINER, FUEL FILLER OPENING LID LOCK | ||||
| 77377-12040 |
AE95 |
1 | ||
| 77380 - VALVE ASSY, FUEL CUT OFF | ||||
| 77380-14020 |
AE95 |
1 | ||
| 77391 - RING, FUEL INLET BOX | ||||
| 77391-14020 |
AE95 |
1 | ||
| Common parts | ||||
| 90149-50057 | ||||
| 90159-40155 | ||||
| 90159-50219 | ||||
| 90159-50258 | ||||
| 90179-05020 | ||||
| 90179-10186 | ||||
| 90189-06028 | ||||
| 91651-40612 | ||||
