AE95G-CWPDH (1990)
Toyota Sprinter Carib

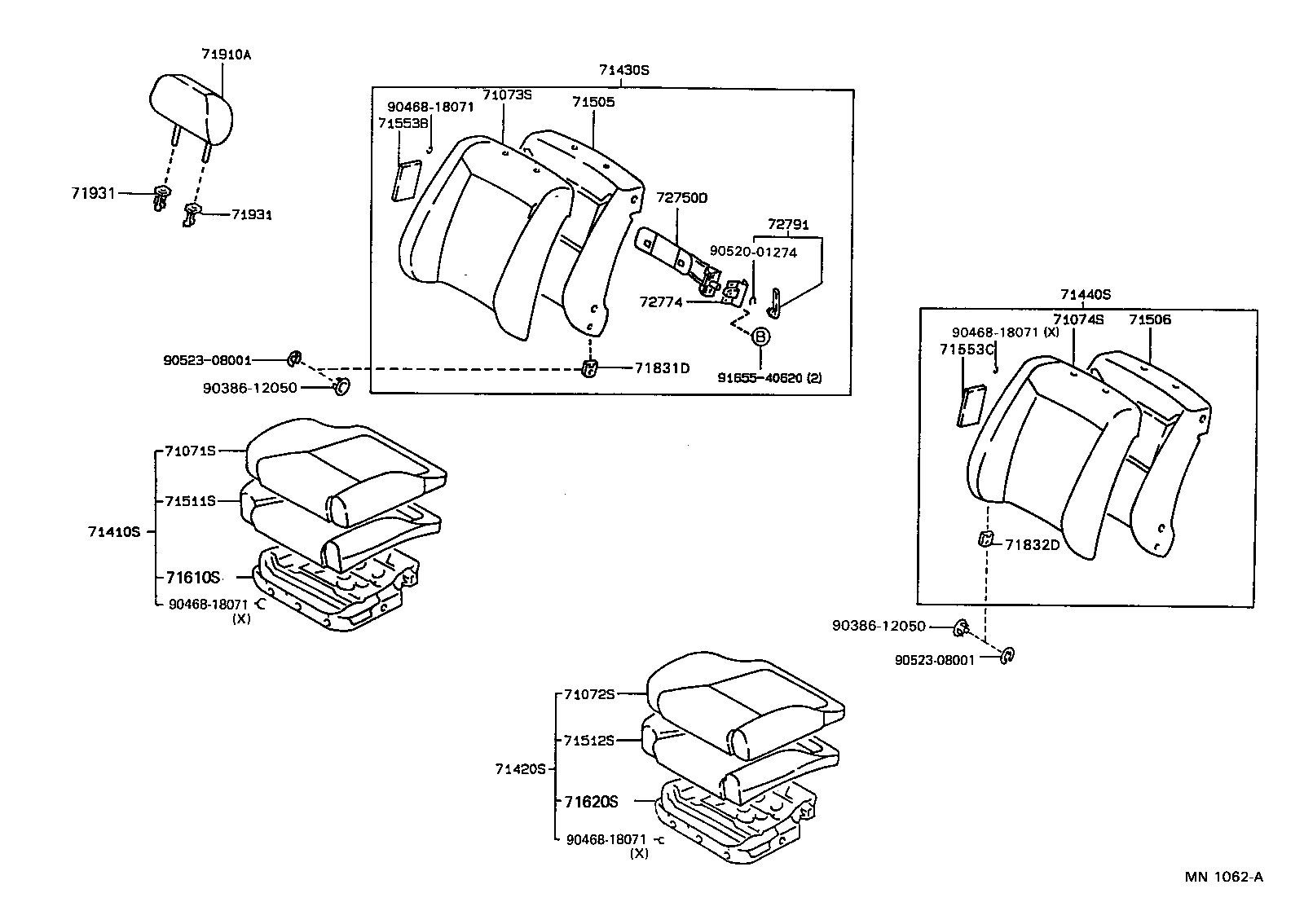

ILLUST NO. 1 OF 2(9009- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-1H66104 |
AE95..AV1 DARK BLUE,TRIM8# |
1 | ||
| 71071-1H66103 |
AE95..AV1 SHADOW GRAY,TRIM1# |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71071-1H66103 |
AE95..AV1 SHADOW GRAY,TRIM1# |
1 | ||
| 71071-1H66104 |
AE95..AV1 DARK BLUE,TRIM8# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-1H17103 |
AE95..AV1 SHADOW GRAY,TRIM1# |
1 | ||
| 71073-1H17104 |
AE95..AV1 DARK BLUE,TRIM8# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-1E13104 |
AE95..AV1 DARK BLUE,TRIM8# |
1 | ||
| 71074-1E13103 |
AE95..AV1 SHADOW GRAY,TRIM1# |
1 | ||
| 71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71410-1K15104 |
AE95..AV1 ***,DARK BLUE,TRIM8# |
1 | ||
| 71410-1K15103 |
AE95..AV1 ***,SHADOW GRAY,TRIM1# |
1 | ||
| 71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71410-1K15104 |
AE95..AV1 ***,DARK BLUE,TRIM8# |
1 | ||
| 71410-1K15103 |
AE95..AV1 ***,SHADOW GRAY,TRIM1# |
1 | ||
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71430-1H48104 |
AE95..AV1 ***,DARK BLUE,TRIM8# |
1 | ||
| 71430-1H48103 |
AE95..AV1 ***,SHADOW GRAY,TRIM1# |
1 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71440-1H42104 |
AE95..AV1 ***,DARK BLUE,TRIM8# |
1 | ||
| 71440-1H42103 |
AE95..AV1 ***,SHADOW GRAY,TRIM1# |
1 | ||
| 71505 - PAD SUB-ASSY, FRONT SEAT BACK W/FRAME, RH | ||||
| 71505-12050 |
AE95..AV1 |
1 | ||
| 71506 - PAD SUB-ASSY, FRONT SEAT BACK W/FRAME, LH | ||||
| 71506-12040 |
AE95..AV1 |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-12660 |
AE95..AV1,RVS |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71511-12660 |
AE95..AV1,RVS |
1 | ||
| 71553B - PAD, FRONT SEAT BACK, B | ||||
| 71553-12200 |
AE95 |
1 | ||
| 71553C - PAD, FRONT SEAT BACK, C | ||||
| 71553-12200 |
AE95 |
1 | ||
| 71610S - SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71610-12320 |
AE95 |
1 | ||
| 71620S - SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71610-12320 |
AE95 |
1 | ||
| 71831D - COVER, FRONT SEAT HINGE, RH | ||||
| 71831-12010 |
AE95 |
1 | ||
| 71832D - COVER, FRONT SEAT HINGE, LH | ||||
| 71831-12010 |
AE95 |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-1276003 |
AE95..AV1 SHADOW GRAY,TRIM1# |
2 | ||
| 71910-1276004 |
AE95..AV1 DARK BLUE,TRIM8# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-1201004 |
AE95 ﾛｯｸ無,DARK BLUE,TRIM8# |
2 | ||
| 71930-1205003 |
AE95 ﾛｯｸ付,SHADOW GRAY,TRIM1# |
2 | ||
| 71930-1205004 |
AE95 ﾛｯｸ付,DARK BLUE,TRIM8# |
2 | ||
| 71931-1201003 |
AE95 ﾛｯｸ無,SHADOW GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-1201004 |
AE95 ﾛｯｸ無,DARK BLUE,TRIM8# |
2 | ||
| 71930-1205003 |
AE95 ﾛｯｸ付,SHADOW GRAY,TRIM1# |
2 | ||
| 71930-1205004 |
AE95 ﾛｯｸ付,DARK BLUE,TRIM8# |
2 | ||
| 71931-1201003 |
AE95 ﾛｯｸ無,SHADOW GRAY,TRIM1# |
2 | ||
| Common parts | ||||
| 90386-12050 | ||||
| 90468-18071 | ||||
| 90520-01274 | ||||
| 90523-08001 | ||||
| 91655-40620 | ||||

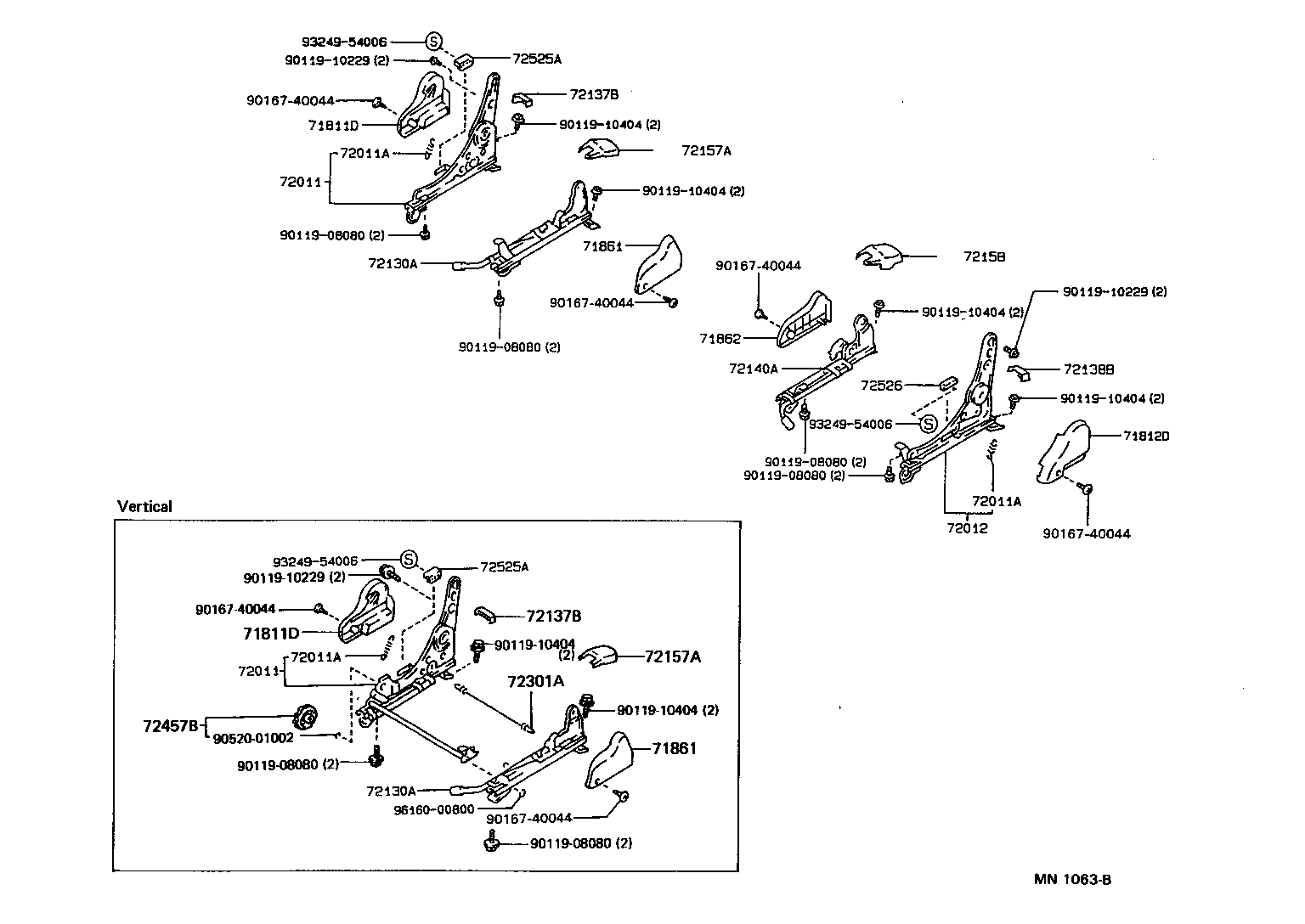

ILLUST NO. 2 OF 2(9009- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-1223004 |
AE95..AV1,RVS DARK BLUE,TRIM8# |
1 | ||
| 71811-1223003 |
AE95..AV1,RVS SHADOW GRAY,TRIM1# |
1 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-1223004 |
AE95..AV1,RVS DARK BLUE,TRIM8# |
1 | ||
| 71811-1223003 |
AE95..AV1,RVS SHADOW GRAY,TRIM1# |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-1219003 |
AE95 SHADOW GRAY,TRIM1# |
1 | ||
| 71812-1219004 |
AE95 DARK BLUE,TRIM8# |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-1216003 |
AE95 SHADOW GRAY,TRIM1# |
1 | ||
| 71861-1216004 |
AE95 DARK BLUE,TRIM8# |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-1216003 |
AE95 SHADOW GRAY,TRIM1# |
1 | ||
| 71861-1216004 |
AE95 DARK BLUE,TRIM8# |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-1215004 |
AE95 DARK BLUE,TRIM8# |
1 | ||
| 71862-1215003 |
AE95 SHADOW GRAY,TRIM1# |
1 | ||
| 72011 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER RH | ||||
| 72010-12560 |
AE95..AV1,RVS |
1 | ||
| 72011 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER RH | ||||
| 72010-12560 |
AE95..AV1,RVS |
1 | ||
| 72011A - SPRING, TENSION (FOR FRONT SEAT ADJUSTER OUTER) | ||||
| 90506-20046 |
AE95 |
1 | ||
| 72011A - SPRING, TENSION (FOR FRONT SEAT ADJUSTER OUTER) | ||||
| 90506-20046 |
AE95 |
1 | ||
| 72011A - SPRING, TENSION (FOR FRONT SEAT ADJUSTER OUTER) | ||||
| 90506-20046 |
AE95 |
1 | ||
| 72012 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER LH | ||||
| 72020-12540 |
AE95 |
1 | ||
| 72130A - TRACK ASSY, FRONT SEAT, INNER RH | ||||
| 72130-12560 |
AE95..AV1,RVS |
1 | ||
| 72130A - TRACK ASSY, FRONT SEAT, INNER RH | ||||
| 72130-12560 |
AE95..AV1,RVS |
1 | ||
| 72137B - COVER, SEAT TRACK, RH | ||||
| 72137-1204003 |
AE95 SHADOW GRAY,TRIM1# |
1 | ||
| 72137-1204004 |
AE95 DARK BLUE,TRIM8# |
1 | ||
| 72137B - COVER, SEAT TRACK, RH | ||||
| 72137-1204003 |
AE95 SHADOW GRAY,TRIM1# |
1 | ||
| 72137-1204004 |
AE95 DARK BLUE,TRIM8# |
1 | ||
| 72138B - COVER, SEAT TRACK, LH | ||||
| 72138-1205003 |
AE95 SHADOW GRAY,TRIM1# |
1 | ||
| 72138-1205004 |
AE95 DARK BLUE,TRIM8# |
1 | ||
| 72140A - TRACK ASSY, FRONT SEAT,INNER LH | ||||
| 72140-12470 |
AE95..AV1,RVS |
1 | ||
| 72157A - COVER, SEAT TRACK BRACKET, INNER RH | ||||
| 72157-1202003 |
AE95 SHADOW GRAY,TRIM1# |
1 | ||
| 72157-1202004 |
AE95 DARK BLUE,TRIM8# |
1 | ||
| 72157A - COVER, SEAT TRACK BRACKET, INNER RH | ||||
| 72157-1202003 |
AE95 SHADOW GRAY,TRIM1# |
1 | ||
| 72157-1202004 |
AE95 DARK BLUE,TRIM8# |
1 | ||
| 72158 - COVER, SEAT TRACK BRACKET, INNER LH | ||||
| 72158-1202003 |
AE95 SHADOW GRAY,TRIM1# |
1 | ||
| 72158-1202004 |
AE95 DARK BLUE,TRIM8# |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-1209034 |
AE95 DARK BLUE,TRIM8# |
1 | ||
| 72525-1209003 |
AE95 GRAY,TRIM1# |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-1209034 |
AE95 DARK BLUE,TRIM8# |
1 | ||
| 72525-1209003 |
AE95 GRAY,TRIM1# |
1 | ||
| 72526 - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-1203003 |
AE95 GRAY,TRIM1# |
1 | ||
| 72526-1203034 |
AE95 DARK BLUE,TRIM8# |
1 | ||
| Common parts | ||||
| 90119-08080 | ||||
| 90119-10229 | ||||
| 90119-10404 | ||||
| 90167-40044 | ||||
| 90520-01002 | ||||
| 93249-54006 | ||||
| 96160-00800 | ||||
