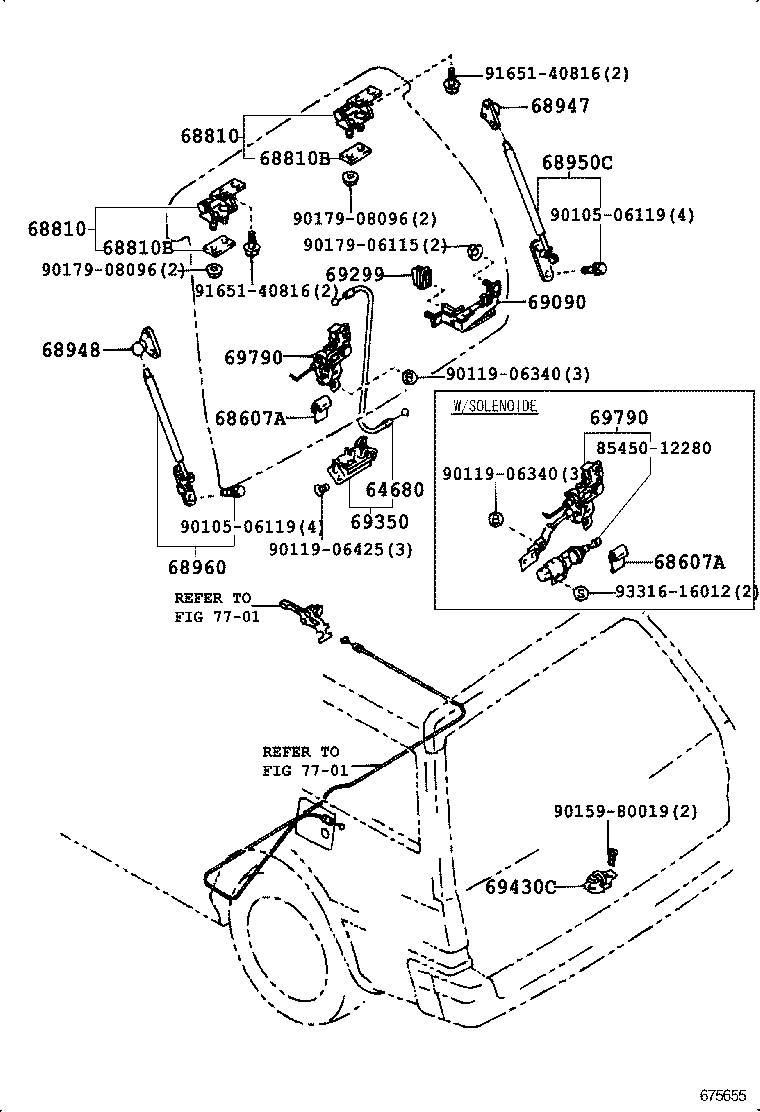

Toyota Sprinter carib AE95 BACK DOOR LOCK & HANDLE

Part #	Description	Period	Qty
64680 - CABLE ASSY, BACK DOOR LOCK CONTROL
64680-12010	AE95	09/1990 - 08/1995	2
68607A - CLAMP, NO.1(FOR BACK DOOR LOCK CONTROL CABLE)
69749-12010	AE95	09/1990 - 08/1995	1
68607A - CLAMP, NO.1(FOR BACK DOOR LOCK CONTROL CABLE)
69749-12010	AE95	09/1990 - 08/1995	1
68810 - HINGE ASSY, BACK DOOR, UPPER
68801-12051	AE95	09/1990 - 08/1995	2
68810 - HINGE ASSY, BACK DOOR, UPPER
68801-12051	AE95	09/1990 - 08/1995	2
68810B - PAD, BACK DOOR HINGE
68838-14022	AE95	09/1990 - 08/1995	2
68810B - PAD, BACK DOOR HINGE
68838-14022	AE95	09/1990 - 08/1995	2
68947 - BRACKET, BACK DOOR DAMPER STAY, LOWER RH
68945-12020	AE95	09/1990 - 08/1995	1
68948 - BRACKET, BACK DOOR DAMPER STAY, LOWER LH
68945-12020	AE95	09/1990 - 08/1995	1
68950C - STAY ASSY, BACK DOOR, RH
68950-19646	AE95..AV1 ｱﾘ(ﾘﾔｳｲﾝﾄﾞｳﾜｲﾊﾟ)	09/1990 - 08/1995	1
68950-19626	AE95..AV1	09/1990 - 08/1995	1
68960 - STAY ASSY, BACK DOOR, LH
68960-19316	AE95..AV1	09/1990 - 08/1995	1
68960-19336	AE95..AV1 ｱﾘ(ﾘﾔｳｲﾝﾄﾞｳﾜｲﾊﾟ)	09/1990 - 08/1995	1
69090 - HANDLE ASSY, BACK DOOR, OUTSIDE
69090-1201003	AE95..AV1 GRAY M,040 ,6K6	09/1990 - 09/1992	1
69090-1201003	AE95..AV1 GRAY M,040 ,6M3	09/1992 - 08/1995	1
69299 - GROMMET, BACK DOOR HANDLE
69299-12010	AE95	09/1990 - 08/1995	1
69350 - LOCK ASSY, BACK DOOR
69350-12161	AE95	09/1990 - 08/1995	1
69430C - STRIKER ASSY, BACK DOOR LOCK
69430-12250	AE95	09/1990 - 08/1995	1
69790 - CONTROL ASSY, BACK DOOR LOCK
69790-12020	AE95..AV1,RVS ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞｳ)	09/1990 - 08/1993	1
69790-12010	AE95..AV1,RVS	09/1990 - 08/1995	1
69790 - CONTROL ASSY, BACK DOOR LOCK
69790-12020	AE95..AV1,RVS ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞｳ)	09/1990 - 08/1993	1
69790-12010	AE95..AV1,RVS	09/1990 - 08/1995	1
Common parts
85450-12280
90105-06119
90119-06340
90119-06425
90159-80019
90179-06115
90179-08096
91651-40816
93316-16012
Linked diagrams
7701

AE95G-CWPDH (1990)

(9009- )
