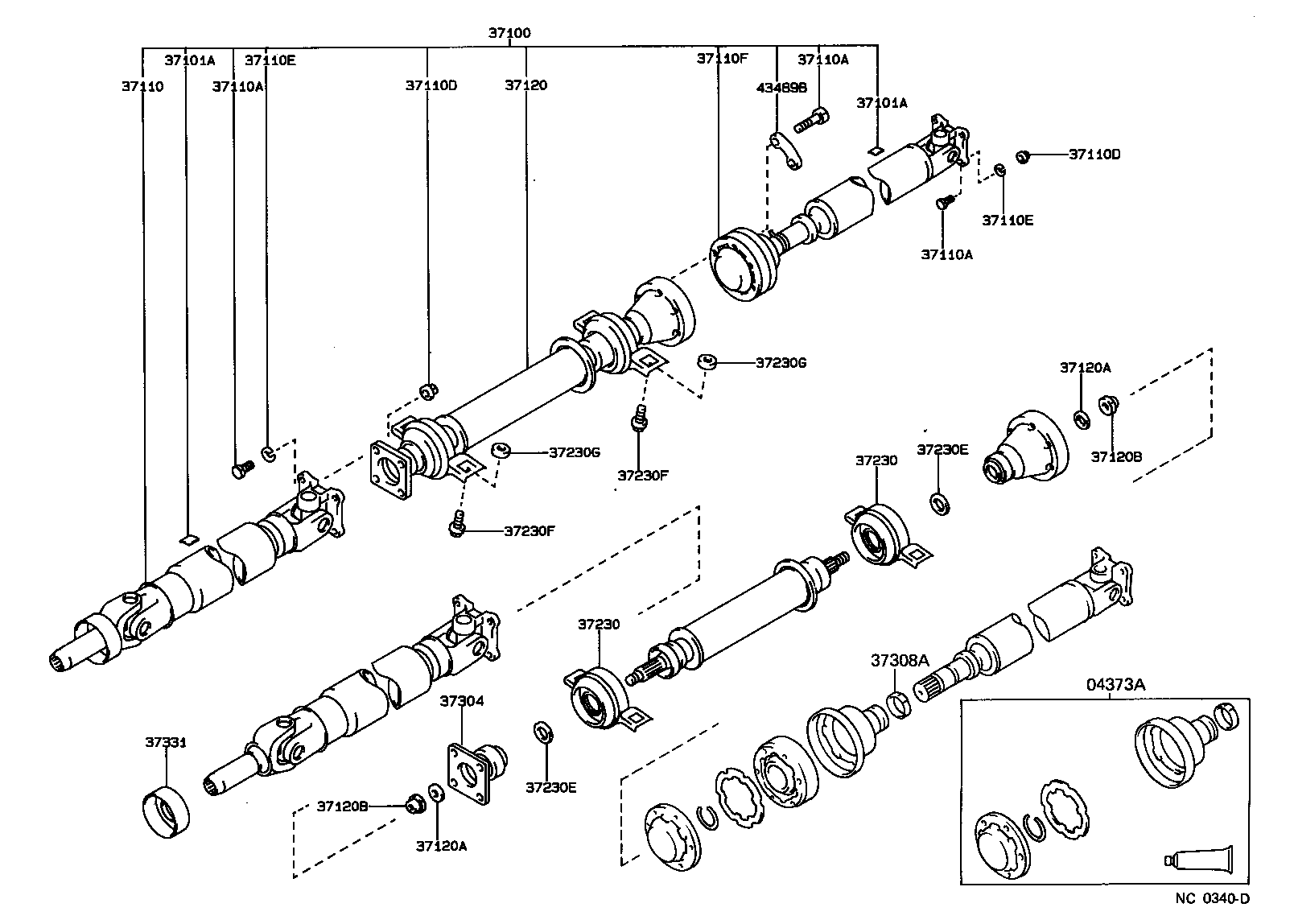

AE95G-CWPDH (1990)
Toyota Sprinter Carib
(9009- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04373A - BOOT KIT, UNIVERSAL | ||||
| 04373-12010 |
AE95 |
1 | ||
| 37100 - SHAFT ASSY, PROPELLER W/CENTER BEARING | ||||
| 37100-12520 |
AE95 |
1 | ||
| 37101A - PIECE, BALANCE, NO.1 (FOR PROPELLER SHAFT) | ||||
| 90937-01149 |
AE95 6G,長さ=12.4 |
1 | ||
| 90937-01152 |
AE95 14G,長さ=29.0 |
1 | ||
| 90937-01147 |
AE95 2G,厚さ=2.0 |
1 | ||
| 90937-01132 |
AE95 10G,長さ=20.7 |
1 | ||
| 90937-01150 |
AE95 8G,長さ=16.6 |
1 | ||
| 90937-01148 |
AE95 4G,厚さ=2.0 |
1 | ||
| 90937-01151 |
AE95 12G,長さ=24.9 |
1 | ||
| 37101A - PIECE, BALANCE, NO.1 (FOR PROPELLER SHAFT) | ||||
| 90937-01149 |
AE95 6G,長さ=12.4 |
1 | ||
| 90937-01152 |
AE95 14G,長さ=29.0 |
1 | ||
| 90937-01147 |
AE95 2G,厚さ=2.0 |
1 | ||
| 90937-01132 |
AE95 10G,長さ=20.7 |
1 | ||
| 90937-01150 |
AE95 8G,長さ=16.6 |
1 | ||
| 90937-01148 |
AE95 4G,厚さ=2.0 |
1 | ||
| 90937-01151 |
AE95 12G,長さ=24.9 |
1 | ||
| 37110 - SHAFT ASSY, PROPELLER | ||||
| 37110-12530 |
AE95 |
1 | ||
| 37110A - BOLT (FOR PROPELLER SHAFT) | ||||
| 90110-08016 |
AE95 *8−1.25PX47−22 |
6 | ||
| 90101-08082 |
AE95 *8−1.25PX25−12 |
4 | ||
| 37110A - BOLT (FOR PROPELLER SHAFT) | ||||
| 90110-08016 |
AE95 *8−1.25PX47−22 |
6 | ||
| 90101-08082 |
AE95 *8−1.25PX25−12 |
4 | ||
| 37110A - BOLT (FOR PROPELLER SHAFT) | ||||
| 90110-08016 |
AE95 *8−1.25PX47−22 |
6 | ||
| 90101-08082 |
AE95 *8−1.25PX25−12 |
4 | ||
| 37110D - NUT (FOR PROPELLER SHAFT) | ||||
| 90170-08015 |
AE95 |
4 | ||
| 37110D - NUT (FOR PROPELLER SHAFT) | ||||
| 90170-08015 |
AE95 |
4 | ||
| 37110E - WASHER (FOR PROPELLER SHAFT) | ||||
| 94512-00800 |
AE95 |
4 | ||
| 37110E - WASHER (FOR PROPELLER SHAFT) | ||||
| 94512-00800 |
AE95 |
4 | ||
| 37110F - SHAFT ASSY, PROPELLER, REAR | ||||
| 37110-12580 |
AE95 |
1 | ||
| 37120 - SHAFT ASSY, PROPELLER INTERMEDIATE | ||||
| 37120-12250 |
AE95 |
1 | ||
| 37120A - WASHER, PLATE (FOR PROPELLER INTERMEDIATE SHAFT SET) | ||||
| 90201-18182 |
AE95 外径=33.5,厚さ=4.0 |
2 | ||
| 37120A - WASHER, PLATE (FOR PROPELLER INTERMEDIATE SHAFT SET) | ||||
| 90201-18182 |
AE95 外径=33.5,厚さ=4.0 |
2 | ||
| 37120B - NUT (FOR PROPELLER INTERMEDIATE SHAFT SETTING) | ||||
| 90179-18009 |
AE95 |
2 | ||
| 37120B - NUT (FOR PROPELLER INTERMEDIATE SHAFT SETTING) | ||||
| 90179-18009 |
AE95 |
2 | ||
| 37230 - BEARING ASSY, CENTER SUPPORT, NO.1 | ||||
| 37230-12141 |
AE95 ﾌﾛﾝﾄ |
1 | ||
| 37230-12140 |
AE95 ﾌﾛﾝﾄ |
1 | ||
| 37230-12151 |
AE95 ﾘﾔ |
1 | ||
| 37230-12150 |
AE95 ﾘﾔ |
1 | ||
| 37230 - BEARING ASSY, CENTER SUPPORT, NO.1 | ||||
| 37230-12141 |
AE95 ﾌﾛﾝﾄ |
1 | ||
| 37230-12140 |
AE95 ﾌﾛﾝﾄ |
1 | ||
| 37230-12151 |
AE95 ﾘﾔ |
1 | ||
| 37230-12150 |
AE95 ﾘﾔ |
1 | ||
| 37230E - WASHER, NO.1 (FOR CENTER SUPPORT BEARING) | ||||
| 90201-25005 |
AE95 |
2 | ||
| 37230E - WASHER, NO.1 (FOR CENTER SUPPORT BEARING) | ||||
| 90201-25005 |
AE95 |
2 | ||
| 37230F - BOLT, NO.1 (FOR CENTER SUPPORT BEARING) | ||||
| 90119-10046 |
AE95 |
4 | ||
| 37230F - BOLT, NO.1 (FOR CENTER SUPPORT BEARING) | ||||
| 90119-10046 |
AE95 |
4 | ||
| 37230G - WASHER, NO.2 (FOR CENTER SUPPORT BEARING) | ||||
| 90201-10034 |
AE95 厚さ=11.0 |
4 | ||
| 90201-10008 |
AE95 厚さ=4.5 |
4 | ||
| 90201-10017 |
AE95 厚さ=9.0 |
4 | ||
| 90201-10033 |
AE95 厚さ=6.5 |
4 | ||
| 37230G - WASHER, NO.2 (FOR CENTER SUPPORT BEARING) | ||||
| 90201-10034 |
AE95 厚さ=11.0 |
4 | ||
| 90201-10008 |
AE95 厚さ=4.5 |
4 | ||
| 90201-10017 |
AE95 厚さ=9.0 |
4 | ||
| 90201-10033 |
AE95 厚さ=6.5 |
4 | ||
| 37304 - FLANGE SUB-ASSY, UNIVERSAL JOINT | ||||
| 37304-12010 |
AE95 |
1 | ||
| 37308A - CLAMP (FOR UNIVERSAL JOINT COVER) | ||||
| 90949-01431 |
AE95 |
1 | ||
| 37331 - COVER, SLIDING SHAFT DUST | ||||
| 37331-30010 |
AE95 |
1 | ||
| 43489B - WASHER, CONSTANT VELOCITY UNIVERSAL JOINT | ||||
| 43489-12010 |
AE95 |
3 | ||
| 43489-20030 |
AE95 |
2 | ||
