AE95G-CWMNH (1990)
Toyota Sprinter Carib
(9009- )AV2,RVS

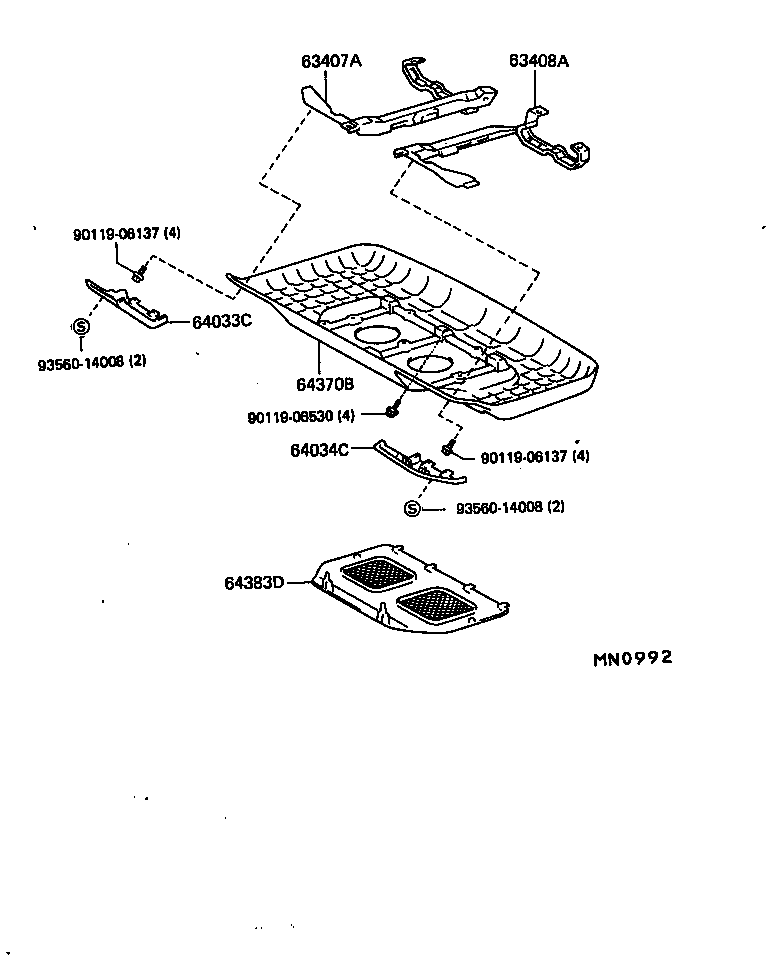

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63407A - BRACKET SUB-ASSY, ROOF INNER RACK, RH | ||||
| 63407-12010 |
AE95 |
1 | ||
| 63408A - BRACKET SUB-ASSY, ROOF INNER RACK, LH | ||||
| 63408-12010 |
AE95 |
1 | ||
| 64033C - GRILLE SUB-ASSY, REAR SPEAKER, RH | ||||
| 64033-1208003 |
AE95..AV2,RVS SHADOW GRAY,TRIM1# |
1 | ||
| 64033-13010 |
AE95..AV2,RVS ｱﾘ(ﾗｲﾌﾞ ｻｳﾝﾄﾞ) |
1 | ||
| 64033-1208004 |
AE95..AV2,RVS DARK BLUE,TRIM8# |
1 | ||
| 64034C - GRILLE SUB-ASSY, REAR SPEAKER, LH | ||||
| 64034-1204004 |
AE95..AV2,RVS DARK BLUE,TRIM8# |
1 | ||
| 64034-13010 |
AE95..AV2,RVS ｱﾘ(ﾗｲﾌﾞ ｻｳﾝﾄﾞ) |
1 | ||
| 64034-1204003 |
AE95..AV2,RVS SHADOW GRAY,TRIM1# |
1 | ||
| 64370B - GRILLE ASSY, REAR SPEAKER | ||||
| 64370-13010 |
AE95..AV2,RVS |
1 | ||
| 64383D - GRILLE, REAR SPEAKER | ||||
| 64383-13010 |
AE95..AV2,RVS |
1 | ||
| Common parts | ||||
| 90119-06137 | ||||
| 90119-06530 | ||||
| 93560-14008 | ||||
(9009- )

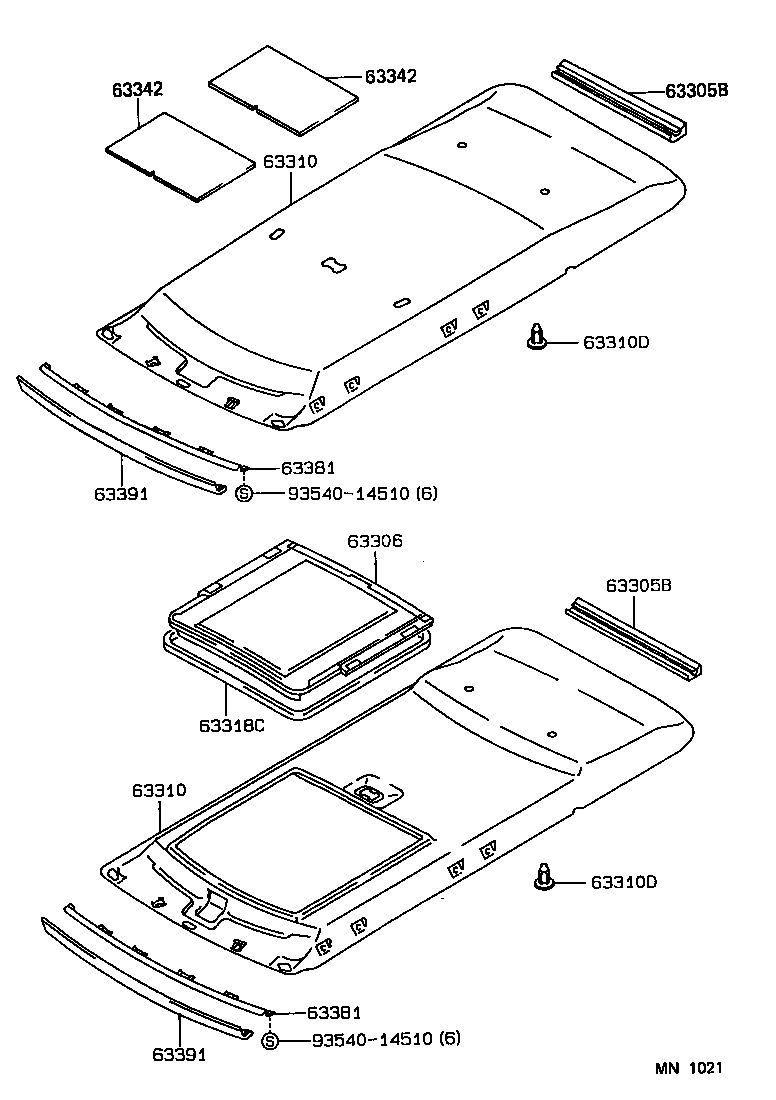

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63305B - TRIM SUB-ASSY, ROOF HEADLINING, REAR | ||||
| 63305-1213003 |
AE95 SHADOW GRAY,TRIM1# |
1 | ||
| 63305-1213004 |
AE95 DARK BLUE,TRIM8# |
1 | ||
| 63305B - TRIM SUB-ASSY, ROOF HEADLINING, REAR | ||||
| 63305-1213003 |
AE95 SHADOW GRAY,TRIM1# |
1 | ||
| 63305-1213004 |
AE95 DARK BLUE,TRIM8# |
1 | ||
| 63306 - TRIM SUB-ASSY, SUNSHADE | ||||
| 63306-1205204 |
AE95..AV2,RVS LIGHT BLUE,TRIM8# |
1 | ||
| 63306-1205203 |
AE95..AV2,RVS LIGHT GRAY,TRIM1# |
1 | ||
| 63310 - HEADLINING ASSY, ROOF | ||||
| 63310-1A12003 |
AE95 ｱﾘ(ｵ-ﾊﾞ ﾍﾂﾄﾞ ﾗﾂｸ),LIGHT GRAY,TRIM1# |
1 | ||
| 63310-1A13004 |
AE95..AV2,RVS ｱﾘ(ｵ-ﾊﾞ ﾍﾂﾄﾞ ﾗﾂｸ & ﾑ-ﾝ ﾙ-ﾌ),LIGHT BLUE,TRIM8# |
1 | ||
| 63310-1A15004 |
AE95..AV2,RVS ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ),LIGHT BLUE,TRIM8# |
1 | ||
| 63310-1A15003 |
AE95..AV2,RVS ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ),LIGHT GRAY,TRIM1# |
1 | ||
| 63310-1A13003 |
AE95..AV2,RVS ｱﾘ(ｵ-ﾊﾞ ﾍﾂﾄﾞ ﾗﾂｸ & ﾑ-ﾝ ﾙ-ﾌ),LIGHT GRAY,TRIM1# |
1 | ||
| 63310-1A12004 |
AE95 ｱﾘ(ｵ-ﾊﾞ ﾍﾂﾄﾞ ﾗﾂｸ),LIGHT BLUE,TRIM8# |
1 | ||
| 63310-1A14003 |
AE95 LIGHT GRAY,TRIM1# |
1 | ||
| 63310-1A14004 |
AE95 LIGHT BLUE,TRIM8# |
1 | ||
| 63310 - HEADLINING ASSY, ROOF | ||||
| 63310-1A12003 |
AE95 ｱﾘ(ｵ-ﾊﾞ ﾍﾂﾄﾞ ﾗﾂｸ),LIGHT GRAY,TRIM1# |
1 | ||
| 63310-1A13004 |
AE95..AV2,RVS ｱﾘ(ｵ-ﾊﾞ ﾍﾂﾄﾞ ﾗﾂｸ & ﾑ-ﾝ ﾙ-ﾌ),LIGHT BLUE,TRIM8# |
1 | ||
| 63310-1A15004 |
AE95..AV2,RVS ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ),LIGHT BLUE,TRIM8# |
1 | ||
| 63310-1A15003 |
AE95..AV2,RVS ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ),LIGHT GRAY,TRIM1# |
1 | ||
| 63310-1A13003 |
AE95..AV2,RVS ｱﾘ(ｵ-ﾊﾞ ﾍﾂﾄﾞ ﾗﾂｸ & ﾑ-ﾝ ﾙ-ﾌ),LIGHT GRAY,TRIM1# |
1 | ||
| 63310-1A12004 |
AE95 ｱﾘ(ｵ-ﾊﾞ ﾍﾂﾄﾞ ﾗﾂｸ),LIGHT BLUE,TRIM8# |
1 | ||
| 63310-1A14003 |
AE95 LIGHT GRAY,TRIM1# |
1 | ||
| 63310-1A14004 |
AE95 LIGHT BLUE,TRIM8# |
1 | ||
| 63310D - CLIP, ROOF HEADLINING | ||||
| 90467-06048B1 |
AE95 LIGHT GRAY,TRIM1# |
2 | ||
| 90467-06048J0 |
AE95 LIGHT BLUE,TRIM8# |
2 | ||
| 63310D - CLIP, ROOF HEADLINING | ||||
| 90467-06048B1 |
AE95 LIGHT GRAY,TRIM1# |
2 | ||
| 90467-06048J0 |
AE95 LIGHT BLUE,TRIM8# |
2 | ||
| 63318C - MOULDING, SUN ROOF OPENING TRIM | ||||
| 63318-1204004 |
AE95..AV2,RVS LIGHT BLUE,TRIM8# |
1 | ||
| 63318-1204003 |
AE95..AV2,RVS LIGHT GRAY,TRIM1# |
1 | ||
| 63342 - PAD, ROOF SILENCER, NO.2 | ||||
| 63343-12050 |
AE95 |
2 | ||
| 63342 - PAD, ROOF SILENCER, NO.2 | ||||
| 63343-12050 |
AE95 |
2 | ||
| 63381 - RETAINER, HEADLINING, FRONT | ||||
| 63381-12150 |
AE95 |
1 | ||
| 63381 - RETAINER, HEADLINING, FRONT | ||||
| 63381-12150 |
AE95 |
1 | ||
| 63391 - TRIM, ROOF HEADLINING, FRONT | ||||
| 63391-12080B1 |
AE95 SHADOW GRAY,TRIM1# |
1 | ||
| 63391-12080J0 |
AE95 DARK BLUE,TRIM8# |
1 | ||
| 63391 - TRIM, ROOF HEADLINING, FRONT | ||||
| 63391-12080B1 |
AE95 SHADOW GRAY,TRIM1# |
1 | ||
| 63391-12080J0 |
AE95 DARK BLUE,TRIM8# |
1 | ||
| Common parts | ||||
| 93540-14510 | ||||
(9009- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63005 - LOCK SET, ROOF INNER RACK, FRONT | ||||
| 63005-1201004 |
AE95 LIGHT BLUE,TRIM8# |
1 | ||
| 63005-1201003 |
AE95 LIGHT GRAY,TRIM1# |
1 | ||
| 63006 - LOCK SET, ROOF INNER RACK, REAR | ||||
| 63006-1201004 |
AE95 LIGHT BLUE,TRIM8# |
1 | ||
| 63006-1201003 |
AE95 LIGHT GRAY,TRIM1# |
1 | ||
| 63407A - BRACKET SUB-ASSY, ROOF INNER RACK, RH | ||||
| 63407-12010 |
AE95 |
1 | ||
| 63408A - BRACKET SUB-ASSY, ROOF INNER RACK, LH | ||||
| 63408-12010 |
AE95 |
1 | ||
| 63430 - RACK ASSY, ROOF, INNER | ||||
| 63430-1201004 |
AE95 LIGHT BLUE,TRIM8# |
1 | ||
| 63430-1201003 |
AE95 LIGHT GRAY,TRIM1# |
1 | ||
| 63440 - HINGE ASSY, ROOF INNER RACK, RH | ||||
| 63440-12010 |
AE95 |
1 | ||
| 63450 - HINGE ASSY, ROOF INNER RACK, LH | ||||
| 63450-12010 |
AE95 |
1 | ||
| 63601 - STRIKER SUB-ASSY, ROOF INNER RACK LOCK | ||||
| 63601-12010 |
AE95 |
4 | ||
| 63601 - STRIKER SUB-ASSY, ROOF INNER RACK LOCK | ||||
| 63601-12010 |
AE95 |
4 | ||
| 64033C - GRILLE SUB-ASSY, REAR SPEAKER, RH | ||||
| 64033-1208003 |
AE95..AV2,RVS SHADOW GRAY,TRIM1# |
1 | ||
| 64033-13010 |
AE95..AV2,RVS ｱﾘ(ﾗｲﾌﾞ ｻｳﾝﾄﾞ) |
1 | ||
| 64033-1208004 |
AE95..AV2,RVS DARK BLUE,TRIM8# |
1 | ||
| 64034C - GRILLE SUB-ASSY, REAR SPEAKER, LH | ||||
| 64034-1204004 |
AE95..AV2,RVS DARK BLUE,TRIM8# |
1 | ||
| 64034-13010 |
AE95..AV2,RVS ｱﾘ(ﾗｲﾌﾞ ｻｳﾝﾄﾞ) |
1 | ||
| 64034-1204003 |
AE95..AV2,RVS SHADOW GRAY,TRIM1# |
1 | ||
| 64364 - COVER, REAR SPEAKER GRILLE, NO.1 | ||||
| 64364-1206004 |
AE95 LIGHT BLUE,TRIM8# |
1 | ||
| 64364-1206003 |
AE95 LIGHT GRAY,TRIM1# |
1 | ||
| 64366 - COVER, REAR SPEAKER GRILLE, NO.2 | ||||
| 64366-1202004 |
AE95 LIGHT BLUE,TRIM8# |
1 | ||
| 64366-1202003 |
AE95 LIGHT GRAY,TRIM1# |
1 | ||
| 69759X - SNAP, ROOF INNER RACK LOCK | ||||
| 69759-30040 |
AE95 |
4 | ||
| 69759X - SNAP, ROOF INNER RACK LOCK | ||||
| 69759-30040 |
AE95 |
4 | ||
| 69759X - SNAP, ROOF INNER RACK LOCK | ||||
| 69759-30040 |
AE95 |
4 | ||
| 69759X - SNAP, ROOF INNER RACK LOCK | ||||
| 69759-30040 |
AE95 |
4 | ||
| Common parts | ||||
| 90119-06137 | ||||
| 90119-06255 | ||||
| 90159-40161 | ||||
| 90167-45005 | ||||
| 90530-07002 | ||||
| 93560-14008 | ||||
| Linked diagrams | ||||
| 7403 | ||||
