AE95G-CWMNH (1990)
Toyota Sprinter Carib
(9009-9109)5F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

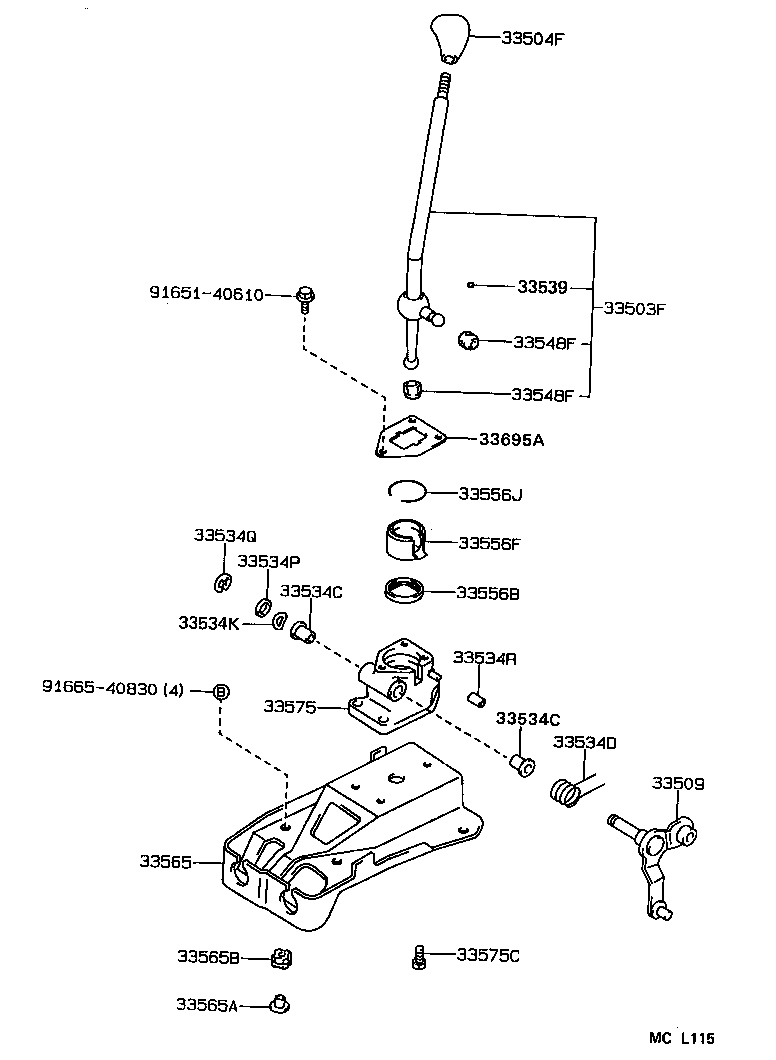

| 33503F - LEVER SUB-ASSY, SHIFT(FOR FLOOR SHIFT) | ||||
| 33503-12382 |
AE95..5F |
1 | ||
| 33504F - KNOB SUB-ASSY, SHIFT LEVER | ||||
| 33504-24010B3 |
AE95..5F..(AV2,RVS) SHADOW GRAY,TRIM1# |
1 | ||
| 33504-12180J2 |
AE95..5F DARK BLUE,TRIM8# |
1 | ||
| 33504-24010J0 |
AE95..5F..(AV2,RVS) DARK BLUE,TRIM8# |
1 | ||
| 33504-12180P0 |
AE95..5F SHADOW GRAY,TRIM1# |
1 | ||
| 33509 - CRANK SUB-ASSY, SELECTING BELL, NO.1 | ||||
| 33509-12071 |
AE95..5F |
1 | ||
| 33534C - BUSH (FOR SELECTING BELLCRANK NO.1) | ||||
| 90386-12034 |
AE95..5F |
2 | ||
| 33534C - BUSH (FOR SELECTING BELLCRANK NO.1) | ||||
| 90386-12034 |
AE95..5F |
2 | ||
| 33534D - SPRING, TORSION (FOR SELECTING BELLCRANK NO.1) | ||||
| 90508-20084 |
AE95..5F |
1 | ||
| 33534K - WASHER, WAVE (FOR SELECTING BELLCRANK NO.1) | ||||
| 90206-12003 |
AE95..5F |
1 | ||
| 33534P - WASHER, PLATE (FOR SELECTING BELLCRANK NO.1) | ||||
| 90201-12052 |
AE95..5F |
1 | ||
| 33534Q - RING, E (FOR SELECTING BELLCRANK NO.1) | ||||
| 96160-00900 |
AE95..5F |
1 | ||
| 33534R - CUSHION (FOR SELECTING BELLCRANK NO.1) | ||||
| 90540-06029 |
AE95..5F |
1 | ||
| 33539 - CUSHION, SHIFT LEVER ANTI-RATTLE | ||||
| 33539-12010 |
AE95..5F |
2 | ||
| 33548F - BUSH, NO.1, SHIFT LEVER (FOR FLOOR SHIFT) | ||||
| 33548-12040 |
AE95..5F |
2 | ||
| 33548F - BUSH, NO.1, SHIFT LEVER (FOR FLOOR SHIFT) | ||||
| 33548-12040 |
AE95..5F |
2 | ||
| 33556B - BUSH (FOR TRANSMISSION SHIFT LEVER BALL SEAT) | ||||
| 90385-34001 |
AE95..5F |
1 | ||
| 33556F - SEAT, TRANSMISSION SHIFT LEVER BALL | ||||
| 33556-20020 |
AE95..5F |
1 | ||
| 33556J - RING, SHAFT SNAP (FOR TRANSMISSION SHIFT LEVER SEAT) | ||||
| 90520-36018 |
AE95..5F |
1 | ||
| 33565 - PLATE, CONTROL SHIFT LEVER RETAINER | ||||
| 33565-12030 |
AE95..5F |
1 | ||
| 33506-12090 |
AE95..5F ｱﾘ(*66) |
1 | ||
| 33565A - BUSH, NO.1 (FOR CONTROL SHIFT LEVER RETAINER PLATE) | ||||
| 90389-08031 |
AE95..5F |
4 | ||
| 33565B - BUSH, NO.2 (FOR CONTROL SHIFT LEVER RETAINER PLATE) | ||||
| 90389-10020 |
AE95..5F |
4 | ||
| 33575 - RETAINER, CONTROL SHIFT LEVER (FOR FLOOR SHIFT) | ||||
| 33575-12133 |
AE95..5F |
1 | ||
| 33575C - BOLT (FOR CONTROL SHIFT LEVER RETAINER) | ||||
| 90119-08622 |
AE95..5F |
3 | ||
| 33695A - COVER, SHIFT LEVER BALL | ||||
| 33695-12031 |
AE95..5F |
1 | ||
| Common parts | ||||
| 91651-40610 | ||||
| 91665-40830 | ||||
(9009-9109)5F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

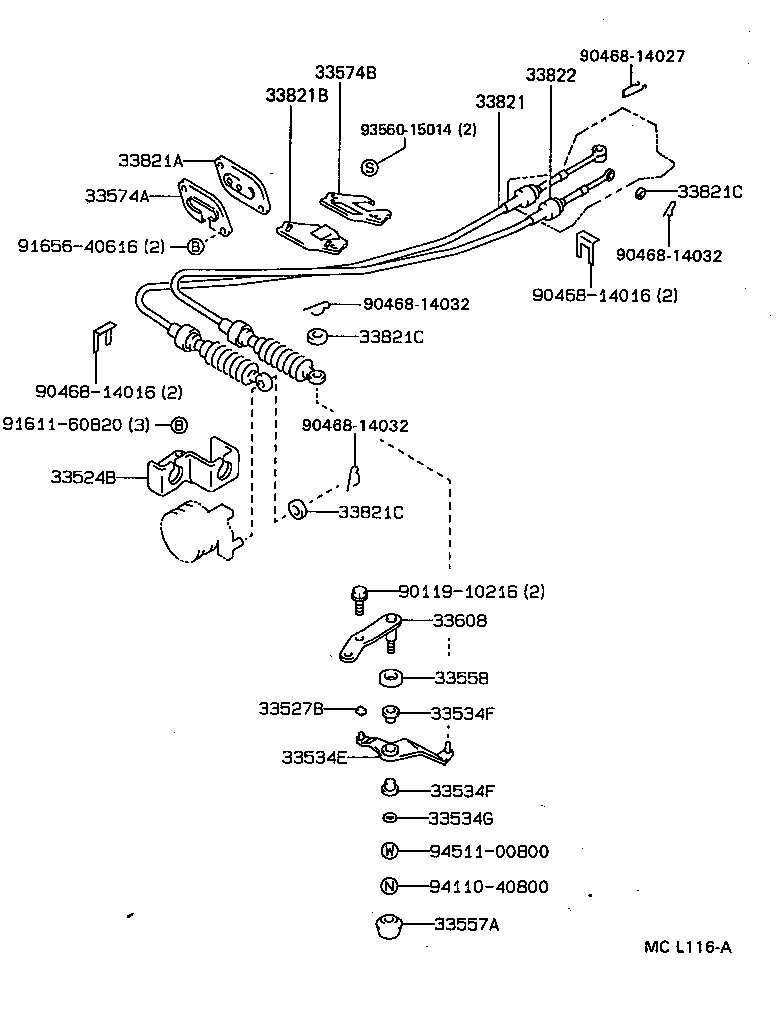

| 33524B - BRACKET, CONTROL CABLE | ||||
| 33524-20010 |
AE95..5F |
1 | ||
| 33527B - BUSH (FOR CONTROL SHIFT LEVER) | ||||
| 90389-10009 |
AE95..5F |
1 | ||
| 33557-33010 |
AE95..5F |
1 | ||
| 33534E - CRANK, SELECTING BELL, NO.2 | ||||
| 33534-20020 |
AE95..5F |
1 | ||
| 33534-12090 |
AE95..5F |
1 | ||
| 33534-12091 |
AE95..5F |
1 | ||
| 33534F - BUSH (FOR SELECTING BELLCRANK NO.2) | ||||
| 90386-12022 |
AE95..5F |
2 | ||
| 33534F - BUSH (FOR SELECTING BELLCRANK NO.2) | ||||
| 90386-12022 |
AE95..5F |
2 | ||
| 33534G - WASHER, PLATE (FOR SELECTING BELLCRANK NO.2) | ||||
| 90201-08028 |
AE95..5F |
1 | ||
| 33557A - COVER, SELECTING BELLCRANK DUST, NO.1 | ||||
| 33557-32010 |
AE95..5F |
1 | ||
| 33558 - COVER, SELECTING BELLCRANK DUST, NO.2 | ||||
| 33558-10030 |
AE95..5F |
1 | ||
| 33558-12010 |
AE95..5F |
1 | ||
| 33574A - RETAINER, SHIFT CABLE GROMMET, NO.1 | ||||
| 33574-12080 |
AE95..5F |
1 | ||
| 33574B - RETAINER, SHIFT CABLE GROMMET, NO.2 | ||||
| 33574-12060 |
AE95..5F |
1 | ||
| 33608 - SUPPORT SUB-ASSY, SELECTING BELLCRANK | ||||
| 33608-20010 |
AE95..5F |
1 | ||
| 33608-12030 |
AE95..5F |
1 | ||
| 33608-12031 |
AE95..5F |
1 | ||
| 33821 - CABLE TRANSMISSION CONTROL SHIFT (FOR FLOOR SHIFT) | ||||
| 33821-12282 |
AE95..5F |
1 | ||
| 33821A - GROMMET, NO.1 (FOR TRANSMISSION CONTROL CABLE) | ||||
| 90480-01400 |
AE95..5F |
1 | ||
| 33821B - GROMMET, NO.2 (FOR TRANSMISSION CONTROL CABLE) | ||||
| 90480-01398 |
AE95..5F |
1 | ||
| 33821C - WASHER, PLATE (FOR TRANSMISSION CONTROL CABLE) | ||||
| 90201-08267 |
AE95..5F 外径=28,TRANSAXLE SIDE |
2 | ||
| 90201-08077 |
AE95..5F 外径=30,TRANSAXLE SIDE |
2 | ||
| 90201-10042 |
AE95..5F SHIFT LEVER SIDE |
1 | ||
| 33821C - WASHER, PLATE (FOR TRANSMISSION CONTROL CABLE) | ||||
| 90201-08267 |
AE95..5F 外径=28,TRANSAXLE SIDE |
2 | ||
| 90201-08077 |
AE95..5F 外径=30,TRANSAXLE SIDE |
2 | ||
| 90201-10042 |
AE95..5F SHIFT LEVER SIDE |
1 | ||
| 33821C - WASHER, PLATE (FOR TRANSMISSION CONTROL CABLE) | ||||
| 90201-08267 |
AE95..5F 外径=28,TRANSAXLE SIDE |
2 | ||
| 90201-08077 |
AE95..5F 外径=30,TRANSAXLE SIDE |
2 | ||
| 90201-10042 |
AE95..5F SHIFT LEVER SIDE |
1 | ||
| 33822 - CABLE TRANSMISSION CONTROL SELECT (FOR FLOOR SHIFT) | ||||
| 33822-12131 |
AE95..5F |
2 | ||
| Common parts | ||||
| 90119-10216 | ||||
| 90468-14016 | ||||
| 90468-14027 | ||||
| 90468-14032 | ||||
| 91611-60820 | ||||
| 91656-40616 | ||||
| 93560-15014 | ||||
| 94110-40800 | ||||
| 94511-00800 | ||||
(9109- )5F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

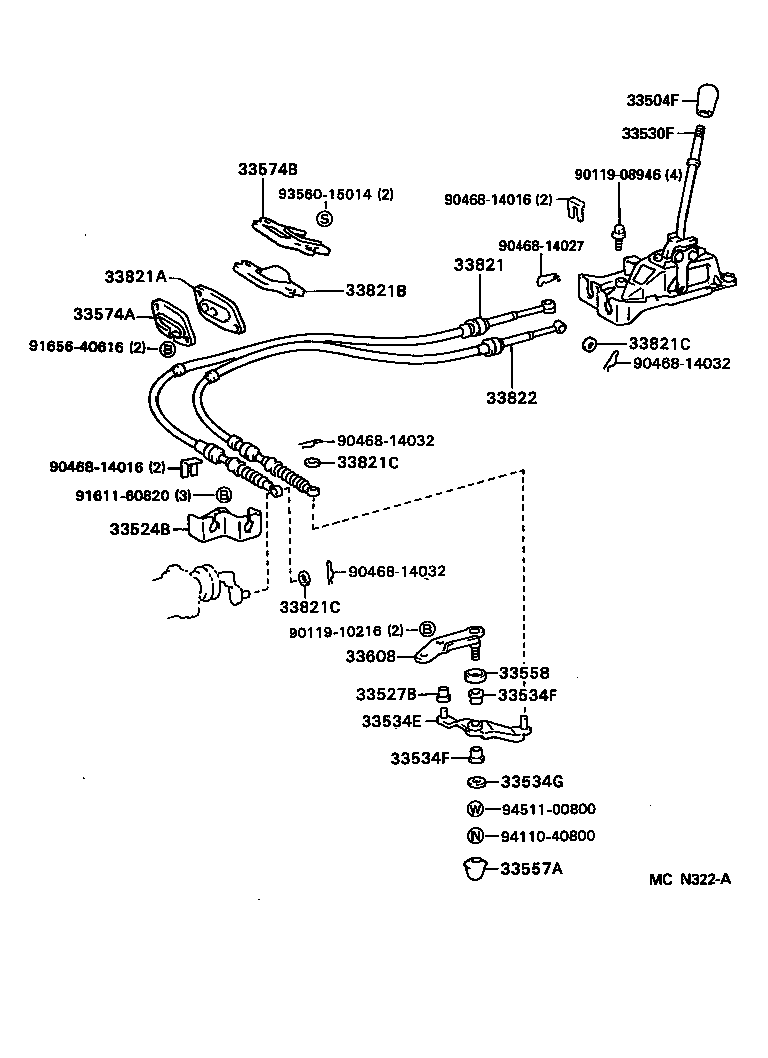

| 33504F - KNOB SUB-ASSY, SHIFT LEVER | ||||
| 33504-24010B3 |
AE95..5F..(AV2,RVS) SHADOW GRAY,TRIM1# |
1 | ||
| 33504-12180J2 |
AE95..5F DARK BLUE,TRIM8# |
1 | ||
| 33504-24010J0 |
AE95..5F..(AV2,RVS) DARK BLUE,TRIM8# |
1 | ||
| 33504-12180P0 |
AE95..5F SHADOW GRAY,TRIM1# |
1 | ||
| 33524B - BRACKET, CONTROL CABLE | ||||
| 33524-20010 |
AE95..5F |
1 | ||
| 33527B - BUSH (FOR CONTROL SHIFT LEVER) | ||||
| 90389-10009 |
AE95..5F |
1 | ||
| 33557-33010 |
AE95..5F |
1 | ||
| 33530F - LEVER ASSY, SHIFT (FOR FLOOR SHIFT) | ||||
| 33530-13020 |
AE95..5F |
1 | ||
| 33534E - CRANK, SELECTING BELL, NO.2 | ||||
| 33534-20020 |
AE95..5F |
1 | ||
| 33534-12090 |
AE95..5F |
1 | ||
| 33534-12091 |
AE95..5F |
1 | ||
| 33534F - BUSH (FOR SELECTING BELLCRANK NO.2) | ||||
| 90386-12022 |
AE95..5F |
2 | ||
| 33534F - BUSH (FOR SELECTING BELLCRANK NO.2) | ||||
| 90386-12022 |
AE95..5F |
2 | ||
| 33534G - WASHER, PLATE (FOR SELECTING BELLCRANK NO.2) | ||||
| 90201-08028 |
AE95..5F |
1 | ||
| 33557A - COVER, SELECTING BELLCRANK DUST, NO.1 | ||||
| 33557-32010 |
AE95..5F |
1 | ||
| 33558 - COVER, SELECTING BELLCRANK DUST, NO.2 | ||||
| 33558-10030 |
AE95..5F |
1 | ||
| 33558-12010 |
AE95..5F |
1 | ||
| 33574A - RETAINER, SHIFT CABLE GROMMET, NO.1 | ||||
| 33574-12080 |
AE95..5F |
1 | ||
| 33574B - RETAINER, SHIFT CABLE GROMMET, NO.2 | ||||
| 33574-12060 |
AE95..5F |
1 | ||
| 33608 - SUPPORT SUB-ASSY, SELECTING BELLCRANK | ||||
| 33608-20010 |
AE95..5F |
1 | ||
| 33608-12030 |
AE95..5F |
1 | ||
| 33608-12031 |
AE95..5F |
1 | ||
| 33821 - CABLE TRANSMISSION CONTROL SHIFT (FOR FLOOR SHIFT) | ||||
| 33821-12282 |
AE95..5F |
1 | ||
| 33821A - GROMMET, NO.1 (FOR TRANSMISSION CONTROL CABLE) | ||||
| 90480-01400 |
AE95..5F |
1 | ||
| 33821B - GROMMET, NO.2 (FOR TRANSMISSION CONTROL CABLE) | ||||
| 90480-01398 |
AE95..5F |
1 | ||
| 33821C - WASHER, PLATE (FOR TRANSMISSION CONTROL CABLE) | ||||
| 90201-08267 |
AE95..5F 外径=28,TRANSAXLE SIDE |
2 | ||
| 90201-08077 |
AE95..5F 外径=30,TRANSAXLE SIDE |
2 | ||
| 90201-10042 |
AE95..5F SHIFT LEVER SIDE |
1 | ||
| 33821C - WASHER, PLATE (FOR TRANSMISSION CONTROL CABLE) | ||||
| 90201-08267 |
AE95..5F 外径=28,TRANSAXLE SIDE |
2 | ||
| 90201-08077 |
AE95..5F 外径=30,TRANSAXLE SIDE |
2 | ||
| 90201-10042 |
AE95..5F SHIFT LEVER SIDE |
1 | ||
| 33821C - WASHER, PLATE (FOR TRANSMISSION CONTROL CABLE) | ||||
| 90201-08267 |
AE95..5F 外径=28,TRANSAXLE SIDE |
2 | ||
| 90201-08077 |
AE95..5F 外径=30,TRANSAXLE SIDE |
2 | ||
| 90201-10042 |
AE95..5F SHIFT LEVER SIDE |
1 | ||
| 33822 - CABLE TRANSMISSION CONTROL SELECT (FOR FLOOR SHIFT) | ||||
| 33822-12131 |
AE95..5F |
2 | ||
| Common parts | ||||
| 90119-08946 | ||||
| 90119-10216 | ||||
| 90468-14016 | ||||
| 90468-14027 | ||||
| 90468-14032 | ||||
| 91611-60820 | ||||
| 91656-40616 | ||||
| 93560-15014 | ||||
| 94110-40800 | ||||
| 94511-00800 | ||||
