AE95G-CWMGH (1990)
Toyota Sprinter Carib
Production
Sep 1990
-
Aug 1995
Engine
4AFHE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(9009- )

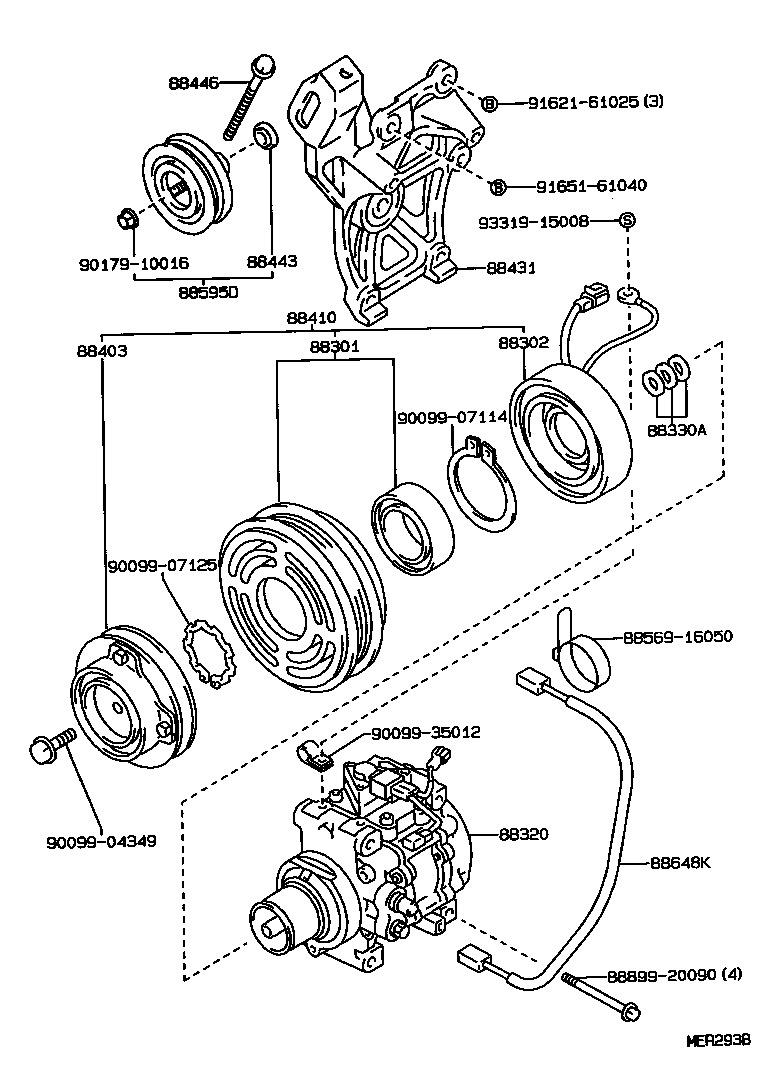

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88301 - ROTOR SUB-ASSY, MAGNET CLUTCH | ||||
| 88412-1A040 |
AE95 |
1 | ||
| 88412-12180 |
AE95 |
1 | ||
| 88302 - STATOR SUB-ASSY, MAGNET CLUTCH | ||||
| 88411-60030 |
AE95 |
1 | ||
| 88411-1A040 |
AE95 |
1 | ||
| 88320 - COMPRESSOR ASSY, COOLER | ||||
| 88320-1A430 |
AE95 |
1 | ||
| 88320-12780 |
AE95 |
1 | ||
| 88330A - WASHER (FOR MAGNET CLUTCH) | ||||
| 88335-14020 |
AE95 3個ｾｯﾄ |
1 | ||
| 90099-01555 |
AE95 厚さ=0.5 |
1 | ||
| 90099-01553 |
AE95 厚さ=0.1 |
1 | ||
| 90099-01554 |
AE95 厚さ=0.3 |
1 | ||
| 88403 - HUB SUB-ASSY, MAGNET CLUTCH | ||||
| 88403-16011 |
AE95 |
1 | ||
| 88403-1A010 |
AE95 |
1 | ||
| 88410 - CLUTCH ASSY, MAGNET | ||||
| 88410-12290 |
AE95 |
1 | ||
| 88410-1A050 |
AE95 |
1 | ||
| 88431 - BRACKET, COMPRESSOR MOUNTING, NO.1 | ||||
| 88431-12400 |
AE95 |
1 | ||
| 88443 - COLLAR, IDLE PULLEY | ||||
| 88443-36010 |
AE95 ﾃﾞｲ-ﾗ ｵﾌﾟｼﾖﾝ |
1 | ||
| 88446 - BOLT, IDLE PULLEY | ||||
| 88446-12030 |
AE95 |
1 | ||
| 88595D - PULLEY ASSY, IDLE | ||||
| 88440-17010 |
AE95 |
1 | ||
| 88648K - WIRE SUB-ASSY, SENSOR | ||||
| 88648-12380 |
AE95 |
1 | ||
| Common parts | ||||
| 88569-16050 | ||||
| 88899-20090 | ||||
| 90099-04349 | ||||
| 90099-07114 | ||||
| 90099-07125 | ||||
| 90099-35012 | ||||
| 90179-10016 | ||||
| 91621-61025 | ||||
| 91651-61040 | ||||
| 93319-15008 | ||||
