AE95G-CWMGH (1990)
Toyota Sprinter Carib
Production
Sep 1990
-
Aug 1995
Engine
4AFHE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(9009- )

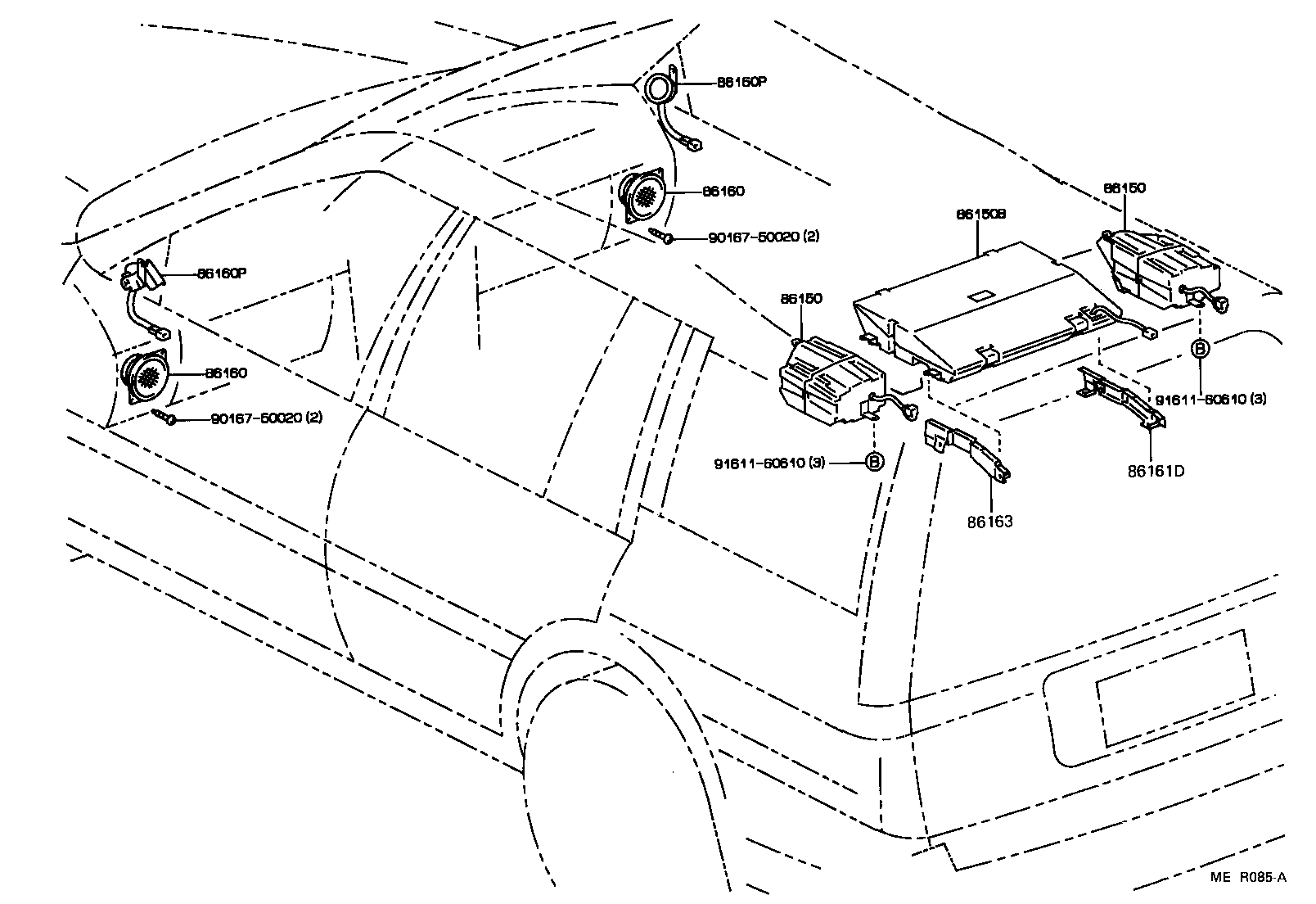

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86150 - SPEAKER ASSY, W/BOX, NO.1 | ||||
| 86150-12111 |
AE95 RR-LH |
1 | ||
| 86150-12101 |
AE95 RR-RH |
1 | ||
| 86150 - SPEAKER ASSY, W/BOX, NO.1 | ||||
| 86150-12111 |
AE95 RR-LH |
1 | ||
| 86150-12101 |
AE95 RR-RH |
1 | ||
| 86150B - SPEAKER ASSY, W/BOX, NO.2 | ||||
| 86150-13050 |
AE95..AV2,RVS |
1 | ||
| 86160 - SPEAKER ASSY, FRONT NO.1 | ||||
| 86160-12280 |
AE95..AV2 TEN |
2 | ||
| 86160-12290 |
AE95..AV2 PIONEER |
2 | ||
| 86160-13030 |
AE95..AV2,RVS TEN,ｱﾘ(ﾗｲﾌﾞ ｻｳﾝﾄﾞ ｼｽﾃﾑ) |
2 | ||
| 86160 - SPEAKER ASSY, FRONT NO.1 | ||||
| 86160-12280 |
AE95..AV2 TEN |
2 | ||
| 86160-12290 |
AE95..AV2 PIONEER |
2 | ||
| 86160-13030 |
AE95..AV2,RVS TEN,ｱﾘ(ﾗｲﾌﾞ ｻｳﾝﾄﾞ ｼｽﾃﾑ) |
2 | ||
| 86160P - SPEAKER ASSY, FRONT NO.2 | ||||
| 86160-13050 |
AE95..AV2,RVS 左側 |
1 | ||
| 86160-13040 |
AE95..AV2,RVS 右側 |
1 | ||
| 86160P - SPEAKER ASSY, FRONT NO.2 | ||||
| 86160-13050 |
AE95..AV2,RVS 左側 |
1 | ||
| 86160-13040 |
AE95..AV2,RVS 右側 |
1 | ||
| 86161D - BRACKET, SPEAKER MOUNTING, NO.1 | ||||
| 86161-13010 |
AE95..AV2,RVS |
1 | ||
| 86163 - BRACKET, SPEAKER, NO.2 | ||||
| 86163-13010 |
AE95..AV2,RVS |
1 | ||
| Common parts | ||||
| 90167-50020 | ||||
| 91611-60610 | ||||
