AE95G-CWMGH (1990)
Toyota Sprinter Carib
Production
Sep 1990
-
Aug 1995
Engine
4AFHE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(9009- )

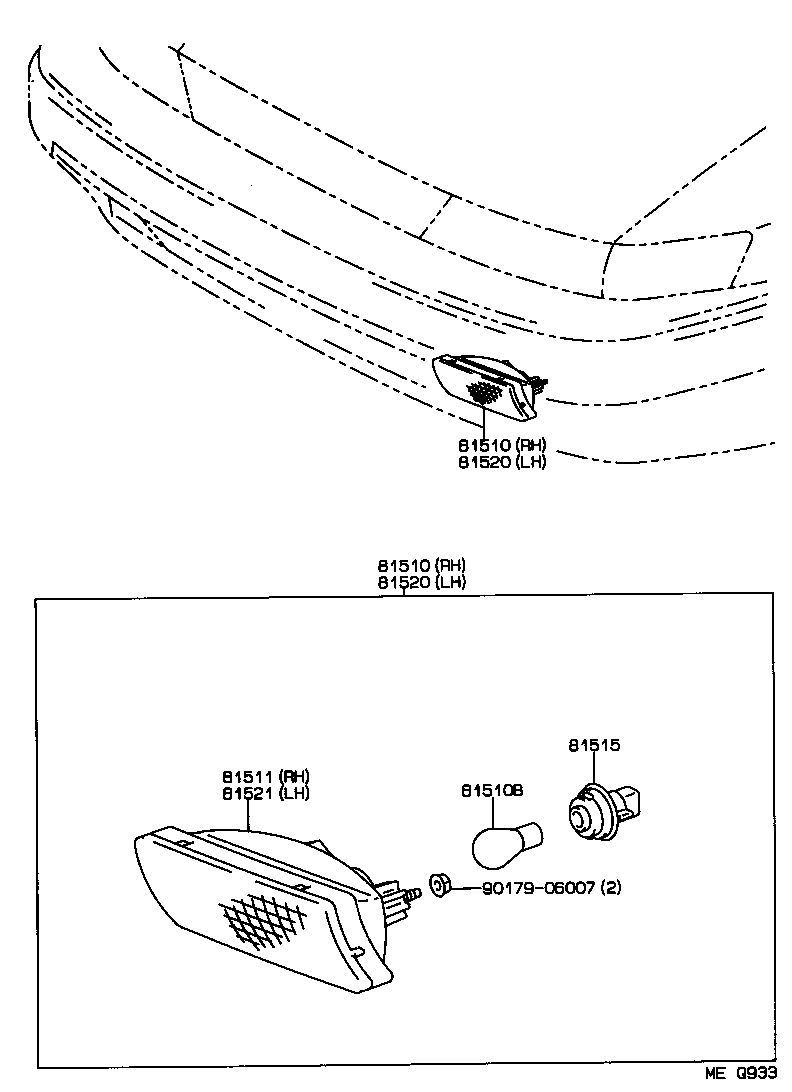

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81510 - LAMP ASSY, FRONT TURN SIGNAL, RH | ||||
| 81510-80080 |
AE95 |
1 | ||
| 81510 - LAMP ASSY, FRONT TURN SIGNAL, RH | ||||
| 81510-80080 |
AE95 |
1 | ||
| 81510B - BULB (FOR FRONT TURN SIGNAL LAMP) | ||||
| 99132-11210 |
AE95 12V 21W |
2 | ||
| 81511 - LENS, FRONT TURN SIGNAL LAMP, RH | ||||
| 81511-13010 |
AE95 |
1 | ||
| 81515 - WIRE SUB-ASSY, FRONT TURN SIGNAL LAMP BODY | ||||
| 81615-87705 |
AE95 |
2 | ||
| 81520 - LAMP ASSY, FRONT TURN SIGNAL, LH | ||||
| 81520-80080 |
AE95 |
1 | ||
| 81520 - LAMP ASSY, FRONT TURN SIGNAL, LH | ||||
| 81520-80080 |
AE95 |
1 | ||
| 81521 - LENS, FRONT TURN SIGNAL LAMP, LH | ||||
| 81521-13010 |
AE95 |
1 | ||
| Common parts | ||||
| 90179-06007 | ||||
