AE95G-CWMGH (1990)

Toyota Sprinter Carib

Production Sep 1990 - Aug 1995
Engine 4AFHE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9009- )

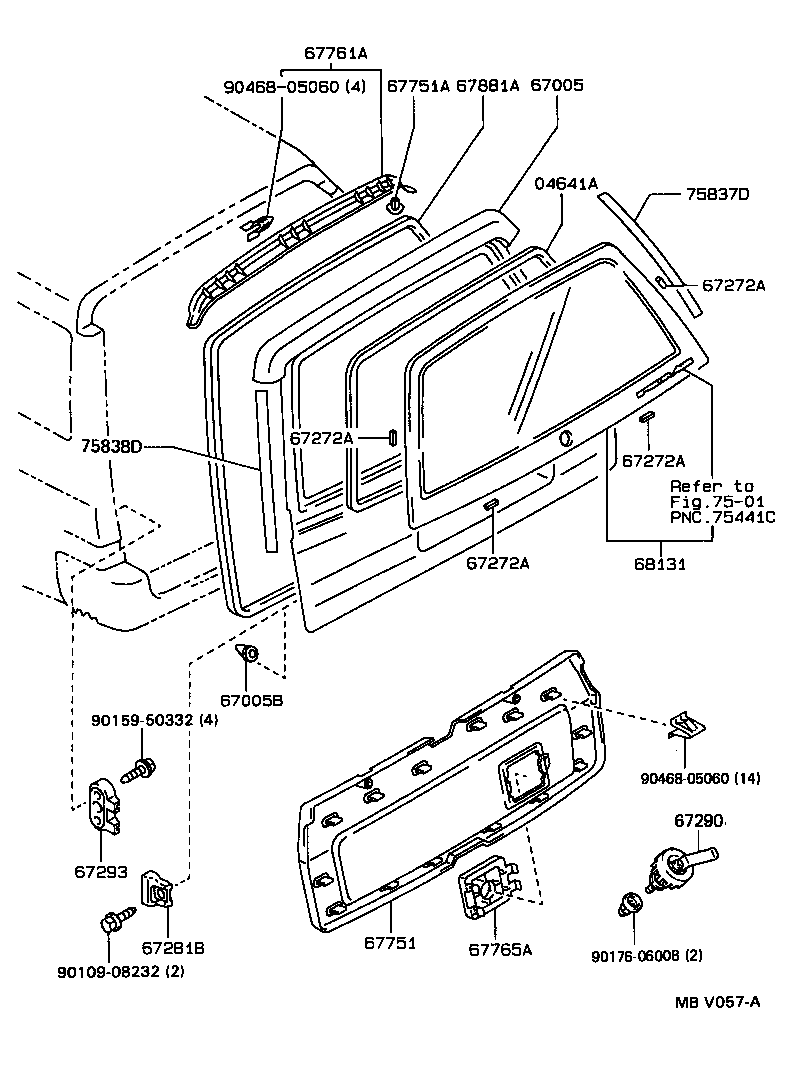

Click highlighted areas on diagram

diagram 04641A 67005 67005B 67272A 67272A 67272A 67272A 67281B 67290 67293 67751 67751A 67761A 67765A 67881A 68131 7501 75837D 75838D 9010908232 9015950332 9017606008 9046805060 9046805060
Part # Description Qty Price
04641A - DAM KIT, BACK WINDOW GLASS ADHESIVE
04562-12010

AE95

 1
67005 - PANEL SUB-ASSY, BACK DOOR
67005-1A461

AE95..AV2,RVS

 1
67005B - CUSHION(FOR BACK DOOR PANEL)
64459-12010

AE95

 2
67272A - CUSHION, BACK DOOR STOPPER, NO.2
67272-12030

AE95

 8
67272A - CUSHION, BACK DOOR STOPPER, NO.2
67272-12030

AE95

 8
67272A - CUSHION, BACK DOOR STOPPER, NO.2
67272-12030

AE95

 8
67272A - CUSHION, BACK DOOR STOPPER, NO.2
67272-12030

AE95

 8
67281B - STOPPER, BACK DOOR, LOWER
67284-12010

AE95

左側

 1
67283-12010

AE95

右側

 1
67293 - CUSHION, BACK DOOR LOWER STOPPER
67293-20020

AE95

 2
67751 - BOARD, BACK DOOR TRIM
67751-1211004

AE95

DARK BLUE,TRIM8#

 1
67751-1211003

AE95

SHADOW GRAY,TRIM1#

 1
67751A - CLIP(FOR BACK DOOR TRIM BOARD)
90467-05062J0

AE95

DARK BLUE,TRIM8#

 2
90467-05062B0

AE95

SHADOW GRAY,TRIM1#

 2
67761A - COVER, BACK DOOR TRIM
67761-1214004

AE95

DARK BLUE,TRIM8#

 1
67761-1214003

AE95

SHADOW GRAY,TRIM1#

 1
67765A - COVER, BACK DOOR SERVICE HOLE, NO.1
67765-1208003

AE95

SHADOW GRAY,TRIM1#

 1
67765-1208004

AE95

DARK BLUE,TRIM8#

 1
67881A - WEATHERSTRIP, BACK DOOR
67881-12220

AE95

 1
68131 - GLASS, BACK DOOR
68131-1A090

AE95..AV2

*EHT,ﾌﾞﾛﾝｽﾞ

 1
68131-1A080

AE95..AV2

*EHTT,厚さ=4.0

 1
75837D - COVER, BACK DOOR FINISH, RH
75837-12050

AE95

 1
75838D - COVER, BACK DOOR FINISH, LH
75837-12050

AE95

 1
Common parts
90109-08232
90159-50332
90176-06008
90468-05060
Linked diagrams
7501
