AE95G-CWMGH (1990)
Toyota Sprinter Carib
Production
Sep 1990
-
Aug 1995
Engine
4AFHE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)

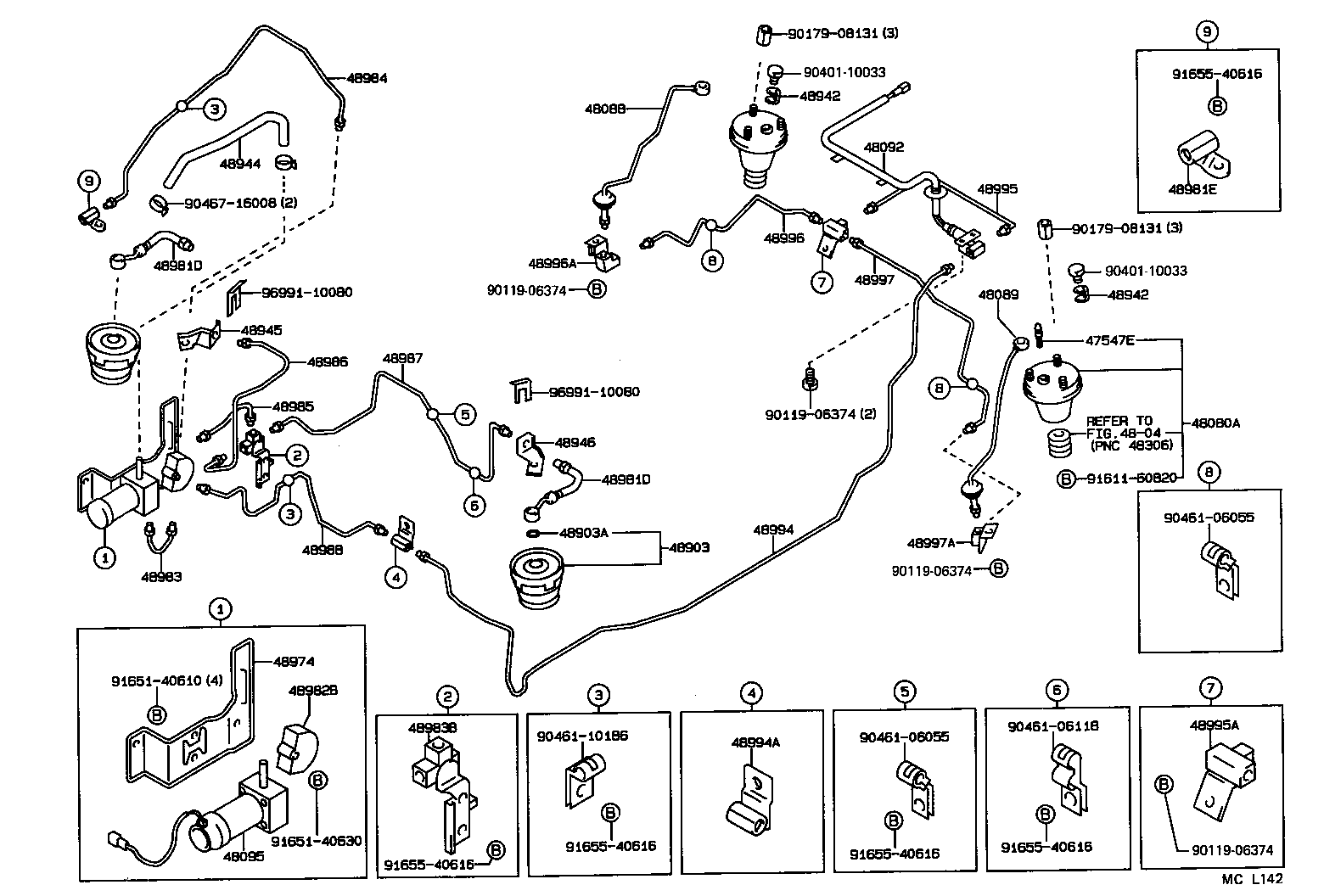

ILLUST NO. 1 OF 2(9009- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47547E - PLUG, BLEEDER(FOR HEIGHT CONTROL CYLINDER) | ||||
| 47547-12040 |
AE95..AV2 |
2 | ||
| 48080A - CYLINDER ASSY, HEIGHT CONTROL, REAR | ||||
| 48080-12010 |
AE95..AV2 |
2 | ||
| 48088 - TUBE SUB-ASSY, HEIGHT CONTROL, NO.1 | ||||
| 48088-12010 |
AE95..AV2 |
1 | ||
| 48089 - TUBE SUB-ASSY, HEIGHT CONTROL, NO.2 | ||||
| 48089-12010 |
AE95..AV2 |
1 | ||
| 48092 - SENSOR SUB-ASSY, HEIGHT CONTROL | ||||
| 48092-13010 |
AE95..AV2 |
1 | ||
| 48095 - VALVE SUB-ASSY, HEIGHT CONTROL, NO.1 | ||||
| 48095-12010 |
AE95..AV2 |
1 | ||
| 48903 - CYLINDER SUB-ASSY, HEIGHT CONTROL, FRONT | ||||
| 48903-12010 |
AE95..AV2 |
2 | ||
| 48903A - RING, O(FOR FRONT HEIGHT CONTROL CYLINDER) | ||||
| 90301-14004 |
AE95..AV2 |
2 | ||
| 48942 - GASKET, HEIGHT CONTROL UNION | ||||
| 48942-12010 |
AE95..AV2 |
2 | ||
| 48942 - GASKET, HEIGHT CONTROL UNION | ||||
| 48942-12010 |
AE95..AV2 |
2 | ||
| 48944 - HOSE, HEIGHT CONTROL, NO.2 | ||||
| 48944-12010 |
AE95..AV2 |
1 | ||
| 48945 - BRACKET, HEIGHT CONTROL HOSE, RH | ||||
| 48945-12011 |
AE95..AV2 |
1 | ||
| 48946 - BRACKET, HEIGHT CONTROL HOSE, LH | ||||
| 48946-12010 |
AE95..AV2 |
1 | ||
| 48974 - BRACKET, HEIGHT CONTROL VALVE | ||||
| 48974-12010 |
AE95..AV2 |
1 | ||
| 48981D - HOSE, FLEXIBLE, NO.1(FOR FRONT HEIGHT CONTROL) | ||||
| 90947-02559 |
AE95..AV2 |
2 | ||
| 48981D - HOSE, FLEXIBLE, NO.1(FOR FRONT HEIGHT CONTROL) | ||||
| 90947-02559 |
AE95..AV2 |
2 | ||
| 48981E - WAY, NO.1(FOR FRONT HEIGHT CONTROL TUBE) | ||||
| 90412-12027 |
AE95..AV2 |
1 | ||
| 48982B - WAY, NO.2(FOR FRONT HEIGHT CONTROL TUBE) | ||||
| 90414-12001 |
AE95..AV2 |
1 | ||
| 48983 - TUBE, HEIGHT CONTROL, NO.3 | ||||
| 48983-12010 |
AE95..AV2 |
1 | ||
| 48983B - WAY, NO.3(FOR FRONT HEIGHT CONTROL TUBE) | ||||
| 90413-10217 |
AE95..AV2 |
1 | ||
| 48984 - TUBE, HEIGHT CONTROL, NO.4 | ||||
| 48984-12010 |
AE95..AV2 |
1 | ||
| 48985 - TUBE, HEIGHT CONTROL, NO.5 | ||||
| 48985-12010 |
AE95..AV2 |
1 | ||
| 48986 - TUBE, HEIGHT CONTROL, NO.6 | ||||
| 48986-12011 |
AE95..AV2 |
1 | ||
| 48987 - TUBE, HEIGHT CONTROL, NO.7 | ||||
| 48987-12010 |
AE95..AV2 |
1 | ||
| 48988 - TUBE, HEIGHT CONTROL, NO.8 | ||||
| 48988-12010 |
AE95..AV2 |
1 | ||
| 48994 - TUBE, HEIGHT CONTROL, REAR NO.1 | ||||
| 48994-12010 |
AE95..AV2 |
1 | ||
| 48994A - WAY, NO.1(FOR REAR HEIGHT CONTROL TUBE) | ||||
| 90412-12025 |
AE95..AV2 |
1 | ||
| 48995 - TUBE, HEIGHT CONTROL, REAR NO.2 | ||||
| 48995-12010 |
AE95..AV2 |
1 | ||
| 48995A - WAY, NO.2(FOR REAR HEIGHT CONTROL TUBE) | ||||
| 90413-10218 |
AE95..AV2 |
1 | ||
| 48996 - TUBE, HEIGHT CONTROL, REAR NO.3 | ||||
| 48996-12012 |
AE95..AV2 |
1 | ||
| 48996A - WAY, NO.3(FOR REAR HEIGHT CONTROL TUBE) | ||||
| 90904-12023 |
AE95..AV2 |
1 | ||
| 90412-10156 |
AE95..AV2 |
1 | ||
| 48997 - TUBE, HEIGHT CONTROL, REAR NO.4 | ||||
| 48997-12011 |
AE95..AV2 |
1 | ||
| 48997A - WAY, NO.4(FOR REAR HEIGHT CONTROL TUBE) | ||||
| 90412-10157 |
AE95..AV2 |
1 | ||
| 90904-12024 |
AE95..AV2 |
1 | ||
| Common parts | ||||
| 90119-06374 | ||||
| 90179-08131 | ||||
| 90401-10033 | ||||
| 90461-06055 | ||||
| 90461-06118 | ||||
| 90461-10186 | ||||
| 90467-16008 | ||||
| 91611-60820 | ||||
| 91651-40610 | ||||
| 91651-40630 | ||||
| 91655-40616 | ||||
| 96991-10080 | ||||
| Linked diagrams | ||||
| 4804 | ||||

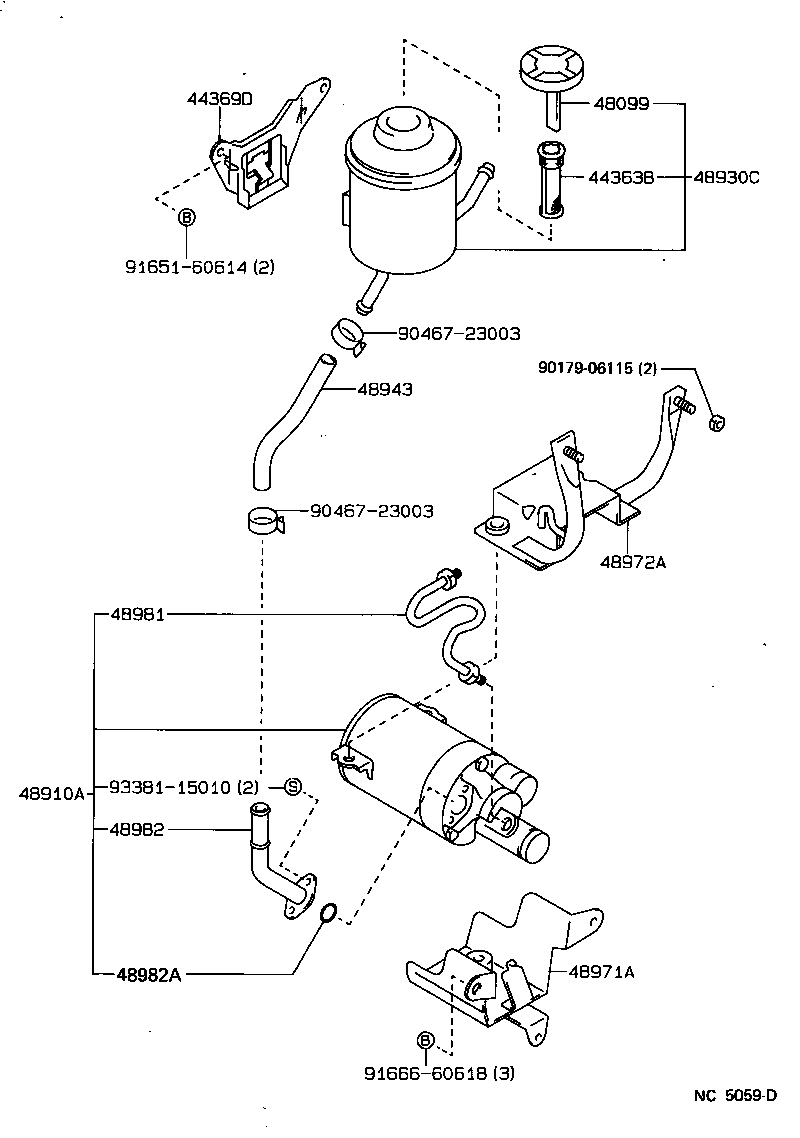

ILLUST NO. 2 OF 2(9009- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44363B - STRAINER, HEIGHT CONTROL RESERVOIR | ||||
| 44363-36040 |
AE95..AV2 |
1 | ||
| 44369D - BRACKET, HEIGHT CONTROL RESERVOIR | ||||
| 44369-12030 |
AE95..AV2 |
1 | ||
| 48099 - CAP SUB-ASSY, HEIGHT CONTROL RESERVOIR | ||||
| 48099-12011 |
AE95..AV2 |
1 | ||
| 48910A - PUMP & MOTOR ASSY, HEIGHT CONTROL | ||||
| 48910-12010 |
AE95..AV2 |
1 | ||
| 48930C - RESERVOIR ASSY, HEIGHT CONTROL | ||||
| 48930-12010 |
AE95..AV2 |
1 | ||
| 48943 - HOSE, HEIGHT CONTROL, NO.1 | ||||
| 48943-12010 |
AE95..AV2 |
1 | ||
| 48971A - BRACKET, HEIGHT CONTROL PUMP, NO.1 | ||||
| 48971-12011 |
AE95..AV2 |
1 | ||
| 48972A - BRACKET, HEIGHT CONTROL PUMP, NO.2 | ||||
| 48972-12010 |
AE95..AV2 |
1 | ||
| 48981 - TUBE, HEIGHT CONTROL, NO.1 | ||||
| 48981-12010 |
AE95..AV2 |
1 | ||
| 48982 - TUBE, HEIGHT CONTROL, NO.2 | ||||
| 48982-12010 |
AE95..AV2 |
1 | ||
| 48982A - RING, O(FOR HEIGHT CONTROL TUBE NO.2) | ||||
| 96711-19009 |
AE95..AV2 |
1 | ||
| Common parts | ||||
| 90179-06115 | ||||
| 90467-23003 | ||||
| 91651-60614 | ||||
| 91666-60618 | ||||
| 93381-15010 | ||||
