AE95G-CWMGH (1990)
Toyota Sprinter Carib
Production
Sep 1990
-
Aug 1995
Engine
4AFHE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(9009- )

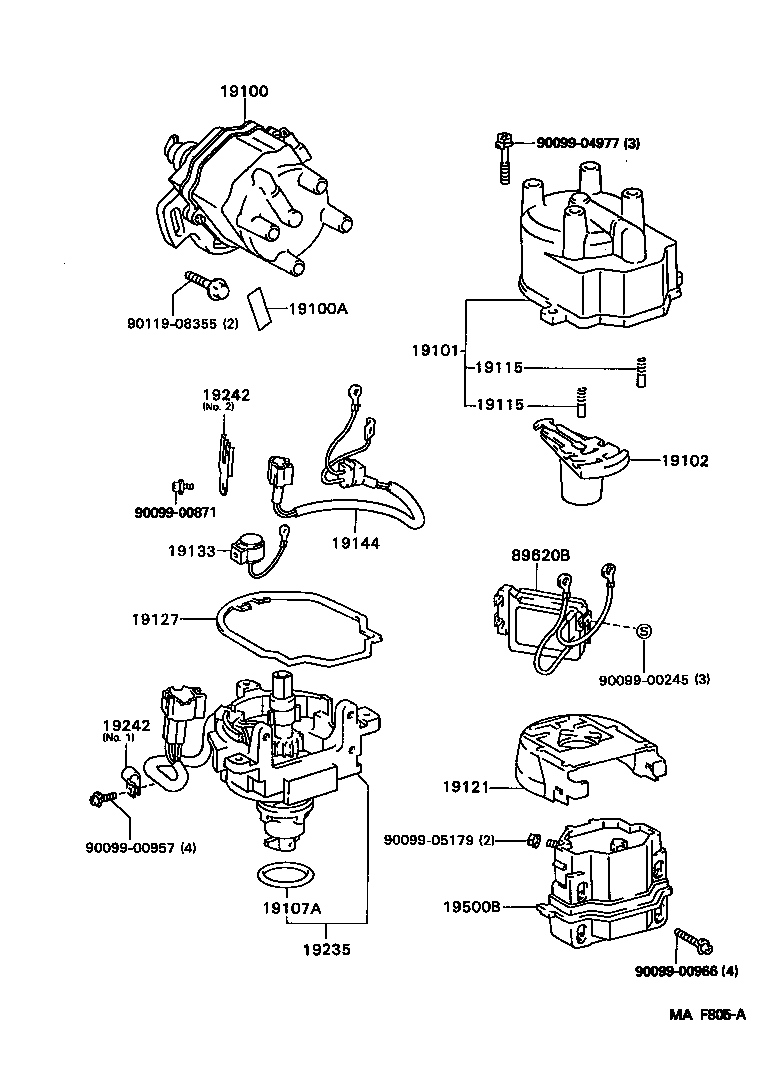

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 19100 - DISTRIBUTOR ASSY | ||||
| 19020-16240 |
4AFHE..AE95 |
1 | ||
| 19100A - TAPE, SEALING | ||||
| 90919-24004 |
4AFHE..AE95 |
1 | ||
| 19101 - CAP SUB-ASSY, DISTRIBUTOR | ||||
| 19101-15120 |
4AFHE..AE95 |
1 | ||
| 19102 - ROTOR SUB-ASSY, DISTRIBUTOR | ||||
| 19102-11031 |
4AFHE..AE95 |
1 | ||
| 19107A - RING, O, DISTRIBUTOR HOUSING | ||||
| 90099-14127 |
4AFHE..AE95 |
1 | ||
| 90099-14091 |
4AFHE..AE95 |
1 | ||
| 19115 - PIECE, DISTRIBUTOR CAP, CENTER | ||||
| 19115-63010 |
4AFHE..AE95 |
2 | ||
| 19115 - PIECE, DISTRIBUTOR CAP, CENTER | ||||
| 19115-63010 |
4AFHE..AE95 |
2 | ||
| 19121 - COVER, DUST PROOF | ||||
| 19121-11080 |
4AFHE..AE95 |
1 | ||
| 19127 - PACKING, DUST PROOF | ||||
| 19127-15120 |
4AFHE..AE95 |
1 | ||
| 19133 - CONDENSER, DISTRIBUTOR | ||||
| 19133-16240 |
4AFHE..AE95 |
1 | ||
| 19144 - LEAD, DISTRIBUTOR BREAKER | ||||
| 19144-16240 |
4AFHE..AE95 |
1 | ||
| 19144-16250 |
4AFHE..AE95 |
1 | ||
| 19235 - HOUSING, DISTRIBUTOR | ||||
| 19235-16240 |
4AFHE..AE95 |
1 | ||
| 19242 - CLAMP, CORD | ||||
| 19242-16240 |
4AFHE..AE95 NO.2 |
1 | ||
| 19242-11190 |
4AFHE..AE95 NO.1 |
1 | ||
| 19242-16250 |
4AFHE..AE95 NO.2 |
1 | ||
| 19242 - CLAMP, CORD | ||||
| 19242-16240 |
4AFHE..AE95 NO.2 |
1 | ||
| 19242-11190 |
4AFHE..AE95 NO.1 |
1 | ||
| 19242-16250 |
4AFHE..AE95 NO.2 |
1 | ||
| 19500B - COIL ASSY, IGNITION | ||||
| 90919-02164 |
4AFHE..AE95 |
1 | ||
| 89620B - IGNITER ASSY | ||||
| 89620-12440 |
AE95 |
1 | ||
| 89620-12410 |
AE95 |
1 | ||
| Common parts | ||||
| 90090-04977 | ||||
| 90099-00245 | ||||
| 90099-00871 | ||||
| 90099-00957 | ||||
| 90099-00966 | ||||
| 90099-05179 | ||||
| 90119-08355 | ||||
