AE95G-CWMDH (1990)
Toyota Sprinter Carib
Production
Sep 1990
-
Aug 1995
Engine
4AFHE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(9009- )

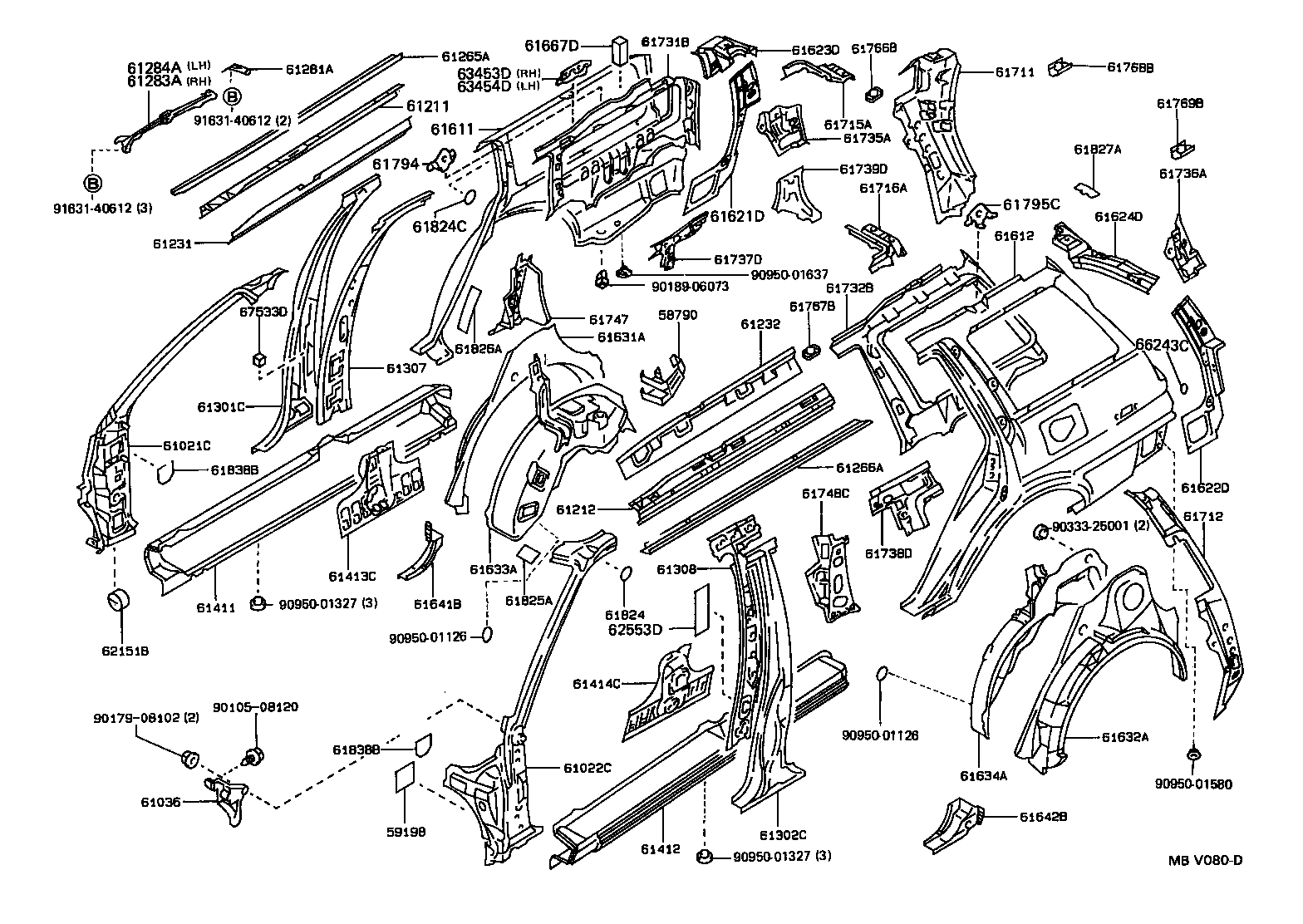

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58790 - CARRIER ASSY, JACK | ||||
| 58790-12040 |
AE95 |
1 | ||
| 59198 - SEAL, NOISE SHUTTER | ||||
| 59198-12010 |
AE95 |
1 | ||
| 61021C - PILLAR SUB-ASSY, FRONT BODY, RH | ||||
| 61021-1A030 |
AE95 |
1 | ||
| 61022C - PILLAR SUB-ASSY, FRONT BODY, LH | ||||
| 61022-1A040 |
AE95 |
1 | ||
| 61036 - BRACKET SUB-ASSY, INSTRUMENT PANEL TO COWL SIDE, LH | ||||
| 61036-12040 |
AE95 |
1 | ||
| 61211 - RAIL, ROOF SIDE, OUTER RH | ||||
| 61211-12270 |
AE95 |
1 | ||
| 61212 - RAIL, ROOF SIDE, OUTER LH | ||||
| 61212-12270 |
AE95 |
1 | ||
| 61231 - RAIL, ROOF SIDE, INNER RH | ||||
| 61231-13120 |
AE95 |
1 | ||
| 61232 - RAIL, ROOF SIDE, INNER LH | ||||
| 61232-13100 |
AE95 |
1 | ||
| 61265A - CHANNEL, ROOF DRIP SIDE, CENTER RH | ||||
| 61265-12170 |
AE95 |
1 | ||
| 61266A - CHANNEL, ROOF DRIP SIDE, CENTER LH | ||||
| 61266-12170 |
AE95 |
1 | ||
| 61301C - PILLAR SUB-ASSY, CENTER BODY, OUTER RH | ||||
| 61301-12190 |
AE95 |
1 | ||
| 61302C - PILLAR SUB-ASSY, CENTER BODY, OUTER LH | ||||
| 61302-12250 |
AE95 |
1 | ||
| 61307 - PILLAR SUB-ASSY, CENTER BODY, INNER RH | ||||
| 61307-13010 |
AE95 |
1 | ||
| 61308 - PILLAR SUB-ASSY, CENTER BODY, INNER LH | ||||
| 61308-13020 |
AE95 |
1 | ||
| 61411 - PANEL, ROCKER, OUTER RH | ||||
| 61411-12370 |
AE95 |
1 | ||
| 61412 - PANEL, ROCKER, OUTER LH | ||||
| 61412-12360 |
AE95 |
1 | ||
| 61413C - REINFORCEMENT, ROCKER PANEL, NO.2 RH | ||||
| 61413-12040 |
AE95 |
1 | ||
| 61414C - REINFORCEMENT, ROCKER PANEL, NO.2 LH | ||||
| 61414-12060 |
AE95 |
1 | ||
| 61611 - PANEL, QUARTER, RH | ||||
| 61601-1E909 |
AE95 |
1 | ||
| 61612 - PANEL, QUARTER, LH | ||||
| 61602-1E916 |
AE95 |
1 | ||
| 61621D - TROUGH, BACK DOOR OPENING, RH | ||||
| 61621-12904 |
AE95 |
1 | ||
| 61622D - TROUGH, BACK DOOR OPENING, LH | ||||
| 61622-12904 |
AE95 |
1 | ||
| 61623D - EXTENSION, QUARTER PANEL, FRONT RH | ||||
| 61623-12080 |
AE95 |
1 | ||
| 61624D - EXTENSION, QUARTER PANEL, FRONT LH | ||||
| 61624-12080 |
AE95 |
1 | ||
| 61631A - PANEL, QUARTER WHEEL HOUSE, OUTER RH | ||||
| 61631-13060 |
AE95 |
1 | ||
| 61632A - PANEL, QUARTER WHEEL HOUSE, OUTER LH | ||||
| 61632-12270 |
AE95 |
1 | ||
| 61633A - PANEL, QUARTER WHEEL HOUSE, INNER RH | ||||
| 61607-12400 |
AE95 |
1 | ||
| 61634A - PANEL, QUARTER WHEEL HOUSE, INNER LH | ||||
| 61608-12420 |
AE95 |
1 | ||
| 61641B - GUSSET, QUARTER WHEEL HOUSE, RH | ||||
| 61641-12040 |
AE95 |
1 | ||
| 61642B - GUSSET, QUARTER WHEEL HOUSE, LH | ||||
| 61642-12040 |
AE95 |
1 | ||
| 61667D - SEAL, QUARTER PANEL | ||||
| 61667-12060 |
AE95 |
2 | ||
| 61711 - PANEL, ROOF SIDE, OUTER RH | ||||
| 61711-12300 |
AE95 |
1 | ||
| 61712 - PANEL, ROOF SIDE, OUTER LH | ||||
| 61712-12330 |
AE95 |
1 | ||
| 61715A - EXTENSION, ROOF SIDE, INNER UPPER RH | ||||
| 61715-12030 |
AE95 |
1 | ||
| 61716A - EXTENSION, ROOF SIDE, INNER UPPER LH | ||||
| 61716-12030 |
AE95 |
1 | ||
| 61731B - PANEL, ROOF SIDE, INNER RH | ||||
| 61731-12490 |
AE95 |
1 | ||
| 61732B - PANEL, ROOF SIDE, INNER LH | ||||
| 61732-12450 |
AE95 |
1 | ||
| 61735A - PANEL, ROOF SIDE, INNER REAR RH | ||||
| 61735-12290 |
AE95 |
1 | ||
| 61736A - PANEL, ROOF SIDE, INNER REAR LH | ||||
| 61736-12260 |
AE95 |
1 | ||
| 61737D - REINFORCEMENT, ROOF SIDE, INNER RH | ||||
| 61737-12110 |
AE95 |
1 | ||
| 61738D - REINFORCEMENT, ROOF SIDE, INNER LH | ||||
| 61738-12120 |
AE95 |
1 | ||
| 61739D - REINFORCEMENT, JACK CARRIER SUPPORT | ||||
| 61739-12110 |
AE95 |
1 | ||
| 61747 - BRACE, ROOF SIDE INNER TO WHEEL HOUSE, RH | ||||
| 61747-12160 |
AE95 |
1 | ||
| 61748C - BRACE, ROOF SIDE INNER TO WHEEL HOUSE, LH | ||||
| 61748-12160 |
AE95 |
1 | ||
| 61766B - REINFORCEMENT, BELT ANCHOR TO ROOF SIDE, INNER RH | ||||
| 61766-12220 |
AE95 |
1 | ||
| 61767B - REINFORCEMENT, BELT ANCHOR TO ROOF SIDE, INNER LH | ||||
| 61767-12180 |
AE95 |
1 | ||
| 61768B - REINFORCE, BELT ANCHOR TO ROOF SIDE, INNER REAR RH | ||||
| 61768-32010 |
AE95 |
1 | ||
| 61769B - REINFORCE, BELT ANCHOR TO ROOF SIDE, INNER REAR LH | ||||
| 61768-32010 |
AE95 |
1 | ||
| 61794 - BRACKET, RADIO SPEAKER, NO.1 | ||||
| 61794-12010 |
AE95 |
1 | ||
| 61795C - BRACKET, RADIO SPEAKER, NO.2 | ||||
| 61795-12030 |
AE95 |
1 | ||
| 61824 - PLATE, NOISE CONTROL, NO.1 | ||||
| 61824-12040 |
AE95 |
2 | ||
| 61824C - PAD, NOISE SHUTTER, NO.1 | ||||
| 61824-12040 |
AE95 |
6 | ||
| 61825A - PLATE, NOISE CONTROL, NO.2 | ||||
| 61825-12010 |
AE95 |
2 | ||
| 61826A - PLATE, NOISE CONTROL, NO.3 | ||||
| 61826-12040 |
AE95 |
2 | ||
| 61827A - PLATE, NOISE CONTROL, NO.4 | ||||
| 61827-12020 |
AE95 |
2 | ||
| 61838B - PLATE, NOISE CONTROL, NO.5 | ||||
| 61838-12010 |
AE95 |
2 | ||
| 61838B - PLATE, NOISE CONTROL, NO.5 | ||||
| 61838-12010 |
AE95 |
2 | ||
| 62151B - PAD, COWL SIDE SILENCER | ||||
| 62151-12100 |
AE95 |
4 | ||
| 62553D - PAD, PILLAR, NO.3 | ||||
| 62553-12120 |
AE95 |
2 | ||
| 63453D - REINFORCEMENT, ROOF RACK, REAR RH | ||||
| 63453-13010 |
AE95 |
1 | ||
| 63454D - REINFORCEMENT, ROOF RACK, REAR LH | ||||
| 63454-13010 |
AE95 |
1 | ||
| 66243C - PROTECTOR, REAR BODY, NO.1 | ||||
| 66243-20010 |
AE95 |
2 | ||
| 67533D - PAD, FRONT DOOR LOWER FRAME GARNISH, RH | ||||
| 67533-12010 |
AE95 |
2 | ||
| Common parts | ||||
| 90105-08120 | ||||
| 90179-08102 | ||||
| 90189-06073 | ||||
| 90333-25001 | ||||
| 90950-01126 | ||||
| 90950-01327 | ||||
| 90950-01580 | ||||
| 90950-01637 | ||||
| 91631-40612 | ||||
