AE95G-CWMDH (1990)

Toyota Sprinter Carib

Production Sep 1990 - Aug 1995
Engine 4AFHE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9009- )

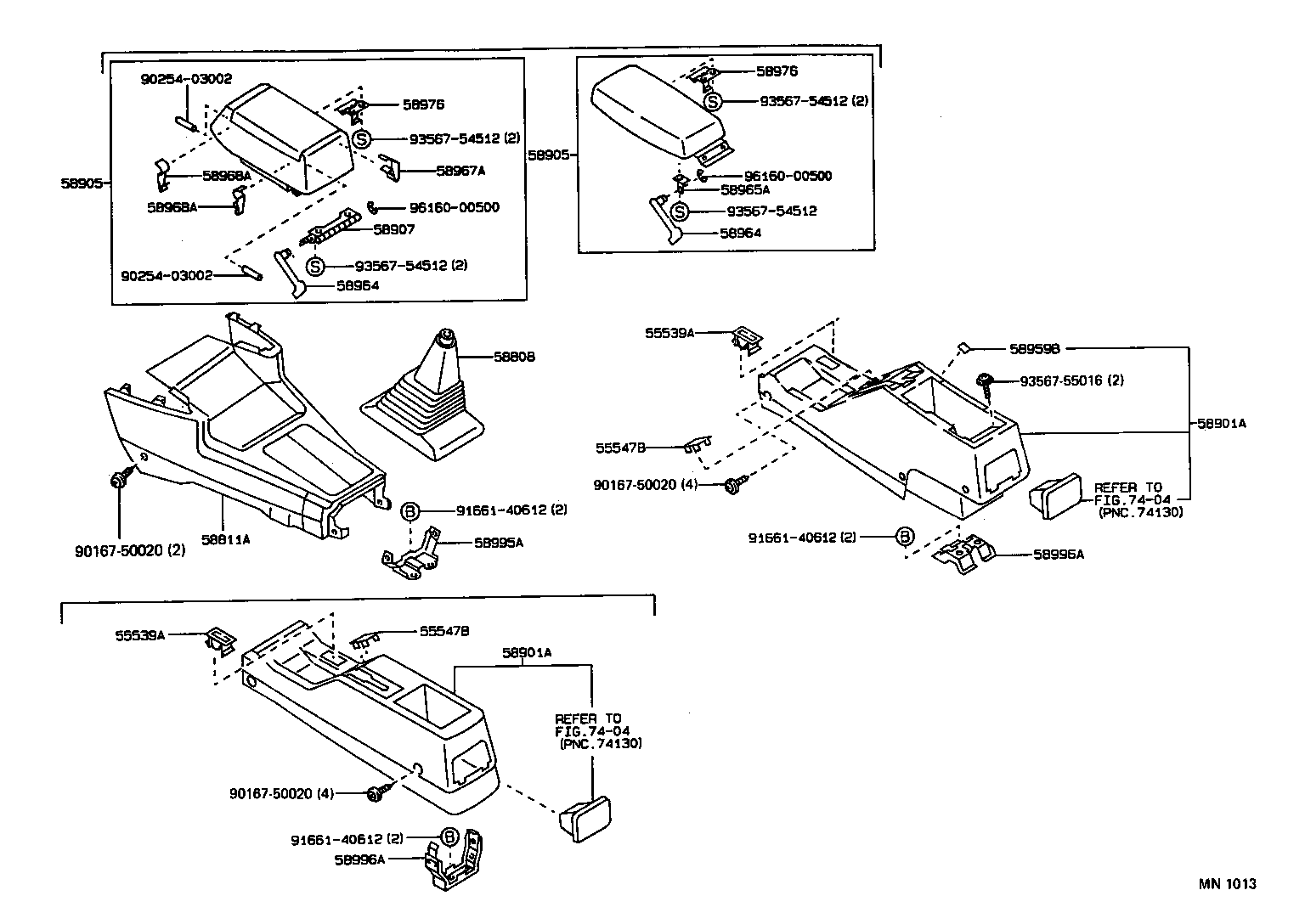

Click highlighted areas on diagram

diagram 55539A 55539A 55547B 55547B 58808 58811A 58901A 58901A 58905 58905 58907 58959B 58964 58964 58965A 58967A 58968A 58968A 58976 58976 58995A 58996A 58996A 7404 7404 9016750020 9016750020 9016750020 9025403002 9025403002 9166140612 9166140612 9166140612 9356754512 9356754512 9356754512 9356754512 9356755016 9616000500 9616000500
Part # Description Qty Price
55539A - COVER, SPARE SWITCH HOLE
55539-20020J0

AE95..5F

DARK BLUE,TRIM8#

 1
55539-20020P0

AE95..5F

SHADOW GRAY,TRIM1#

 1
55539-2002003

AE95..5F

SHADOW GRAY,TRIM1#

 1
55539A - COVER, SPARE SWITCH HOLE
55539-20020J0

AE95..5F

DARK BLUE,TRIM8#

 1
55539-20020P0

AE95..5F

SHADOW GRAY,TRIM1#

 1
55539-2002003

AE95..5F

SHADOW GRAY,TRIM1#

 1
55547B - COVER, REMOTE CONTROL MIRROR HOLE
55547-2002014

AE95..AV1,RVS

DARK BLUE,TRIM8#

 1
55547-2002003

AE95..AV1,RVS

SHADOW GRAY,TRIM1#

 1
55547B - COVER, REMOTE CONTROL MIRROR HOLE
55547-2002014

AE95..AV1,RVS

DARK BLUE,TRIM8#

 1
55547-2002003

AE95..AV1,RVS

SHADOW GRAY,TRIM1#

 1
58808 - COVER SUB-ASSY, SHIFTING HOLE
58808-1210003

AE95..5F

SHADOW GRAY,TRIM1#

 1
58808-12101R8

AE95..5F

DARK BLUE,TRIM8#

 1
58808-12101P0

AE95..5F

SHADOW GRAY,TRIM1#

 1
58808-1210004

AE95..5F

DARK BLUE,TRIM8#

 1
58811A - BOX, CONSOLE, FRONT
58811-1243003

AE95

SHADOW GRAY,TRIM1#

 1
58811-1301003

AE95

ｱﾘ(*66),SHADOW GRAY,TRIM1#

 1
58811-1243004

AE95

DARK BLUE,TRIM8#

 1
58811-1301004

AE95

ｱﾘ(*66),BROWN,TRIM8#

 1
58901A - BOX SUB-ASSY, CONSOLE, REAR
58901-1217004

AE95..AV1,RVS

DARK BLUE,TRIM8#

 1
58901-1217003

AE95..AV1,RVS

SHADOW GRAY,TRIM1#

 1
58901A - BOX SUB-ASSY, CONSOLE, REAR
58901-1217004

AE95..AV1,RVS

DARK BLUE,TRIM8#

 1
58901-1217003

AE95..AV1,RVS

SHADOW GRAY,TRIM1#

 1
58995A - BRACKET, CONSOLE BOX MOUNTING, NO.1
58995-12071

AE95

 1
58996A - BRACKET, CONSOLE BOX MOUNTING, NO.2
58996-12060

AE95..AV1,RVS

 1
58996A - BRACKET, CONSOLE BOX MOUNTING, NO.2
58996-12060

AE95..AV1,RVS

 1
Common parts
90167-50020
90254-03002
91661-40612
93567-54512
93567-55016
96160-00500
Linked diagrams
7404
