AE95G-CWMDH (1990)

Toyota Sprinter Carib

Production Sep 1990 - Aug 1995
Engine 4AFHE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(9009- )

Click highlighted areas on diagram

diagram 04465 04945 04947
Part # Description Qty Price
04465 - PAD KIT, DISC BRAKE, FRONT
04465-20020

AE95

 1
04465-20060

AE95

 1
04465-12490

AE95

ﾏｰｸ AISIN PC513

 1
04465-12040

AE95

ﾏｰｸ AISIN PC513

 1
04945 - SHIM KIT, ANTI SQUEAL, FRONT
04945-32110

AE95

 1
04945-32060

AE95

 1
04945-32050

AE95

 1
04947 - FITTING KIT, DISC BRAKE, FRONT
04947-32080

AE95

 1
04947-32010

AE95

 1

ILLUST NO. 1 OF 2(9009- )

Click highlighted areas on diagram

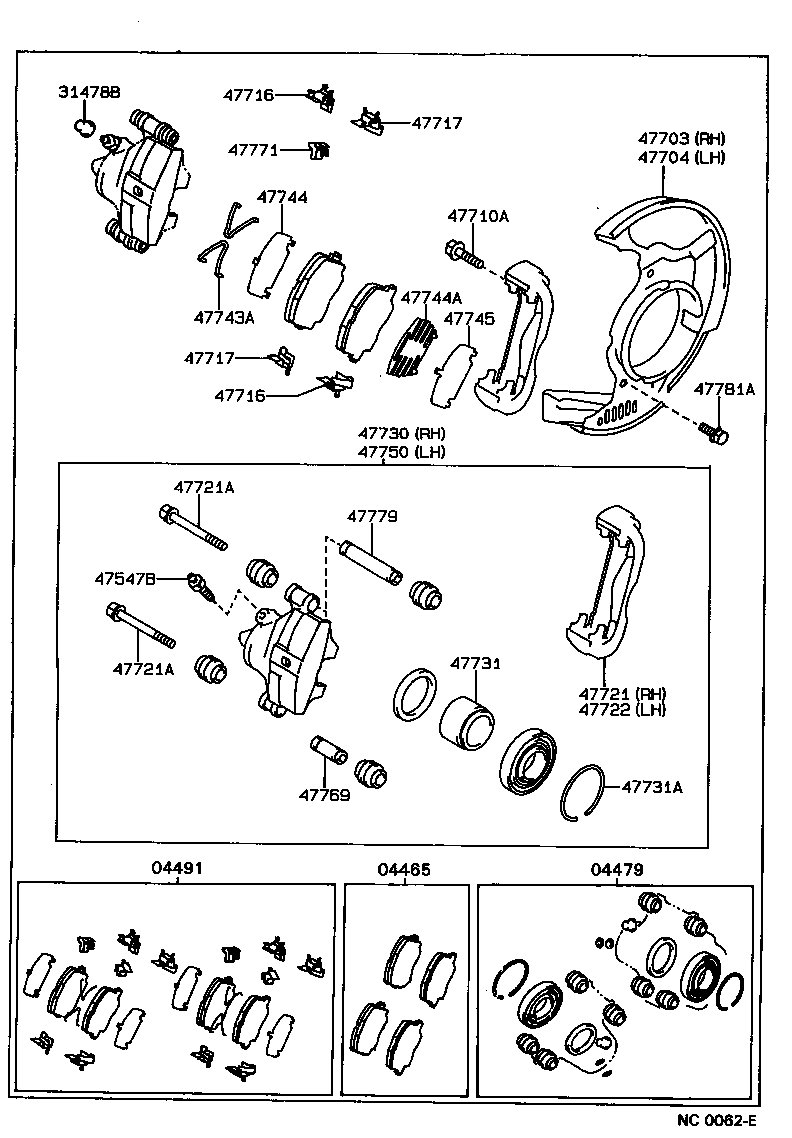

diagram 04465 04479 04491 31478B 47547B 47703 47704 47710A 47716 47716 47717 47717 47721 47721A 47721A 47722 47730 47731 47731A 47743A 47744 47744A 47745 47750 47769 47771 47779 47781A
Part # Description Qty Price
04465 - PAD KIT, DISC BRAKE, FRONT
04465-20020

AE95

 1
04465-20060

AE95

 1
04465-12490

AE95

ﾏｰｸ AISIN PC513

 1
04465-12040

AE95

ﾏｰｸ AISIN PC513

 1
04479 - CYLINDER KIT, DISC BRAKE, FRONT
04479-12091

AE95

 1
04479-12140

AE95

 1
04491 - PAD KIT, DISC BRAKE, FRONT
04491-12630

AE95

 1
04491-12341

AE95

 1
04491-20800

AE95

 1
31478B - CAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)
31478-30010

AE95

 2
47547B - PLUG, BLEEDER(FOR FRONT DISC BRAKE)
47547-20010

AE95

 2
47703 - COVER SUB-ASSY, DISC BRAKE DUST, FRONT RH
47781-12150

AE95

 1
47781-12170

AE95

 1
47781-20290

AE95

 1
47704 - COVER SUB-ASSY, DISC BRAKE DUST, FRONT LH
47782-20290

AE95

 1
47782-12150

AE95

 1
47782-12170

AE95

 1
47710A - BOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)
90119-12040

AE95

*12−1.25PX25.8−19.5

 4
47716 - PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)
47716-32031

AE95

 4
47716 - PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)
47716-32031

AE95

 4
47717 - PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE)
47717-32031

AE95

 4
47717 - PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE)
47717-32031

AE95

 4
47721 - MOUNTING, FRONT DISC BRAKE CYLINDER, RH
47721-12120

AE95

 1
47721-12130

AE95

 1
47721A - BOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)
90119-09004

AE95

*9−1.25PX91−25

 2
90119-09003

AE95

*9−1.25PX71−25

 2
47721A - BOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)
90119-09004

AE95

*9−1.25PX91−25

 2
90119-09003

AE95

*9−1.25PX71−25

 2
47722 - MOUNTING, FRONT DISC BRAKE CYLINDER, LH
47721-12120

AE95

 1
47721-12130

AE95

 1
47730 - CYLINDER ASSY, FRONT DISC BRAKE, RH
47730-12310

AE95

 1
47730-12320

AE95

 1
47730-12350

AE95

 1
47731 - PISTON, FRONT DISC BRAKE
47731-12150

AE95

 2
47731-12130

AE95

 2
47731A - RING, SET(FOR FRONT DISC BRAKE PISTON)
90522-61001

AE95

 2
90522-64003

AE95

 2
47743A - SPRING, ANTI-SQUEAL(FOR FRONT DISC BRAKE)
47743-12070

AE95

 4
47743-32010

AE95

 4
47743-32020

AE95

 4
47744 - SHIM, ANTI-SQUEAL, NO.1(FOR FRONT DISC BRAKE)
47744-16011

AE95

 2
47744-32010

AE95

 2
47744A - SHIM, ANTI-SQUEAL, NO.3(FOR FRONT DISC BRAKE)
47742-32040

AE95

 2
47745 - SHIM, ANTI-SQUEAL, NO.2(FOR FRONT DISC BRAKE)
47745-32040

AE95

 2
47750 - CYLINDER ASSY, DISC BRAKE, LH
47750-12350

AE95

 1
47750-12310

AE95

 1
47750-12320

AE95

 1
47769 - BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)
47769-12030

AE95

 2
47771 - PLATE, PAD WEAR INDICATOR, NO.1
47771-12050

AE95

 2
47771-32010

AE95

 2
47779 - BUSH, CYLINDER SLIDE, NO.2(FOR FRONT DISC BRAKE)
47779-16010

AE95

 2
47781A - BOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)
90109-06134

AE95

 6
