AE95G-CWMDH (1990)

Toyota Sprinter Carib

Production Sep 1990 - Aug 1995
Engine 4AFHE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9009- )

Click highlighted areas on diagram

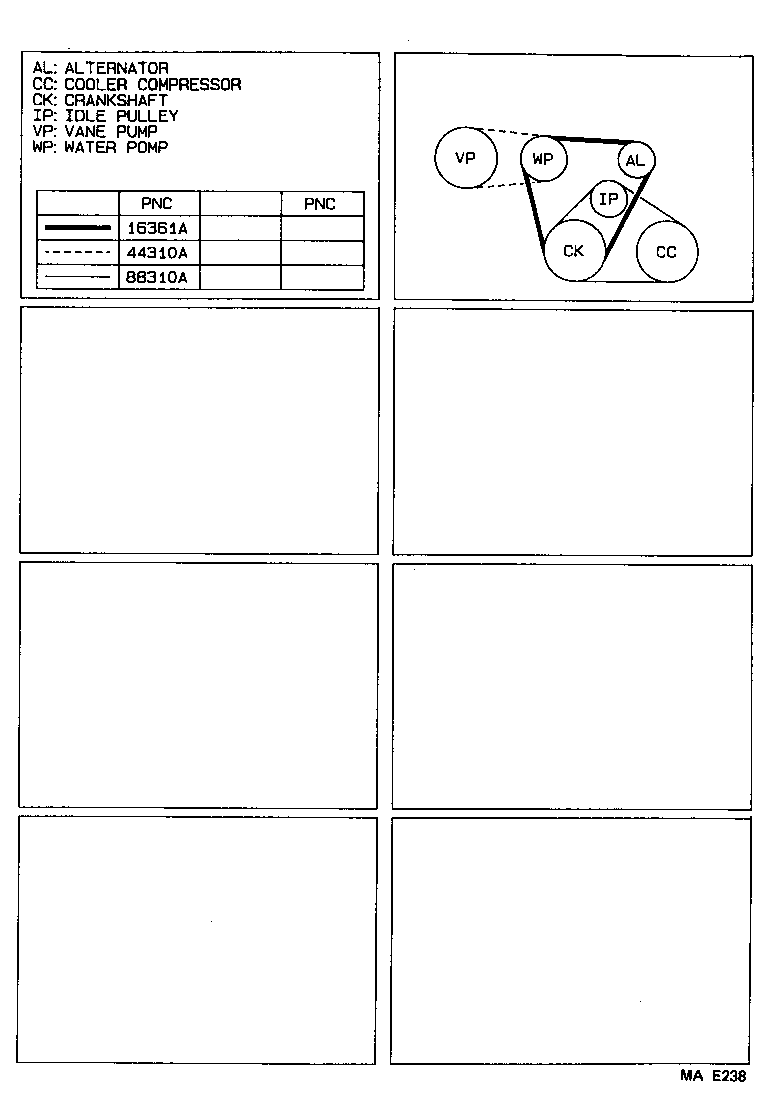

diagram 16361A 44310A 88310A
Part # Description Qty Price
16361A - BELT, V(FOR FAN & ALTERNATOR)
99365-20970

4AFHE..AE95

 1
44310A - BELT, V(FOR VANE PUMP)
99363-50630

AE95

 1
99363-80630

AE95

長さ=630

 1
88310A - BELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1
90916-02364

AE95

 1
90916-02200

AE95

 1
99364-20850

AE95

長さ=850

 1
