AE95G-CWMDH (1990)

Toyota Sprinter Carib

Production Sep 1990 - Aug 1995
Engine 4AFHE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9009- )

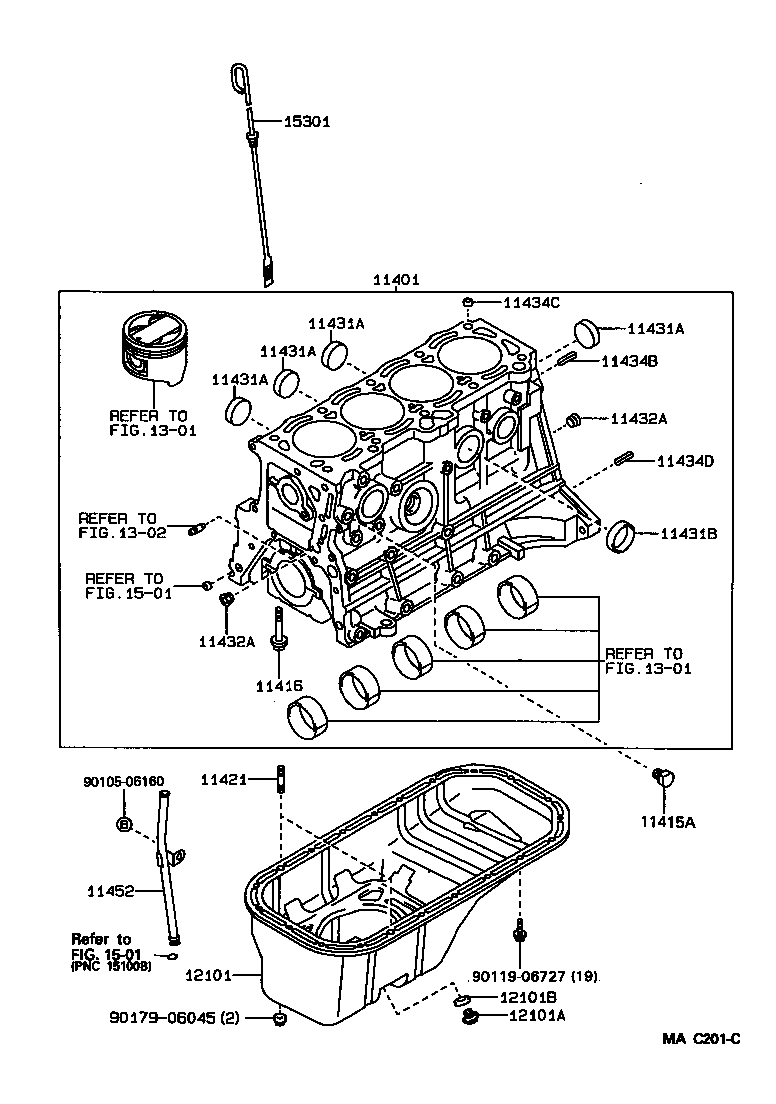

Click highlighted areas on diagram

diagram 11401 11415A 11416 11421 11431A 11431A 11431A 11431A 11431B 11432A 11432A 11434B 11434C 11434D 11452 12101 12101A 12101B 1301 1301 1302 1501 1501 15301 9010506160 9011906727 9017906045
Part # Description Qty Price
11401 - BLOCK SUB-ASSY, CYLINDER
11401-19518

4AFHE..AE95

 1
11401-19517

4AFHE..AE95

 1
11415A - PLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)
90345-52003

4AFHE..AE95

 1
11416 - BOLT(FOR CRANKSHAFT BEARING CAP SET)
90105-10007

4AFHE..AE95

 10
11421 - BOLT, STUD(FOR OIL PAN)
90116-06022

4AFHE..AE95

 2
11431A - PLUG, TIGHT, NO.1(FOR CYLINDER BLOCK)
96411-43500

4AFHE..AE95

 6
11431A - PLUG, TIGHT, NO.1(FOR CYLINDER BLOCK)
96411-43500

4AFHE..AE95

 6
11431A - PLUG, TIGHT, NO.1(FOR CYLINDER BLOCK)
96411-43500

4AFHE..AE95

 6
11431A - PLUG, TIGHT, NO.1(FOR CYLINDER BLOCK)
96411-43500

4AFHE..AE95

 6
11431B - PLUG, TIGHT, NO.2(FOR CYLINDER BLOCK)
96411-44000

4AFHE..AE95

 1
11432A - PLUG, W/HEAD TAPER SCREW, NO.1
90344-53008

4AFHE..AE95

 2
11432A - PLUG, W/HEAD TAPER SCREW, NO.1
90344-53008

4AFHE..AE95

 2
11434B - PIN, STRAIGHT(FOR CLUTCH HOUSING SET)
90250-10113

4AFHE..AE95

長さ=22,外径=10

 2
11434C - PIN, STRAIGHT (FOR CYLINDER HEAD SET)
90253-13017

4AFHE..AE95

長さ=12,外径=13

 2
11434D - PIN, STRAIGHT(FOR ENGINE REAR OIL SEAL)
90250-06003

4AFHE..AE95

長さ=14,外径=6

 2
11452 - GUIDE, OIL LEVEL GAGE
11452-15020

4AFHE..AE95

 1
12101 - PAN SUB-ASSY, OIL
12101-15100

4AFHE..AE95

 1
12101A - PLUG(FOR OIL PAN DRAIN)
90341-12026

4AFHE..AE95

 1
12101B - GASKET(FOR OIL PAN DRAIN PLUG)
90430-12031

4AFHE..AE95

 1
90430-12027

4AFHE..AE95

 1
15301 - GAGE SUB-ASSY, OIL LEVEL
15301-15041

4AFHE..AE95

 1
Common parts
90105-06160
90119-06727
90179-06045
Linked diagrams
1301
1302
1501
