AE115G-CWPNK (1995)

Toyota Sprinter Carib

Production Aug 1995 - Apr 1998
Engine 7AFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9508- )AE114,115

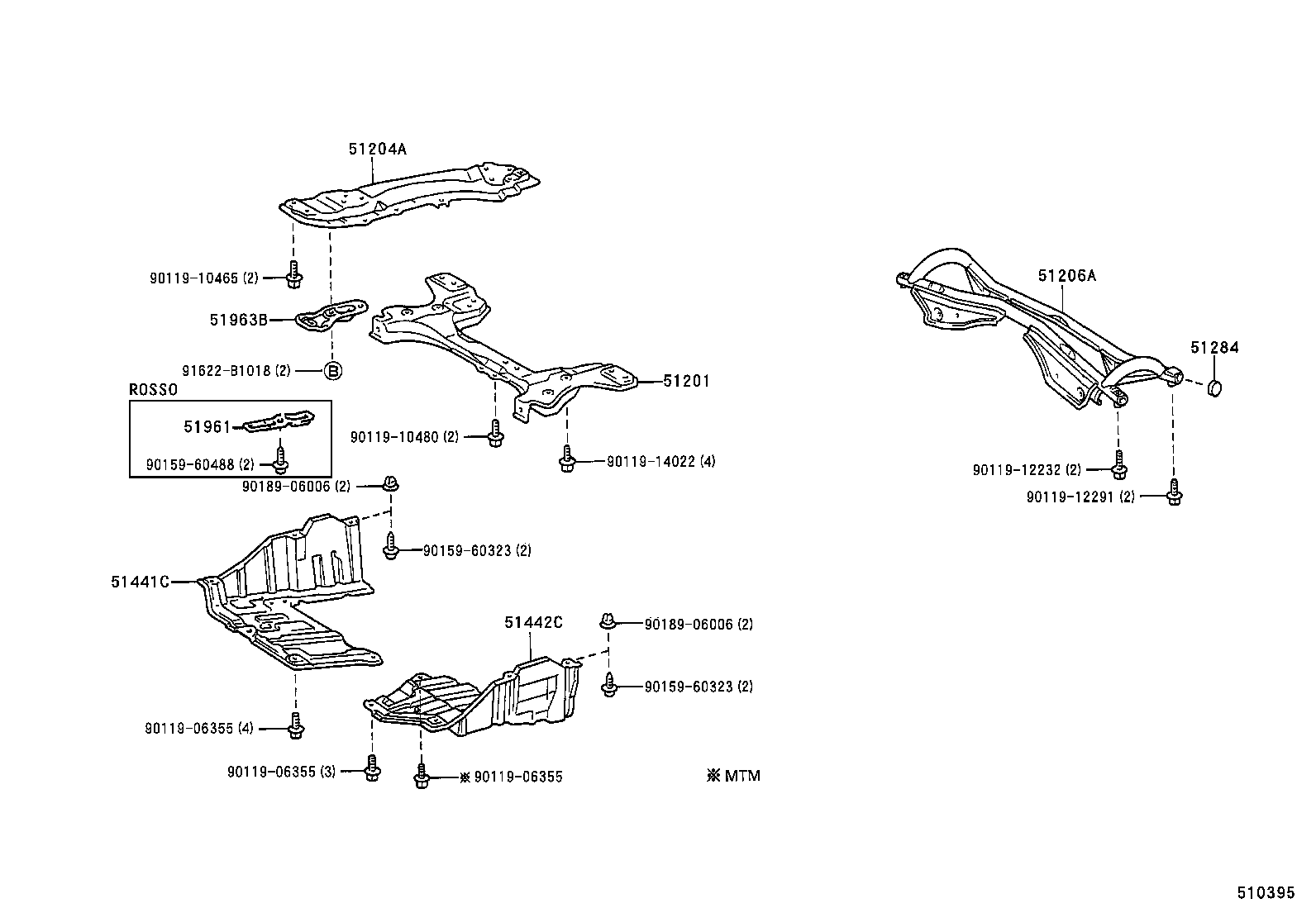

Click highlighted areas on diagram

diagram 51201 51204A 51206A 51284 51441C 51442C 51961 51963B 9011906355 9011906355 9011906355 9011910465 9011910480 9011912232 9011912291 9011914022 9015960323 9015960323 9015960488 9018906006 9018906006 91622B1018
Part # Description Qty Price
51201 - CROSSMEMBER SUB-ASSY, FRONT SUSPENSION
51201-12390

AE114,115

 1
51204A - MEMBER SUB-ASSY, ENGINE MOUNTING, CENTER
51204-12110

AE114,115

 1
51206A - MEMBER SUB-ASSY, REAR SUSPENSION
51206-12070

AE114,115

 1
51284 - COVER, REAR SUSPENSION MEMBER HOLE
51284-12020

AE114,115

 2
51441C - COVER, ENGINE UNDER, RH
51441-12150

AE11#

 1
51441-12150

AE11#

 1
51442C - COVER, ENGINE UNDER, LH
51442-12110

AE11#..4FC

 1
51963B - HOOK, TRANSPORT, FRONT RH
51963-12210

AE11#

 1
Common parts
90119-06355
90119-10465
90119-10480
90119-12232
90119-12291
90119-14022
90159-60323
90159-60488
90189-06006
91622-B1018
