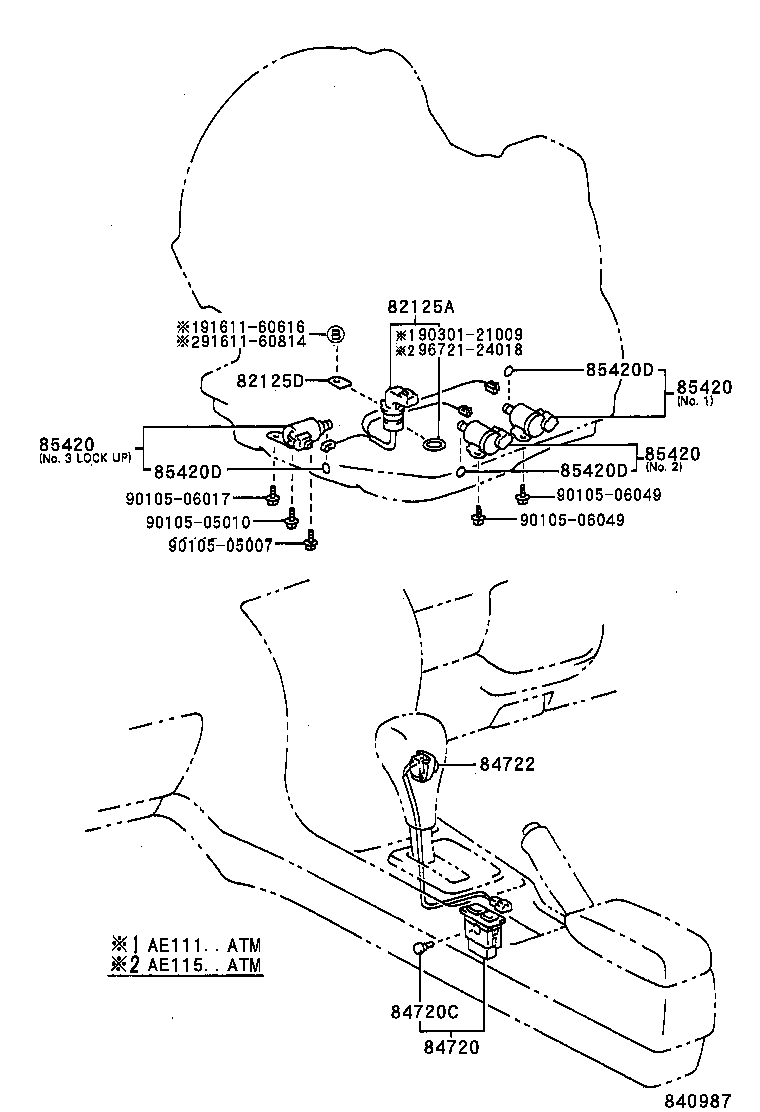

Toyota Sprinter carib AE115 OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION

Part #	Description	Period	Qty
82125A - WIRE, TRANSMISSION
82125-20220	AE115..4FC	08/1995 - 04/1997	1
82125-20220	AE115..4FC	04/1997 - 07/2002	1
82125D - PLATE, TRANSMISSION WIRE LOCK
33485-30020	AE114,115..4FC	08/1995 - 04/1997	1
33485-30020	AE114,115..4FC	04/1997 - 07/2002	1
84720 - SWITCH ASSY, PATTERN SELECT
84720-12070	AE111,115..4FC	08/1995 - 04/1997	1
84720-12070	AE111,115..4FC	04/1997 - 07/2002	1
84720C - BULB(FOR PATTERN SELECT SWITCH)
84999-10420	AE111,115..4FC	04/1997 - 07/2002	1
84999-10420	AE111,115..4FC	08/1995 - 04/1997	1
84722 - SWITCH, TRANSMISSION CONTROL
84722-12060B0	AE11#..4FC SHADOW GRAY,TRIM1#	08/1995 - 05/1996	1
84722-12060B0	AE11#..(BZT,STOUR,VTOUR,ZTOUR)..4FC SHADOW GRAY,TRIM1#	04/1997 - 07/2002	1
84722-12060B0	AE111,115..ZTOUR..4FC SHADOW GRAY,TRIM16,17	05/1996 - 04/1997	1
85420 - SOLENOID ASSY, TRANSMISSION
85420-30200	AE115..4FC NO.1 & NO.2	08/1995 - 04/1997	2
85420-20140	AE115..4FC NO.3(LOCK UP)	08/1995 - 04/1997	1
85420-21070	AE115..4FC NO.1 & NO.2	09/1998 - 10/1998	2
85420-30200	AE115..4FC NO.1 & NO.2	04/1997 - 09/1998	2
85420-20140	AE115..4FC NO.3(LOCK UP)	04/1997 - 09/1998	1
85420-21070	AE115..4FC NO.3(LOCK UP),DENSO	09/1998 - 07/2002	1
85420-21090	AE115..4FC NO.1,2,DENSO	09/1998 - 07/2002	2
85420-21080	AE115..4FC NO.3(LOCK UP),AISIN	09/1998 - 10/1998	1
85420-21100	AE115..4FC NO.1,2,AISIN	09/1998 - 07/2002	2
85420 - SOLENOID ASSY, TRANSMISSION
85420-30200	AE115..4FC NO.1 & NO.2	08/1995 - 04/1997	2
85420-20140	AE115..4FC NO.3(LOCK UP)	08/1995 - 04/1997	1
85420-21070	AE115..4FC NO.1 & NO.2	09/1998 - 10/1998	2
85420-30200	AE115..4FC NO.1 & NO.2	04/1997 - 09/1998	2
85420-20140	AE115..4FC NO.3(LOCK UP)	04/1997 - 09/1998	1
85420-21070	AE115..4FC NO.3(LOCK UP),DENSO	09/1998 - 07/2002	1
85420-21090	AE115..4FC NO.1,2,DENSO	09/1998 - 07/2002	2
85420-21080	AE115..4FC NO.3(LOCK UP),AISIN	09/1998 - 10/1998	1
85420-21100	AE115..4FC NO.1,2,AISIN	09/1998 - 07/2002	2
85420 - SOLENOID ASSY, TRANSMISSION
85420-30200	AE115..4FC NO.1 & NO.2	08/1995 - 04/1997	2
85420-20140	AE115..4FC NO.3(LOCK UP)	08/1995 - 04/1997	1
85420-21070	AE115..4FC NO.1 & NO.2	09/1998 - 10/1998	2
85420-30200	AE115..4FC NO.1 & NO.2	04/1997 - 09/1998	2
85420-20140	AE115..4FC NO.3(LOCK UP)	04/1997 - 09/1998	1
85420-21070	AE115..4FC NO.3(LOCK UP),DENSO	09/1998 - 07/2002	1
85420-21090	AE115..4FC NO.1,2,DENSO	09/1998 - 07/2002	2
85420-21080	AE115..4FC NO.3(LOCK UP),AISIN	09/1998 - 10/1998	1
85420-21100	AE115..4FC NO.1,2,AISIN	09/1998 - 07/2002	2
85420D - RING, O (FOR TRANSMISSION SOLENOID)
90301-06004	AE111,115..4FC	04/1997 - 07/2002	3
90301-06004	AE111,115..4FC	08/1995 - 04/1997	3
85420D - RING, O (FOR TRANSMISSION SOLENOID)
90301-06004	AE111,115..4FC	04/1997 - 07/2002	3
90301-06004	AE111,115..4FC	08/1995 - 04/1997	3
85420D - RING, O (FOR TRANSMISSION SOLENOID)
90301-06004	AE111,115..4FC	04/1997 - 07/2002	3
90301-06004	AE111,115..4FC	08/1995 - 04/1997	3
Common parts
90105-05007
90105-05010
90105-06017
90105-06049
90301-21009
91611-60616
91611-60814
96721-24018

AE115G-CWPGK (1995)

(9508- )AE111,115..4FC
