AE115G-CWPGK (1995)

Toyota Sprinter Carib

Production Aug 1995 - Jul 2002
Engine 7AFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9508- )4AFE,7AFE

Click highlighted areas on diagram

diagram 1701 2182125180 22210 22215 22270 22271 22271 23250 23250B 23250C 23280 23280E 23291 23300P 23300T 23300T 23300U 23802C 23807 23807B 23807J 23807J 23807V 8404 9007911001 9007911004 9011906781 9011908932 9017908153 9151160614 9162160612 91621A0850
Part # Description Qty Price
22210 - BODY ASSY, THROTTLE
22210-16850

7AFE..AE115

 1
22210-16850

7AFE..AE115

 1
22215 - GASKET, THROTTLE BODY COVER
22215-74400

4AFE,7AFE..AE11#

 1
22215-74400

4AFE,7AFE..AE11#

 1
22270 - VALVE ASSY, IDLE SPEED CONTROL(FOR THLOTTLE BODY)
22270-16060

7AFE..AE115

 1
22270-16060

7AFE..AE115

 1
22271 - GASKET, THROTTLE BODY
22271-15020

4AFE,7AFE..AE11#

 2
22271-15020

4AFE,7AFE..AE11#

 2
22271 - GASKET, THROTTLE BODY
22271-15020

4AFE,7AFE..AE11#

 2
22271-15020

4AFE,7AFE..AE11#

 2
23250 - INJECTOR ASSY, FUEL
23209-16160

7AFE..AE115

 4
23209-16160

7AFE..AE115

 4
23250B - RING, O(FOR FUEL INJECTOR)
90301-07024

4AFE,7AFE..AE11#

 4
90301-07001

4AFE,7AFE..AE11#

 4
90301-07001

4AFE,7AFE..AE11#

 4
23250C - GROMMET(FOR FUEL INJECTOR)
90480-13005

4AFE,7AFE..AE11#

 4
90480-13005

4AFE,7AFE..AE11#

 4
23280 - REGULATOR ASSY, FUEL PRESSURE
23280-15030

4AFE,7AFE..AE11#

 1
23280-15030

4AFE,7AFE..AE11#

 1
23280E - RING, O(FOR FUEL PRESSURE REGULATOR)
90301-07001

4AFE,7AFE..AE11#

 1
90301-07001

4AFE,7AFE..AE11#

 1
90301-07024

4AFE,7AFE..AE11#

 1
23291 - INSULATOR, INJECTOR VIBRATION
23291-41010

4AFE,7AFE..AE11#

 4
23291-41010

4AFE,7AFE..AE11#

 4
23300P - FILTER, FUEL(FOR EFI)
23300-19515

4A#,7AFE..AE11#

 1
23300-19515

4A#,7AFE..AE11#

 1
23300T - GASKET(FOR FUEL FILTER)
90430-12026

4A#,7AFE..AE11#

 2
90430-12026

4A#,7AFE..AE11#

 2
23300T - GASKET(FOR FUEL FILTER)
90430-12026

4A#,7AFE..AE11#

 2
90430-12026

4A#,7AFE..AE11#

 2
23300U - BOLT, UNION(FOR FUEL FILTER)
90401-12097

4AFE,7AFE..AE11#

 1
90401-12097

4AFE,7AFE..AE11#

 1
23802C - BOLT, UNION(FOR FUEL PIPE NO.2)
90401-12097

4AFE,7AFE..AE11#

 1
90401-12097

4AFE,7AFE..AE11#

 1
23807 - PIPE SUB-ASSY, FUEL DELIVERY
23814-15040

4AFE,7AFE..AE11#

 1
23814-15040

4AFE,7AFE..AE11#

 1
23807B - HOSE, FUEL DELIVERY PIPE
23271-15260

4AFE,7AFE..AE11#

 1
23271-15260

4AFE,7AFE..AE11#

 1
23807J - GASKET, PIPE FUEL DELIVARY INLET
90430-12026

4AFE,7AFE..AE11#

 2
90430-12026

4AFE,7AFE..AE11#

 2
23807J - GASKET, PIPE FUEL DELIVARY INLET
90430-12026

4AFE,7AFE..AE11#

 2
90430-12026

4AFE,7AFE..AE11#

 2
23807V - SPACER, NO.1(FOR DELIVERY PIPE)
90561-08020

4AFE,7AFE..AE11#

 2
90561-08020

4AFE,7AFE..AE11#

 2
Common parts
21821-25180
90079-11001
90079-11004
90119-06781
90119-08932
90179-08153
91511-60614
91621-60612
91621-A0850
Linked diagrams
1701
8404

(9508- )4AFE,7AFE..AE114,115

Click highlighted areas on diagram

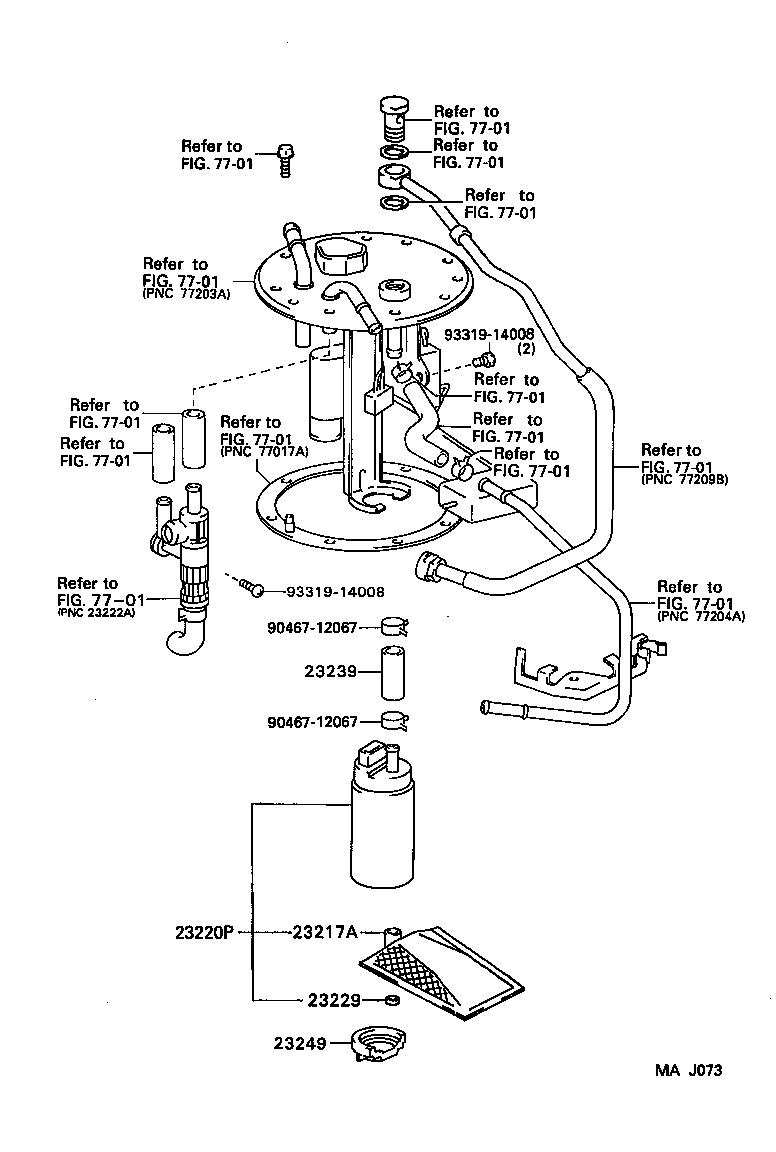

diagram 23217A 23220P 23229 23239 23249 7701 7701 7701 7701 7701 7701 7701 7701 7701 7701 7701 7701 7701 7701 9046712067 9046712067 9331914008 9331914008
Part # Description Qty Price
23217A - FILTER, FUEL PUMP
23217-16451

4AFE,7AFE..AE114,115

 1
23217-16451

4AFE,7AFE..AE114,115

 1
23220P - PUMP ASSY, FUEL
23220-74020

4A#,7AFE..AE11#

 1
23220-74021

4AFE..AE114;4AGE,7AFE..AE111,115

 1
23229 - CLIP(FOR FUEL PUMP FILTER)
23229-16010

4A#,7AFE..AE11#

 1
23229-16010

4A#,7AFE..AE11#

 1
23239 - HOSE
23239-11010

4A#,7AFE..AE11#

 1
23239-11010

4A#,7AFE..AE11#

 1
23249 - RUBBER, CUSHION(FOR FUEL PUMP)
23249-74610

4A#,7AFE..AE11#

 1
23249-74610

4A#,7AFE..AE11#

 1
Common parts
90467-12067
93319-14008
Linked diagrams
7701
