AE115G-CWMGK (1995)
Toyota Sprinter Carib
(9508-9704)

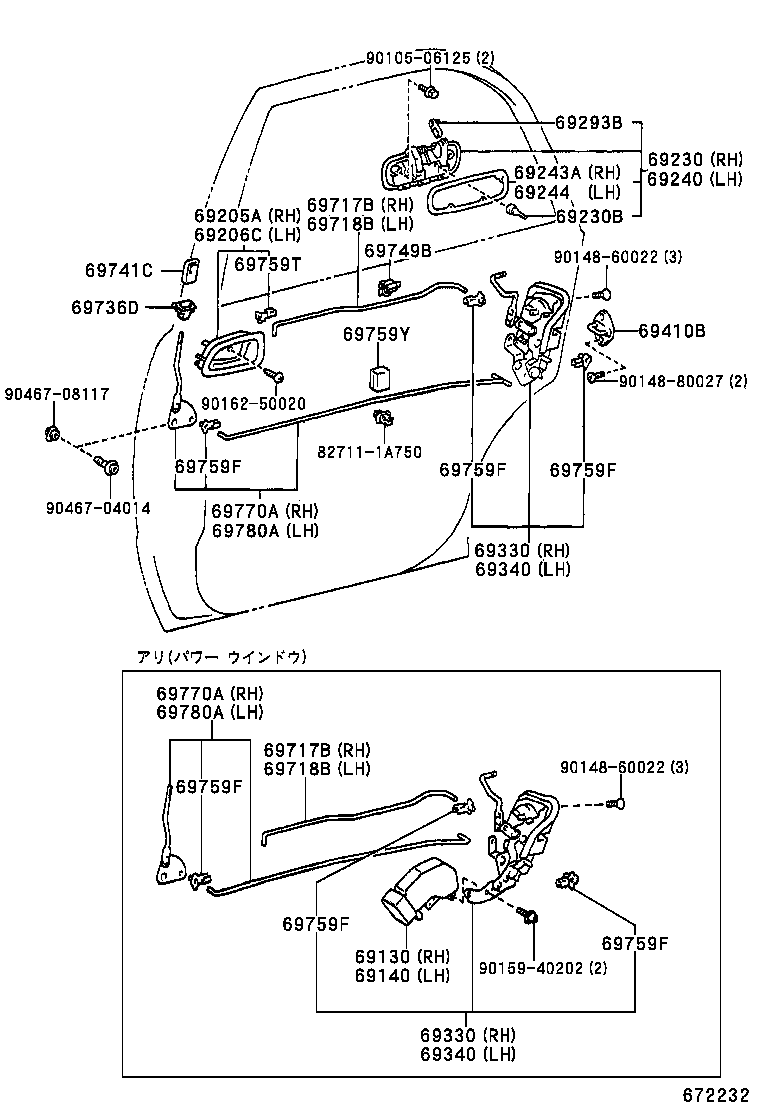

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 69050A - LOCK ASSY, REAR DOOR W/MOTOR, RH | ||||
| 69305-12140 |
AE11# |
1 | ||
| 69060A - LOCK ASSY, REAR DOOR W/MOTOR, LH | ||||
| 69306-12140 |
AE11# |
1 | ||
| 69205A - HANDLE SUB-ASSY, REAR DOOR INSIDE, RH | ||||
| 69207-12030B0 |
AE111,115..ZTOUR SHADOW GRAY,TRIM16,17 |
1 | ||
| 69207-12030B0 |
AE11#..BZT,STOUR,VTOUR,ZTOUR SHADOW GRAY,TRIM1# |
1 | ||
| 69207-12030B0 |
AE11# SHADOW GRAY,TRIM1# |
1 | ||
| 69206C - HANDLE SUB-ASSY, REAR DOOR INSIDE, LH | ||||
| 69208-12030B0 |
AE11#..BZT,STOUR,VTOUR,ZTOUR SHADOW GRAY,TRIM1# |
1 | ||
| 69208-12030B0 |
AE111,115..ZTOUR SHADOW GRAY,TRIM16,17 |
1 | ||
| 69208-12030B0 |
AE11# SHADOW GRAY,TRIM1# |
1 | ||
| 69230 - HANDLE ASSY, REAR DOOR OUTSIDE, RH | ||||
| 69230-12170 |
AE11# |
1 | ||
| 69230-12180C0 |
AE111,115..ZTOUR BLACK METALLIC,2AN |
1 | ||
| 69230-12180B2 |
AE111,115..BZT,ZTOUR SILVER ME,199 |
1 | ||
| 69230-12180G0 |
AE111,115..ZTOUR DK GREEN MICA,6M1 |
1 | ||
| 69230-12180D0 |
AE111,115..ZTOUR RED MM,2AF |
1 | ||
| 69230-12230D0 |
AE111,115..BZT,ZTOUR RED MM,3K4 |
1 | ||
| 69230-12230C0 |
AE111,115..ZTOUR BLACK ME,2AN |
1 | ||
| 69230-12180G0 |
AE111,115..ZTOUR Zﾂ-ﾘﾝｸﾞﾘﾐﾃﾂﾄﾞ*(S),*(T),DK GREEN MICA,24V |
1 | ||
| 69230-12230B2 |
AE111,115..ZTOUR GRAY ME.,2DH |
1 | ||
| 69230-12180G2 |
AE111,115..ZTOUR BLUISH GREEN M,2AM |
1 | ||
| 69230-12180A0 |
AE111,115..ZTOUR SUPER WHITE 2,040 |
1 | ||
| 69230-12230G0 |
AE111,115..ZTOUR DK.GREEN M.M.,2DE |
1 | ||
| 69230-12230G6 |
AE111,115..BZT,ZTOUR LT.GREEN ME.OP.,6P7 |
1 | ||
| 69230-12230A0 |
AE115;AE111,114..BZT,STOUR ﾓﾃﾞﾘｽﾀ-C99 ｼﾖｳ,SUPER WHITE 2,040 |
1 | ||
| 69230-12180J1 |
AE111,115..BZT,ZTOUR DARK BLUE ME.,2AL |
1 | ||
| 69230-12230C0 |
AE115;AE111,114..BZT,STOUR ﾓﾃﾞﾘｽﾀ-C99 ｼﾖｳ,BLACK ME.,205 |
1 | ||
| 69230-12230B3 |
AE111,115..BZT,ZTOUR SILVER ME,199 |
1 | ||
| 69230-12230B3 |
AE115;AE111,114..BZT,STOUR ﾓﾃﾞﾘｽﾀ-C99 ｼﾖｳ,SILVER ME.,199 |
1 | ||
| 69230-12230C0 |
AE111,115..ZTOUR BLACK ME,2AN ,205 |
1 | ||
| 69230-12230J0 |
AE111,115..ZTOUR DK.BLUE MC.,2DF |
1 | ||
| 69230-12230J2 |
AE111,115..ZTOUR BLUE M.M.,8L5 |
1 | ||
| 69230-12230A0 |
AE111,115..BZT,ZTOUR SUPER WHITE 2,040 |
1 | ||
| 69230B - CUSHION(FOR REAR DOOR OUTSIDE HANDLE) | ||||
| 90541-04018 |
AE11# |
4 | ||
| 90541-04018 |
AE11# |
4 | ||
| 69240 - HANDLE ASSY, REAR DOOR OUTSIDE, LH | ||||
| 69240-12180B2 |
AE111,115..BZT,ZTOUR SILVER ME,199 |
1 | ||
| 69240-12180C0 |
AE111,115..ZTOUR BLACK METALLIC,2AN |
1 | ||
| 69240-12180G2 |
AE111,115..ZTOUR BLUISH GREEN M,2AM |
1 | ||
| 69240-12180G0 |
AE111,115..ZTOUR Zﾂ-ﾘﾝｸﾞﾘﾐﾃﾂﾄﾞ*(S),*(T),DK GREEN MICA,24V |
1 | ||
| 69240-12180G0 |
AE111,115..ZTOUR DK GREEN MICA,6M1 |
1 | ||
| 69240-12180A0 |
AE111,115..ZTOUR SUPER WHITE 2,040 |
1 | ||
| 69240-12180D0 |
AE111,115..ZTOUR RED MM,2AF |
1 | ||
| 69240-12180J1 |
AE111,115..BZT,ZTOUR DARK BLUE ME.,2AL |
1 | ||
| 69240-12230G0 |
AE111,115..ZTOUR DK.GREEN M.M.,2DE |
1 | ||
| 69240-12230B2 |
AE111,115..ZTOUR GRAY ME.,2DH |
1 | ||
| 69240-12230C0 |
AE111,115..ZTOUR BLACK ME,2AN |
1 | ||
| 69240-12170 |
AE11# |
1 | ||
| 69240-12230B3 |
AE115;AE111,114..BZT,STOUR ﾓﾃﾞﾘｽﾀ-C99 ｼﾖｳ,SILVER ME.,199 |
1 | ||
| 69240-12230C0 |
AE115;AE111,114..BZT,STOUR ﾓﾃﾞﾘｽﾀ-C99 ｼﾖｳ,BLACK ME.,205 |
1 | ||
| 69240-12230A0 |
AE115;AE111,114..BZT,STOUR ﾓﾃﾞﾘｽﾀ-C99 ｼﾖｳ,SUPER WHITE 2,040 |
1 | ||
| 69240-12230B3 |
AE111,115..BZT,ZTOUR SILVER ME,199 |
1 | ||
| 69240-12180J1 |
AE111,115..(BZT,ZTOUR)..(4FC,5F) DARK BLUE ME.,2AL |
1 | ||
| 69240-12230G6 |
AE111,115..BZT,ZTOUR LT.GREEN ME.OP.,6P7 |
1 | ||
| 69240-12230D0 |
AE111,115..BZT,ZTOUR RED MM,3K4 |
1 | ||
| 69240-12230A0 |
AE111,115..BZT,ZTOUR SUPER WHITE 2,040 |
1 | ||
| 69240-12230C0 |
AE111,115..ZTOUR BLACK ME,2AN ,205 |
1 | ||
| 69240-12230J0 |
AE111,115..ZTOUR DK.BLUE MC.,2DF |
1 | ||
| 69240-12230J2 |
AE111,115..ZTOUR BLUE M.M.,8L5 |
1 | ||
| 69243A - PAD, REAR DOOR OUTSIDE HANDLE, RH | ||||
| 69243-12020 |
AE11# |
1 | ||
| 69243-12020 |
AE11# |
1 | ||
| 69244 - PAD, REAR DOOR OUTSIDE HANDLE, LH | ||||
| 69244-12020 |
AE11# |
1 | ||
| 69244-12020 |
AE11# |
1 | ||
| 69293B - SNAP, REAR DOOR OUTSIDE HANDLE | ||||
| 69293-12030 |
AE11# 右側 |
1 | ||
| 69293-12040 |
AE11# 左側 |
1 | ||
| 69293-12030 |
AE11# 右側 |
1 | ||
| 69293-12040 |
AE11# 左側 |
1 | ||
| 69330 - LOCK ASSY, REAR DOOR, RH | ||||
| 69305-12140 |
AE111,115..(BZT,VTOUR,ZTOUR)..(4FC,5F) |
1 | ||
| 69305-12200 |
AE11#..BZT,STOUR,VTOUR,ZTOUR ｱﾘ(ﾊﾟﾜ-ｳｲﾝﾄﾞｳ) |
1 | ||
| 69340 - LOCK ASSY, REAR DOOR, LH | ||||
| 69306-12180 |
AE11#..BZT,STOUR,VTOUR,ZTOUR ｱﾘ(ﾊﾟﾜ-ｳｲﾝﾄﾞｳ) |
1 | ||
| 69410B - PLATE ASSY, REAR DOOR LOCK STRIKER | ||||
| 69410-87001 |
AE11# |
2 | ||
| 69410-87001 |
AE11# |
2 | ||
| 69717B - LINK, REAR DOOR LOCK REMOTE CONTROL, RH | ||||
| 69713-12090 |
AE11# |
1 | ||
| 69713-12090 |
AE11# |
1 | ||
| 69717B - LINK, REAR DOOR LOCK REMOTE CONTROL, RH | ||||
| 69713-12090 |
AE11# |
1 | ||
| 69713-12090 |
AE11# |
1 | ||
| 69718B - LINK, REAR DOOR LOCK REMOTE CONTROL, LH | ||||
| 69714-12100 |
AE11# |
1 | ||
| 69714-12100 |
AE11# |
1 | ||
| 69718B - LINK, REAR DOOR LOCK REMOTE CONTROL, LH | ||||
| 69714-12100 |
AE11# |
1 | ||
| 69714-12100 |
AE11# |
1 | ||
| 69736D - GUIDE, REAR DOOR LOCKING LINK | ||||
| 69736-12130 |
AE11# |
2 | ||
| 69741C - KNOB, REAR DOOR LOCK CONTROL | ||||
| 69741-12040B0 |
AE111,115..ZTOUR SHADOW GRAY,TRIM16,17 |
2 | ||
| 69741-12040B0 |
AE11# SHADOW GRAY,TRIM1# |
2 | ||
| 69741-12040B0 |
AE11#..BZT,STOUR,VTOUR,ZTOUR SHADOW GRAY,TRIM1# |
2 | ||
| 69749B - CLAMP, REAR DOOR LOCK LINK | ||||
| 69749-12070 |
AE11# |
2 | ||
| 69749-12070 |
AE11# |
2 | ||
| 69759F - SNAP, REAR DOOR LOCK CONTROL LINK | ||||
| 69759-20020 |
AE11# ﾅﾁｭﾗﾙ |
1 | ||
| 69759-20020 |
AE11# ﾅﾁｭﾗﾙ |
1 | ||
| 69759-20050 |
AE11# ﾌﾞﾗｳﾝ |
2 | ||
| 69759-20050 |
AE11# ﾌﾞﾗｳﾝ |
2 | ||
| 69759-20030 |
AE11# ﾌﾞﾙｰ |
1 | ||
| 69759-20030 |
AE11# ﾌﾞﾙｰ |
1 | ||
| 69759-20040 |
AE11# ｲｴﾛｰ |
2 | ||
| 69759-20040 |
AE11# ｲｴﾛｰ |
2 | ||
| 69759F - SNAP, REAR DOOR LOCK CONTROL LINK | ||||
| 69759-20020 |
AE11# ﾅﾁｭﾗﾙ |
1 | ||
| 69759-20020 |
AE11# ﾅﾁｭﾗﾙ |
1 | ||
| 69759-20050 |
AE11# ﾌﾞﾗｳﾝ |
2 | ||
| 69759-20050 |
AE11# ﾌﾞﾗｳﾝ |
2 | ||
| 69759-20030 |
AE11# ﾌﾞﾙｰ |
1 | ||
| 69759-20030 |
AE11# ﾌﾞﾙｰ |
1 | ||
| 69759-20040 |
AE11# ｲｴﾛｰ |
2 | ||
| 69759-20040 |
AE11# ｲｴﾛｰ |
2 | ||
| 69759F - SNAP, REAR DOOR LOCK CONTROL LINK | ||||
| 69759-20020 |
AE11# ﾅﾁｭﾗﾙ |
1 | ||
| 69759-20020 |
AE11# ﾅﾁｭﾗﾙ |
1 | ||
| 69759-20050 |
AE11# ﾌﾞﾗｳﾝ |
2 | ||
| 69759-20050 |
AE11# ﾌﾞﾗｳﾝ |
2 | ||
| 69759-20030 |
AE11# ﾌﾞﾙｰ |
1 | ||
| 69759-20030 |
AE11# ﾌﾞﾙｰ |
1 | ||
| 69759-20040 |
AE11# ｲｴﾛｰ |
2 | ||
| 69759-20040 |
AE11# ｲｴﾛｰ |
2 | ||
| 69759F - SNAP, REAR DOOR LOCK CONTROL LINK | ||||
| 69759-20020 |
AE11# ﾅﾁｭﾗﾙ |
1 | ||
| 69759-20020 |
AE11# ﾅﾁｭﾗﾙ |
1 | ||
| 69759-20050 |
AE11# ﾌﾞﾗｳﾝ |
2 | ||
| 69759-20050 |
AE11# ﾌﾞﾗｳﾝ |
2 | ||
| 69759-20030 |
AE11# ﾌﾞﾙｰ |
1 | ||
| 69759-20030 |
AE11# ﾌﾞﾙｰ |
1 | ||
| 69759-20040 |
AE11# ｲｴﾛｰ |
2 | ||
| 69759-20040 |
AE11# ｲｴﾛｰ |
2 | ||
| 69759F - SNAP, REAR DOOR LOCK CONTROL LINK | ||||
| 69759-20020 |
AE11# ﾅﾁｭﾗﾙ |
1 | ||
| 69759-20020 |
AE11# ﾅﾁｭﾗﾙ |
1 | ||
| 69759-20050 |
AE11# ﾌﾞﾗｳﾝ |
2 | ||
| 69759-20050 |
AE11# ﾌﾞﾗｳﾝ |
2 | ||
| 69759-20030 |
AE11# ﾌﾞﾙｰ |
1 | ||
| 69759-20030 |
AE11# ﾌﾞﾙｰ |
1 | ||
| 69759-20040 |
AE11# ｲｴﾛｰ |
2 | ||
| 69759-20040 |
AE11# ｲｴﾛｰ |
2 | ||
| 69759F - SNAP, REAR DOOR LOCK CONTROL LINK | ||||
| 69759-20020 |
AE11# ﾅﾁｭﾗﾙ |
1 | ||
| 69759-20020 |
AE11# ﾅﾁｭﾗﾙ |
1 | ||
| 69759-20050 |
AE11# ﾌﾞﾗｳﾝ |
2 | ||
| 69759-20050 |
AE11# ﾌﾞﾗｳﾝ |
2 | ||
| 69759-20030 |
AE11# ﾌﾞﾙｰ |
1 | ||
| 69759-20030 |
AE11# ﾌﾞﾙｰ |
1 | ||
| 69759-20040 |
AE11# ｲｴﾛｰ |
2 | ||
| 69759-20040 |
AE11# ｲｴﾛｰ |
2 | ||
| 69759T - SNAP, REAR DOOR INSIDE HANDLE | ||||
| 69759-22050 |
AE11# 右側 |
1 | ||
| 69759-22040 |
AE11# 左側 |
1 | ||
| 69759-22040 |
AE11# 左側 |
1 | ||
| 69759-22050 |
AE11# 右側 |
1 | ||
| 69759Y - SILENCER, REAR DOOR LOCK LINK | ||||
| 69759-20390 |
AE11# |
2 | ||
| 69759-20390 |
AE11# |
2 | ||
| 69770A - LINK ASSY, REAR DOOR INSIDE LOCKING, RH | ||||
| 69770-12110 |
AE11# |
1 | ||
| 69770-12100 |
AE11# |
1 | ||
| 69770A - LINK ASSY, REAR DOOR INSIDE LOCKING, RH | ||||
| 69770-12110 |
AE11# |
1 | ||
| 69770-12100 |
AE11# |
1 | ||
| 69780A - LINK ASSY, REAR DOOR INSIDE LOCKING, LH | ||||
| 69780-12100 |
AE11# |
1 | ||
| 69780-12110 |
AE11# |
1 | ||
| 69780A - LINK ASSY, REAR DOOR INSIDE LOCKING, LH | ||||
| 69780-12100 |
AE11# |
1 | ||
| 69780-12110 |
AE11# |
1 | ||
| Common parts | ||||
| 82711-1A750 | ||||
| 90105-06102 | ||||
| 90151-80015 | ||||
| 90159-60542 | ||||
| 90162-50020 | ||||
| 90467-04014 | ||||
| 90467-08117 | ||||
(9704- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 69130 - ACTUATOR ASSY, REAR DOOR LOCK, RH | ||||
| 69130-12010 |
AE11#..BZT,STOUR,VTOUR,ZTOUR |
1 | ||
| 69130-12010 |
AE11# |
1 | ||
| 69140 - ACTUATOR ASSY, REAR DOOR LOCK, LH | ||||
| 69140-12010 |
AE11#..BZT,STOUR,VTOUR,ZTOUR |
1 | ||
| 69140-12010 |
AE11# |
1 | ||
| 69205A - HANDLE SUB-ASSY, REAR DOOR INSIDE, RH | ||||
| 69207-12030B0 |
AE111,115..ZTOUR SHADOW GRAY,TRIM16,17 |
1 | ||
| 69207-12030B0 |
AE11#..BZT,STOUR,VTOUR,ZTOUR SHADOW GRAY,TRIM1# |
1 | ||
| 69207-12030B0 |
AE11# SHADOW GRAY,TRIM1# |
1 | ||
| 69206C - HANDLE SUB-ASSY, REAR DOOR INSIDE, LH | ||||
| 69208-12030B0 |
AE11#..BZT,STOUR,VTOUR,ZTOUR SHADOW GRAY,TRIM1# |
1 | ||
| 69208-12030B0 |
AE111,115..ZTOUR SHADOW GRAY,TRIM16,17 |
1 | ||
| 69208-12030B0 |
AE11# SHADOW GRAY,TRIM1# |
1 | ||
| 69230 - HANDLE ASSY, REAR DOOR OUTSIDE, RH | ||||
| 69230-12170 |
AE11# |
1 | ||
| 69230-12180C0 |
AE111,115..ZTOUR BLACK METALLIC,2AN |
1 | ||
| 69230-12180B2 |
AE111,115..BZT,ZTOUR SILVER ME,199 |
1 | ||
| 69230-12180G0 |
AE111,115..ZTOUR DK GREEN MICA,6M1 |
1 | ||
| 69230-12180D0 |
AE111,115..ZTOUR RED MM,2AF |
1 | ||
| 69230-12230D0 |
AE111,115..BZT,ZTOUR RED MM,3K4 |
1 | ||
| 69230-12230C0 |
AE111,115..ZTOUR BLACK ME,2AN |
1 | ||
| 69230-12180G0 |
AE111,115..ZTOUR Zﾂ-ﾘﾝｸﾞﾘﾐﾃﾂﾄﾞ*(S),*(T),DK GREEN MICA,24V |
1 | ||
| 69230-12230B2 |
AE111,115..ZTOUR GRAY ME.,2DH |
1 | ||
| 69230-12180G2 |
AE111,115..ZTOUR BLUISH GREEN M,2AM |
1 | ||
| 69230-12180A0 |
AE111,115..ZTOUR SUPER WHITE 2,040 |
1 | ||
| 69230-12230G0 |
AE111,115..ZTOUR DK.GREEN M.M.,2DE |
1 | ||
| 69230-12230G6 |
AE111,115..BZT,ZTOUR LT.GREEN ME.OP.,6P7 |
1 | ||
| 69230-12230A0 |
AE115;AE111,114..BZT,STOUR ﾓﾃﾞﾘｽﾀ-C99 ｼﾖｳ,SUPER WHITE 2,040 |
1 | ||
| 69230-12180J1 |
AE111,115..BZT,ZTOUR DARK BLUE ME.,2AL |
1 | ||
| 69230-12230C0 |
AE115;AE111,114..BZT,STOUR ﾓﾃﾞﾘｽﾀ-C99 ｼﾖｳ,BLACK ME.,205 |
1 | ||
| 69230-12230B3 |
AE111,115..BZT,ZTOUR SILVER ME,199 |
1 | ||
| 69230-12230B3 |
AE115;AE111,114..BZT,STOUR ﾓﾃﾞﾘｽﾀ-C99 ｼﾖｳ,SILVER ME.,199 |
1 | ||
| 69230-12230C0 |
AE111,115..ZTOUR BLACK ME,2AN ,205 |
1 | ||
| 69230-12230J0 |
AE111,115..ZTOUR DK.BLUE MC.,2DF |
1 | ||
| 69230-12230J2 |
AE111,115..ZTOUR BLUE M.M.,8L5 |
1 | ||
| 69230-12230A0 |
AE111,115..BZT,ZTOUR SUPER WHITE 2,040 |
1 | ||
| 69230B - CUSHION(FOR REAR DOOR OUTSIDE HANDLE) | ||||
| 90541-04018 |
AE11# |
4 | ||
| 90541-04018 |
AE11# |
4 | ||
| 69240 - HANDLE ASSY, REAR DOOR OUTSIDE, LH | ||||
| 69240-12180B2 |
AE111,115..BZT,ZTOUR SILVER ME,199 |
1 | ||
| 69240-12180C0 |
AE111,115..ZTOUR BLACK METALLIC,2AN |
1 | ||
| 69240-12180G2 |
AE111,115..ZTOUR BLUISH GREEN M,2AM |
1 | ||
| 69240-12180G0 |
AE111,115..ZTOUR Zﾂ-ﾘﾝｸﾞﾘﾐﾃﾂﾄﾞ*(S),*(T),DK GREEN MICA,24V |
1 | ||
| 69240-12180G0 |
AE111,115..ZTOUR DK GREEN MICA,6M1 |
1 | ||
| 69240-12180A0 |
AE111,115..ZTOUR SUPER WHITE 2,040 |
1 | ||
| 69240-12180D0 |
AE111,115..ZTOUR RED MM,2AF |
1 | ||
| 69240-12180J1 |
AE111,115..BZT,ZTOUR DARK BLUE ME.,2AL |
1 | ||
| 69240-12230G0 |
AE111,115..ZTOUR DK.GREEN M.M.,2DE |
1 | ||
| 69240-12230B2 |
AE111,115..ZTOUR GRAY ME.,2DH |
1 | ||
| 69240-12230C0 |
AE111,115..ZTOUR BLACK ME,2AN |
1 | ||
| 69240-12170 |
AE11# |
1 | ||
| 69240-12230B3 |
AE115;AE111,114..BZT,STOUR ﾓﾃﾞﾘｽﾀ-C99 ｼﾖｳ,SILVER ME.,199 |
1 | ||
| 69240-12230C0 |
AE115;AE111,114..BZT,STOUR ﾓﾃﾞﾘｽﾀ-C99 ｼﾖｳ,BLACK ME.,205 |
1 | ||
| 69240-12230A0 |
AE115;AE111,114..BZT,STOUR ﾓﾃﾞﾘｽﾀ-C99 ｼﾖｳ,SUPER WHITE 2,040 |
1 | ||
| 69240-12230B3 |
AE111,115..BZT,ZTOUR SILVER ME,199 |
1 | ||
| 69240-12180J1 |
AE111,115..(BZT,ZTOUR)..(4FC,5F) DARK BLUE ME.,2AL |
1 | ||
| 69240-12230G6 |
AE111,115..BZT,ZTOUR LT.GREEN ME.OP.,6P7 |
1 | ||
| 69240-12230D0 |
AE111,115..BZT,ZTOUR RED MM,3K4 |
1 | ||
| 69240-12230A0 |
AE111,115..BZT,ZTOUR SUPER WHITE 2,040 |
1 | ||
| 69240-12230C0 |
AE111,115..ZTOUR BLACK ME,2AN ,205 |
1 | ||
| 69240-12230J0 |
AE111,115..ZTOUR DK.BLUE MC.,2DF |
1 | ||
| 69240-12230J2 |
AE111,115..ZTOUR BLUE M.M.,8L5 |
1 | ||
| 69243A - PAD, REAR DOOR OUTSIDE HANDLE, RH | ||||
| 69243-12020 |
AE11# |
1 | ||
| 69243-12020 |
AE11# |
1 | ||
| 69244 - PAD, REAR DOOR OUTSIDE HANDLE, LH | ||||
| 69244-12020 |
AE11# |
1 | ||
| 69244-12020 |
AE11# |
1 | ||
| 69293B - SNAP, REAR DOOR OUTSIDE HANDLE | ||||
| 69293-12030 |
AE11# 右側 |
1 | ||
| 69293-12040 |
AE11# 左側 |
1 | ||
| 69293-12030 |
AE11# 右側 |
1 | ||
| 69293-12040 |
AE11# 左側 |
1 | ||
| 69330 - LOCK ASSY, REAR DOOR, RH | ||||
| 69305-12140 |
AE111,115..(BZT,VTOUR,ZTOUR)..(4FC,5F) |
1 | ||
| 69305-12200 |
AE11#..BZT,STOUR,VTOUR,ZTOUR ｱﾘ(ﾊﾟﾜ-ｳｲﾝﾄﾞｳ) |
1 | ||
| 69330 - LOCK ASSY, REAR DOOR, RH | ||||
| 69305-12140 |
AE111,115..(BZT,VTOUR,ZTOUR)..(4FC,5F) |
1 | ||
| 69305-12200 |
AE11#..BZT,STOUR,VTOUR,ZTOUR ｱﾘ(ﾊﾟﾜ-ｳｲﾝﾄﾞｳ) |
1 | ||
| 69340 - LOCK ASSY, REAR DOOR, LH | ||||
| 69306-12180 |
AE11#..BZT,STOUR,VTOUR,ZTOUR ｱﾘ(ﾊﾟﾜ-ｳｲﾝﾄﾞｳ) |
1 | ||
| 69340 - LOCK ASSY, REAR DOOR, LH | ||||
| 69306-12180 |
AE11#..BZT,STOUR,VTOUR,ZTOUR ｱﾘ(ﾊﾟﾜ-ｳｲﾝﾄﾞｳ) |
1 | ||
| 69410B - PLATE ASSY, REAR DOOR LOCK STRIKER | ||||
| 69410-87001 |
AE11# |
2 | ||
| 69410-87001 |
AE11# |
2 | ||
| 69717B - LINK, REAR DOOR LOCK REMOTE CONTROL, RH | ||||
| 69713-12090 |
AE11# |
1 | ||
| 69713-12090 |
AE11# |
1 | ||
| 69717B - LINK, REAR DOOR LOCK REMOTE CONTROL, RH | ||||
| 69713-12090 |
AE11# |
1 | ||
| 69713-12090 |
AE11# |
1 | ||
| 69718B - LINK, REAR DOOR LOCK REMOTE CONTROL, LH | ||||
| 69714-12100 |
AE11# |
1 | ||
| 69714-12100 |
AE11# |
1 | ||
| 69718B - LINK, REAR DOOR LOCK REMOTE CONTROL, LH | ||||
| 69714-12100 |
AE11# |
1 | ||
| 69714-12100 |
AE11# |
1 | ||
| 69736D - GUIDE, REAR DOOR LOCKING LINK | ||||
| 69736-12130 |
AE11# |
2 | ||
| 69741C - KNOB, REAR DOOR LOCK CONTROL | ||||
| 69741-12040B0 |
AE111,115..ZTOUR SHADOW GRAY,TRIM16,17 |
2 | ||
| 69741-12040B0 |
AE11# SHADOW GRAY,TRIM1# |
2 | ||
| 69741-12040B0 |
AE11#..BZT,STOUR,VTOUR,ZTOUR SHADOW GRAY,TRIM1# |
2 | ||
| 69749B - CLAMP, REAR DOOR LOCK LINK | ||||
| 69749-12070 |
AE11# |
2 | ||
| 69749-12070 |
AE11# |
2 | ||
| 69759F - SNAP, REAR DOOR LOCK CONTROL LINK | ||||
| 69759-20020 |
AE11# ﾅﾁｭﾗﾙ |
1 | ||
| 69759-20020 |
AE11# ﾅﾁｭﾗﾙ |
1 | ||
| 69759-20050 |
AE11# ﾌﾞﾗｳﾝ |
2 | ||
| 69759-20050 |
AE11# ﾌﾞﾗｳﾝ |
2 | ||
| 69759-20030 |
AE11# ﾌﾞﾙｰ |
1 | ||
| 69759-20030 |
AE11# ﾌﾞﾙｰ |
1 | ||
| 69759-20040 |
AE11# ｲｴﾛｰ |
2 | ||
| 69759-20040 |
AE11# ｲｴﾛｰ |
2 | ||
| 69759F - SNAP, REAR DOOR LOCK CONTROL LINK | ||||
| 69759-20020 |
AE11# ﾅﾁｭﾗﾙ |
1 | ||
| 69759-20020 |
AE11# ﾅﾁｭﾗﾙ |
1 | ||
| 69759-20050 |
AE11# ﾌﾞﾗｳﾝ |
2 | ||
| 69759-20050 |
AE11# ﾌﾞﾗｳﾝ |
2 | ||
| 69759-20030 |
AE11# ﾌﾞﾙｰ |
1 | ||
| 69759-20030 |
AE11# ﾌﾞﾙｰ |
1 | ||
| 69759-20040 |
AE11# ｲｴﾛｰ |
2 | ||
| 69759-20040 |
AE11# ｲｴﾛｰ |
2 | ||
| 69759F - SNAP, REAR DOOR LOCK CONTROL LINK | ||||
| 69759-20020 |
AE11# ﾅﾁｭﾗﾙ |
1 | ||
| 69759-20020 |
AE11# ﾅﾁｭﾗﾙ |
1 | ||
| 69759-20050 |
AE11# ﾌﾞﾗｳﾝ |
2 | ||
| 69759-20050 |
AE11# ﾌﾞﾗｳﾝ |
2 | ||
| 69759-20030 |
AE11# ﾌﾞﾙｰ |
1 | ||
| 69759-20030 |
AE11# ﾌﾞﾙｰ |
1 | ||
| 69759-20040 |
AE11# ｲｴﾛｰ |
2 | ||
| 69759-20040 |
AE11# ｲｴﾛｰ |
2 | ||
| 69759F - SNAP, REAR DOOR LOCK CONTROL LINK | ||||
| 69759-20020 |
AE11# ﾅﾁｭﾗﾙ |
1 | ||
| 69759-20020 |
AE11# ﾅﾁｭﾗﾙ |
1 | ||
| 69759-20050 |
AE11# ﾌﾞﾗｳﾝ |
2 | ||
| 69759-20050 |
AE11# ﾌﾞﾗｳﾝ |
2 | ||
| 69759-20030 |
AE11# ﾌﾞﾙｰ |
1 | ||
| 69759-20030 |
AE11# ﾌﾞﾙｰ |
1 | ||
| 69759-20040 |
AE11# ｲｴﾛｰ |
2 | ||
| 69759-20040 |
AE11# ｲｴﾛｰ |
2 | ||
| 69759F - SNAP, REAR DOOR LOCK CONTROL LINK | ||||
| 69759-20020 |
AE11# ﾅﾁｭﾗﾙ |
1 | ||
| 69759-20020 |
AE11# ﾅﾁｭﾗﾙ |
1 | ||
| 69759-20050 |
AE11# ﾌﾞﾗｳﾝ |
2 | ||
| 69759-20050 |
AE11# ﾌﾞﾗｳﾝ |
2 | ||
| 69759-20030 |
AE11# ﾌﾞﾙｰ |
1 | ||
| 69759-20030 |
AE11# ﾌﾞﾙｰ |
1 | ||
| 69759-20040 |
AE11# ｲｴﾛｰ |
2 | ||
| 69759-20040 |
AE11# ｲｴﾛｰ |
2 | ||
| 69759F - SNAP, REAR DOOR LOCK CONTROL LINK | ||||
| 69759-20020 |
AE11# ﾅﾁｭﾗﾙ |
1 | ||
| 69759-20020 |
AE11# ﾅﾁｭﾗﾙ |
1 | ||
| 69759-20050 |
AE11# ﾌﾞﾗｳﾝ |
2 | ||
| 69759-20050 |
AE11# ﾌﾞﾗｳﾝ |
2 | ||
| 69759-20030 |
AE11# ﾌﾞﾙｰ |
1 | ||
| 69759-20030 |
AE11# ﾌﾞﾙｰ |
1 | ||
| 69759-20040 |
AE11# ｲｴﾛｰ |
2 | ||
| 69759-20040 |
AE11# ｲｴﾛｰ |
2 | ||
| 69759T - SNAP, REAR DOOR INSIDE HANDLE | ||||
| 69759-22050 |
AE11# 右側 |
1 | ||
| 69759-22040 |
AE11# 左側 |
1 | ||
| 69759-22040 |
AE11# 左側 |
1 | ||
| 69759-22050 |
AE11# 右側 |
1 | ||
| 69759Y - SILENCER, REAR DOOR LOCK LINK | ||||
| 69759-20390 |
AE11# |
2 | ||
| 69759-20390 |
AE11# |
2 | ||
| 69770A - LINK ASSY, REAR DOOR INSIDE LOCKING, RH | ||||
| 69770-12110 |
AE11# |
1 | ||
| 69770-12100 |
AE11# |
1 | ||
| 69770A - LINK ASSY, REAR DOOR INSIDE LOCKING, RH | ||||
| 69770-12110 |
AE11# |
1 | ||
| 69770-12100 |
AE11# |
1 | ||
| 69780A - LINK ASSY, REAR DOOR INSIDE LOCKING, LH | ||||
| 69780-12100 |
AE11# |
1 | ||
| 69780-12110 |
AE11# |
1 | ||
| 69780A - LINK ASSY, REAR DOOR INSIDE LOCKING, LH | ||||
| 69780-12100 |
AE11# |
1 | ||
| 69780-12110 |
AE11# |
1 | ||
| Common parts | ||||
| 82711-1A750 | ||||
| 90105-06125 | ||||
| 90148-60022 | ||||
| 90148-80027 | ||||
| 90159-40202 | ||||
| 90162-50020 | ||||
| 90467-04014 | ||||
| 90467-08117 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
