AE114G-CWPDK (1995)
Toyota Sprinter Carib
Production
Aug 1995
-
Jul 2002
Engine
4AFE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9508- )AE114,115..4FC

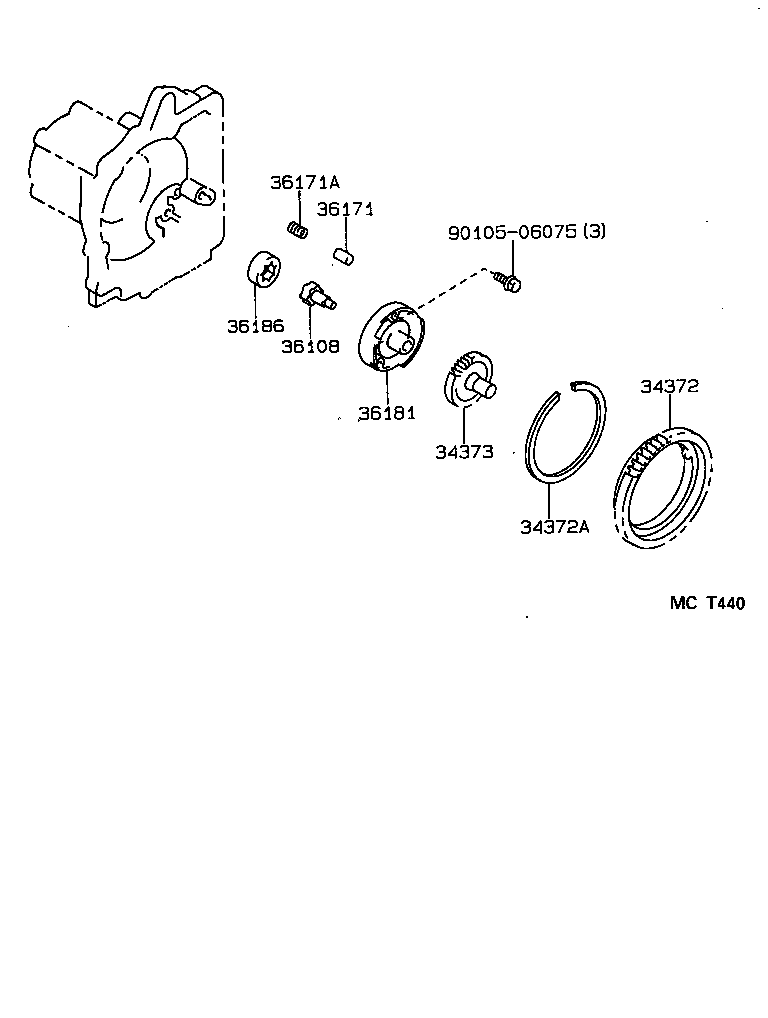

Click highlighted areas on diagram
A241H
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 34372 - GEAR, TRANSFER OIL PUMP DRIVE | ||||
| 34372-12010 |
AE114,115..4FC |
1 | ||
| 34372-12010 |
AE114,115..4FC |
1 | ||
| 34372A - RING, SHAFT SNAP (FOR TRANSFER OIL PUMP DRIVE GEAR) | ||||
| 90520-99005 |
AE114,115..4FC |
1 | ||
| 90520-99005 |
AE114,115..4FC |
1 | ||
| 34373 - GEAR, TRANSFER OIL PUMP DRIVEN | ||||
| 34373-12010 |
AE114,115..4FC |
1 | ||
| 34373-12010 |
AE114,115..4FC |
1 | ||
| 36108 - ROTOR SUB-ASSY, TRANSFER OIL PUMP DRIVE | ||||
| 36108-12010 |
AE114,115..4FC |
1 | ||
| 36108-12010 |
AE114,115..4FC |
1 | ||
| 36171 - VALVE, TRANSFER OIL COOLER RELIEF | ||||
| 36171-12010 |
AE114,115..4FC |
1 | ||
| 36171-12010 |
AE114,115..4FC |
1 | ||
| 36171A - SPRING, COMPRESSION(FOR TRANSFER OIL COOLER RELIEF VALV | ||||
| 90501-06049 |
AE114,115..4FC |
1 | ||
| 90501-06049 |
AE114,115..4FC |
1 | ||
| 36181 - BODY, TRANSFER OIL PUMP | ||||
| 36181-12010 |
AE114,115..4FC |
1 | ||
| 36181-12010 |
AE114,115..4FC |
1 | ||
| 36186 - ROTOR, TRANSFER OIL PUMP DRIVEN | ||||
| 36186-12010 |
AE114,115..4FC |
1 | ||
| 36186-12010 |
AE114,115..4FC |
1 | ||
| Common parts | ||||
| 90105-06075 | ||||
