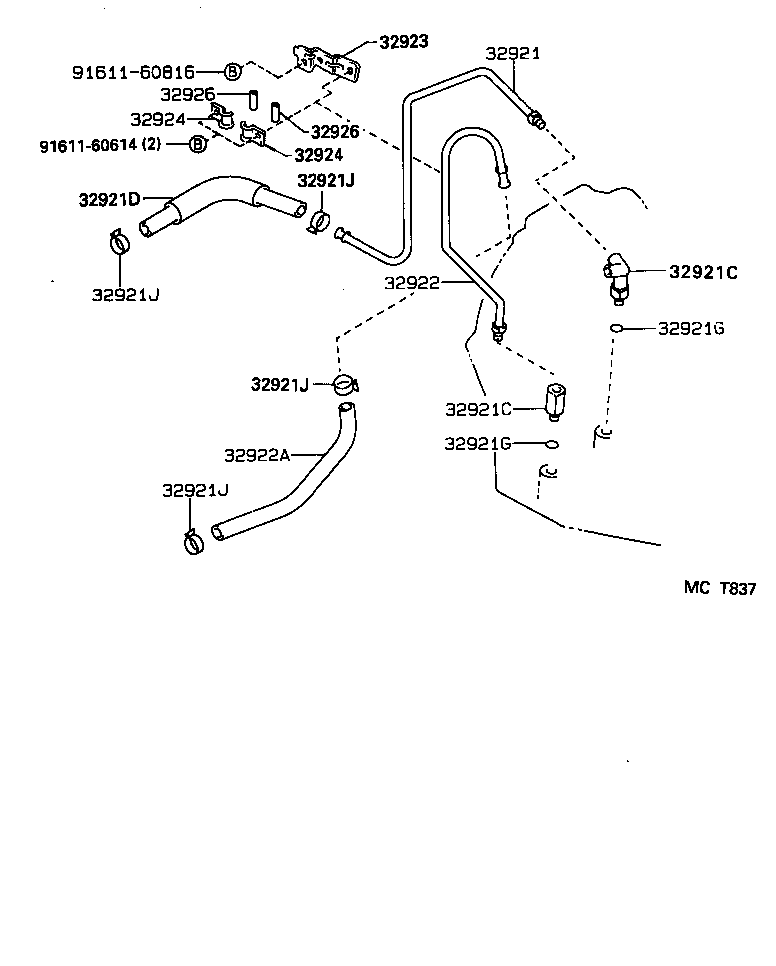

AE114G-CWPDK (1995)
Toyota Sprinter Carib
(9508- )AE114,115..4FC
A241H
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 32921 - TUBE, OIL COOLER INLET, NO.1 | ||||
| 32921-12270 |
AE114,115..4FC |
1 | ||
| 32921-12270 |
AE114,115..4FC |
1 | ||
| 32921C - UNION(FOR OIL COOLER TUBE) | ||||
| 90404-14007 |
AE114,115..4FC ｲﾝﾚｯﾄ |
1 | ||
| 90407-16032 |
AE114,115..4FC ｱｳﾄﾚｯﾄ |
1 | ||
| 90407-16032 |
AE114,115..4FC ｱｳﾄﾚｯﾄ |
1 | ||
| 90404-14007 |
AE114,115..4FC ｲﾝﾚｯﾄ |
1 | ||
| 32921C - UNION(FOR OIL COOLER TUBE) | ||||
| 90404-14007 |
AE114,115..4FC ｲﾝﾚｯﾄ |
1 | ||
| 90407-16032 |
AE114,115..4FC ｱｳﾄﾚｯﾄ |
1 | ||
| 90407-16032 |
AE114,115..4FC ｱｳﾄﾚｯﾄ |
1 | ||
| 90404-14007 |
AE114,115..4FC ｲﾝﾚｯﾄ |
1 | ||
| 32921D - HOSE(FOR OIL COOLER INLET) | ||||
| 32941-12171 |
AE114,115..4FC |
1 | ||
| 32941-12171 |
AE114,115..4FC |
1 | ||
| 32921G - RING, O(FOR OIL COOLER TUBE UNION) | ||||
| 90301-10189 |
AE114,115..4FC |
2 | ||
| 90301-10189 |
AE114,115..4FC |
2 | ||
| 32921G - RING, O(FOR OIL COOLER TUBE UNION) | ||||
| 90301-10189 |
AE114,115..4FC |
2 | ||
| 90301-10189 |
AE114,115..4FC |
2 | ||
| 32921J - CLIP(FOR OIL COOLER HOSE) | ||||
| 90467-13039 |
AE11#..4FC |
4 | ||
| 90467-13039 |
AE11#..4FC |
4 | ||
| 32921J - CLIP(FOR OIL COOLER HOSE) | ||||
| 90467-13039 |
AE11#..4FC |
4 | ||
| 90467-13039 |
AE11#..4FC |
4 | ||
| 32921J - CLIP(FOR OIL COOLER HOSE) | ||||
| 90467-13039 |
AE11#..4FC |
4 | ||
| 90467-13039 |
AE11#..4FC |
4 | ||
| 32921J - CLIP(FOR OIL COOLER HOSE) | ||||
| 90467-13039 |
AE11#..4FC |
4 | ||
| 90467-13039 |
AE11#..4FC |
4 | ||
| 32922 - TUBE, OIL COOLER OUTLET, NO.1 | ||||
| 32922-12320 |
AE114,115..4FC |
1 | ||
| 32922-12320 |
AE114,115..4FC |
1 | ||
| 32922A - HOSE(FOR OIL COOLER OUTLET) | ||||
| 90445-15042 |
AE114,115..4FC |
1 | ||
| 90445-15020 |
AE114,115..4FC |
1 | ||
| 90445-15042 |
AE114,115..4FC |
1 | ||
| 32923 - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE | ||||
| 32923-12230 |
AE114,115..4FC |
1 | ||
| 32923-12230 |
AE114,115..4FC |
1 | ||
| 32924 - CLAMP, OIL COOLER TUBE, NO.2 | ||||
| 90462-10082 |
AE114,115..4FC |
2 | ||
| 90462-10082 |
AE114,115..4FC |
2 | ||
| 32924 - CLAMP, OIL COOLER TUBE, NO.2 | ||||
| 90462-10082 |
AE114,115..4FC |
2 | ||
| 90462-10082 |
AE114,115..4FC |
2 | ||
| 32926 - CUSHION, OIL COOLER TUBE(ATM) | ||||
| 32926-10010 |
AE114,115..4FC 長さ=30,内径=8 |
1 | ||
| 32926-10010 |
AE114,115..4FC 長さ=30,内径=8 |
1 | ||
| 32926-22010 |
AE114,115..4FC 長さ=35,内径=8 |
1 | ||
| 32926-22010 |
AE114,115..4FC 長さ=35,内径=8 |
1 | ||
| 32926 - CUSHION, OIL COOLER TUBE(ATM) | ||||
| 32926-10010 |
AE114,115..4FC 長さ=30,内径=8 |
1 | ||
| 32926-10010 |
AE114,115..4FC 長さ=30,内径=8 |
1 | ||
| 32926-22010 |
AE114,115..4FC 長さ=35,内径=8 |
1 | ||
| 32926-22010 |
AE114,115..4FC 長さ=35,内径=8 |
1 | ||
| Common parts | ||||
| 91611-60614 | None epc.PartDetail.None | |||
| 91611-60816 | None epc.PartDetail.None | |||
