AE114G-CWMDK (1995)

Toyota Sprinter Carib

Production Aug 1995 - Jul 2002
Engine 4AFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9508- )AE114,115..5F

Click highlighted areas on diagram

E55F,E55F,E59F

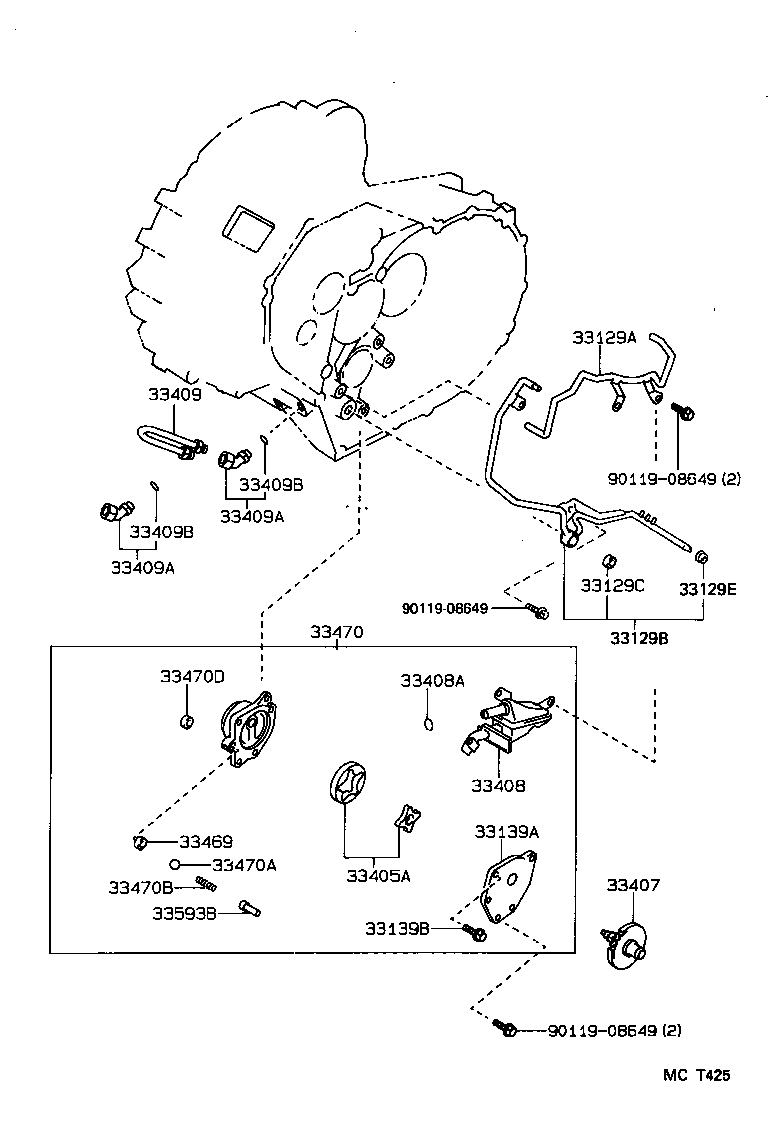

diagram 33129A 33129B 33129C 33129E 33139A 33139B 33405A 33407 33408 33408A 33409 33409A 33409A 33409B 33409B 33469 33470 33470A 33470B 33470D 33593B 9011908649 9011908649 9011908649
Part # Description Qty Price
33129A - PIPE, MANUAL TRANSMISSION OIL, NO.1
33129-12030

AE114,115..5F

 1
33129-12030

AE114,115..5F

 1
33129B - PIPE, MANUAL TRANSMISSION OIL, NO.2
33106-12040

AE114,115..5F

 1
33106-12040

AE114,115..5F

 1
33129C - GASKET(FOR MANUAL TRANSMISSION OIL PIPE)
90430-09004

AE114,115..5F

 1
90430-09004

AE114,115..5F

 1
33129E - BUSH(FOR MANUAL TRANSMISSION OIL PIPE)
90389-05012

AE114,115..5F

 1
90389-05012

AE114,115..5F

 1
33139A - COVER, OIL PUMP(FOR MANUAL TRANSMISSION)
33139-20010

AE114,115..5F

 1
33139-20010

AE114,115..5F

 1
33139B - BOLT(FOR MANUAL TRANSMISSION OIL PUMP COVER)
90119-06199

AE114,115..5F

 3
90119-06199

AE114,115..5F

 3
33405A - ROTOR SUB-ASSY, MANUAL TRANSMISSION OIL PUMP
33405-20020

AE114,115..5F

 1
33405-20020

AE114,115..5F

 1
33407 - GEAR SUB-ASSY, MANUAL TRANSMISSION OIL PUMP DRIVE
33407-12021

AE114..5F

 1
33407-12021

AE114..5F

 1
33408 - STRAINER SUB-ASSY, MANUAL TRANSMISSION OIL
33408-20010

AE114,115..5F

 1
33408-20011

AE114,115..5F

 1
33408-20010

AE114,115..5F

 1
33408A - RING, O (FOR MANUAL TRANSMISSION OIL STRAINER)
96721-19012

AE114,115..5F

 1
96721-19012

AE114,115..5F

 1
33409 - TUBE SUB-ASSY, MANUAL TRANSMISSION OIL COOLER
33409-17010

AE114,115..5F

 1
33409-17010

AE114,115..5F

 1
33409A - ELBOW (FOR MANUAL TRANSMISSION OIL COOLER TUBE)
90407-16017

AE114,115..5F

 2
90407-16017

AE114,115..5F

 2
33409A - ELBOW (FOR MANUAL TRANSMISSION OIL COOLER TUBE)
90407-16017

AE114,115..5F

 2
90407-16017

AE114,115..5F

 2
33409B - RING, O (FOR MANUAL TRANSMISSION OIL COOLER TUBE ELBOW)
90301-11006

AE114,115..5F

 2
90301-11006

AE114,115..5F

 2
33409B - RING, O (FOR MANUAL TRANSMISSION OIL COOLER TUBE ELBOW)
90301-11006

AE114,115..5F

 2
90301-11006

AE114,115..5F

 2
33469 - SEAT, RELIEF VALVE (FOR MANUAL TRANSMISSION OIL PUMP)
33469-20010

AE114,115..5F

 1
33469-20010

AE114,115..5F

 1
33470 - PUMP ASSY, MANUAL TRANSMISSION OIL
33470-12010

AE114,115..5F

 1
33470-12011

AE114,115..5F

 1
33470-12010

AE114,115..5F

 1
33470A - BALL (FOR MANUAL TRANSMISSION OIL PUMP)
90360-10003

AE114,115..5F

 1
90360-10003

AE114,115..5F

 1
33470B - SPRING, COMPRESSION (FOR MANUAL TRANSMISSION OIL PUMP)
90501-08092

AE114,115..5F

 1
90501-08092

AE114,115..5F

 1
33470D - GASKET (FOR MANUAL TRANSMISSION OIL PUMP)
90430-09004

AE114,115..5F

 1
90430-09004

AE114,115..5F

 1
33593B - HOLDER, SPRING (FOR MANUAL TRANSMISSION OIL PUMP)
33593-20010

AE114,115..5F

 1
33593-20010

AE114,115..5F

 1
Common parts
90119-08649
