AE111G-CWPVF (1996)
Toyota Sprinter Carib
Production
May 1996
-
Jul 2002
Engine
4AGE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9605- )4AGE

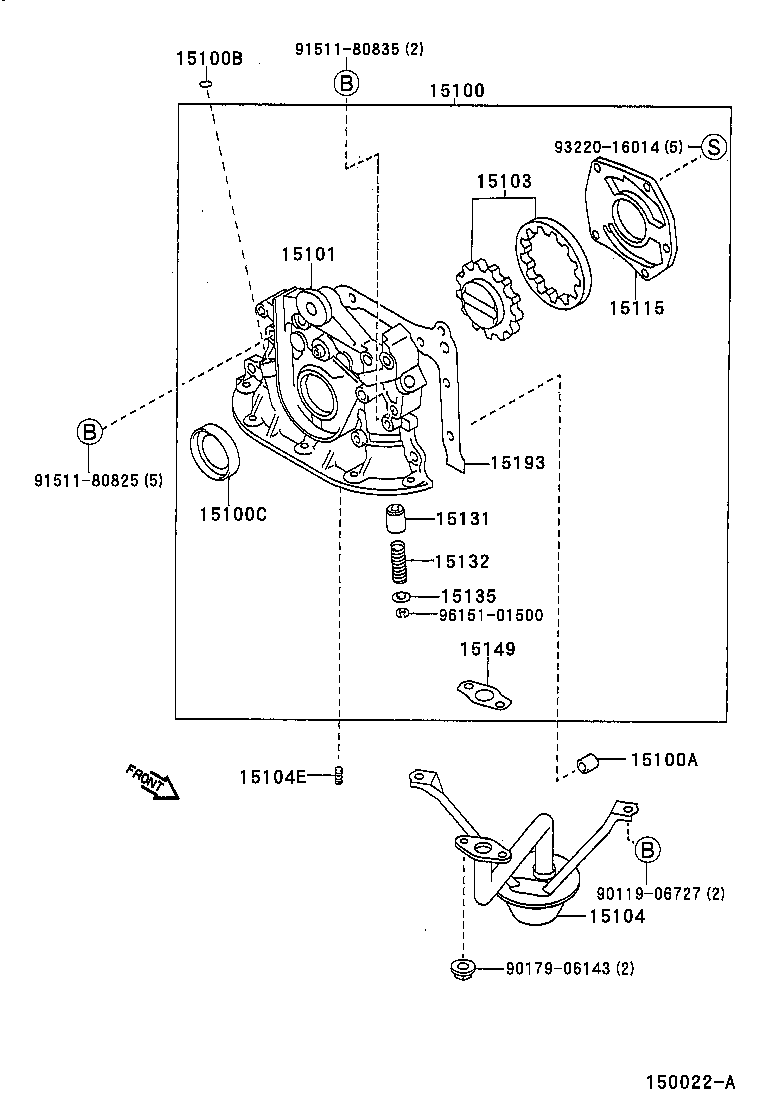

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 15100 - PUMP ASSY, OIL | ||||
| 15100-19045 |
4AGE..AE111 |
1 | ||
| 15100-19045 |
4AGE..AE111 |
1 | ||
| 15100A - PIN, RING(FOR OIL PUMP SET) | ||||
| 90253-11021 |
4A#,7AFE..AE11# |
2 | ||
| 90253-11021 |
4A#,7AFE..AE11# |
2 | ||
| 15100B - RING, O(FOR OIL PUMP) | ||||
| 96721-19010 |
4A#,7AFE..AE11# |
1 | ||
| 96721-19010 |
4A#,7AFE..AE11# |
1 | ||
| 15100C - SEAL(FOR OIL PUMP) | ||||
| 90311-32020 |
4A#,7AFE..AE11# |
1 | ||
| 90311-32020 |
4A#,7AFE..AE11# |
1 | ||
| 90311-32002 |
4A#,7AFE..AE11# |
1 | ||
| 90311-32018 |
4A#,7AFE..AE11# |
1 | ||
| 90311-32020 |
4A#,7AFE..AE11# |
1 | ||
| 15101 - BODY SUB-ASSY, OIL PUMP | ||||
| 15011-16080 |
4AGE..AE111 |
1 | ||
| 15011-16080 |
4AGE..AE111 |
1 | ||
| 15103 - GEAR SET, OIL PUMP | ||||
| 15103-16030 |
4AGE..AE111 |
1 | ||
| 15103-16030 |
4AGE..AE111 |
1 | ||
| 15104 - STRAINER SUB-ASSY, OIL | ||||
| 15104-15090 |
4A#..AE111,114 |
1 | ||
| 15104-15090 |
4A#..AE111,114 |
1 | ||
| 15104E - BOLT, STUD(FOR OIL STRAINER) | ||||
| 90116-06022 |
4AGE..AE111 |
2 | ||
| 90116-06022 |
4AGE..AE111 |
2 | ||
| 15115 - COVER, OIL PUMP | ||||
| 15115-16080 |
4AGE..AE111 |
1 | ||
| 15115-16080 |
4AGE..AE111 |
1 | ||
| 15131 - VALVE, OIL PUMP RELIEF | ||||
| 15131-24010 |
4AGE..AE111 |
1 | ||
| 15131-24010 |
4AGE,7AFE..AE111,115 |
1 | ||
| 15131-24010 |
4AGE..AE111 |
1 | ||
| 15132 - SPRING, OIL PUMP RELIEF VALVE | ||||
| 15132-40010 |
4AGE..AE111 |
1 | ||
| 15132-40010 |
4AGE..AE111 |
1 | ||
| 15132-40010 |
4AGE,7AFE..AE111,115 |
1 | ||
| 15135 - RETAINER, OIL PUMP RELIEF VALVE | ||||
| 15135-15010 |
4AGE..AE111 |
1 | ||
| 15135-15010 |
4AGE..AE111 |
1 | ||
| 15135-15010 |
4AGE,7AFE..AE111,115 |
1 | ||
| 15149 - GASKET, OIL STRAINER FLANGE | ||||
| 15149-16010 |
4A#,7AFE..AE11# |
1 | ||
| 15149-16010 |
4A#,7AFE..AE11# |
1 | ||
| 15193 - GASKET, OIL PUMP | ||||
| 15197-15030 |
4A#..AE111,114 |
1 | ||
| 15197-15030 |
4A#..AE111,114 |
1 | ||
| 15197-16030 |
4A#..AE111,114 |
1 | ||
| Common parts | ||||
| 90119-06727 | ||||
| 90179-06143 | ||||
| 91511-80825 | ||||
| 91511-80835 | ||||
| 93220-16014 | ||||
| 96151-01500 | ||||
