AE111G-CWPGK (1996)

Toyota Sprinter Carib

Production May 1996 - Jul 2002
Engine 4AFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9704- )

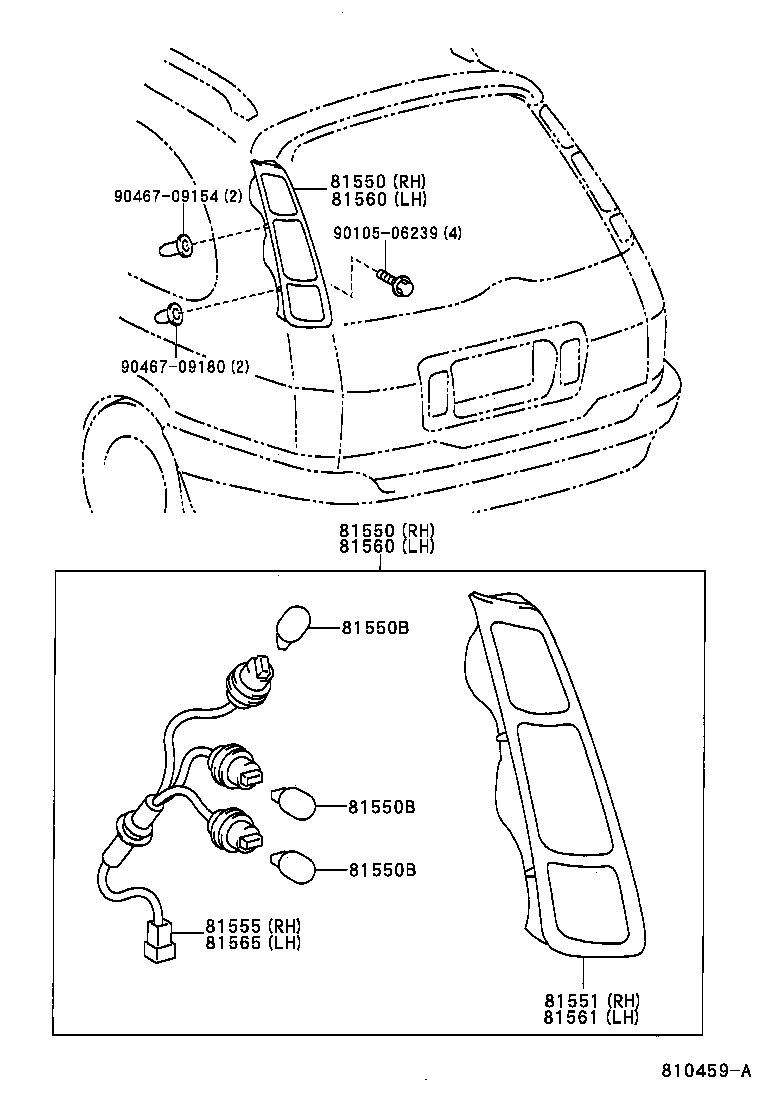

Click highlighted areas on diagram

diagram 81550 81550 81550B 81550B 81550B 81551 81555 81560 81560 81561 81565 9010506239 9046709154 9046709180
Part # Description Qty Price
81550 - LAMP ASSY, REAR COMBINATION, RH
81550-13380

AE11#

 1
81550-13360

AE11#

 1
81550-13381

AE11#..BZT,STOUR,VTOUR,ZTOUR

 1
81550 - LAMP ASSY, REAR COMBINATION, RH
81550-13380

AE11#

 1
81550-13360

AE11#

 1
81550-13381

AE11#..BZT,STOUR,VTOUR,ZTOUR

 1
81550B - BULB(FOR REAR COMBINATION LAMP)
90981-11043

AE11#

12V 21/5W

 2
90981-11042

AE11#

12V 21W

 4
90981-11043

AE11#

12V 21/5W

 2
90981-11042

AE11#

12V 21W

 4
81550B - BULB(FOR REAR COMBINATION LAMP)
90981-11043

AE11#

12V 21/5W

 2
90981-11042

AE11#

12V 21W

 4
90981-11043

AE11#

12V 21/5W

 2
90981-11042

AE11#

12V 21W

 4
81550B - BULB(FOR REAR COMBINATION LAMP)
90981-11043

AE11#

12V 21/5W

 2
90981-11042

AE11#

12V 21W

 4
90981-11043

AE11#

12V 21/5W

 2
90981-11042

AE11#

12V 21W

 4
81551 - LENS, REAR COMBINATION LAMP, RH
81551-13360

AE11#

 1
81551-13381

AE11#..BZT,STOUR,VTOUR,ZTOUR

 1
81551-13380

AE11#

 1
81555 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH
81555-13360

AE11#

 1
81555-13380

AE11#

 1
81560 - LAMP ASSY, REAR COMBINATION, LH
81560-13380

AE11#

 1
81560-13360

AE11#

 1
81560-13381

AE11#..BZT,STOUR,VTOUR,ZTOUR

 1
81560 - LAMP ASSY, REAR COMBINATION, LH
81560-13380

AE11#

 1
81560-13360

AE11#

 1
81560-13381

AE11#..BZT,STOUR,VTOUR,ZTOUR

 1
81561 - LENS, REAR COMBINATION LAMP, LH
81561-13381

AE11#..BZT,STOUR,VTOUR,ZTOUR

 1
81561-13380

AE11#

 1
81561-13360

AE11#

 1
81565 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH
81555-13380

AE11#

 1
81555-13360

AE11#

 1
Common parts
90105-06239
90467-09154
90467-09180

(9508-9704)

Click highlighted areas on diagram

diagram 81550 81550 81550B 81550B 81550B 81551 81555 81560 81560 81561 81565 9015960473 9046709154 9046709180
Part # Description Qty Price
81550 - LAMP ASSY, REAR COMBINATION, RH
81550-13380

AE11#

 1
81550-13360

AE11#

 1
81550-13381

AE11#..BZT,STOUR,VTOUR,ZTOUR

 1
81550 - LAMP ASSY, REAR COMBINATION, RH
81550-13380

AE11#

 1
81550-13360

AE11#

 1
81550-13381

AE11#..BZT,STOUR,VTOUR,ZTOUR

 1
81550B - BULB(FOR REAR COMBINATION LAMP)
90981-11043

AE11#

12V 21/5W

 2
90981-11042

AE11#

12V 21W

 4
90981-11043

AE11#

12V 21/5W

 2
90981-11042

AE11#

12V 21W

 4
81550B - BULB(FOR REAR COMBINATION LAMP)
90981-11043

AE11#

12V 21/5W

 2
90981-11042

AE11#

12V 21W

 4
90981-11043

AE11#

12V 21/5W

 2
90981-11042

AE11#

12V 21W

 4
81550B - BULB(FOR REAR COMBINATION LAMP)
90981-11043

AE11#

12V 21/5W

 2
90981-11042

AE11#

12V 21W

 4
90981-11043

AE11#

12V 21/5W

 2
90981-11042

AE11#

12V 21W

 4
81551 - LENS, REAR COMBINATION LAMP, RH
81551-13360

AE11#

 1
81551-13381

AE11#..BZT,STOUR,VTOUR,ZTOUR

 1
81551-13380

AE11#

 1
81555 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH
81555-13360

AE11#

 1
81555-13380

AE11#

 1
81560 - LAMP ASSY, REAR COMBINATION, LH
81560-13380

AE11#

 1
81560-13360

AE11#

 1
81560-13381

AE11#..BZT,STOUR,VTOUR,ZTOUR

 1
81560 - LAMP ASSY, REAR COMBINATION, LH
81560-13380

AE11#

 1
81560-13360

AE11#

 1
81560-13381

AE11#..BZT,STOUR,VTOUR,ZTOUR

 1
81561 - LENS, REAR COMBINATION LAMP, LH
81561-13381

AE11#..BZT,STOUR,VTOUR,ZTOUR

 1
81561-13380

AE11#

 1
81561-13360

AE11#

 1
81565 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH
81555-13380

AE11#

 1
81555-13360

AE11#

 1
Common parts
90159-60473
90467-09154
90467-09180
