AE111G-CWMVF (1996)

Toyota Sprinter Carib

Production May 1996 - Apr 1997
Engine 4AGE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9605- )4AGE..MTM

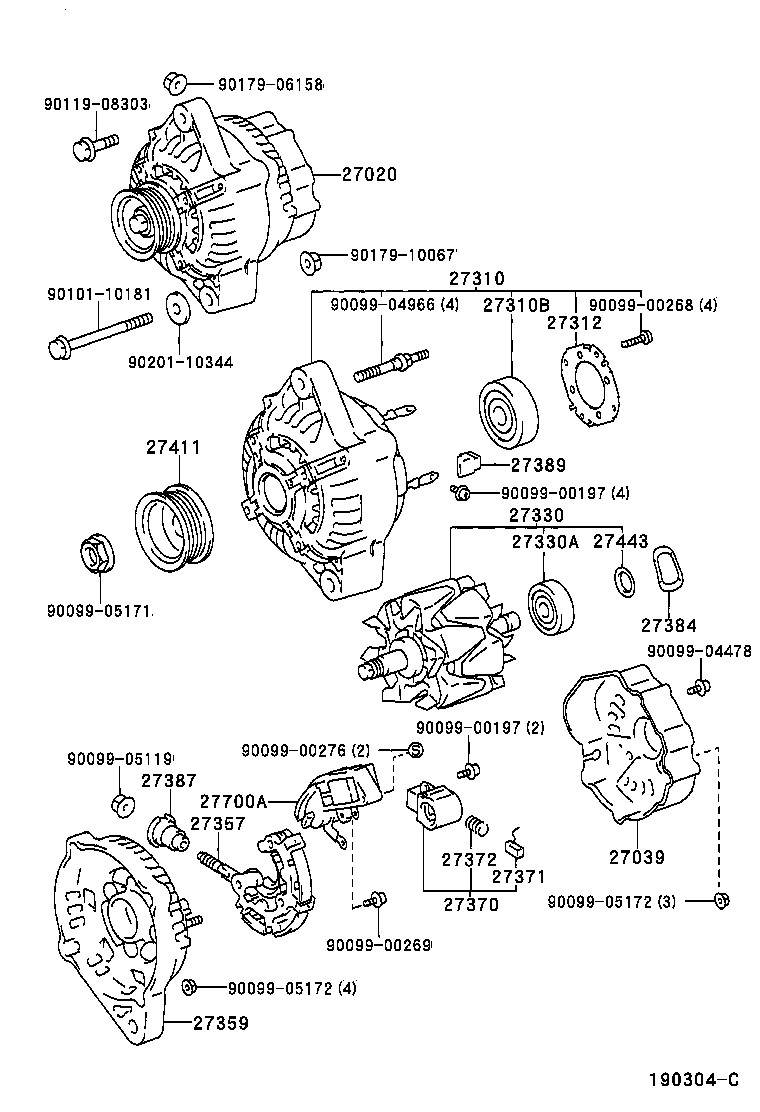

Click highlighted areas on diagram

12V 70A

diagram 27020 27039 27310 27310B 27312 27330 27330A 27357 27359 27370 27371 27372 27384 27387 27389 27411 27443 27700A 9009900197 9009900197 9009900268 9009900269 9009900276 9009904478 9009904966 9009905119 9009905171 9009905172 9009905172 9010110181 9011908303 9017906158 9017910067 9020110344
Part # Description Qty Price
27020 - ALTERNATOR ASSY
27060-16350

4AGE..AE111..5F

12V 70A

 1
27039 - COVER, ALTERNATOR REAR END
27039-16380

4A#,7AFE..AE11#..(BZT,STOUR,ZTOUR)..5F

 1
27039-73020

4A#,7AFE..AE11#..5F

 1
27310 - FRAME ASSY, DRIVE END, ALTERNATOR
27310-16300

4AGE..AE111..5F

 1
27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME)
90099-10178

4A#,7AFE..AE11#..5F

 1
27312 - PLATE, RETAINER
27312-70200

4A#,7AFE..AE11#..5F

 1
27330 - ROTOR ASSY, ALTERNATOR
27330-16300

4AGE..AE111..5F

 1
27330A - BEARING(FOR ALTERNATOR ROTOR)
90099-10194

4AGE..AE111

 1
27357 - HOLDER, ALTERNATOR, W/RECTIFIER
27357-63020

4A#,7AFE..AE11#..5F

 1
27357-16380

4A#,7AFE..AE11#..(BZT,STOUR,ZTOUR)..5F

 1
27359 - FRAME, ALTERNATOR RECTIFIER END
27359-16301

4AGE..AE111..5F

 1
27359-16302

4AGE..AE111..5F

 1
27370 - HOLDER ASSY, ALTERNATOR BRUSH
27370-58320

4AGE..AE111..5F

 1
27371 - BRUSH, ALTERNATOR
27371-70300

4A#,7AFE..AE11#..5F

 2
27372 - SPRING, ALTERNATOR BRUSH
27372-63020

4A#,7AFE..AE11#..5F

 2
27387 - INSULATOR, TERMINAL
27387-70170

4A#,7AFE..AE11#..5F

 1
27389 - INSULATOR, TERMINAL
27389-63020

4A#,7AFE..AE11#..5F

 4
27411 - PULLEY, ALTERNATOR
27411-16180

4A#,7AFE..AE11#..5F

 1
27443 - COVER, ALTERNATOR BEARING
27443-63020

4A#,7AFE..AE11#

 1
27700A - REGULATOR ASSY, GENERATOR
27700-74040

4A#,7AFE..AE11#

 1
Common parts
90099-00197
90099-00268
90099-00269
90099-00276
90099-04478
90099-04966
90099-05119
90099-05171
90099-05172
90101-10181
90119-08303
90179-06158
90179-10067
90201-10344
