AE111G-CWMGK (1996)
Toyota Sprinter Carib

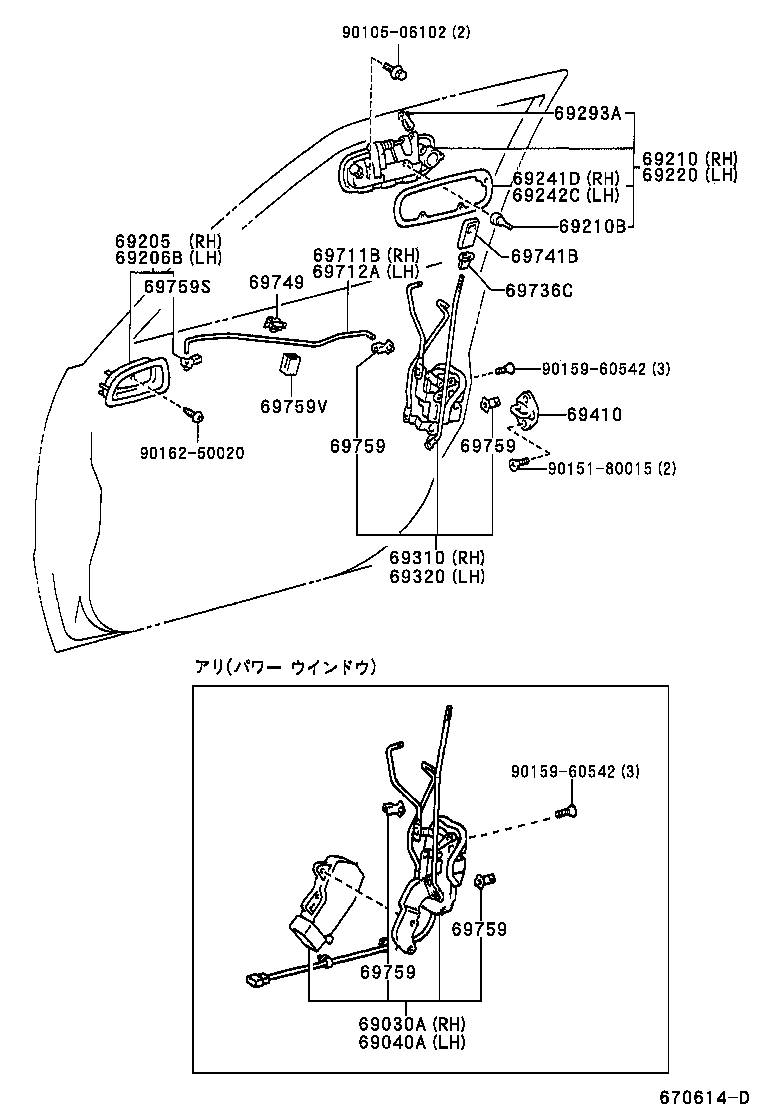

(9508-9704)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 69030A - LOCK ASSY, FRONT DOOR W/MOTOR, RH | ||||
| 69030-12330 |
AE11# |
1 | ||
| 69040A - LOCK ASSY, FRONT DOOR W/MOTOR, LH | ||||
| 69040-12340 |
AE11# |
1 | ||
| 69205 - HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH | ||||
| 69205-12160B0 |
AE111,115..ZTOUR SHADOW GRAY,TRIM16,17 |
1 | ||
| 69205-12160B0 |
AE11# SHADOW GRAY,TRIM1# |
1 | ||
| 69205-12160B0 |
AE11#..BZT,STOUR,VTOUR,ZTOUR SHADOW GRAY,TRIM1# |
1 | ||
| 69206B - HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH | ||||
| 69206-12160B0 |
AE111,115..ZTOUR SHADOW GRAY,TRIM16,17 |
1 | ||
| 69206-12160B0 |
AE11# SHADOW GRAY,TRIM1# |
1 | ||
| 69206-12160B0 |
AE11#..BZT,STOUR,VTOUR,ZTOUR SHADOW GRAY,TRIM1# |
1 | ||
| 69210 - HANDLE ASSY, FRONT DOOR, OUTSIDE RH | ||||
| 69210-12190 |
AE11# 材料着色(黒) |
1 | ||
| 69210-12200D0 |
AE111,115..ZTOUR RED MM,2AF |
1 | ||
| 69210-12200A0 |
AE111,115..ZTOUR SUPER WHITE 2,040 |
1 | ||
| 69210-12200G2 |
AE111,115..ZTOUR BLUISH GREEN M,2AM |
1 | ||
| 69210-12290G0 |
AE111,115..ZTOUR DK.GREEN M.M.,2DE |
1 | ||
| 69210-12290C0 |
AE111,115..ZTOUR BLACK ME,2AN |
1 | ||
| 69210-12200B3 |
AE111,115..BZT,ZTOUR SILVER ME,199 |
1 | ||
| 69210-12200G1 |
AE111,115..ZTOUR Zﾂ-ﾘﾝｸﾞﾘﾐﾃﾂﾄﾞ*(S),*(T),DK GREEN MICA,24V |
1 | ||
| 69210-12200G1 |
AE111,115..ZTOUR DK GREEN MICA,6M1 |
1 | ||
| 69210-12290B2 |
AE111,115..ZTOUR GRAY ME.,2DH |
1 | ||
| 69210-12200C0 |
AE111,115..ZTOUR BLACK ME,2AN |
1 | ||
| 69210-12290G6 |
AE111,115..BZT,ZTOUR LT.GREEN ME.OP.,6P7 |
1 | ||
| 69210-12200J0 |
AE111,115..BZT,ZTOUR DK.BLUE MC.,2AL |
1 | ||
| 69210-12290D0 |
AE111,115..BZT,ZTOUR RED MM,3K4 |
1 | ||
| 69210-12290J2 |
AE111,115..ZTOUR BLUE M.M.,8L5 |
1 | ||
| 69210-12290B3 |
AE111,115..BZT,ZTOUR SILVER ME,199 |
1 | ||
| 69210-12290J0 |
AE111,115..ZTOUR DK.BLUE MC.,2DF |
1 | ||
| 69210-12290A0 |
AE111,115..BZT,ZTOUR SUPER WHITE 2,040 |
1 | ||
| 69210-12290C0 |
AE111,115..ZTOUR BLACK ME,2AN ,205 |
1 | ||
| 69210B - CUSHION(FOR FRONT DOOR OUTSIDE HANDLE) | ||||
| 90541-04018 |
AE11# |
4 | ||
| 90541-04018 |
AE11# |
4 | ||
| 69220 - HANDLE ASSY, FRONT DOOR OUTSIDE, LH | ||||
| 69220-12190C0 |
AE111,115..ZTOUR BLACK ME,2AN |
1 | ||
| 69220-12180 |
AE11# 材料着色(黒) |
1 | ||
| 69220-12190G1 |
AE111,115..ZTOUR DK GREEN MICA,6M1 |
1 | ||
| 69220-12190A0 |
AE111,115..ZTOUR SUPER WHITE 2,040 |
1 | ||
| 69220-12290G6 |
AE111,115..BZT,ZTOUR LT.GREEN ME.OP.,6P7 |
1 | ||
| 69220-12190D0 |
AE111,115..ZTOUR RED MM,2AF |
1 | ||
| 69220-12290G0 |
AE111,115..ZTOUR DK.GREEN M.M.,2DE |
1 | ||
| 69220-12290C0 |
AE111,115..ZTOUR BLACK ME,2AN |
1 | ||
| 69220-12190B3 |
AE111,115..BZT,ZTOUR SILVER ME,199 |
1 | ||
| 69220-12290D0 |
AE111,115..BZT,ZTOUR RED MM,3K4 |
1 | ||
| 69220-12190G2 |
AE111,115..ZTOUR BLUISH GREEN M,2AM |
1 | ||
| 69220-12190J0 |
AE111,115..BZT,ZTOUR DK.BLUE MC.,2AL |
1 | ||
| 69220-12190G1 |
AE111,115..ZTOUR Zﾂ-ﾘﾝｸﾞﾘﾐﾃﾂﾄﾞ*(S),*(T),DK GREEN MICA,24V |
1 | ||
| 69220-12290B2 |
AE111,115..ZTOUR GRAY ME.,2DH |
1 | ||
| 69220-12290J0 |
AE111,115..ZTOUR DK.BLUE MC.,2DF |
1 | ||
| 69220-12290J2 |
AE111,115..ZTOUR BLUE M.M.,8L5 |
1 | ||
| 69220-12290C0 |
AE111,115..ZTOUR BLACK ME,2AN ,205 |
1 | ||
| 69220-12290B3 |
AE111,115..BZT,ZTOUR SILVER ME,199 |
1 | ||
| 69220-12290A0 |
AE111,115..BZT,ZTOUR SUPER WHITE 2,040 |
1 | ||
| 69241D - PAD, FRONT DOOR OUTSIDE HANDLE, RH | ||||
| 69241-12100 |
AE11# |
1 | ||
| 69241-12100 |
AE11# |
1 | ||
| 69242C - PAD, FRONT DOOR OUTSIDE HANDLE, LH | ||||
| 69242-12050 |
AE11# |
1 | ||
| 69242-12050 |
AE11# |
1 | ||
| 69293A - SNAP, FRONT DOOR OUTSIDE HANDLE | ||||
| 69293-12040 |
AE11# 左側 |
1 | ||
| 69293-12030 |
AE11# 右側 |
1 | ||
| 69293-12030 |
AE11# 右側 |
1 | ||
| 69293-12040 |
AE11# 左側 |
1 | ||
| 69310 - LOCK ASSY, FRONT DOOR, RH | ||||
| 69310-12590 |
AE11#..BZT,ROSSO,VTOUR,ZTOUR |
1 | ||
| 69320 - LOCK ASSY, FRONT DOOR, LH | ||||
| 69320-12590 |
AE11#..BZT,ROSSO,VTOUR,ZTOUR |
1 | ||
| 69410 - PLATE ASSY, FRONT DOOR LOCK STRIKER | ||||
| 69410-87001 |
AE11# |
2 | ||
| 69410-87001 |
AE11# |
2 | ||
| 69711B - LINK, FRONT DOOR LOCK REMOTE CONTROL, RH | ||||
| 69711-12170 |
AE11# |
1 | ||
| 69711-12170 |
AE11# |
1 | ||
| 69712A - LINK, FRONT DOOR LOCK REMOTE CONTROL, LH | ||||
| 69712-12180 |
AE11# |
1 | ||
| 69712-12180 |
AE11# |
1 | ||
| 69736C - GUIDE, FRONT DOOR LOCKING LINK | ||||
| 69736-12120 |
AE11# |
2 | ||
| 69736-12121 |
AE11# |
2 | ||
| 69741B - KNOB, FRONT DOOR LOCK CONTROL | ||||
| 69741-12040B0 |
AE11# SHADOW GRAY,TRIM1# |
2 | ||
| 69741-12040B0 |
AE11#..BZT,STOUR,VTOUR,ZTOUR SHADOW GRAY,TRIM1# |
2 | ||
| 69741-12040B0 |
AE111,115..ZTOUR SHADOW GRAY,TRIM16,17 |
2 | ||
| 69749 - CLAMP, FRONT DOOR LOCK LINK | ||||
| 69749-12070 |
AE11# |
2 | ||
| 69749-12070 |
AE11# |
2 | ||
| 69759 - SNAP, DOOR LOCK CONTROL LINK, NO.1 | ||||
| 69759-20040 |
AE11# ｲｴﾛｰ |
1 | ||
| 69759-20040 |
AE11# ｲｴﾛｰ |
1 | ||
| 69759-24020 |
AE11# ﾌﾞﾙｰ |
2 | ||
| 69759-20050 |
AE11# ﾌﾞﾗｳﾝ |
1 | ||
| 69759-24010 |
AE11# ﾅﾁｭﾗﾙ |
2 | ||
| 69759-20050 |
AE11# ﾌﾞﾗｳﾝ |
1 | ||
| 69759-24010 |
AE11# ﾅﾁｭﾗﾙ |
1 | ||
| 69759-24020 |
AE11# ﾌﾞﾙｰ |
1 | ||
| 69759 - SNAP, DOOR LOCK CONTROL LINK, NO.1 | ||||
| 69759-20040 |
AE11# ｲｴﾛｰ |
1 | ||
| 69759-20040 |
AE11# ｲｴﾛｰ |
1 | ||
| 69759-24020 |
AE11# ﾌﾞﾙｰ |
2 | ||
| 69759-20050 |
AE11# ﾌﾞﾗｳﾝ |
1 | ||
| 69759-24010 |
AE11# ﾅﾁｭﾗﾙ |
2 | ||
| 69759-20050 |
AE11# ﾌﾞﾗｳﾝ |
1 | ||
| 69759-24010 |
AE11# ﾅﾁｭﾗﾙ |
1 | ||
| 69759-24020 |
AE11# ﾌﾞﾙｰ |
1 | ||
| 69759 - SNAP, DOOR LOCK CONTROL LINK, NO.1 | ||||
| 69759-20040 |
AE11# ｲｴﾛｰ |
1 | ||
| 69759-20040 |
AE11# ｲｴﾛｰ |
1 | ||
| 69759-24020 |
AE11# ﾌﾞﾙｰ |
2 | ||
| 69759-20050 |
AE11# ﾌﾞﾗｳﾝ |
1 | ||
| 69759-24010 |
AE11# ﾅﾁｭﾗﾙ |
2 | ||
| 69759-20050 |
AE11# ﾌﾞﾗｳﾝ |
1 | ||
| 69759-24010 |
AE11# ﾅﾁｭﾗﾙ |
1 | ||
| 69759-24020 |
AE11# ﾌﾞﾙｰ |
1 | ||
| 69759 - SNAP, DOOR LOCK CONTROL LINK, NO.1 | ||||
| 69759-20040 |
AE11# ｲｴﾛｰ |
1 | ||
| 69759-20040 |
AE11# ｲｴﾛｰ |
1 | ||
| 69759-24020 |
AE11# ﾌﾞﾙｰ |
2 | ||
| 69759-20050 |
AE11# ﾌﾞﾗｳﾝ |
1 | ||
| 69759-24010 |
AE11# ﾅﾁｭﾗﾙ |
2 | ||
| 69759-20050 |
AE11# ﾌﾞﾗｳﾝ |
1 | ||
| 69759-24010 |
AE11# ﾅﾁｭﾗﾙ |
1 | ||
| 69759-24020 |
AE11# ﾌﾞﾙｰ |
1 | ||
| 69759S - SNAP, FRONT DOOR INSIDE HANDLE | ||||
| 69759-22040 |
AE11# 左側 |
1 | ||
| 69759-22050 |
AE11# 右側 |
1 | ||
| 69759-22040 |
AE11# 左側 |
1 | ||
| 69759-22050 |
AE11# 右側 |
1 | ||
| 69759V - SILENCER, FRONT DOOR LOCK LINK | ||||
| 69759-14010 |
AE11# 80 X 40 |
2 | ||
| 69759-20390 |
AE11# 60 X 40 |
2 | ||
| 69759-20390 |
AE11# 60 X 40 |
2 | ||
| 69759-14010 |
AE11# 80 X 40 |
2 | ||
| Common parts | ||||
| 90105-06102 | ||||
| 90151-80015 | ||||
| 90159-60542 | ||||
| 90162-50020 | ||||

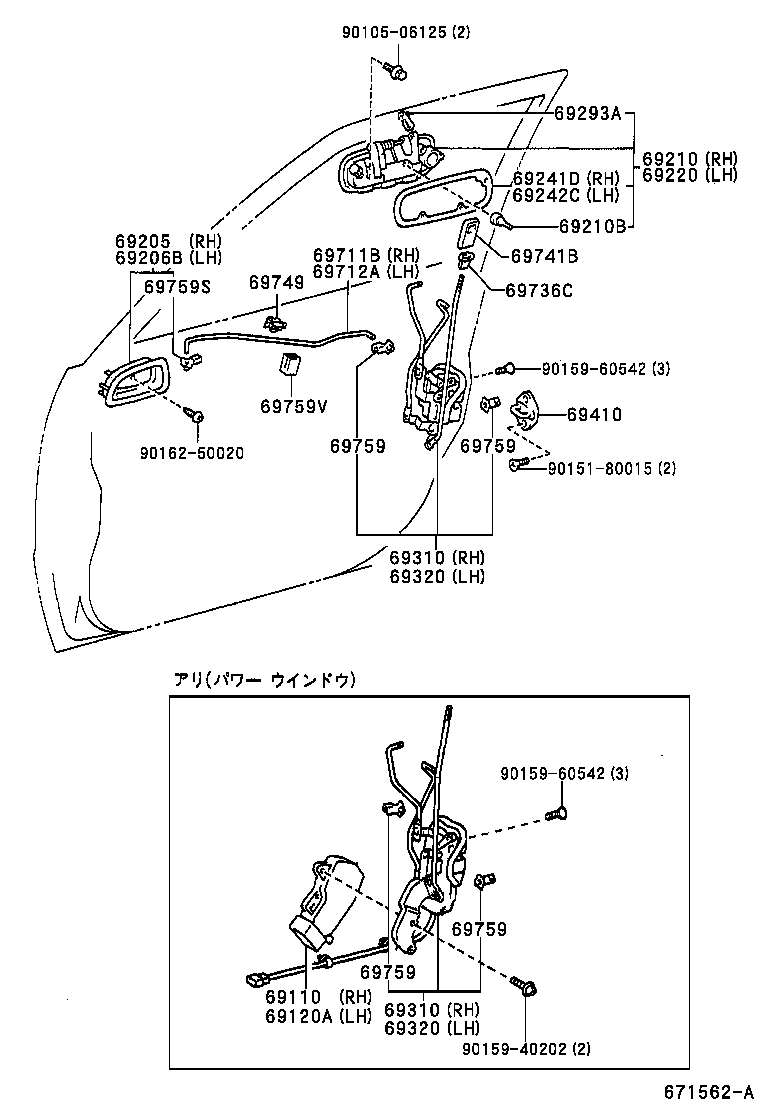

(9704- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 69110 - ACTUATOR ASSY, FRONT DOOR LOCK, RH | ||||
| 69110-12030 |
AE11# |
1 | ||
| 69120A - ACTUATOR ASSY, FRONT DOOR LOCK, LH | ||||
| 69120-12030 |
AE11# |
1 | ||
| 69205 - HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH | ||||
| 69205-12160B0 |
AE111,115..ZTOUR SHADOW GRAY,TRIM16,17 |
1 | ||
| 69205-12160B0 |
AE11# SHADOW GRAY,TRIM1# |
1 | ||
| 69205-12160B0 |
AE11#..BZT,STOUR,VTOUR,ZTOUR SHADOW GRAY,TRIM1# |
1 | ||
| 69206B - HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH | ||||
| 69206-12160B0 |
AE111,115..ZTOUR SHADOW GRAY,TRIM16,17 |
1 | ||
| 69206-12160B0 |
AE11# SHADOW GRAY,TRIM1# |
1 | ||
| 69206-12160B0 |
AE11#..BZT,STOUR,VTOUR,ZTOUR SHADOW GRAY,TRIM1# |
1 | ||
| 69210 - HANDLE ASSY, FRONT DOOR, OUTSIDE RH | ||||
| 69210-12190 |
AE11# 材料着色(黒) |
1 | ||
| 69210-12200D0 |
AE111,115..ZTOUR RED MM,2AF |
1 | ||
| 69210-12200A0 |
AE111,115..ZTOUR SUPER WHITE 2,040 |
1 | ||
| 69210-12200G2 |
AE111,115..ZTOUR BLUISH GREEN M,2AM |
1 | ||
| 69210-12290G0 |
AE111,115..ZTOUR DK.GREEN M.M.,2DE |
1 | ||
| 69210-12290C0 |
AE111,115..ZTOUR BLACK ME,2AN |
1 | ||
| 69210-12200B3 |
AE111,115..BZT,ZTOUR SILVER ME,199 |
1 | ||
| 69210-12200G1 |
AE111,115..ZTOUR Zﾂ-ﾘﾝｸﾞﾘﾐﾃﾂﾄﾞ*(S),*(T),DK GREEN MICA,24V |
1 | ||
| 69210-12200G1 |
AE111,115..ZTOUR DK GREEN MICA,6M1 |
1 | ||
| 69210-12290B2 |
AE111,115..ZTOUR GRAY ME.,2DH |
1 | ||
| 69210-12200C0 |
AE111,115..ZTOUR BLACK ME,2AN |
1 | ||
| 69210-12290G6 |
AE111,115..BZT,ZTOUR LT.GREEN ME.OP.,6P7 |
1 | ||
| 69210-12200J0 |
AE111,115..BZT,ZTOUR DK.BLUE MC.,2AL |
1 | ||
| 69210-12290D0 |
AE111,115..BZT,ZTOUR RED MM,3K4 |
1 | ||
| 69210-12290J2 |
AE111,115..ZTOUR BLUE M.M.,8L5 |
1 | ||
| 69210-12290B3 |
AE111,115..BZT,ZTOUR SILVER ME,199 |
1 | ||
| 69210-12290J0 |
AE111,115..ZTOUR DK.BLUE MC.,2DF |
1 | ||
| 69210-12290A0 |
AE111,115..BZT,ZTOUR SUPER WHITE 2,040 |
1 | ||
| 69210-12290C0 |
AE111,115..ZTOUR BLACK ME,2AN ,205 |
1 | ||
| 69210B - CUSHION(FOR FRONT DOOR OUTSIDE HANDLE) | ||||
| 90541-04018 |
AE11# |
4 | ||
| 90541-04018 |
AE11# |
4 | ||
| 69220 - HANDLE ASSY, FRONT DOOR OUTSIDE, LH | ||||
| 69220-12190C0 |
AE111,115..ZTOUR BLACK ME,2AN |
1 | ||
| 69220-12180 |
AE11# 材料着色(黒) |
1 | ||
| 69220-12190G1 |
AE111,115..ZTOUR DK GREEN MICA,6M1 |
1 | ||
| 69220-12190A0 |
AE111,115..ZTOUR SUPER WHITE 2,040 |
1 | ||
| 69220-12290G6 |
AE111,115..BZT,ZTOUR LT.GREEN ME.OP.,6P7 |
1 | ||
| 69220-12190D0 |
AE111,115..ZTOUR RED MM,2AF |
1 | ||
| 69220-12290G0 |
AE111,115..ZTOUR DK.GREEN M.M.,2DE |
1 | ||
| 69220-12290C0 |
AE111,115..ZTOUR BLACK ME,2AN |
1 | ||
| 69220-12190B3 |
AE111,115..BZT,ZTOUR SILVER ME,199 |
1 | ||
| 69220-12290D0 |
AE111,115..BZT,ZTOUR RED MM,3K4 |
1 | ||
| 69220-12190G2 |
AE111,115..ZTOUR BLUISH GREEN M,2AM |
1 | ||
| 69220-12190J0 |
AE111,115..BZT,ZTOUR DK.BLUE MC.,2AL |
1 | ||
| 69220-12190G1 |
AE111,115..ZTOUR Zﾂ-ﾘﾝｸﾞﾘﾐﾃﾂﾄﾞ*(S),*(T),DK GREEN MICA,24V |
1 | ||
| 69220-12290B2 |
AE111,115..ZTOUR GRAY ME.,2DH |
1 | ||
| 69220-12290J0 |
AE111,115..ZTOUR DK.BLUE MC.,2DF |
1 | ||
| 69220-12290J2 |
AE111,115..ZTOUR BLUE M.M.,8L5 |
1 | ||
| 69220-12290C0 |
AE111,115..ZTOUR BLACK ME,2AN ,205 |
1 | ||
| 69220-12290B3 |
AE111,115..BZT,ZTOUR SILVER ME,199 |
1 | ||
| 69220-12290A0 |
AE111,115..BZT,ZTOUR SUPER WHITE 2,040 |
1 | ||
| 69241D - PAD, FRONT DOOR OUTSIDE HANDLE, RH | ||||
| 69241-12100 |
AE11# |
1 | ||
| 69241-12100 |
AE11# |
1 | ||
| 69242C - PAD, FRONT DOOR OUTSIDE HANDLE, LH | ||||
| 69242-12050 |
AE11# |
1 | ||
| 69242-12050 |
AE11# |
1 | ||
| 69293A - SNAP, FRONT DOOR OUTSIDE HANDLE | ||||
| 69293-12040 |
AE11# 左側 |
1 | ||
| 69293-12030 |
AE11# 右側 |
1 | ||
| 69293-12030 |
AE11# 右側 |
1 | ||
| 69293-12040 |
AE11# 左側 |
1 | ||
| 69310 - LOCK ASSY, FRONT DOOR, RH | ||||
| 69310-12590 |
AE11#..BZT,ROSSO,VTOUR,ZTOUR |
1 | ||
| 69310 - LOCK ASSY, FRONT DOOR, RH | ||||
| 69310-12590 |
AE11#..BZT,ROSSO,VTOUR,ZTOUR |
1 | ||
| 69320 - LOCK ASSY, FRONT DOOR, LH | ||||
| 69320-12590 |
AE11#..BZT,ROSSO,VTOUR,ZTOUR |
1 | ||
| 69320 - LOCK ASSY, FRONT DOOR, LH | ||||
| 69320-12590 |
AE11#..BZT,ROSSO,VTOUR,ZTOUR |
1 | ||
| 69410 - PLATE ASSY, FRONT DOOR LOCK STRIKER | ||||
| 69410-87001 |
AE11# |
2 | ||
| 69410-87001 |
AE11# |
2 | ||
| 69711B - LINK, FRONT DOOR LOCK REMOTE CONTROL, RH | ||||
| 69711-12170 |
AE11# |
1 | ||
| 69711-12170 |
AE11# |
1 | ||
| 69712A - LINK, FRONT DOOR LOCK REMOTE CONTROL, LH | ||||
| 69712-12180 |
AE11# |
1 | ||
| 69712-12180 |
AE11# |
1 | ||
| 69736C - GUIDE, FRONT DOOR LOCKING LINK | ||||
| 69736-12120 |
AE11# |
2 | ||
| 69736-12121 |
AE11# |
2 | ||
| 69741B - KNOB, FRONT DOOR LOCK CONTROL | ||||
| 69741-12040B0 |
AE11# SHADOW GRAY,TRIM1# |
2 | ||
| 69741-12040B0 |
AE11#..BZT,STOUR,VTOUR,ZTOUR SHADOW GRAY,TRIM1# |
2 | ||
| 69741-12040B0 |
AE111,115..ZTOUR SHADOW GRAY,TRIM16,17 |
2 | ||
| 69749 - CLAMP, FRONT DOOR LOCK LINK | ||||
| 69749-12070 |
AE11# |
2 | ||
| 69749-12070 |
AE11# |
2 | ||
| 69759 - SNAP, DOOR LOCK CONTROL LINK, NO.1 | ||||
| 69759-20040 |
AE11# ｲｴﾛｰ |
1 | ||
| 69759-20040 |
AE11# ｲｴﾛｰ |
1 | ||
| 69759-24020 |
AE11# ﾌﾞﾙｰ |
2 | ||
| 69759-20050 |
AE11# ﾌﾞﾗｳﾝ |
1 | ||
| 69759-24010 |
AE11# ﾅﾁｭﾗﾙ |
2 | ||
| 69759-20050 |
AE11# ﾌﾞﾗｳﾝ |
1 | ||
| 69759-24010 |
AE11# ﾅﾁｭﾗﾙ |
1 | ||
| 69759-24020 |
AE11# ﾌﾞﾙｰ |
1 | ||
| 69759 - SNAP, DOOR LOCK CONTROL LINK, NO.1 | ||||
| 69759-20040 |
AE11# ｲｴﾛｰ |
1 | ||
| 69759-20040 |
AE11# ｲｴﾛｰ |
1 | ||
| 69759-24020 |
AE11# ﾌﾞﾙｰ |
2 | ||
| 69759-20050 |
AE11# ﾌﾞﾗｳﾝ |
1 | ||
| 69759-24010 |
AE11# ﾅﾁｭﾗﾙ |
2 | ||
| 69759-20050 |
AE11# ﾌﾞﾗｳﾝ |
1 | ||
| 69759-24010 |
AE11# ﾅﾁｭﾗﾙ |
1 | ||
| 69759-24020 |
AE11# ﾌﾞﾙｰ |
1 | ||
| 69759 - SNAP, DOOR LOCK CONTROL LINK, NO.1 | ||||
| 69759-20040 |
AE11# ｲｴﾛｰ |
1 | ||
| 69759-20040 |
AE11# ｲｴﾛｰ |
1 | ||
| 69759-24020 |
AE11# ﾌﾞﾙｰ |
2 | ||
| 69759-20050 |
AE11# ﾌﾞﾗｳﾝ |
1 | ||
| 69759-24010 |
AE11# ﾅﾁｭﾗﾙ |
2 | ||
| 69759-20050 |
AE11# ﾌﾞﾗｳﾝ |
1 | ||
| 69759-24010 |
AE11# ﾅﾁｭﾗﾙ |
1 | ||
| 69759-24020 |
AE11# ﾌﾞﾙｰ |
1 | ||
| 69759 - SNAP, DOOR LOCK CONTROL LINK, NO.1 | ||||
| 69759-20040 |
AE11# ｲｴﾛｰ |
1 | ||
| 69759-20040 |
AE11# ｲｴﾛｰ |
1 | ||
| 69759-24020 |
AE11# ﾌﾞﾙｰ |
2 | ||
| 69759-20050 |
AE11# ﾌﾞﾗｳﾝ |
1 | ||
| 69759-24010 |
AE11# ﾅﾁｭﾗﾙ |
2 | ||
| 69759-20050 |
AE11# ﾌﾞﾗｳﾝ |
1 | ||
| 69759-24010 |
AE11# ﾅﾁｭﾗﾙ |
1 | ||
| 69759-24020 |
AE11# ﾌﾞﾙｰ |
1 | ||
| 69759S - SNAP, FRONT DOOR INSIDE HANDLE | ||||
| 69759-22040 |
AE11# 左側 |
1 | ||
| 69759-22050 |
AE11# 右側 |
1 | ||
| 69759-22040 |
AE11# 左側 |
1 | ||
| 69759-22050 |
AE11# 右側 |
1 | ||
| 69759V - SILENCER, FRONT DOOR LOCK LINK | ||||
| 69759-14010 |
AE11# 80 X 40 |
2 | ||
| 69759-20390 |
AE11# 60 X 40 |
2 | ||
| 69759-20390 |
AE11# 60 X 40 |
2 | ||
| 69759-14010 |
AE11# 80 X 40 |
2 | ||
| Common parts | ||||
| 90105-06125 | ||||
| 90151-80015 | ||||
| 90159-40202 | ||||
| 90159-60542 | ||||
| 90162-50020 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
