AE111G-CWMGK (1996)
Toyota Sprinter Carib
Production
May 1996
-
Jul 2002
Engine
4AFE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(9508-9704)

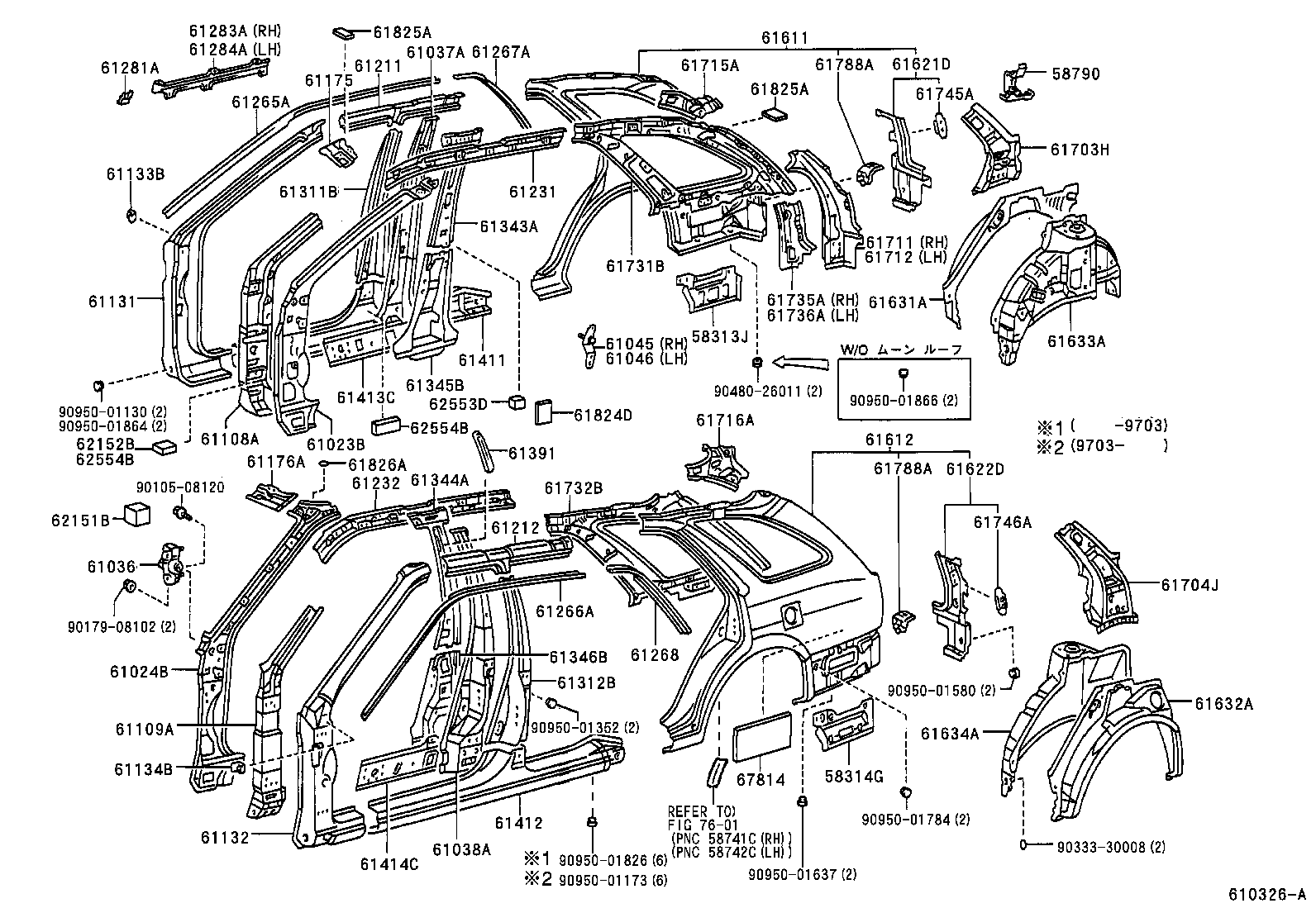

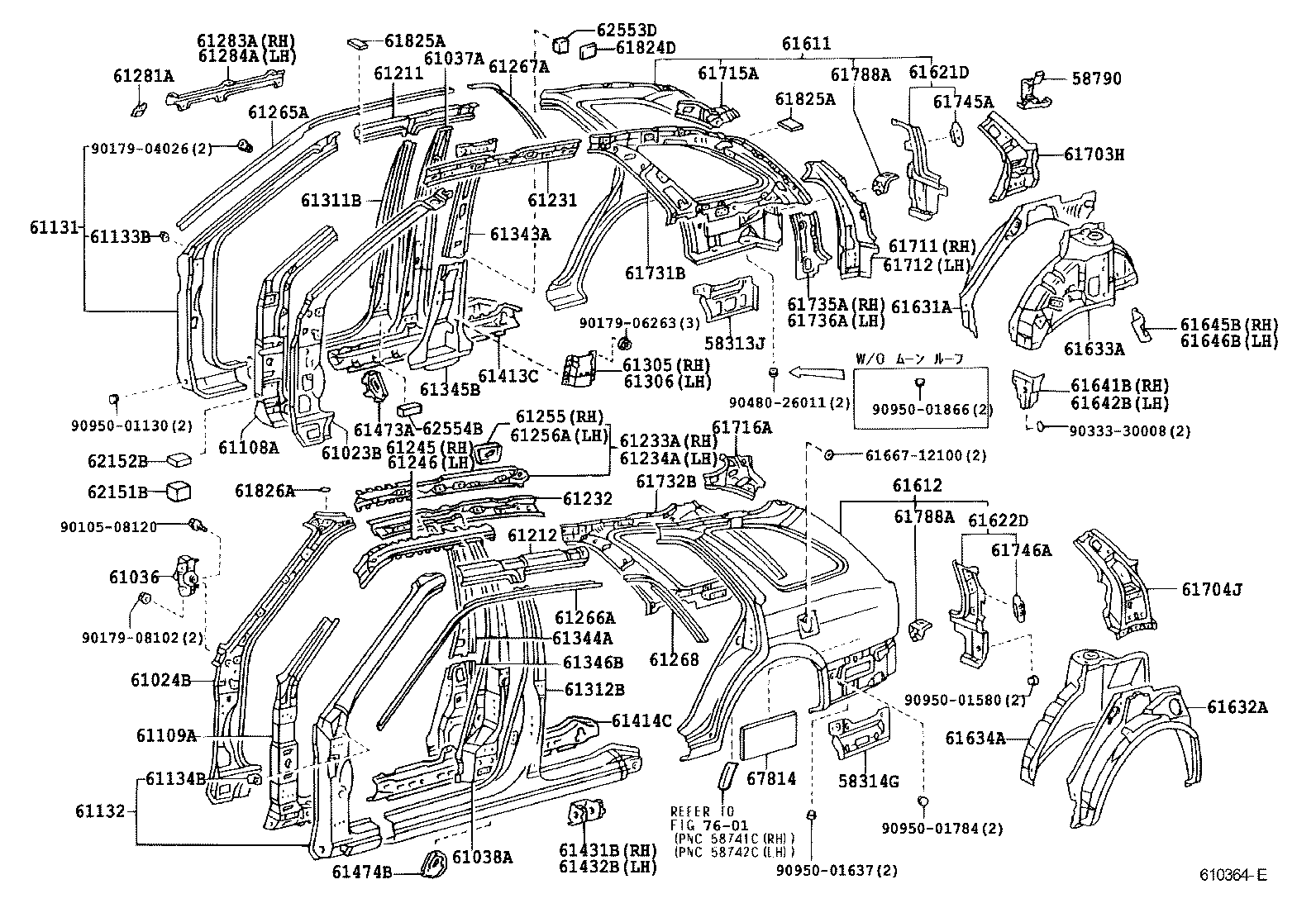

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58313J - EXTENSION, REAR FLOOR PAN TO QUARTER PANEL, RH | ||||
| 58313-13130 |
AE11# |
1 | ||
| 58313-13130 |
AE11# |
1 | ||
| 58314G - EXTENSION, REAR FLOOR PAN TO QUARTER PANEL, LH | ||||
| 58314-13120 |
AE11# |
1 | ||
| 58314-13120 |
AE11# |
1 | ||
| 58790 - CARRIER ASSY, JACK | ||||
| 58791-13080 |
AE11# |
1 | ||
| 58791-13080 |
AE11# |
1 | ||
| 61023B - PILLAR SUB-ASSY, FRONT BODY, INNER RH | ||||
| 61023-12090 |
AE11# |
1 | ||
| 61023-12230 |
AE11# |
1 | ||
| 61024B - PILLAR SUB-ASSY, FRONT BODY, INNER LH | ||||
| 61024-12090 |
AE11# |
1 | ||
| 61024-12230 |
AE11# |
1 | ||
| 61036 - BRACKET SUB-ASSY, INSTRUMENT PANEL TO COWL SIDE, LH | ||||
| 61036-12070 |
AE11# |
1 | ||
| 61036-12070 |
AE11# |
1 | ||
| 61037A - REINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, RH | ||||
| 61037-12100 |
AE11# |
1 | ||
| 61037-12901 |
AE11# |
1 | ||
| 61038A - REINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, LH | ||||
| 61038-12901 |
AE11# |
1 | ||
| 61038-12100 |
AE11# |
1 | ||
| 61045 - REINFORCE SUB-ASSY, BELT TO CENTER PILLAR, RH | ||||
| 61045-12070 |
AE11# |
1 | ||
| 61045-12070 |
AE11#..4FC,5F |
1 | ||
| 61046 - REINFORCE SUB-ASSY, BELT TO CENTER PILLAR, LH | ||||
| 61046-12070 |
AE11#..4FC,5F |
1 | ||
| 61046-12070 |
AE11# |
1 | ||
| 61108A - REINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH | ||||
| 61108-12160 |
AE11# |
1 | ||
| 61108-12180 |
AE11# |
1 | ||
| 61109A - REINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER LH | ||||
| 61109-12150 |
AE11# |
1 | ||
| 61109-12170 |
AE11# |
1 | ||
| 61131 - PILLAR, FRONT BODY, UPPER OUTER RH | ||||
| 61131-12570 |
AE11# |
1 | ||
| 61131-12500 |
AE11# |
1 | ||
| 61131-12450 |
AE11# |
1 | ||
| 61132 - PILLAR, FRONT BODY, UPPER OUTER LH | ||||
| 61132-12510 |
AE11# |
1 | ||
| 61132-12580 |
AE11# |
1 | ||
| 61132-12450 |
AE11# |
1 | ||
| 61133B - BRACKET, FRONT BODY PILLAR ,OUTER RH | ||||
| 61133-12190 |
AE11# |
1 | ||
| 61133-12190 |
AE11#..BZT,STOUR,VTOUR,ZTOUR |
1 | ||
| 61134B - BRACKET, FRONT BODY PILLAR OUTER, LH | ||||
| 61133-12190 |
AE11#..BZT,STOUR,VTOUR,ZTOUR |
1 | ||
| 61133-12190 |
AE11# |
1 | ||
| 61175 - REINFORCEMENT, FRONT BODY PILLAR, INNER NO.2 RH | ||||
| 61175-12110 |
AE11# |
1 | ||
| 61175-12110 |
AE11#..4FC,5F |
1 | ||
| 61176A - REINFORCEMENT, FRONT BODY PILLAR, INNER NO.2 LH | ||||
| 61176-12120 |
AE11#..4FC,5F |
1 | ||
| 61176-12120 |
AE11# |
1 | ||
| 61211 - RAIL, ROOF SIDE, OUTER RH | ||||
| 61211-12350 |
AE11# |
1 | ||
| 61211-12350 |
AE11# |
1 | ||
| 61212 - RAIL, ROOF SIDE, OUTER LH | ||||
| 61212-12350 |
AE11# |
1 | ||
| 61212-12350 |
AE11# |
1 | ||
| 61231 - RAIL, ROOF SIDE, INNER RH | ||||
| 61231-1A040 |
AE11# |
1 | ||
| 61231-12840 |
AE11# |
1 | ||
| 61232 - RAIL, ROOF SIDE, INNER LH | ||||
| 61232-12720 |
AE11# |
1 | ||
| 61232-12810 |
AE11# |
1 | ||
| 61265A - CHANNEL, ROOF DRIP SIDE, CENTER RH | ||||
| 61265-12230 |
AE11# |
1 | ||
| 61265-12230 |
AE11# |
1 | ||
| 61266A - CHANNEL, ROOF DRIP SIDE, CENTER LH | ||||
| 61266-12230 |
AE11# |
1 | ||
| 61266-12230 |
AE11# |
1 | ||
| 61267A - CHANNEL, ROOF DRIP SIDE, REAR RH | ||||
| 61267-13050 |
AE11# |
1 | ||
| 61267-13050 |
AE11# |
1 | ||
| 61268 - CHANNEL, ROOF DRIP SIDE, REAR LH | ||||
| 61268-13050 |
AE11# |
1 | ||
| 61268-13050 |
AE11# |
1 | ||
| 61281A - BRACKET, SLIDING ROOF HOUSING SIDE MOUNTING, NO.1 | ||||
| 61281-13010 |
AE11# |
2 | ||
| 61281-13010 |
AE11# |
2 | ||
| 61283A - BRACKET, SLIDING ROOF HOUSING SIDE MOUNTING, NO.3 RH | ||||
| 61283-13010 |
AE11# |
1 | ||
| 61283-13030 |
AE11# |
1 | ||
| 61284A - BRACKET, SLIDING ROOF HOUSING SIDE MOUNTING, NO.3 LH | ||||
| 61284-13010 |
AE11# |
1 | ||
| 61284-13020 |
AE11# |
1 | ||
| 61311B - PILLAR, CENTER BODY, OUTER RH | ||||
| 61311-12300 |
AE11#..BZT,STOUR,VTOUR,ZTOUR ｱﾘ(ｻｲﾄﾞ ﾏﾂﾄﾞｶﾞ-ﾄﾞ) |
1 | ||
| 61311-12290 |
AE11#..ROSSO,STOUR,VTOUR,ZTOUR |
1 | ||
| 61311-12310 |
AE11#..ROSSO,STOUR,ZTOUR |
1 | ||
| 61311-12300 |
AE11#..BZT,STOUR,ZTOUR ｱﾘ(ｻｲﾄﾞ ﾏﾂﾄﾞｶﾞ-ﾄﾞ) |
1 | ||
| 61311-12320 |
AE11#..BZT,STOUR,ZTOUR ｱﾘ(ｻｲﾄﾞ ﾏﾂﾄﾞｶﾞ-ﾄﾞ) |
1 | ||
| 61311-12240 |
AE11# |
1 | ||
| 61312B - PILLAR, CENTER BODY, OUTER LH | ||||
| 61312-12280 |
AE11# |
1 | ||
| 61312-12340 |
AE11#..BZT,STOUR,VTOUR,ZTOUR ｱﾘ(ｻｲﾄﾞ ﾏﾂﾄﾞｶﾞ-ﾄﾞ) |
1 | ||
| 61312-12350 |
AE11#..ROSSO,STOUR,ZTOUR |
1 | ||
| 61312-12360 |
AE11#..BZT,STOUR,ZTOUR ｱﾘ(ｻｲﾄﾞ ﾏﾂﾄﾞｶﾞ-ﾄﾞ) |
1 | ||
| 61312-12340 |
AE11#..BZT,STOUR,ZTOUR ｱﾘ(ｻｲﾄﾞ ﾏﾂﾄﾞｶﾞ-ﾄﾞ) |
1 | ||
| 61312-12330 |
AE11#..ROSSO,STOUR,VTOUR,ZTOUR |
1 | ||
| 61343A - PILLAR, CENTER BODY, INNER RH | ||||
| 61343-12120 |
AE11# |
1 | ||
| 61343-12160 |
AE11# |
1 | ||
| 61344A - PILLAR, CENTER BODY, INNER LH | ||||
| 61344-12160 |
AE11# |
1 | ||
| 61344-12120 |
AE11# |
1 | ||
| 61345B - PILLAR, CENTER BODY, INNER LOWER RH | ||||
| 61345-12040 |
AE11# |
1 | ||
| 61345-12030 |
AE11# |
1 | ||
| 61346B - PILLAR, CENTER BODY, INNER LOWER LH | ||||
| 61346-12040 |
AE11# |
1 | ||
| 61346-12030 |
AE11# |
1 | ||
| 61391 - SPACER, CENTER BODY PILLAR, INNER | ||||
| 61391-12010 |
AE11#..4FC,5F |
2 | ||
| 61391-12010 |
AE11# |
2 | ||
| 61411 - PANEL, ROCKER, OUTER RH | ||||
| 61411-12590 |
AE11# |
1 | ||
| 61411-12590 |
AE11#..4FC,5F |
1 | ||
| 61412 - PANEL, ROCKER, OUTER LH | ||||
| 61412-12580 |
AE11#..4FC,5F |
1 | ||
| 61412-12580 |
AE11# |
1 | ||
| 61413C - REINFORCEMENT, ROCKER PANEL, NO.2 RH | ||||
| 61413-12900 |
AE11# |
1 | ||
| 61413-12080 |
AE11# |
1 | ||
| 61414C - REINFORCEMENT, ROCKER PANEL, NO.2 LH | ||||
| 61414-12100 |
AE11# |
1 | ||
| 61414-12900 |
AE11# |
1 | ||
| 61611 - PANEL, QUARTER, RH | ||||
| 61601-13430 |
AE11# |
1 | ||
| 61601-13430 |
AE11# |
1 | ||
| 61612 - PANEL, QUARTER, LH | ||||
| 61602-13510 |
AE11# |
1 | ||
| 61602-13510 |
AE11# |
1 | ||
| 61621D - TROUGH, BACK DOOR OPENING, RH | ||||
| 61703-13020 |
AE11# |
1 | ||
| 61703-13020 |
AE11# |
1 | ||
| 61622D - TROUGH, BACK DOOR OPENING, LH | ||||
| 61704-13030 |
AE11# |
1 | ||
| 61704-13030 |
AE11# |
1 | ||
| 61631A - PANEL, QUARTER WHEEL HOUSE, OUTER RH | ||||
| 61631-13090 |
AE11# |
1 | ||
| 61631-13090 |
AE11# |
1 | ||
| 61632A - PANEL, QUARTER WHEEL HOUSE, OUTER LH | ||||
| 61632-13080 |
AE11# |
1 | ||
| 61632-13080 |
AE11# |
1 | ||
| 61633A - PANEL, QUARTER WHEEL HOUSE, INNER RH | ||||
| 61607-13220 |
AE11# |
1 | ||
| 61607-13180 |
AE111 |
1 | ||
| 61634A - PANEL, QUARTER WHEEL HOUSE, INNER LH | ||||
| 61608-13210 |
AE11# |
1 | ||
| 61608-13180 |
AE111 |
1 | ||
| 61703H - REINFORCEMENT SUB-ASSY, ROOF SIDE, INNER RH | ||||
| 61703-13030 |
AE11# |
1 | ||
| 61703-13010 |
AE11# |
1 | ||
| 61704J - REINFORCEMENT SUB-ASSY, ROOF SIDE, INNER LH | ||||
| 61704-13040 |
AE11# |
1 | ||
| 61704-13020 |
AE11# |
1 | ||
| 61711 - PANEL, ROOF SIDE, OUTER RH | ||||
| 61711-13100 |
AE11# |
1 | ||
| 61711-13100 |
AE11# |
1 | ||
| 61712 - PANEL, ROOF SIDE, OUTER LH | ||||
| 61712-13100 |
AE11# |
1 | ||
| 61712-13100 |
AE11# |
1 | ||
| 61715A - EXTENSION, ROOF SIDE, INNER UPPER RH | ||||
| 61715-13030 |
AE11# |
1 | ||
| 61715-13030 |
AE11# |
1 | ||
| 61716A - EXTENSION, ROOF SIDE, INNER UPPER LH | ||||
| 61716-13020 |
AE11# |
1 | ||
| 61716-13020 |
AE11# |
1 | ||
| 61731B - PANEL, ROOF SIDE, INNER RH | ||||
| 61707-13070 |
AE11# |
1 | ||
| 61707-13110 |
AE11# |
1 | ||
| 61732B - PANEL, ROOF SIDE, INNER LH | ||||
| 61708-13090 |
AE11# |
1 | ||
| 61708-13050 |
AE11# |
1 | ||
| 61735A - PANEL, ROOF SIDE, INNER REAR RH | ||||
| 61735-13080 |
AE11# |
1 | ||
| 61735-13080 |
AE11# |
1 | ||
| 61736A - PANEL, ROOF SIDE, INNER REAR LH | ||||
| 61736-13080 |
AE11# |
1 | ||
| 61736-13080 |
AE11# |
1 | ||
| 61745A - REINFORCEMENT, BACK DOOR OPENING, LOWER RH | ||||
| 61745-32010 |
AE11# |
1 | ||
| 61745-32010 |
AE11# |
2 | ||
| 61746A - REINFORCEMENT, BACK DOOR OPENING, LOWER LH | ||||
| 61745-32010 |
AE11# |
1 | ||
| 61745-32010 |
AE11#..BZT,STOUR,VTOUR,ZTOUR |
1 | ||
| 61788A - BRACKET, REAR BUMPER SIDE, NO.2 RH | ||||
| 61788-13010 |
AE11# |
2 | ||
| 61788-13010 |
AE11# |
1 | ||
| 61788A - BRACKET, REAR BUMPER SIDE, NO.2 RH | ||||
| 61788-13010 |
AE11# |
2 | ||
| 61788-13010 |
AE11# |
1 | ||
| 61824D - PLATE, NOISE CONTROL, NO.1 | ||||
| 61824-50020 |
AE11# |
2 | ||
| 61824-50020 |
AE11# |
2 | ||
| 61825A - PLATE, NOISE CONTROL, NO.2 | ||||
| 61815-32020 |
AE11# ﾌﾛﾝﾄ |
2 | ||
| 63345-12010 |
AE11# ｱﾘ(ﾑ-ﾝﾙ-ﾌ) |
2 | ||
| 61825-12010 |
AE11# |
2 | ||
| 61825-12010 |
AE11# ﾘﾔ |
2 | ||
| 61815-32020 |
AE11#..4FC,5F ﾌﾛﾝﾄ |
2 | ||
| 61825A - PLATE, NOISE CONTROL, NO.2 | ||||
| 61815-32020 |
AE11# ﾌﾛﾝﾄ |
2 | ||
| 63345-12010 |
AE11# ｱﾘ(ﾑ-ﾝﾙ-ﾌ) |
2 | ||
| 61825-12010 |
AE11# |
2 | ||
| 61825-12010 |
AE11# ﾘﾔ |
2 | ||
| 61815-32020 |
AE11#..4FC,5F ﾌﾛﾝﾄ |
2 | ||
| 61826A - PLATE, NOISE CONTROL, NO.3 | ||||
| 61824-12050 |
AE11# 厚さ=0.3 |
2 | ||
| 61824-12040 |
AE11# 厚さ=0.8 |
2 | ||
| 61824-12040 |
AE11# |
2 | ||
| 62151B - PAD, COWL SIDE SILENCER | ||||
| 62151-12130 |
AE11# |
2 | ||
| 62151-12130 |
AE11#..4FC,5F |
2 | ||
| 62152B - PAD, COWL SIDE SILENCER, NO.2 | ||||
| 62554-12130 |
AE11#..4FC,5F 80 X 180 |
2 | ||
| 62152-12050 |
AE11# 90 X 140 |
2 | ||
| 62554-12130 |
AE11# 80 X 180 |
2 | ||
| 62152-12050 |
AE11# 90 X 140 |
2 | ||
| 62554-12160 |
AE11# 70 X 150 |
2 | ||
| 62553D - PAD, PILLAR, NO.3 | ||||
| 62553-12120 |
AE11# |
4 | ||
| 62553-12120 |
AE11# |
2 | ||
| 62554B - PAD, PILLAR, NO.4 | ||||
| 62554-12130 |
AE11# |
2 | ||
| 62554-12160 |
AE11# |
2 | ||
| 62554B - PAD, PILLAR, NO.4 | ||||
| 62554-12130 |
AE11# |
2 | ||
| 62554-12160 |
AE11# |
2 | ||
| 67814 - PAD, QUARTER PANEL SILENCER, NO.2 | ||||
| 67814-13010 |
AE11# |
1 | ||
| 67814-13010 |
AE11# |
1 | ||
| Common parts | ||||
| 90105-08120 | ||||
| 90179-08102 | ||||
| 90333-30008 | ||||
| 90480-26011 | ||||
| 90950-01130 | ||||
| 90950-01173 | ||||
| 90950-01352 | ||||
| 90950-01580 | ||||
| 90950-01637 | ||||
| 90950-01784 | ||||
| 90950-01826 | ||||
| 90950-01864 | ||||
| 90950-01866 | ||||
| Linked diagrams | ||||
| 7601 | ||||
(9704- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58313J - EXTENSION, REAR FLOOR PAN TO QUARTER PANEL, RH | ||||
| 58313-13130 |
AE11# |
1 | ||
| 58313-13130 |
AE11# |
1 | ||
| 58314G - EXTENSION, REAR FLOOR PAN TO QUARTER PANEL, LH | ||||
| 58314-13120 |
AE11# |
1 | ||
| 58314-13120 |
AE11# |
1 | ||
| 58790 - CARRIER ASSY, JACK | ||||
| 58791-13080 |
AE11# |
1 | ||
| 58791-13080 |
AE11# |
1 | ||
| 61023B - PILLAR SUB-ASSY, FRONT BODY, INNER RH | ||||
| 61023-12090 |
AE11# |
1 | ||
| 61023-12230 |
AE11# |
1 | ||
| 61024B - PILLAR SUB-ASSY, FRONT BODY, INNER LH | ||||
| 61024-12090 |
AE11# |
1 | ||
| 61024-12230 |
AE11# |
1 | ||
| 61036 - BRACKET SUB-ASSY, INSTRUMENT PANEL TO COWL SIDE, LH | ||||
| 61036-12070 |
AE11# |
1 | ||
| 61036-12070 |
AE11# |
1 | ||
| 61037A - REINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, RH | ||||
| 61037-12100 |
AE11# |
1 | ||
| 61037-12901 |
AE11# |
1 | ||
| 61038A - REINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, LH | ||||
| 61038-12901 |
AE11# |
1 | ||
| 61038-12100 |
AE11# |
1 | ||
| 61108A - REINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH | ||||
| 61108-12160 |
AE11# |
1 | ||
| 61108-12180 |
AE11# |
1 | ||
| 61109A - REINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER LH | ||||
| 61109-12150 |
AE11# |
1 | ||
| 61109-12170 |
AE11# |
1 | ||
| 61131 - PILLAR, FRONT BODY, UPPER OUTER RH | ||||
| 61131-12570 |
AE11# |
1 | ||
| 61131-12500 |
AE11# |
1 | ||
| 61131-12450 |
AE11# |
1 | ||
| 61132 - PILLAR, FRONT BODY, UPPER OUTER LH | ||||
| 61132-12510 |
AE11# |
1 | ||
| 61132-12580 |
AE11# |
1 | ||
| 61132-12450 |
AE11# |
1 | ||
| 61133B - BRACKET, FRONT BODY PILLAR ,OUTER RH | ||||
| 61133-12190 |
AE11# |
1 | ||
| 61133-12190 |
AE11#..BZT,STOUR,VTOUR,ZTOUR |
1 | ||
| 61134B - BRACKET, FRONT BODY PILLAR OUTER, LH | ||||
| 61133-12190 |
AE11#..BZT,STOUR,VTOUR,ZTOUR |
1 | ||
| 61133-12190 |
AE11# |
1 | ||
| 61211 - RAIL, ROOF SIDE, OUTER RH | ||||
| 61211-12350 |
AE11# |
1 | ||
| 61211-12350 |
AE11# |
1 | ||
| 61212 - RAIL, ROOF SIDE, OUTER LH | ||||
| 61212-12350 |
AE11# |
1 | ||
| 61212-12350 |
AE11# |
1 | ||
| 61231 - RAIL, ROOF SIDE, INNER RH | ||||
| 61231-1A040 |
AE11# |
1 | ||
| 61231-12840 |
AE11# |
1 | ||
| 61232 - RAIL, ROOF SIDE, INNER LH | ||||
| 61232-12720 |
AE11# |
1 | ||
| 61232-12810 |
AE11# |
1 | ||
| 61233A - RAIL, ROOF SIDE, INNER NO.2 RH | ||||
| 61207-13020 |
AE11# ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ & ﾙ-ﾌ ﾚ-ﾙ) |
1 | ||
| 61234A - RAIL, ROOF SIDE, INNER NO.2 LH | ||||
| 61208-13020 |
AE11# ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ & ﾙ-ﾌ ﾚ-ﾙ) |
1 | ||
| 61245 - REINFORCEMENT, ROOF SIDE RAIL, OUTER RH | ||||
| 61245-13020 |
AE11# |
1 | ||
| 61246 - REINFORCEMENT, ROOF SIDE RAIL, OUTER LH | ||||
| 61246-13020 |
AE11# |
1 | ||
| 61265A - CHANNEL, ROOF DRIP SIDE, CENTER RH | ||||
| 61265-12230 |
AE11# |
1 | ||
| 61265-12230 |
AE11# |
1 | ||
| 61266A - CHANNEL, ROOF DRIP SIDE, CENTER LH | ||||
| 61266-12230 |
AE11# |
1 | ||
| 61266-12230 |
AE11# |
1 | ||
| 61267A - CHANNEL, ROOF DRIP SIDE, REAR RH | ||||
| 61267-13050 |
AE11# |
1 | ||
| 61267-13050 |
AE11# |
1 | ||
| 61268 - CHANNEL, ROOF DRIP SIDE, REAR LH | ||||
| 61268-13050 |
AE11# |
1 | ||
| 61268-13050 |
AE11# |
1 | ||
| 61281A - BRACKET, SLIDING ROOF HOUSING SIDE MOUNTING, NO.1 | ||||
| 61281-13010 |
AE11# |
2 | ||
| 61281-13010 |
AE11# |
2 | ||
| 61283A - BRACKET, SLIDING ROOF HOUSING SIDE MOUNTING, NO.3 RH | ||||
| 61283-13010 |
AE11# |
1 | ||
| 61283-13030 |
AE11# |
1 | ||
| 61284A - BRACKET, SLIDING ROOF HOUSING SIDE MOUNTING, NO.3 LH | ||||
| 61284-13010 |
AE11# |
1 | ||
| 61284-13020 |
AE11# |
1 | ||
| 61305 - REINFORCE SUB-ASSY, CENTER BODY PILLAR, LOWER RH | ||||
| 61305-12130 |
AE11# |
1 | ||
| 61306 - REINFORCE SUB-ASSY, CENTER BODY PILLAR, LOWER LH | ||||
| 61306-12130 |
AE11# |
1 | ||
| 61311B - PILLAR, CENTER BODY, OUTER RH | ||||
| 61311-12300 |
AE11#..BZT,STOUR,VTOUR,ZTOUR ｱﾘ(ｻｲﾄﾞ ﾏﾂﾄﾞｶﾞ-ﾄﾞ) |
1 | ||
| 61311-12290 |
AE11#..ROSSO,STOUR,VTOUR,ZTOUR |
1 | ||
| 61311-12310 |
AE11#..ROSSO,STOUR,ZTOUR |
1 | ||
| 61311-12300 |
AE11#..BZT,STOUR,ZTOUR ｱﾘ(ｻｲﾄﾞ ﾏﾂﾄﾞｶﾞ-ﾄﾞ) |
1 | ||
| 61311-12320 |
AE11#..BZT,STOUR,ZTOUR ｱﾘ(ｻｲﾄﾞ ﾏﾂﾄﾞｶﾞ-ﾄﾞ) |
1 | ||
| 61311-12240 |
AE11# |
1 | ||
| 61312B - PILLAR, CENTER BODY, OUTER LH | ||||
| 61312-12280 |
AE11# |
1 | ||
| 61312-12340 |
AE11#..BZT,STOUR,VTOUR,ZTOUR ｱﾘ(ｻｲﾄﾞ ﾏﾂﾄﾞｶﾞ-ﾄﾞ) |
1 | ||
| 61312-12350 |
AE11#..ROSSO,STOUR,ZTOUR |
1 | ||
| 61312-12360 |
AE11#..BZT,STOUR,ZTOUR ｱﾘ(ｻｲﾄﾞ ﾏﾂﾄﾞｶﾞ-ﾄﾞ) |
1 | ||
| 61312-12340 |
AE11#..BZT,STOUR,ZTOUR ｱﾘ(ｻｲﾄﾞ ﾏﾂﾄﾞｶﾞ-ﾄﾞ) |
1 | ||
| 61312-12330 |
AE11#..ROSSO,STOUR,VTOUR,ZTOUR |
1 | ||
| 61343A - PILLAR, CENTER BODY, INNER RH | ||||
| 61343-12120 |
AE11# |
1 | ||
| 61343-12160 |
AE11# |
1 | ||
| 61344A - PILLAR, CENTER BODY, INNER LH | ||||
| 61344-12160 |
AE11# |
1 | ||
| 61344-12120 |
AE11# |
1 | ||
| 61345B - PILLAR, CENTER BODY, INNER LOWER RH | ||||
| 61345-12040 |
AE11# |
1 | ||
| 61345-12030 |
AE11# |
1 | ||
| 61346B - PILLAR, CENTER BODY, INNER LOWER LH | ||||
| 61346-12040 |
AE11# |
1 | ||
| 61346-12030 |
AE11# |
1 | ||
| 61413C - REINFORCEMENT, ROCKER PANEL, NO.2 RH | ||||
| 61413-12900 |
AE11# |
1 | ||
| 61413-12080 |
AE11# |
1 | ||
| 61414C - REINFORCEMENT, ROCKER PANEL, NO.2 LH | ||||
| 61414-12100 |
AE11# |
1 | ||
| 61414-12900 |
AE11# |
1 | ||
| 61431B - REINFORCEMENT, ROCKER PANEL, NO.6 RH | ||||
| 61431-12010 |
AE11# |
1 | ||
| 61432B - REINFORCEMENT, ROCKER PANEL, NO.6 LH | ||||
| 61432-12010 |
AE11# |
1 | ||
| 61473A - PLATE, PILLAR NO.3, LOWER RH | ||||
| 61473-12030 |
AE11# |
1 | ||
| 61474B - PLATE, PILLAR NO.4, LOWER LH | ||||
| 61474-12030 |
AE11# |
1 | ||
| 61611 - PANEL, QUARTER, RH | ||||
| 61601-13430 |
AE11# |
1 | ||
| 61601-13430 |
AE11# |
1 | ||
| 61612 - PANEL, QUARTER, LH | ||||
| 61602-13510 |
AE11# |
1 | ||
| 61602-13510 |
AE11# |
1 | ||
| 61621D - TROUGH, BACK DOOR OPENING, RH | ||||
| 61703-13020 |
AE11# |
1 | ||
| 61703-13020 |
AE11# |
1 | ||
| 61622D - TROUGH, BACK DOOR OPENING, LH | ||||
| 61704-13030 |
AE11# |
1 | ||
| 61704-13030 |
AE11# |
1 | ||
| 61631A - PANEL, QUARTER WHEEL HOUSE, OUTER RH | ||||
| 61631-13090 |
AE11# |
1 | ||
| 61631-13090 |
AE11# |
1 | ||
| 61632A - PANEL, QUARTER WHEEL HOUSE, OUTER LH | ||||
| 61632-13080 |
AE11# |
1 | ||
| 61632-13080 |
AE11# |
1 | ||
| 61633A - PANEL, QUARTER WHEEL HOUSE, INNER RH | ||||
| 61607-13220 |
AE11# |
1 | ||
| 61607-13180 |
AE111 |
1 | ||
| 61634A - PANEL, QUARTER WHEEL HOUSE, INNER LH | ||||
| 61608-13210 |
AE11# |
1 | ||
| 61608-13180 |
AE111 |
1 | ||
| 61641B - GUSSET, QUARTER WHEEL HOUSE, RH | ||||
| 61641-12070 |
AE11# |
1 | ||
| 61642B - GUSSET, QUARTER WHEEL HOUSE, LH | ||||
| 61642-12070 |
AE11# |
1 | ||
| 61645B - GUSSET, QUARTER WHEEL HOUSE, REAR RH | ||||
| 61645-12120 |
AE11# |
1 | ||
| 61646B - GUSSET, QUARTER WHEEL HOUSE, REAR LH | ||||
| 61646-12110 |
AE11# |
1 | ||
| 61703H - REINFORCEMENT SUB-ASSY, ROOF SIDE, INNER RH | ||||
| 61703-13030 |
AE11# |
1 | ||
| 61703-13010 |
AE11# |
1 | ||
| 61704J - REINFORCEMENT SUB-ASSY, ROOF SIDE, INNER LH | ||||
| 61704-13040 |
AE11# |
1 | ||
| 61704-13020 |
AE11# |
1 | ||
| 61711 - PANEL, ROOF SIDE, OUTER RH | ||||
| 61711-13100 |
AE11# |
1 | ||
| 61711-13100 |
AE11# |
1 | ||
| 61712 - PANEL, ROOF SIDE, OUTER LH | ||||
| 61712-13100 |
AE11# |
1 | ||
| 61712-13100 |
AE11# |
1 | ||
| 61715A - EXTENSION, ROOF SIDE, INNER UPPER RH | ||||
| 61715-13030 |
AE11# |
1 | ||
| 61715-13030 |
AE11# |
1 | ||
| 61716A - EXTENSION, ROOF SIDE, INNER UPPER LH | ||||
| 61716-13020 |
AE11# |
1 | ||
| 61716-13020 |
AE11# |
1 | ||
| 61731B - PANEL, ROOF SIDE, INNER RH | ||||
| 61707-13070 |
AE11# |
1 | ||
| 61707-13110 |
AE11# |
1 | ||
| 61732B - PANEL, ROOF SIDE, INNER LH | ||||
| 61708-13090 |
AE11# |
1 | ||
| 61708-13050 |
AE11# |
1 | ||
| 61735A - PANEL, ROOF SIDE, INNER REAR RH | ||||
| 61735-13080 |
AE11# |
1 | ||
| 61735-13080 |
AE11# |
1 | ||
| 61736A - PANEL, ROOF SIDE, INNER REAR LH | ||||
| 61736-13080 |
AE11# |
1 | ||
| 61736-13080 |
AE11# |
1 | ||
| 61745A - REINFORCEMENT, BACK DOOR OPENING, LOWER RH | ||||
| 61745-32010 |
AE11# |
1 | ||
| 61745-32010 |
AE11# |
2 | ||
| 61746A - REINFORCEMENT, BACK DOOR OPENING, LOWER LH | ||||
| 61745-32010 |
AE11# |
1 | ||
| 61745-32010 |
AE11#..BZT,STOUR,VTOUR,ZTOUR |
1 | ||
| 61788A - BRACKET, REAR BUMPER SIDE, NO.2 RH | ||||
| 61788-13010 |
AE11# |
2 | ||
| 61788-13010 |
AE11# |
1 | ||
| 61788A - BRACKET, REAR BUMPER SIDE, NO.2 RH | ||||
| 61788-13010 |
AE11# |
2 | ||
| 61788-13010 |
AE11# |
1 | ||
| 61824D - PLATE, NOISE CONTROL, NO.1 | ||||
| 61824-50020 |
AE11# |
2 | ||
| 61824-50020 |
AE11# |
2 | ||
| 61825A - PLATE, NOISE CONTROL, NO.2 | ||||
| 61815-32020 |
AE11# ﾌﾛﾝﾄ |
2 | ||
| 63345-12010 |
AE11# ｱﾘ(ﾑ-ﾝﾙ-ﾌ) |
2 | ||
| 61825-12010 |
AE11# |
2 | ||
| 61825-12010 |
AE11# ﾘﾔ |
2 | ||
| 61815-32020 |
AE11#..4FC,5F ﾌﾛﾝﾄ |
2 | ||
| 61825A - PLATE, NOISE CONTROL, NO.2 | ||||
| 61815-32020 |
AE11# ﾌﾛﾝﾄ |
2 | ||
| 63345-12010 |
AE11# ｱﾘ(ﾑ-ﾝﾙ-ﾌ) |
2 | ||
| 61825-12010 |
AE11# |
2 | ||
| 61825-12010 |
AE11# ﾘﾔ |
2 | ||
| 61815-32020 |
AE11#..4FC,5F ﾌﾛﾝﾄ |
2 | ||
| 61826A - PLATE, NOISE CONTROL, NO.3 | ||||
| 61824-12050 |
AE11# 厚さ=0.3 |
2 | ||
| 61824-12040 |
AE11# 厚さ=0.8 |
2 | ||
| 61824-12040 |
AE11# |
2 | ||
| 62151B - PAD, COWL SIDE SILENCER | ||||
| 62151-12130 |
AE11# |
2 | ||
| 62151-12130 |
AE11#..4FC,5F |
2 | ||
| 62152B - PAD, COWL SIDE SILENCER, NO.2 | ||||
| 62554-12130 |
AE11#..4FC,5F 80 X 180 |
2 | ||
| 62152-12050 |
AE11# 90 X 140 |
2 | ||
| 62554-12130 |
AE11# 80 X 180 |
2 | ||
| 62152-12050 |
AE11# 90 X 140 |
2 | ||
| 62554-12160 |
AE11# 70 X 150 |
2 | ||
| 62553D - PAD, PILLAR, NO.3 | ||||
| 62553-12120 |
AE11# |
4 | ||
| 62553-12120 |
AE11# |
2 | ||
| 62554B - PAD, PILLAR, NO.4 | ||||
| 62554-12130 |
AE11# |
2 | ||
| 62554-12160 |
AE11# |
2 | ||
| 67814 - PAD, QUARTER PANEL SILENCER, NO.2 | ||||
| 67814-13010 |
AE11# |
1 | ||
| 67814-13010 |
AE11# |
1 | ||
| Common parts | ||||
| 61667-12100 | ||||
| 90105-08120 | ||||
| 90179-04026 | ||||
| 90179-06263 | ||||
| 90179-08102 | ||||
| 90333-30008 | ||||
| 90480-26011 | ||||
| 90950-01130 | ||||
| 90950-01580 | ||||
| 90950-01637 | ||||
| 90950-01784 | ||||
| 90950-01866 | ||||
| Linked diagrams | ||||
| 7601 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
Unable to retrieve price information.
